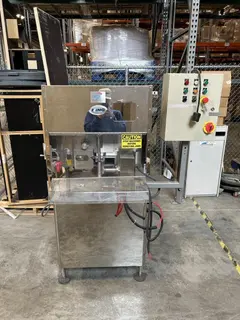

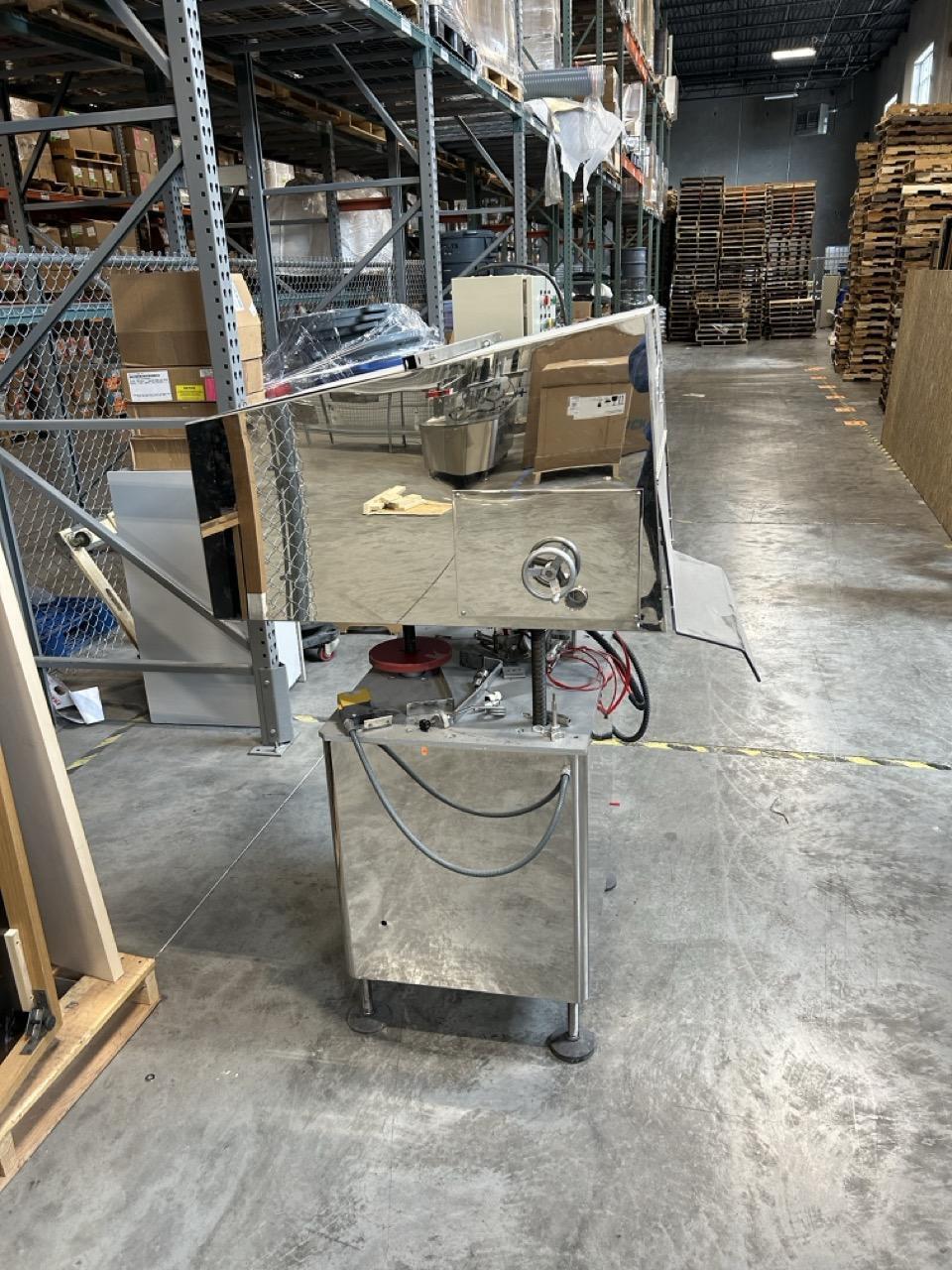

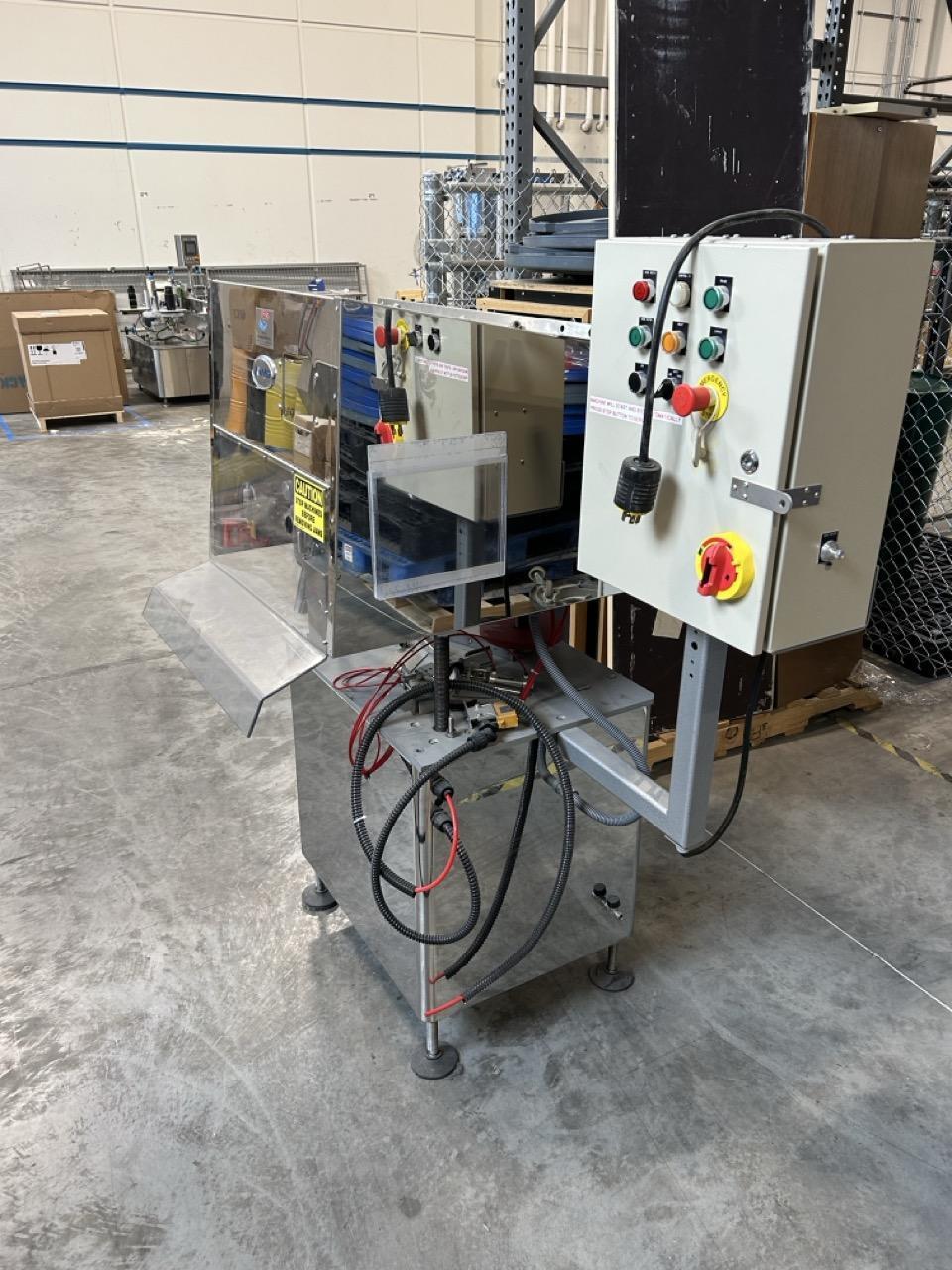

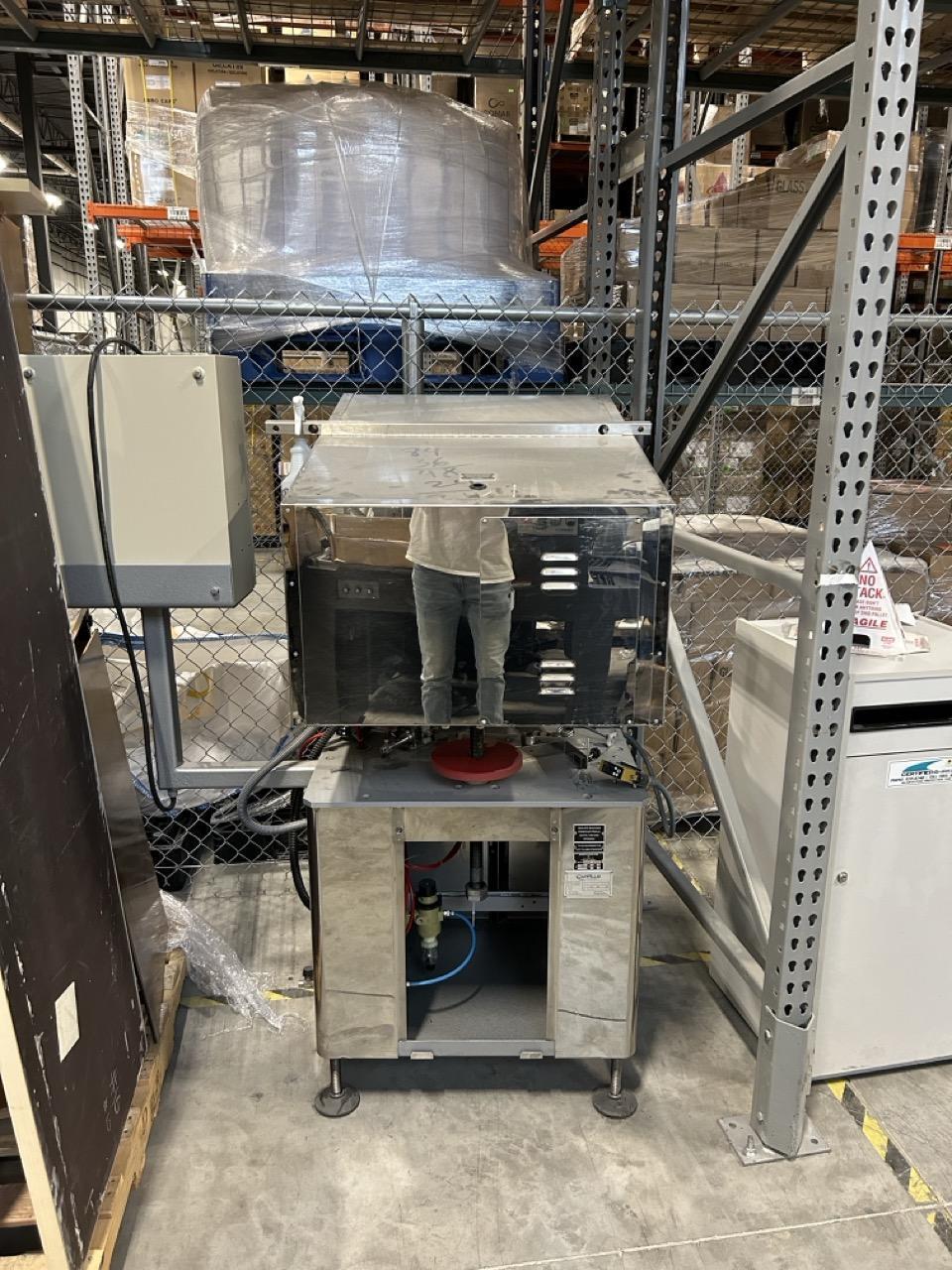

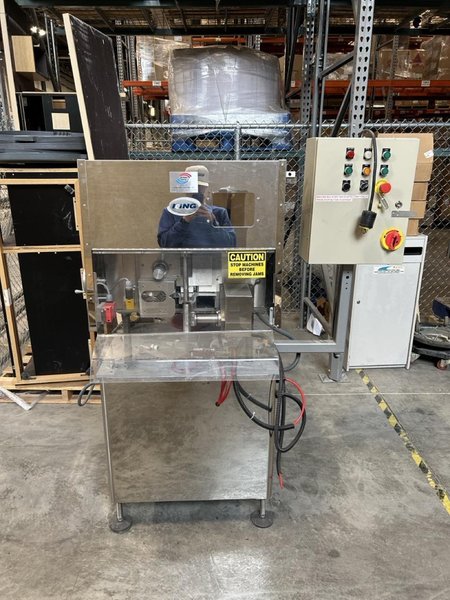

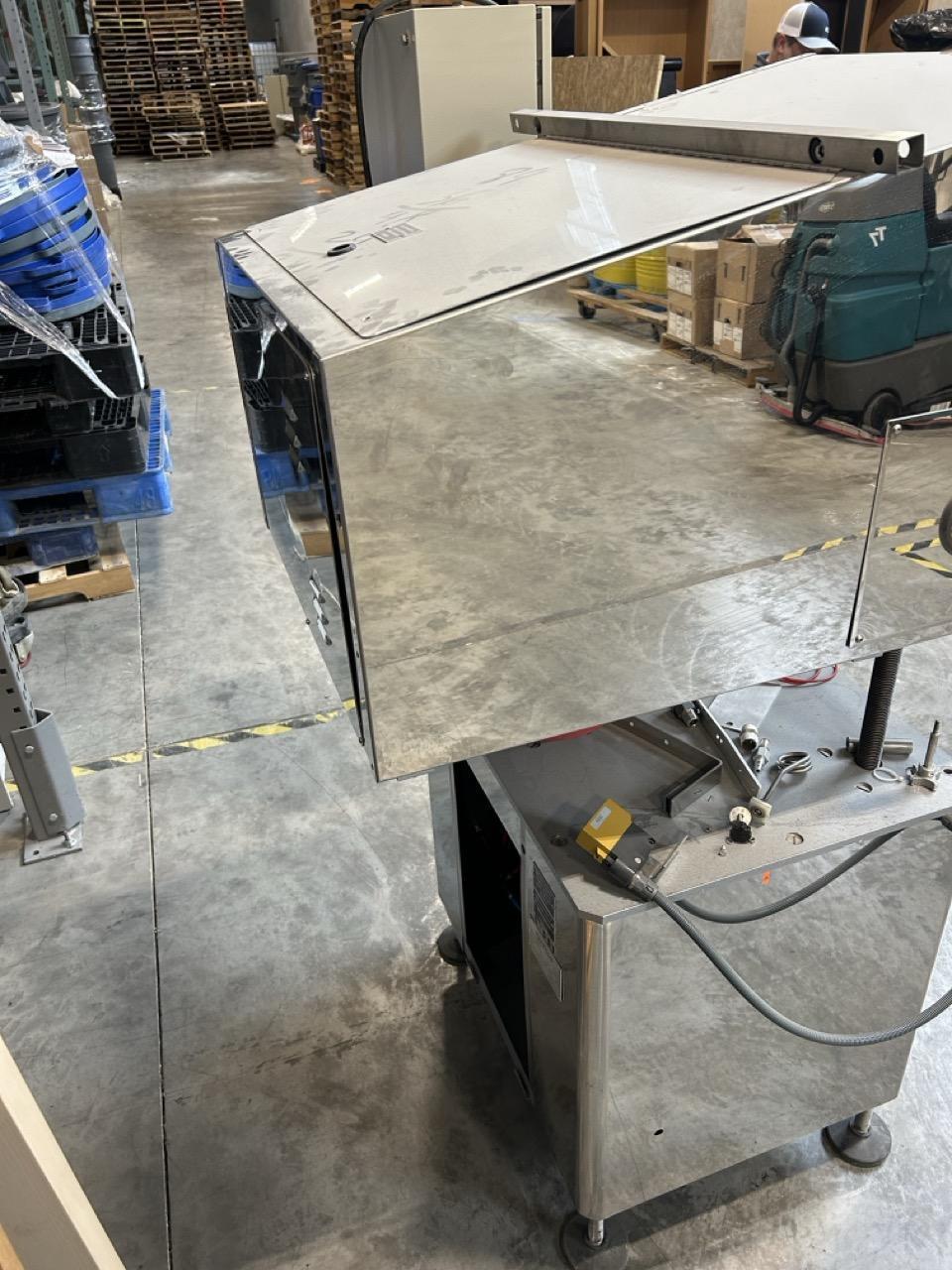

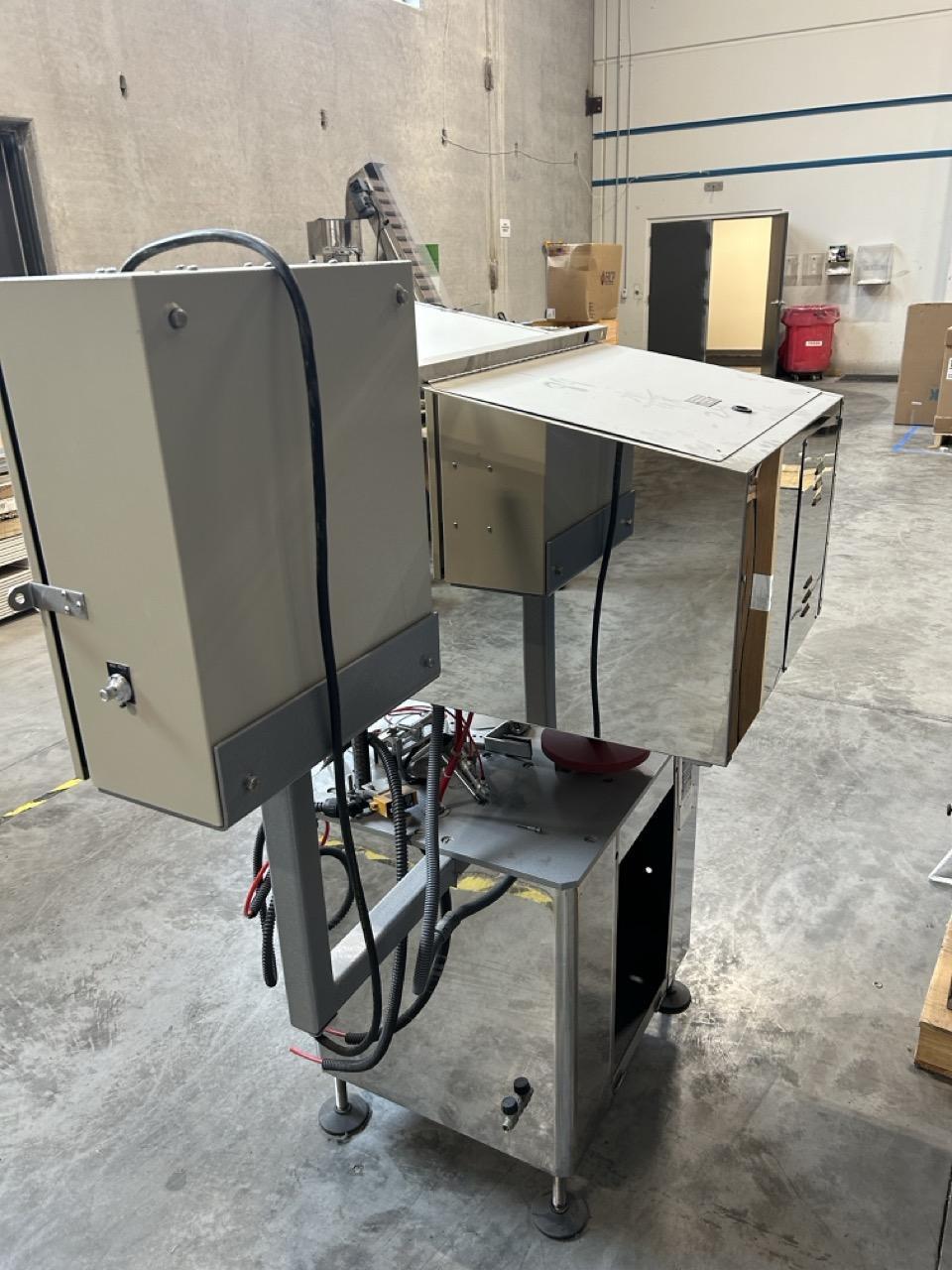

CapPlus CF100RU Capsule Filler – 3-Phase, 220 V Industrial Capsule Filling Component (Made in England, 2003)

Equipment Overview

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,The CapPlus CF100RU is an industrial-grade capsule-filling unit manufactured by C.E. King Ltd in England. Designed to integrate into pharmaceutical or nutraceutical packaging lines, it operates on 220 VAC 3‑phase power. As a compact model, the CF100RU is suited for high-consistency capsule filling in controlled production environments. Built with stainless panels and engineered for cleanroom or GMP settings, its rugged design supports reliable long-term operation.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Key Features and Specifications – 12‑station turret automatic filler, production rate up to 100,000 capsules/hour – Compact industrial footprint: ~1,500 × 1,650 mm; weight ~1,900 kg – Heavy-duty steel frame with vibration resistance – FDA-approved 304 stainless steel contact parts, easy-clean design – Four swing-up acrylic doors for operator safety and dust control – PLC control with color touchscreen user interface – Built-in vacuum pump eliminating need for external vacuum source – Frequency-controlled AC drive with adjustable torque limiter – Capsule handling: magazines, separation station, powder auger dispenser, micro-adjustable tamping pins, reject station, closing/ejection modules – Capsule size compatibility: #00, 0, 1, 2, 3, 4 (standard); some support for #000, #5 – Electrical: 220 V / 3‑ph / 60 Hz; main motor rating ~1.5 kW

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
