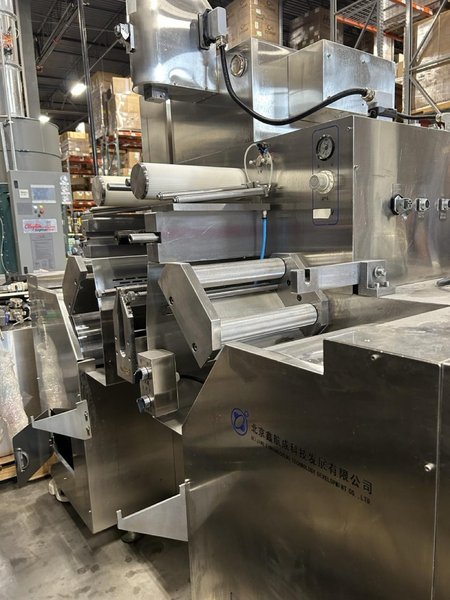

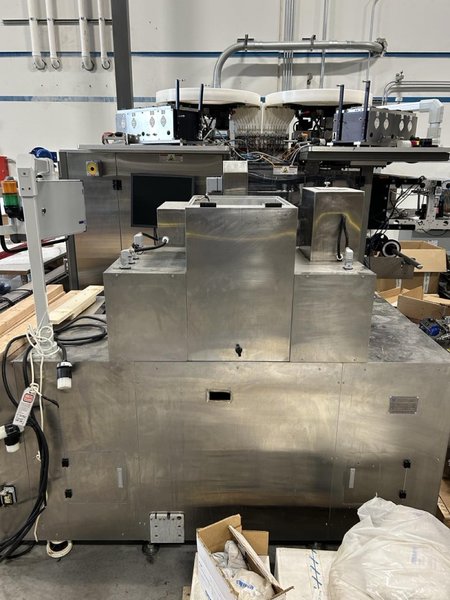

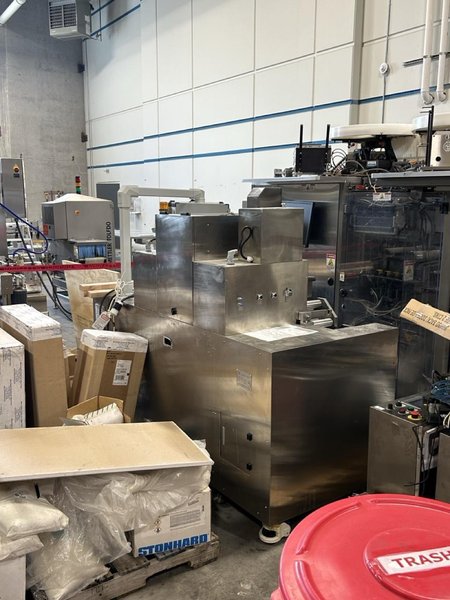

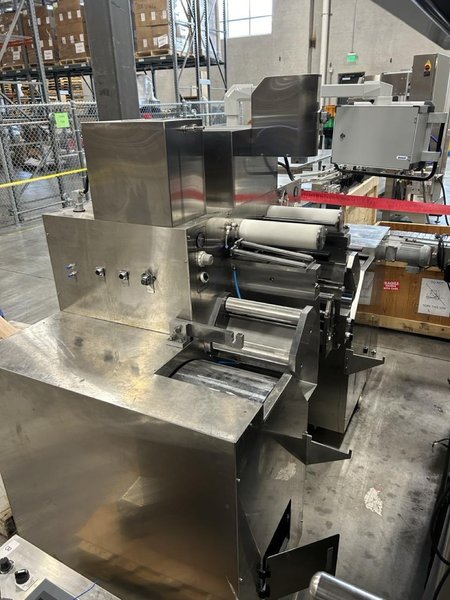

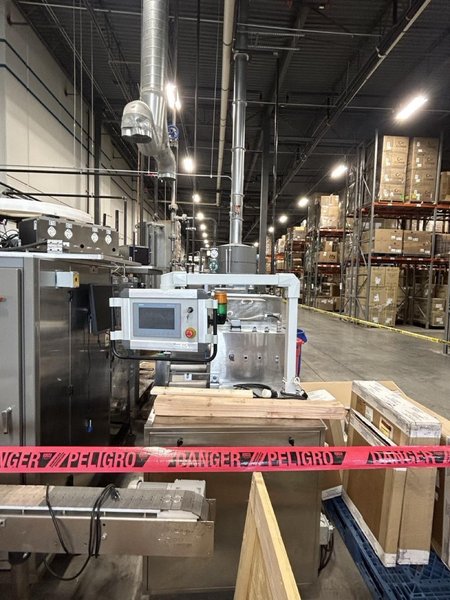

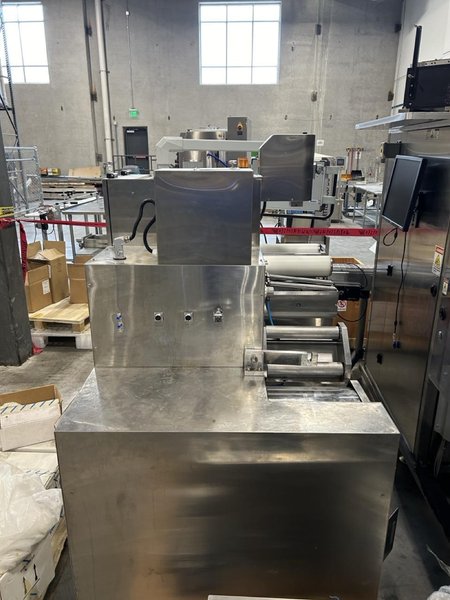

YWJ250-II Fully Automatic Softgel Encapsulation Machine – 12 kW, 115k/hr Capacity, PLC-Controlled

Equipment Overview

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,The YWJ250-II is a high-capacity softgel encapsulation machine designed for pharmaceutical or nutraceutical operations. It supports 20-plunger dosing, precision fill control, and integrated water/air cooling. Rated for up to 115,000 capsules per hour, it features PLC recipe control, pneumatic clamping, and CE/GMP-ready build. Stainless steel chassis, 12 kW power draw, and standard mold size φ150×250 mm place it in the upper tier of automated gelatin processing systems.

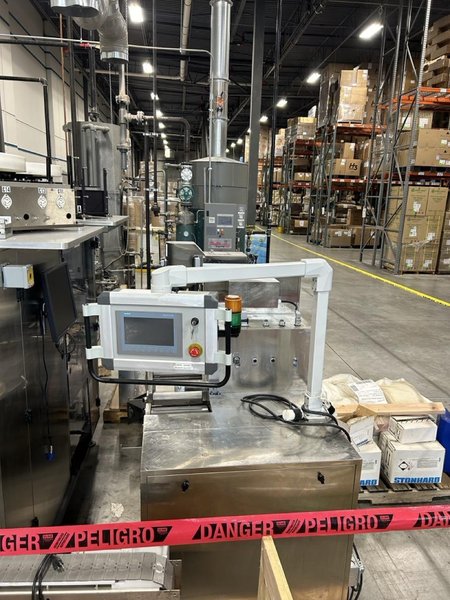

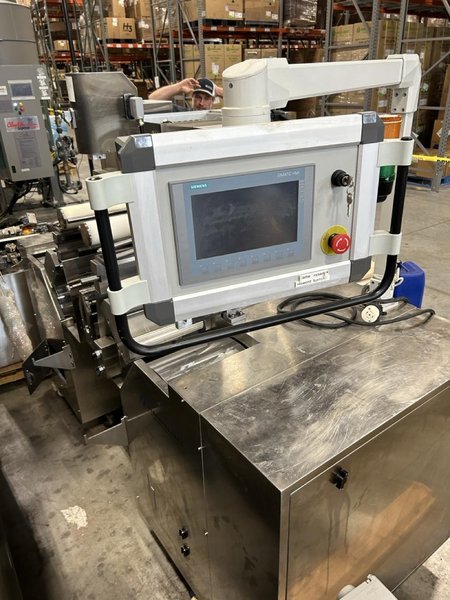

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Key Features and Specifications – Fully automatic softgel encapsulation system – Rated production: up to 115,440 capsules/hour (8# OV at 4 rpm) – Water-bath injection ±0.1°C temperature control – Mold size: φ150×250 mm; speed: 0–5 rpm – Control accuracy: ±0.5% (≥500 mg), ±1.5% for suspended fills – Power: 12 kW / 360–380 V / 3-phase – PLC touchscreen with recipe memory – 20-plunger pump for accurate volumetric fill – Siemens/Schneider electrical components – Stainless steel exterior, weight ~1,500 kg – Dimensions approx. 2040 × 960 × 1900 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
