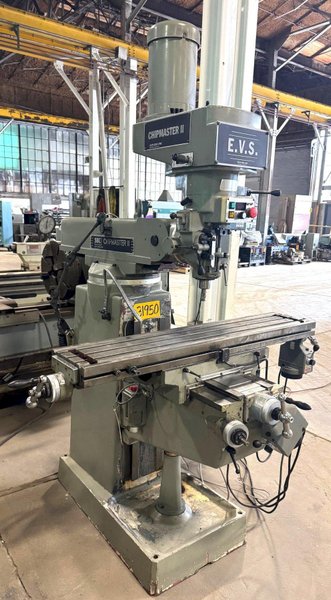

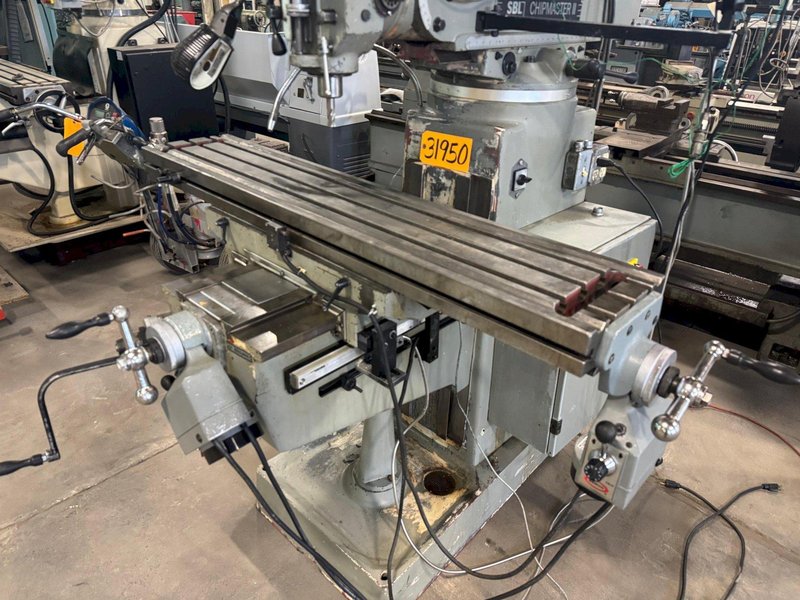

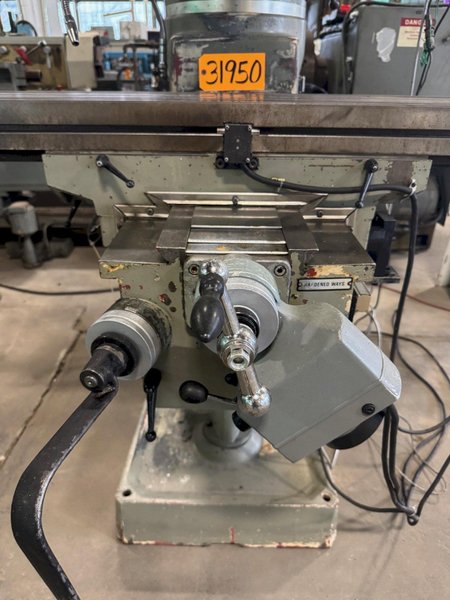

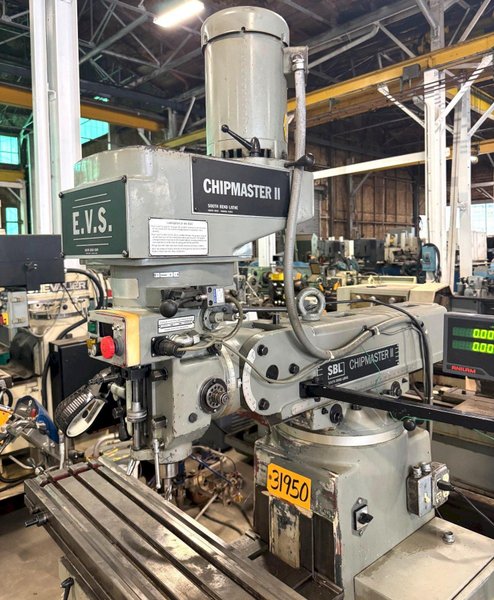

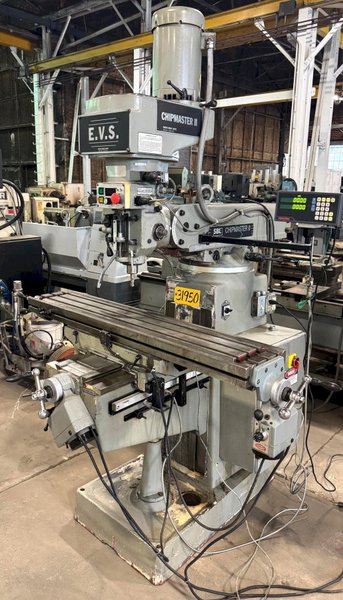

South Bend Vertical Mill Chipmaster II, 10" x 50" Tbl., 5 HP V-Speed, DRO

South Bend Vertical Mill Chipmaster II, 10" x 50" Tbl., 5 HP V-Speed, DRO

Name: South Bend Vertical Mill Chipmaster II, 10" x 50" Tbl., 5 HP V-Speed, DRO
Brand: SOUTH BEND
SKU: 31950
Availability: PreOrder

Brand

SOUTH BEND

Location

Ohio

REQUEST FINANCING

Specifications
Files & Videos

Table-W	10 inches
Table-L	50 inches
Travel-Long	33 inches
Travel-Cross	16 inches
Power	5 horsepower
RPM	6000
Taper	R-8
CNC Control	no
Weight	3200 pounds

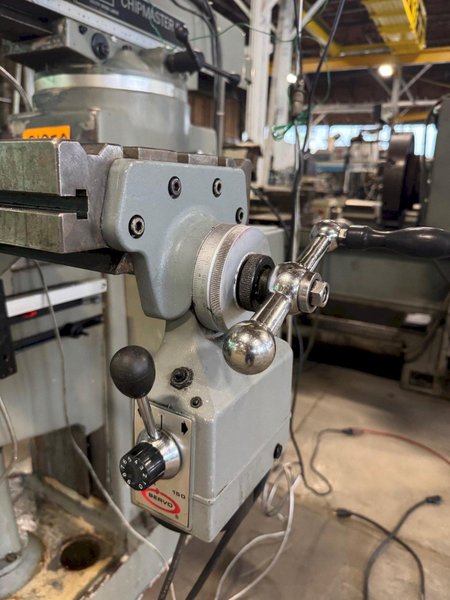

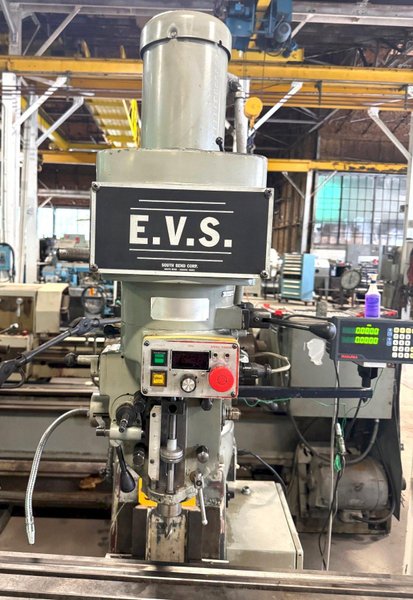

SOUTH BEND VERTICAL MILL MODEL: Chipmaster II SERIAL NUMBER: SE37301 GENERAL SPECIFICATIONS Table Size: 10" x 50" Longitudinal Travel, Manual: 33" Longitudinal Travel, Power: 30" Vertical Knee Travel: 16" Cross Travel: 16" Ram Travel: 22" Spindle Taper: R-8 Spindle Speeds, Infinitely Variable: 55 - 6000 RPM Power Feed: (3) .0015", .003", .006" EQUIPPED WITH 5 HP Spindle Motor Electronic Variable Speed Drive w/Digital LED Display (New) Newall NMS300 Two Axis Digital Readout Servo Type 150 Power Feeds On X & Y Axis One-Shot Lubrication Approximate Weight: 3300 Lbs. F.O.B. Cincinnati, Ohio ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
