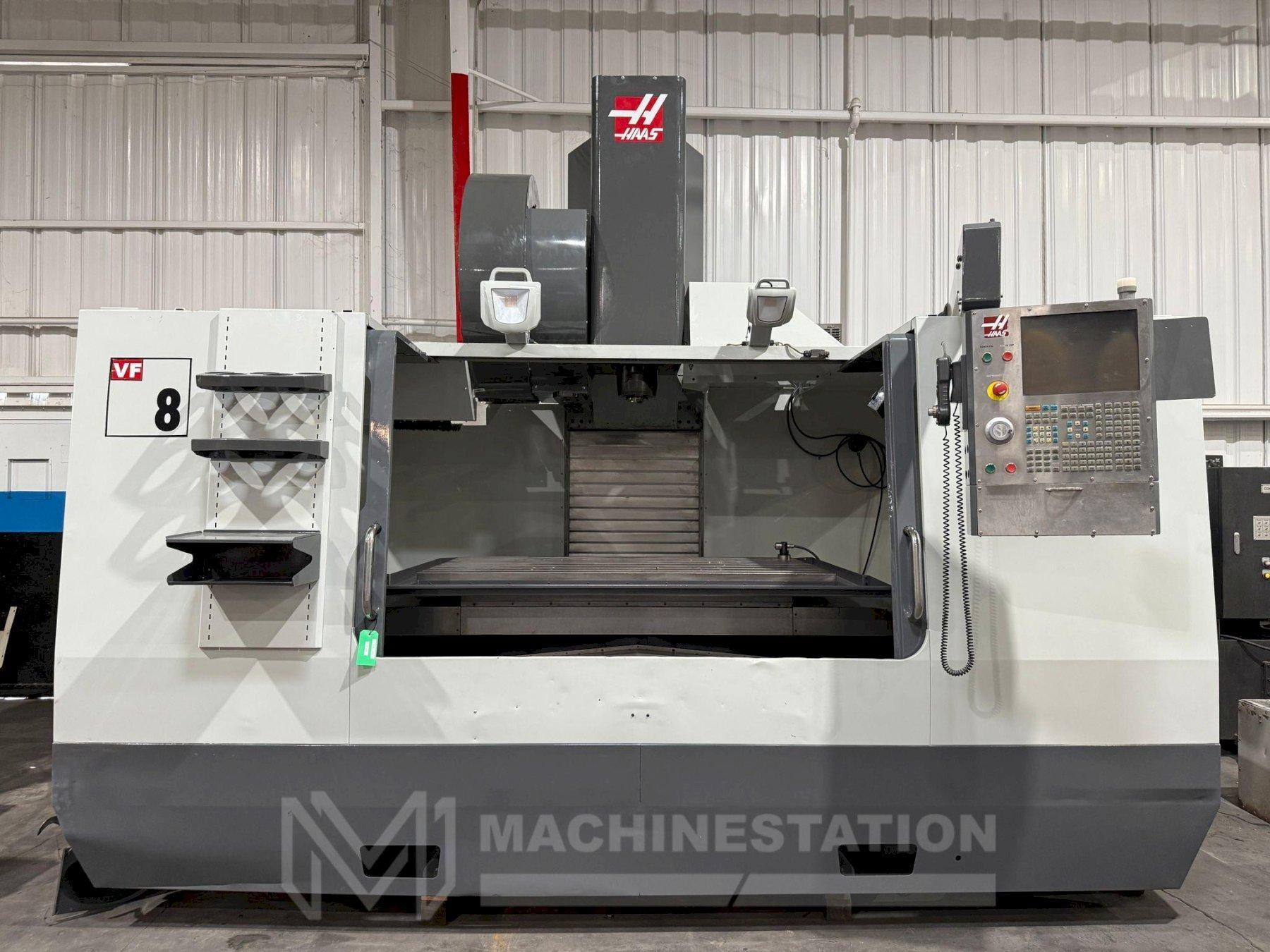

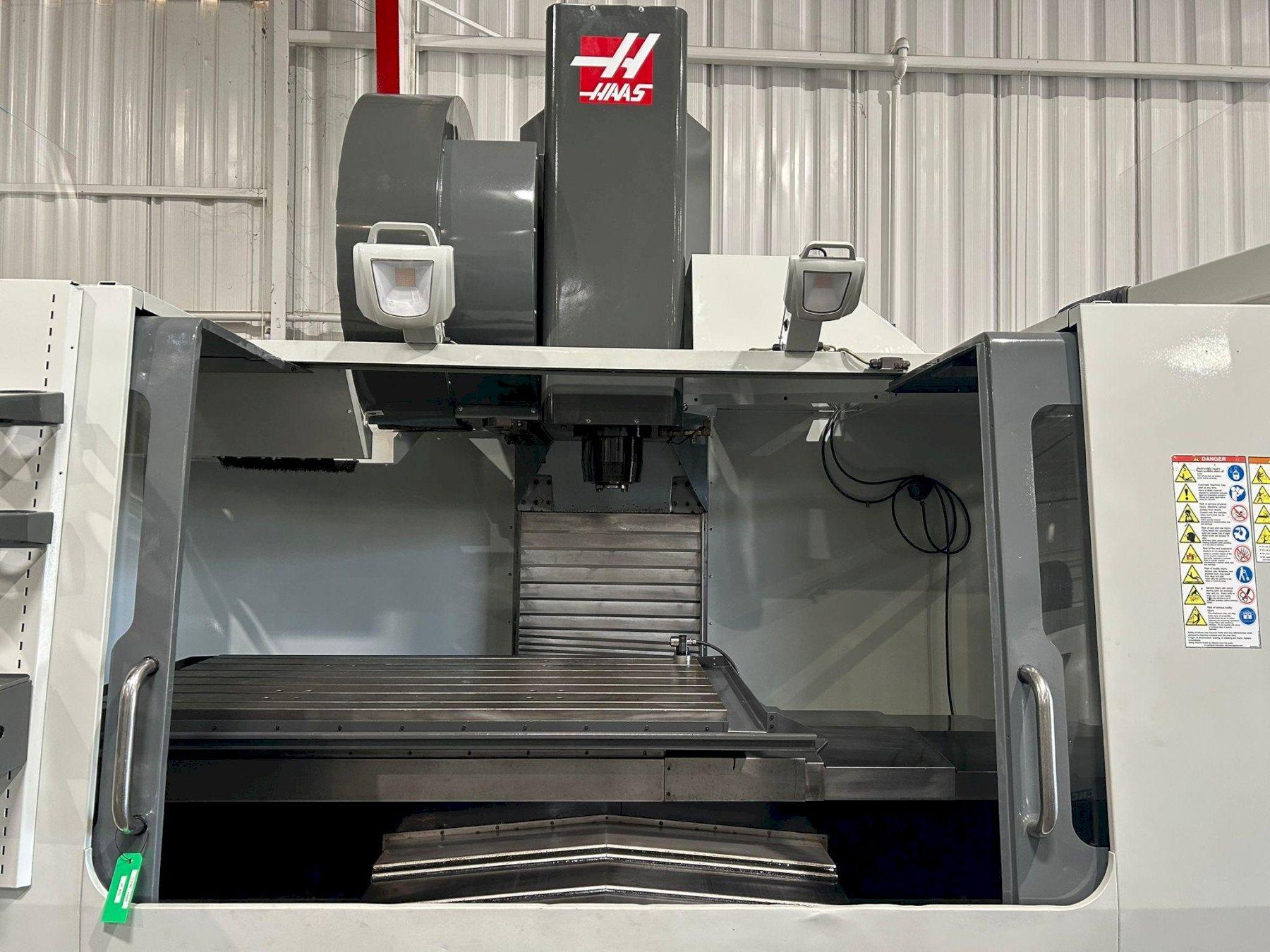

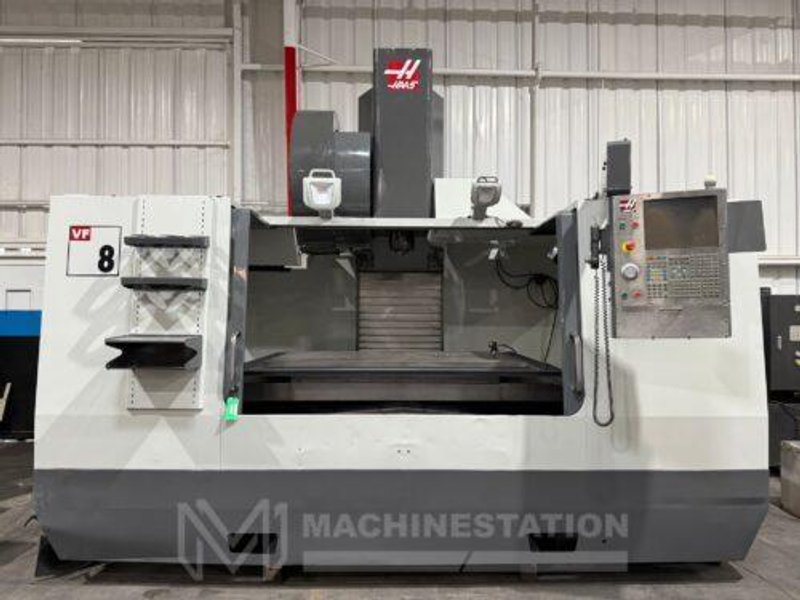

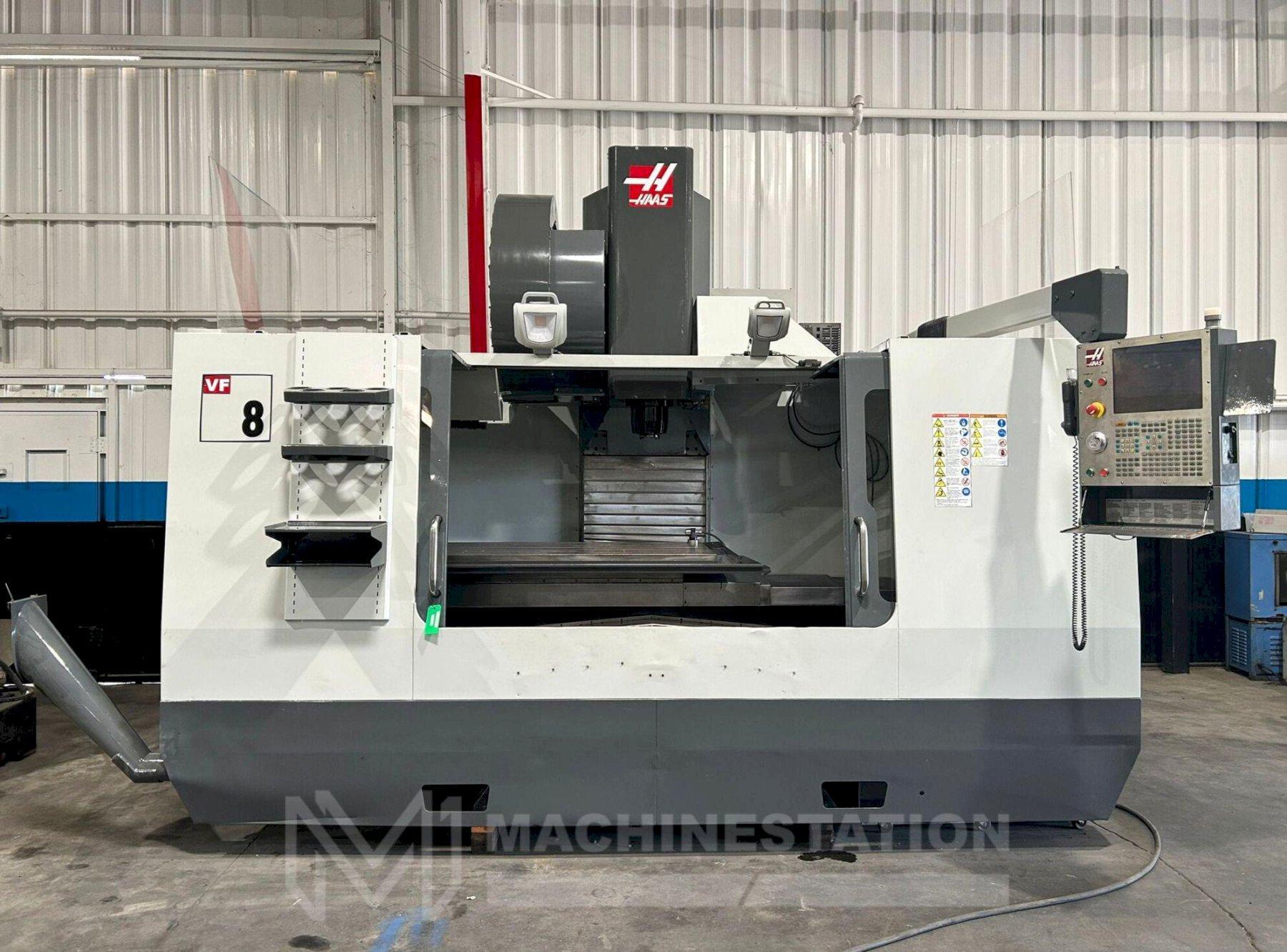

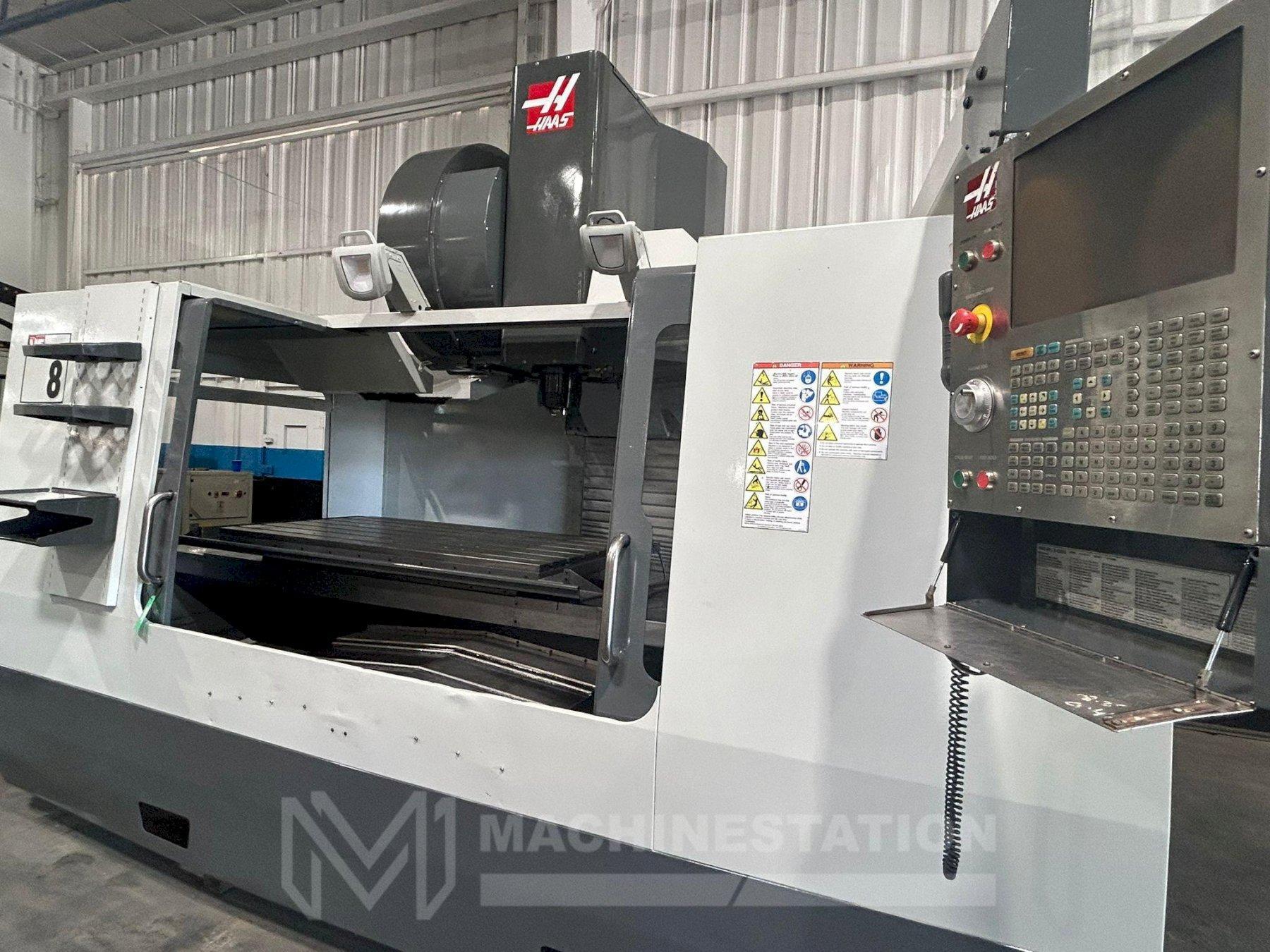

Haas VF-8/50 CNC Vertical Machining Center – 50 Taper Mill

Haas VF-8/50 CNC Vertical Machining Center – 50 Taper Mill

Name: Used HAAS VF-8/50 For Sale 112790
Brand: HAAS
SKU: 112790

Brand

HAAS

Location

California

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	HAAS
Model:	VF-8/50
Year:	2006
Condition:	Used – Good

Key Features of the Haas VF-8/50:

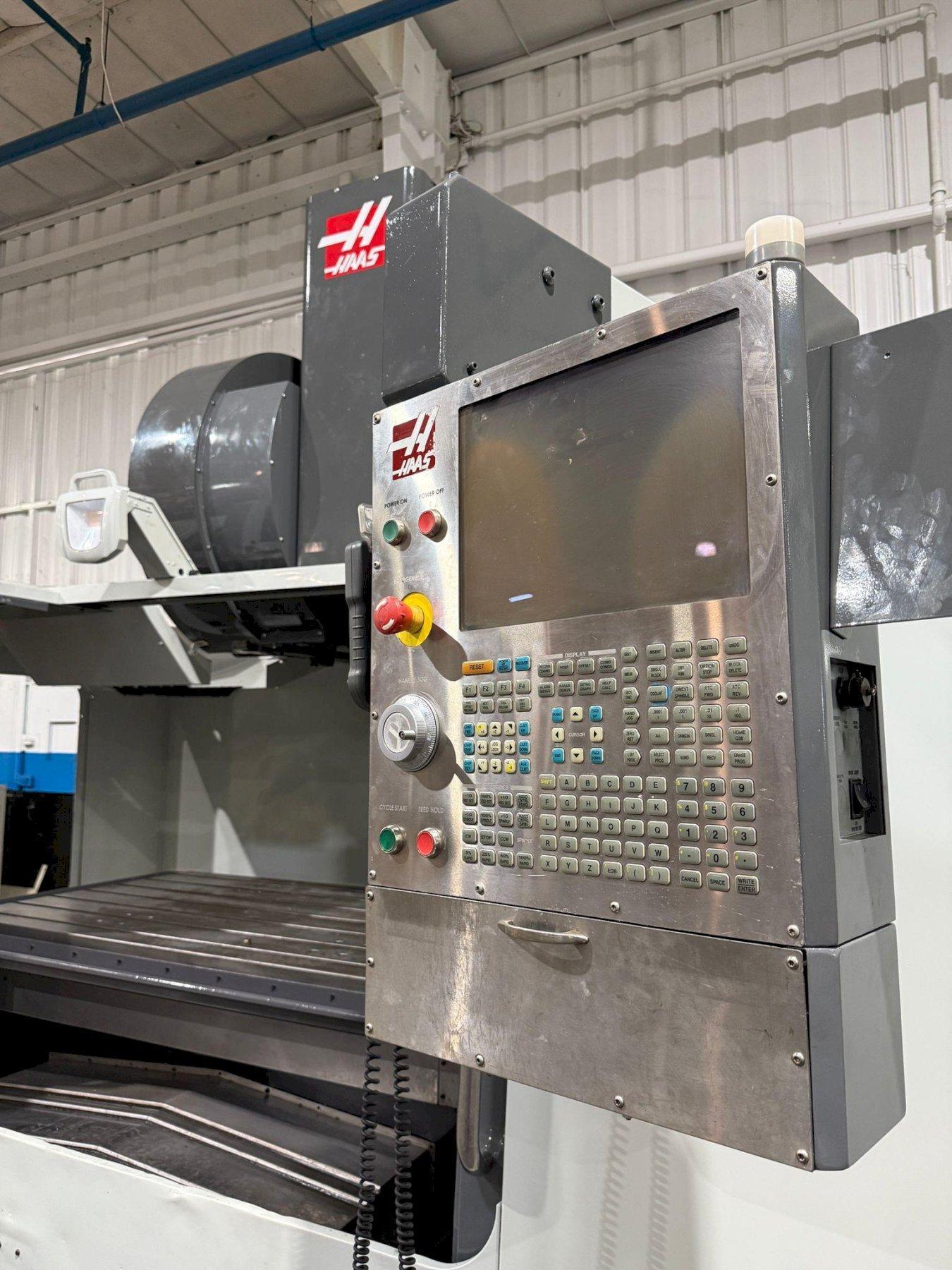

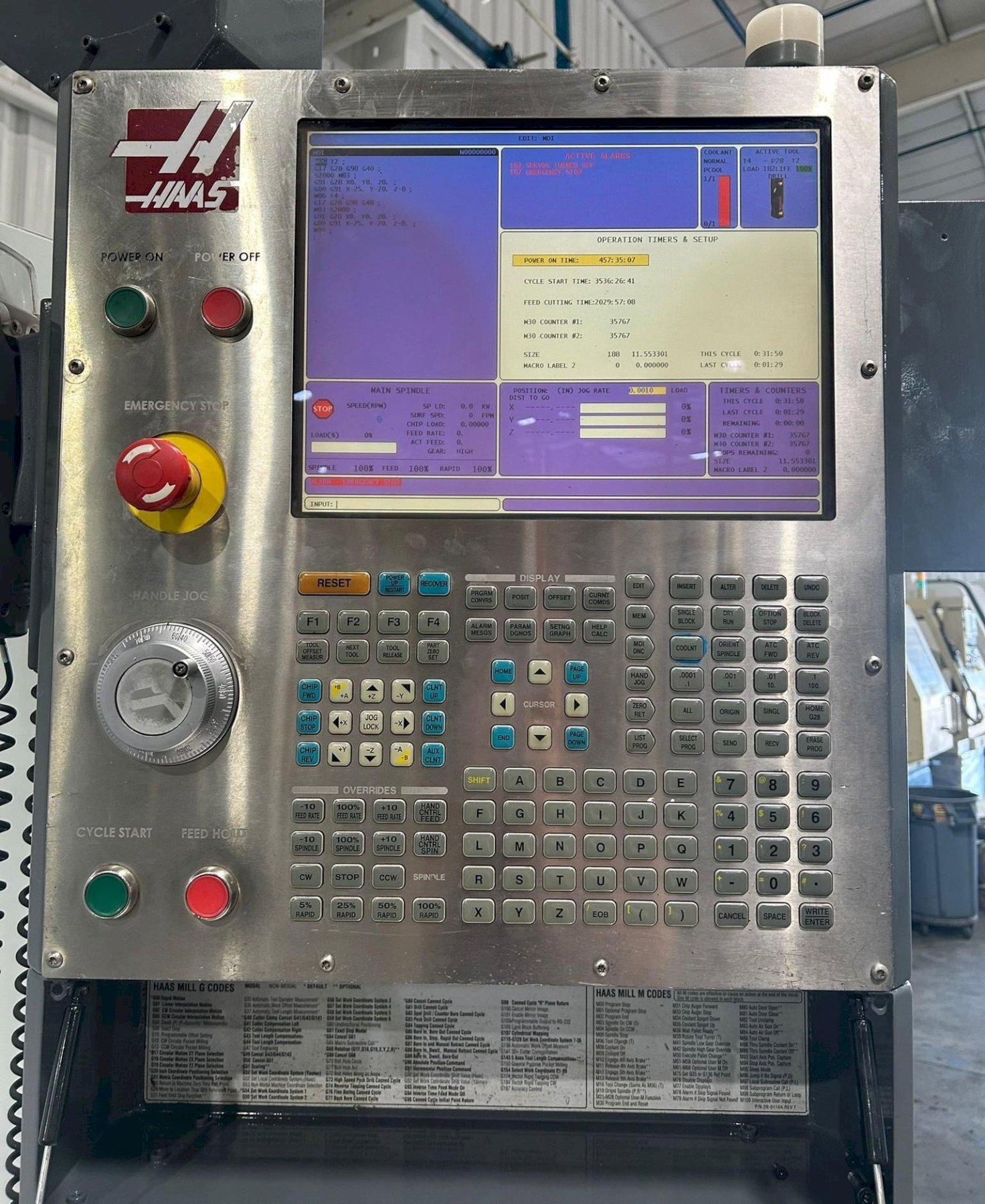

Haas CNC Control
7500 RPM High-Speed Spindle
50 Taper Spindle

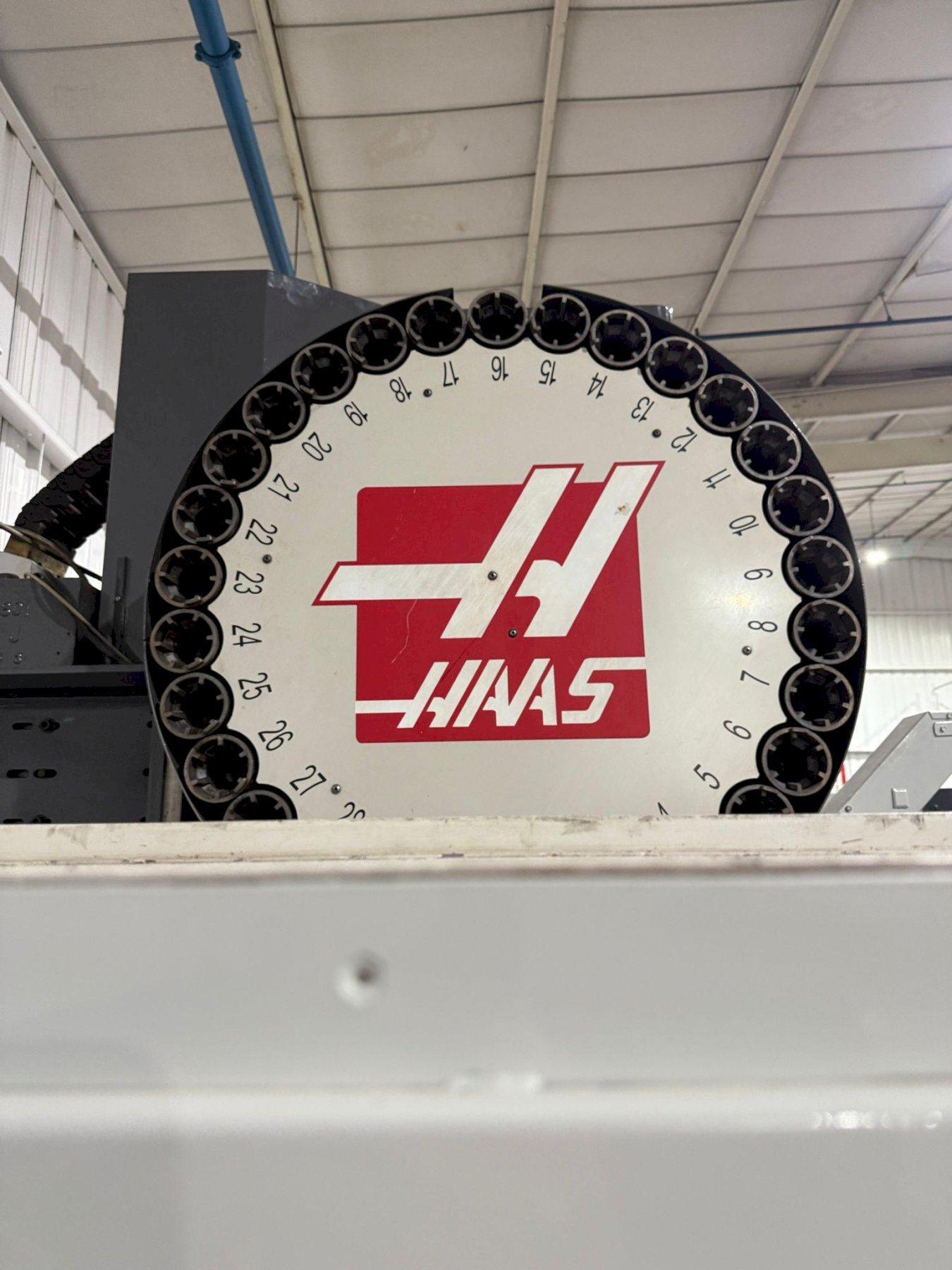

30 Station Side Mounted Tool Changer
30 HP High Torque Spindle.
Renishaw Probing System (Probe Needed)

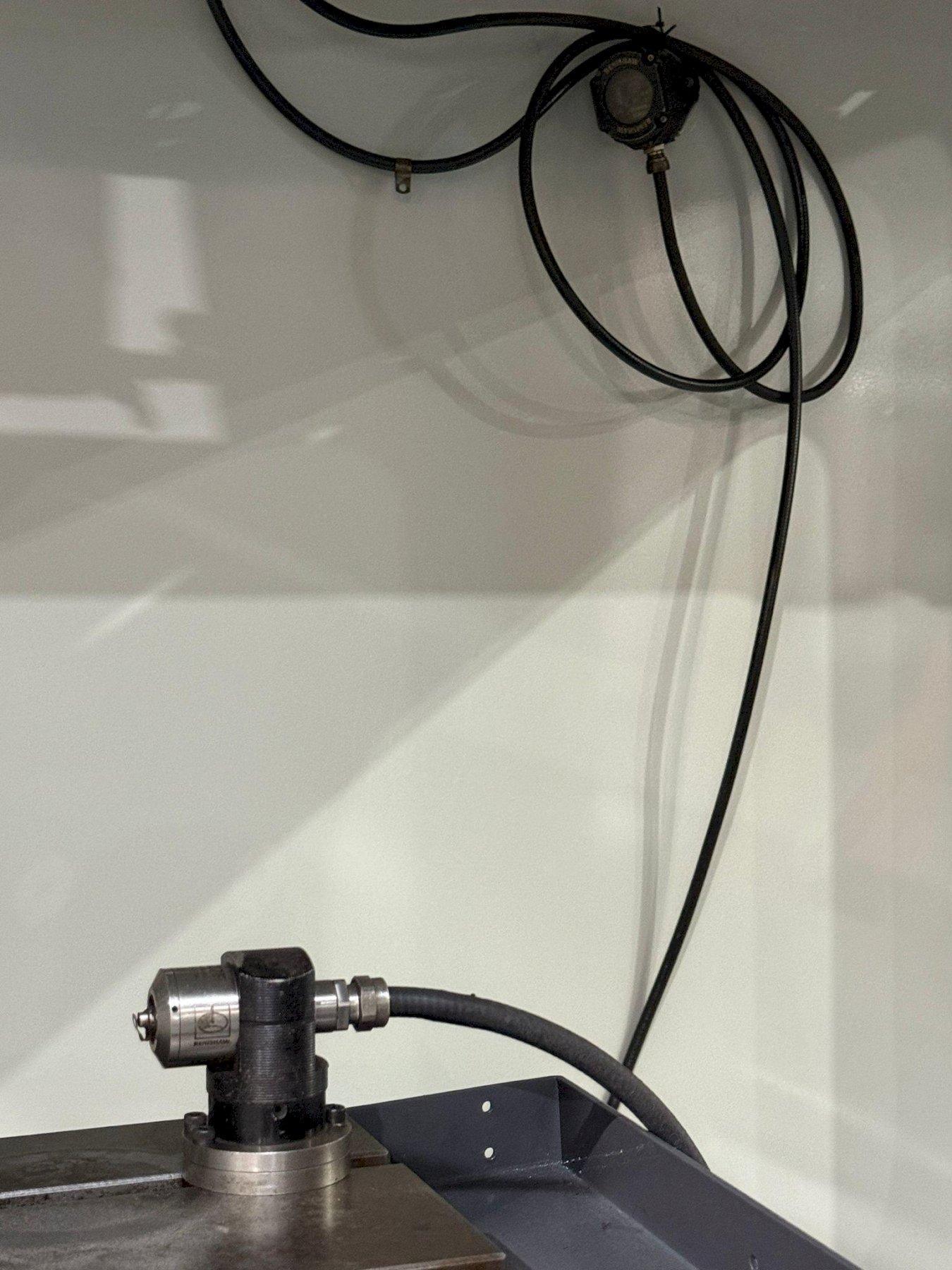

Tool Presetter (Incomplete)
MPG Handwheel Control
Rigid Tapping
Coolant System
Chip Auger

Travel:

X-Axis: 64″
Y-Axis: 40″
Z-Axis: 30″
Rapid Traverse Rates: 600 Inch Per Minute
Cutting Feed Rates: 500 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4″ – 34″

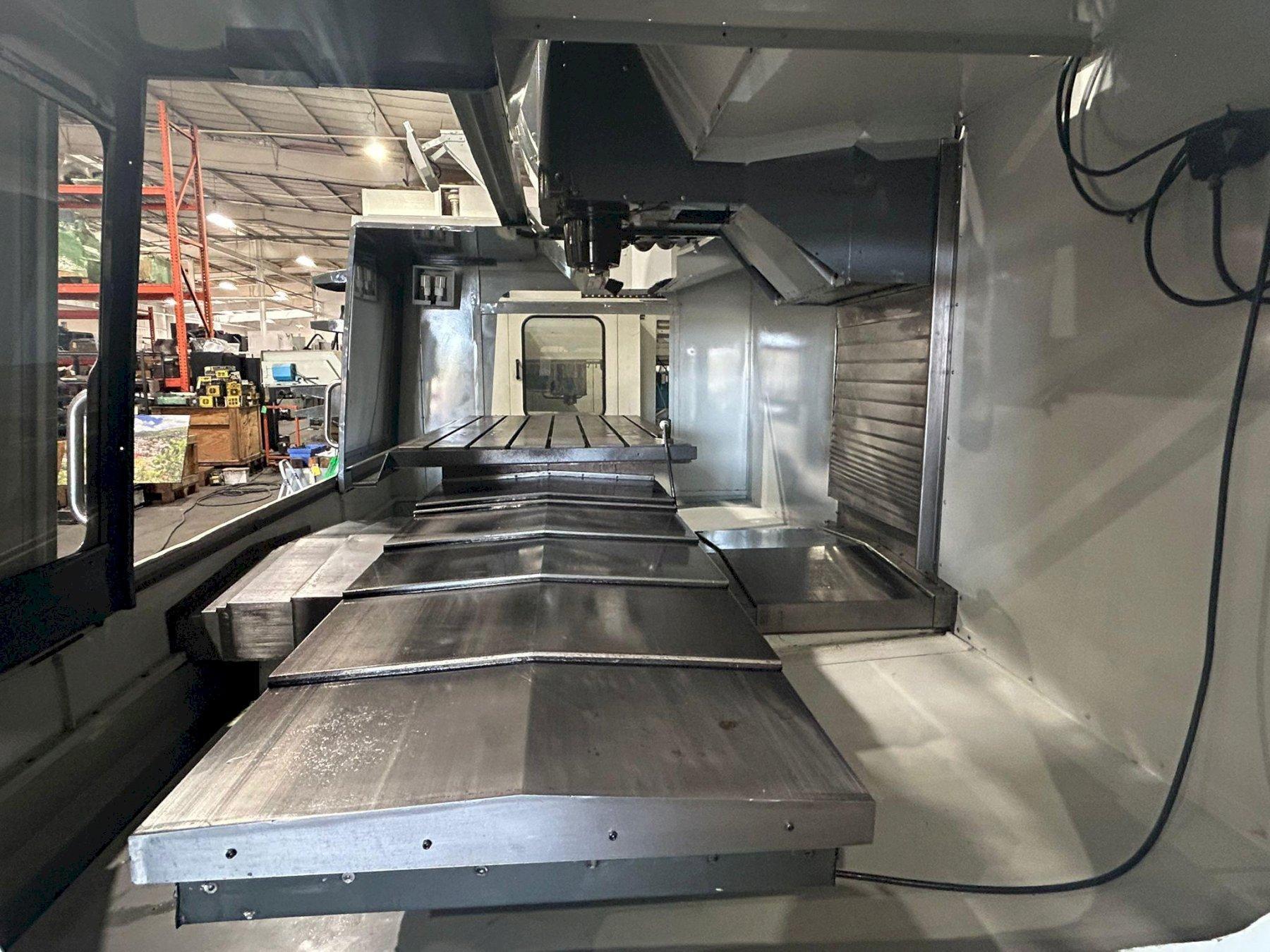

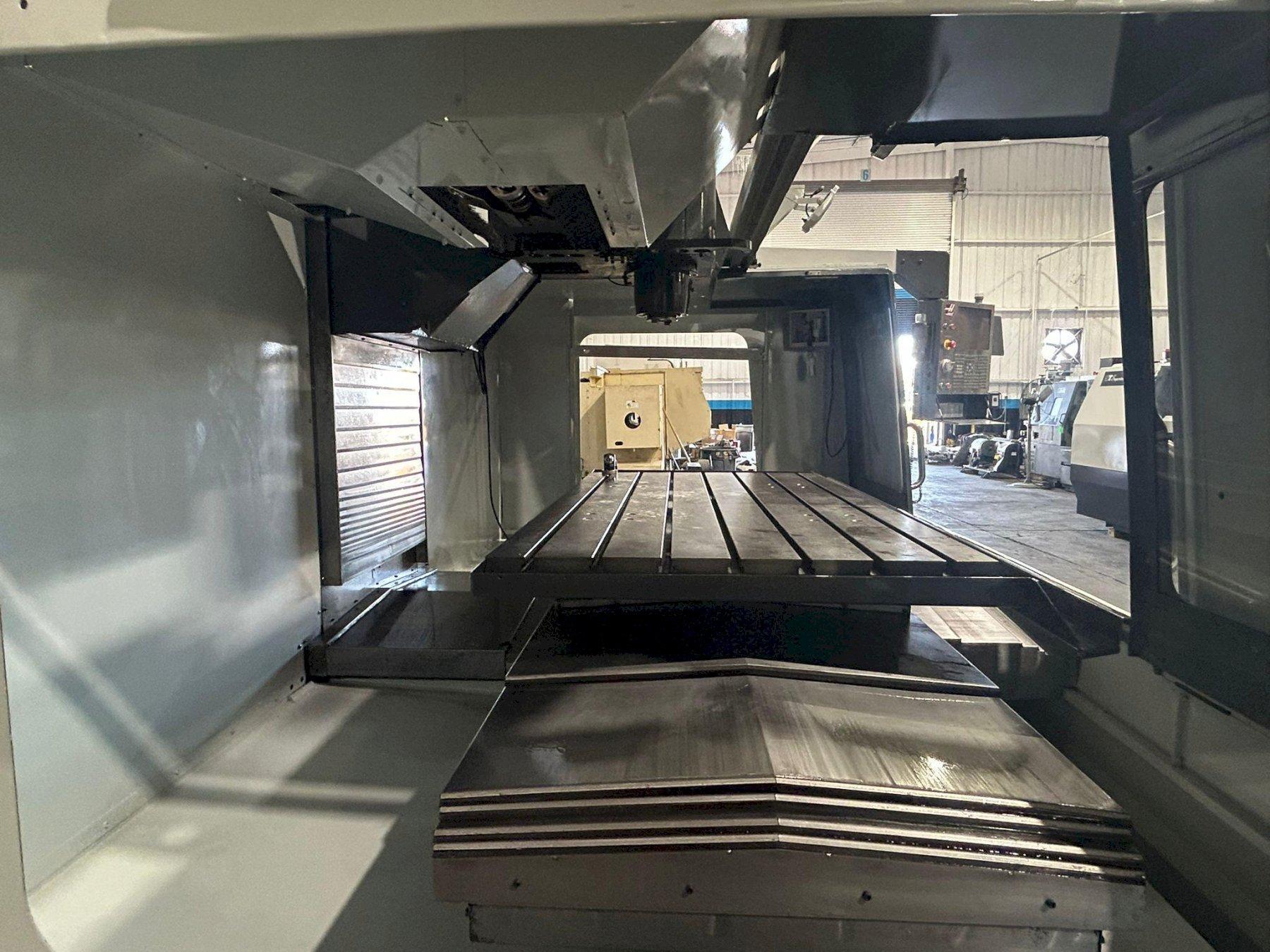

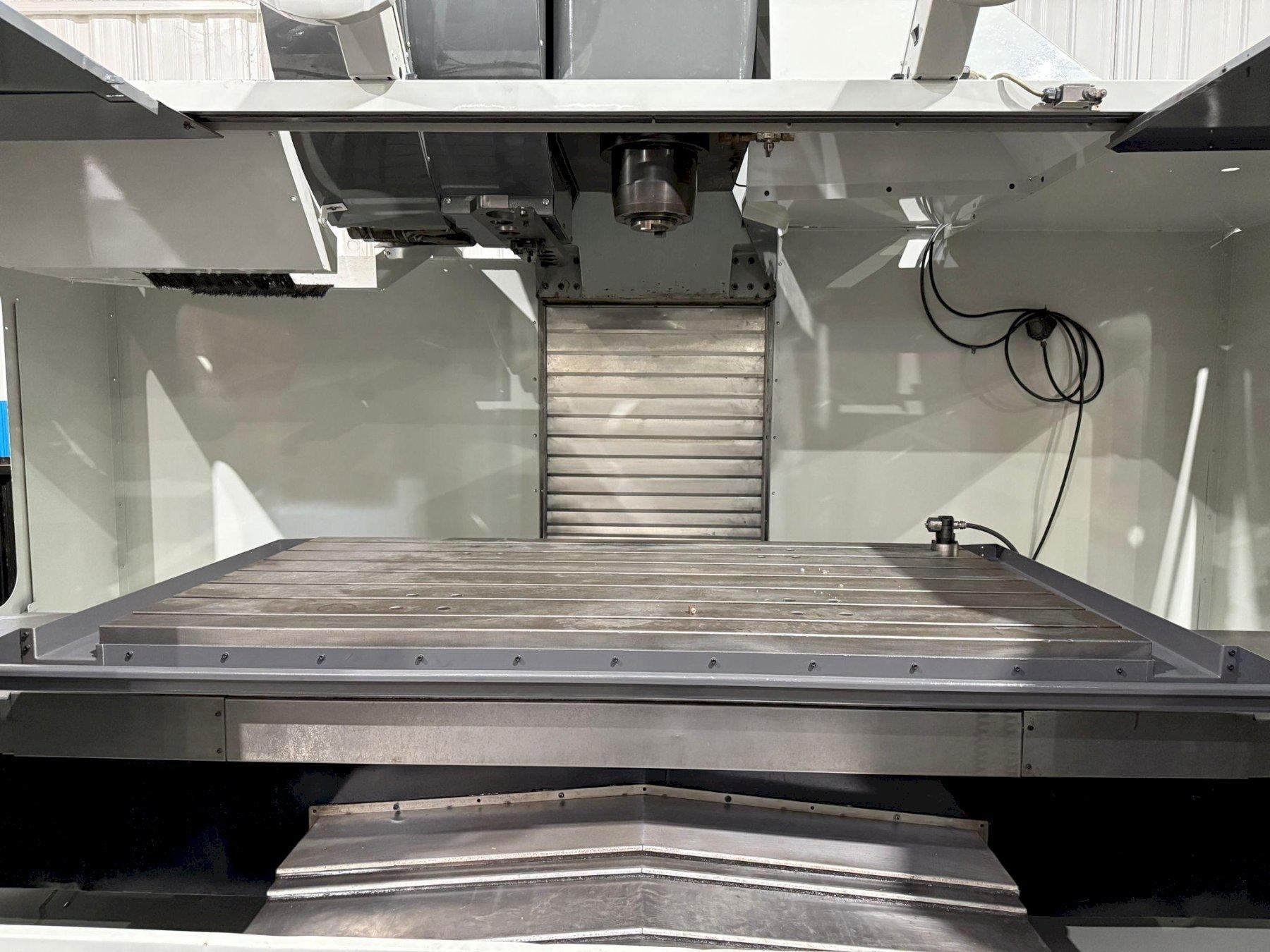

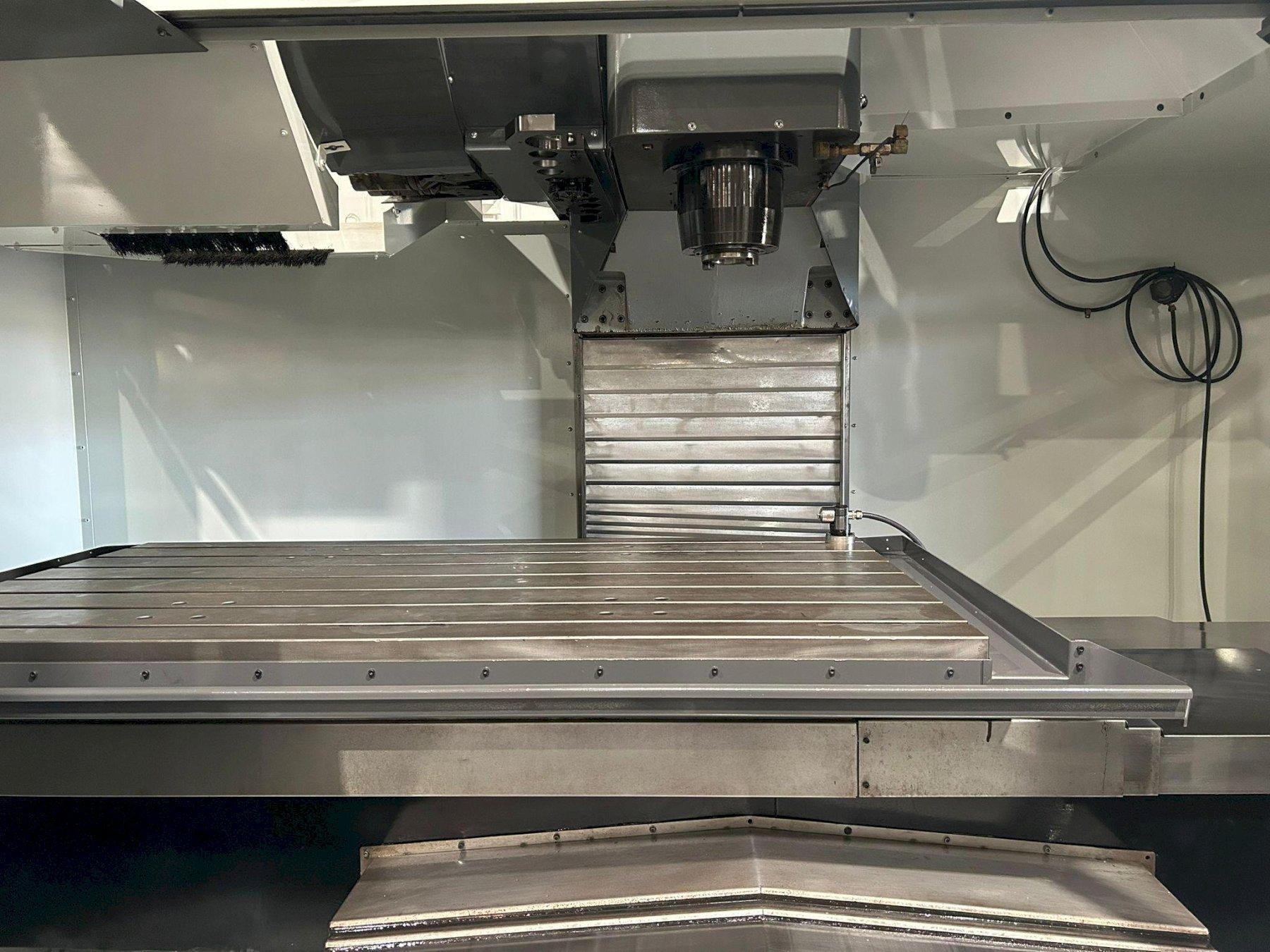

Table:

Length: 64″
Width: 36″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 4000 lbs

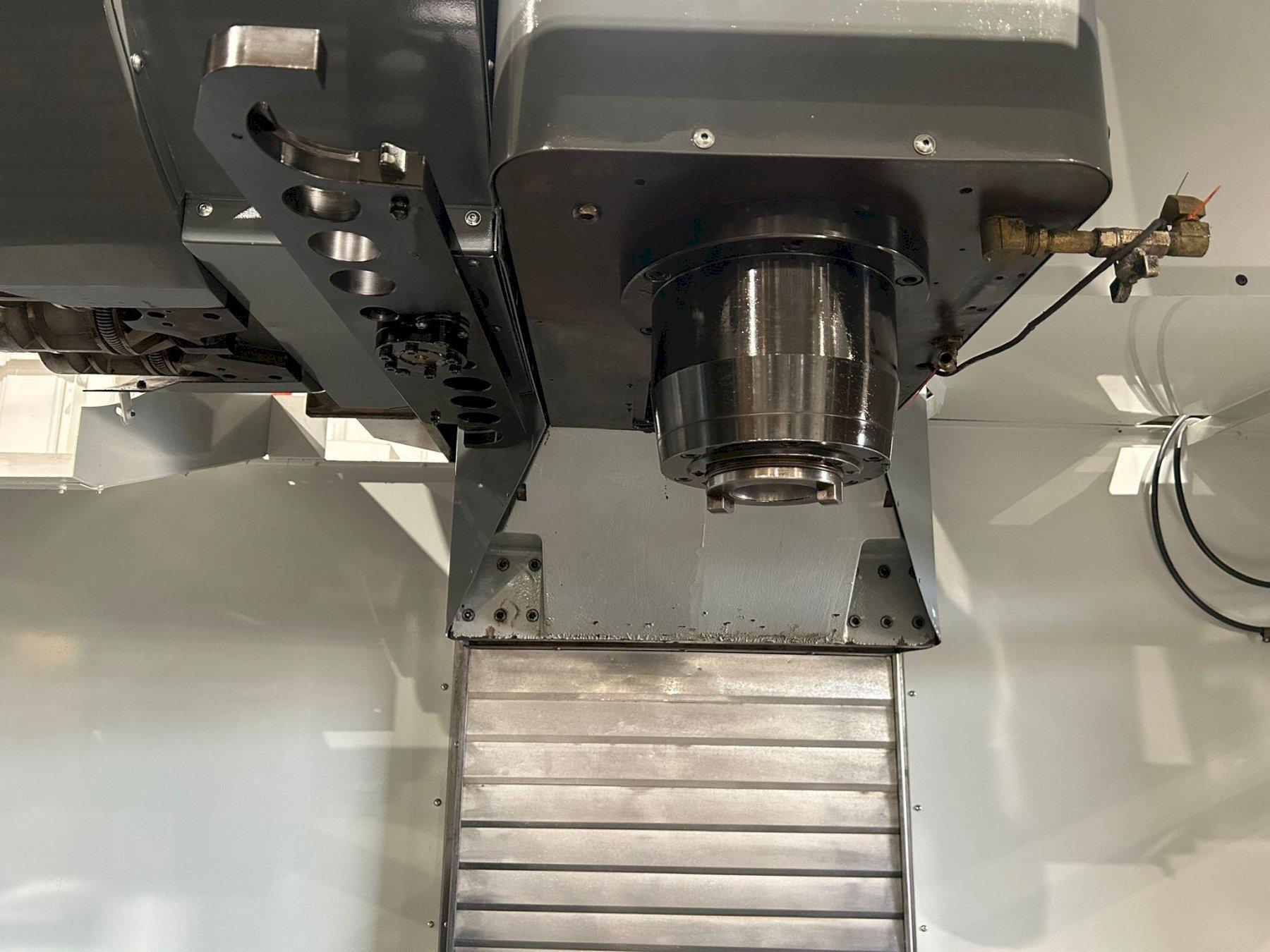

Spindle:

Taper Size: 50
Speed Range: 7500 RPM
Spindle Power: 30 HP

Automatic Tool Changer:

Capacity: 30 Tools
Max Tool Weight: 17 lbs
Max Tool Dia: 6″
Max Tool Length: 16″
Tool Changing Time: 2.4 Seconds

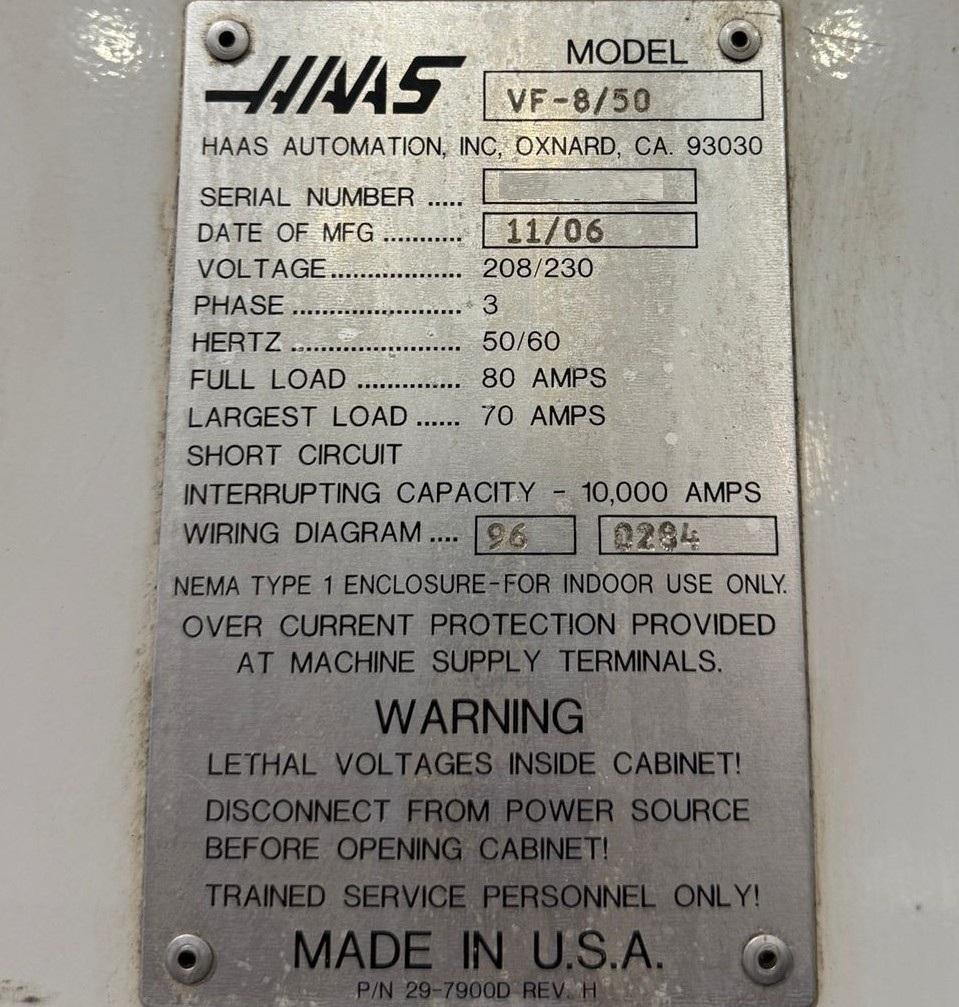

General:

Air Required: 100 psi 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 158″ x 98″ x 118″ High
Weight: 24,500 lbs Approx.
