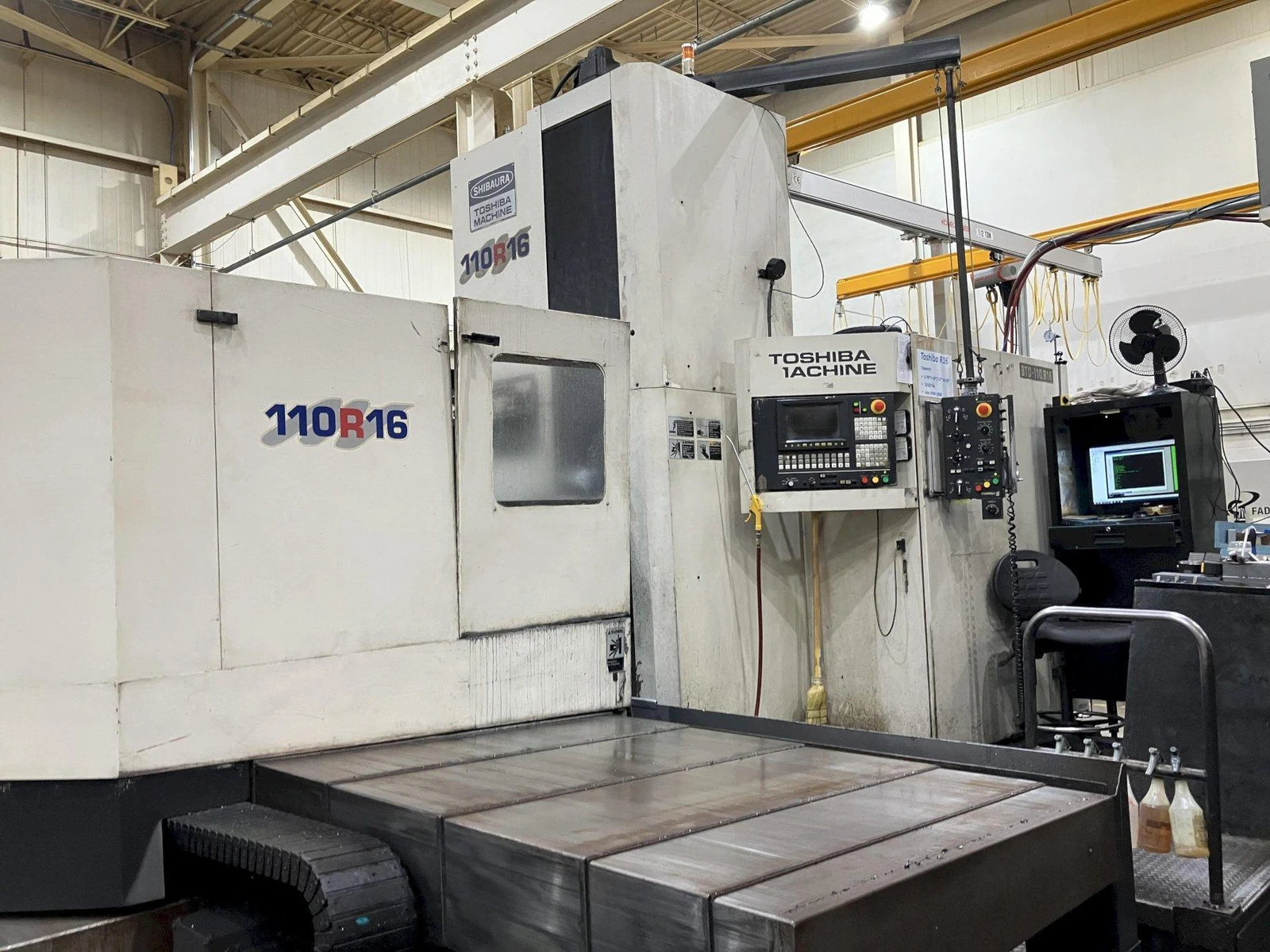

Toshiba BTD110R16 CNC Horizontal Boring Mill
Brand
Category
Model
BTD 110R16
Stock #
Not specified
Year
1996
Condition
Not specified
Location
Not specified
|
SPINDLE DIAMETER............................ 4.33"
TRAVELS (X)................................. 79"
(Y)....................... 59"
(Z)....................... 19.7"
(W)....................... 57"
TABLE SIZE.................................. 55" X 63"
TABLE LOAD.................................. 13,860 LBS
TABLE INDEXING.............................. .001°
SPINDLE SPEED............................... 3000 RPM
SPINDLE TAPER............................... CAT 50
SPINDLE MOTOR............................... 30 HP (DIRECT DRIVE)
RAPID TRAVERSE.............................. 472 IPM

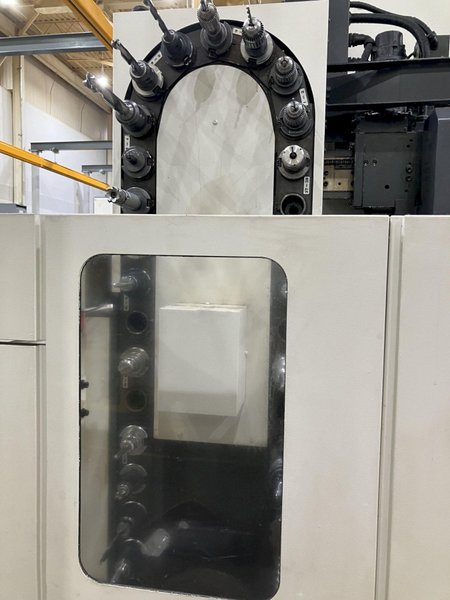

ATC......................................... 38
EQUIPPED WITH:

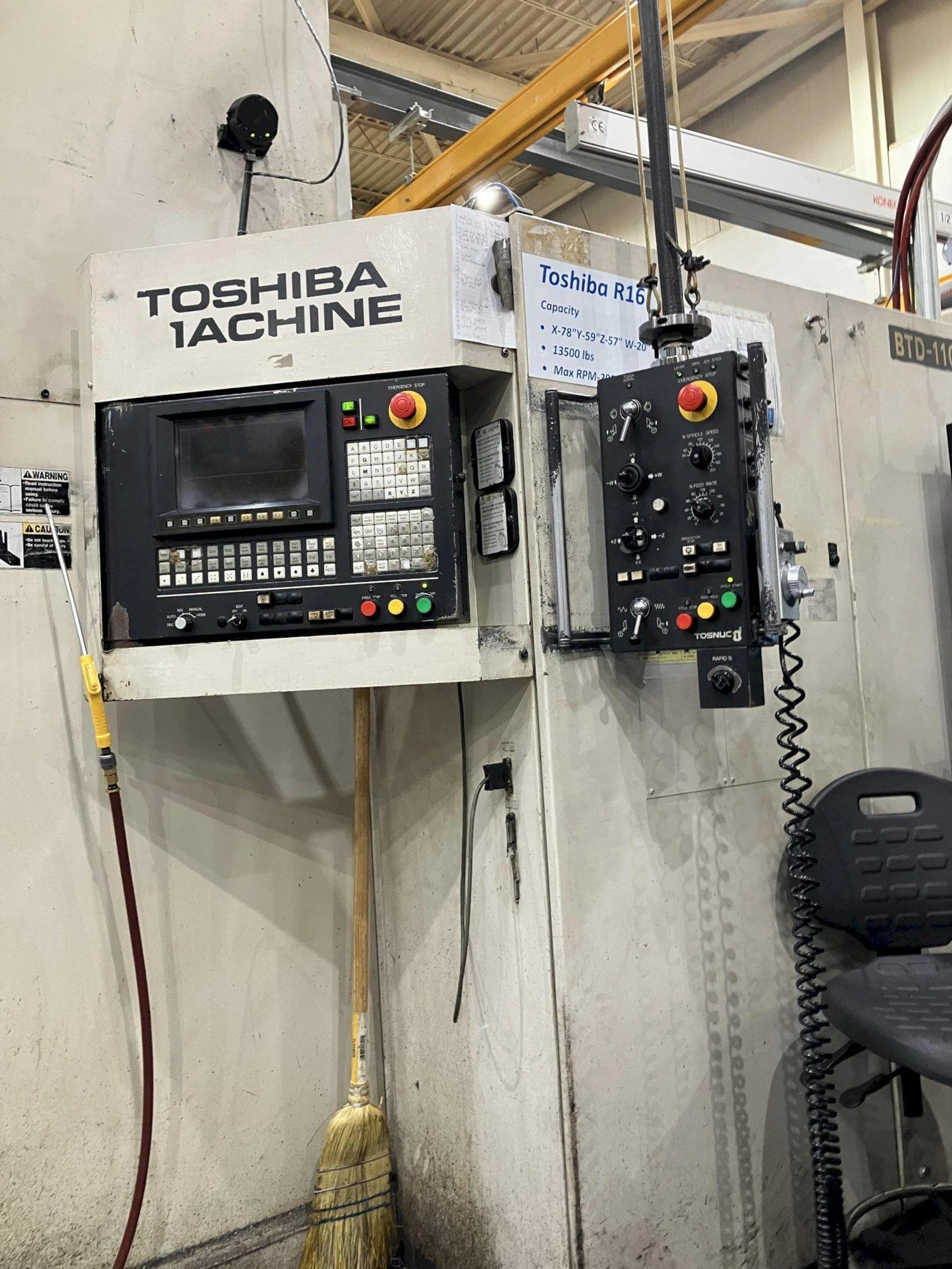

TOSNUC 888 CNC CONTROL
COOLANT THRU SPINDLE
CHIP CONVEYOR
38 AUTOMATIC TOOL CHANGER |
