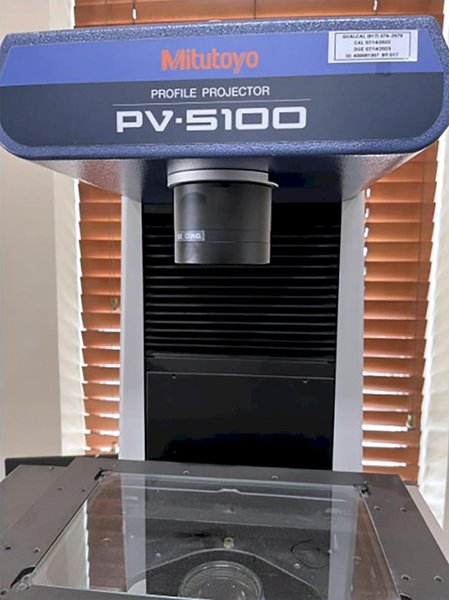

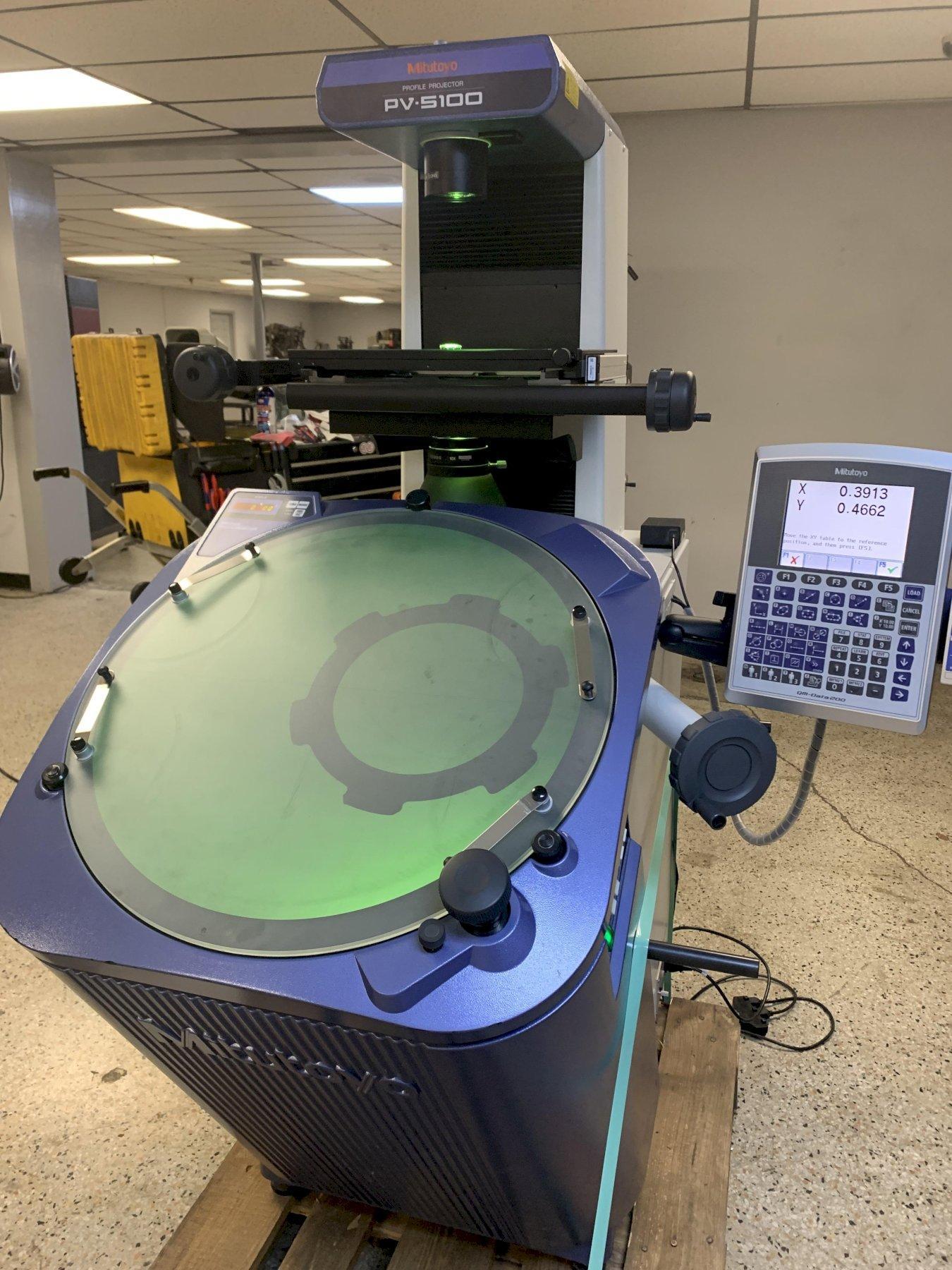

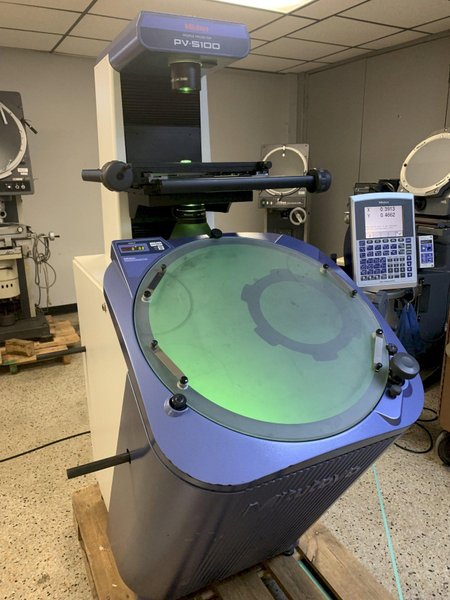

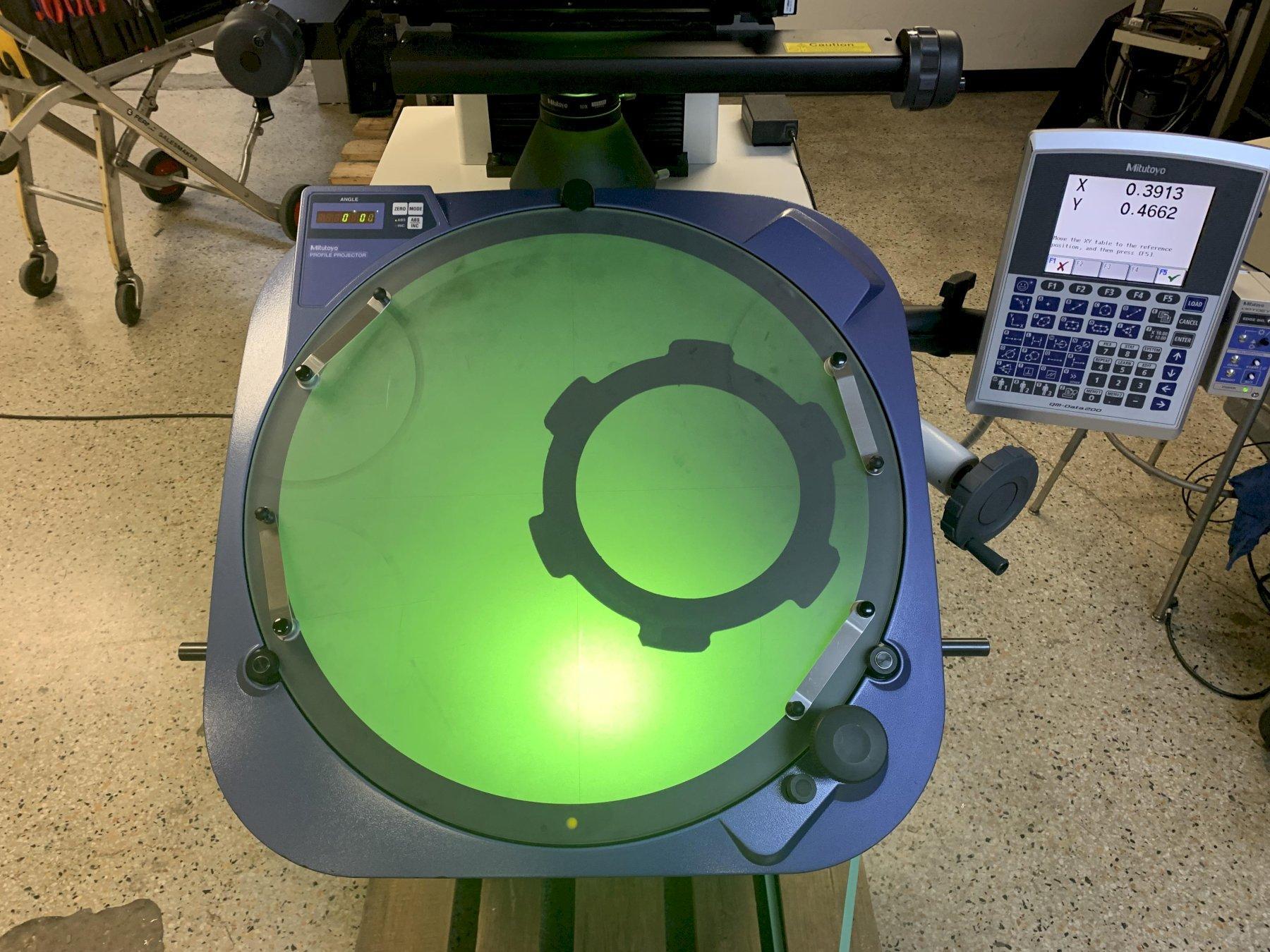

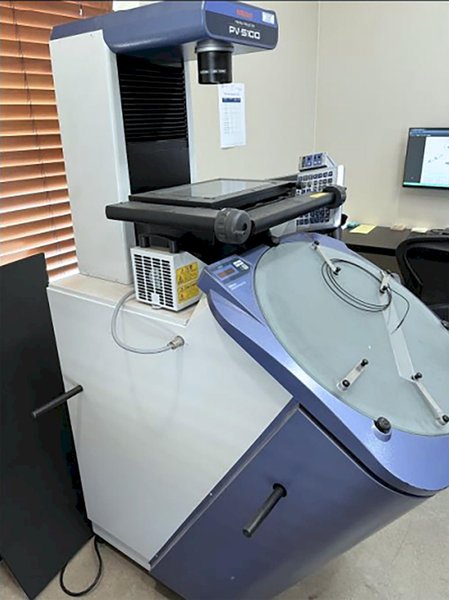

20" MITUTOYO Model PV5100 Vertical Beam Floor Model Profile Projector / Optical Comparator

Specifications:

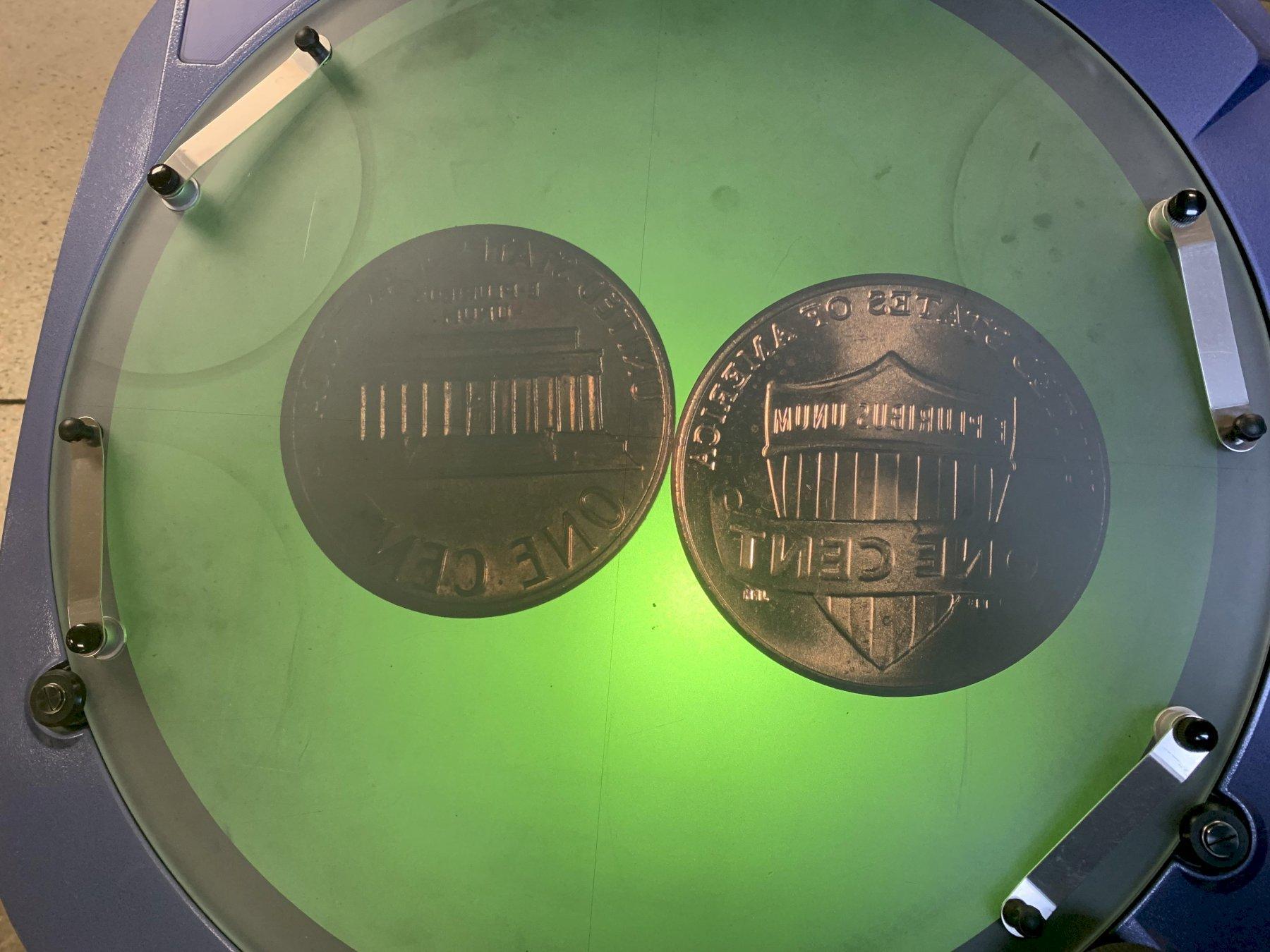

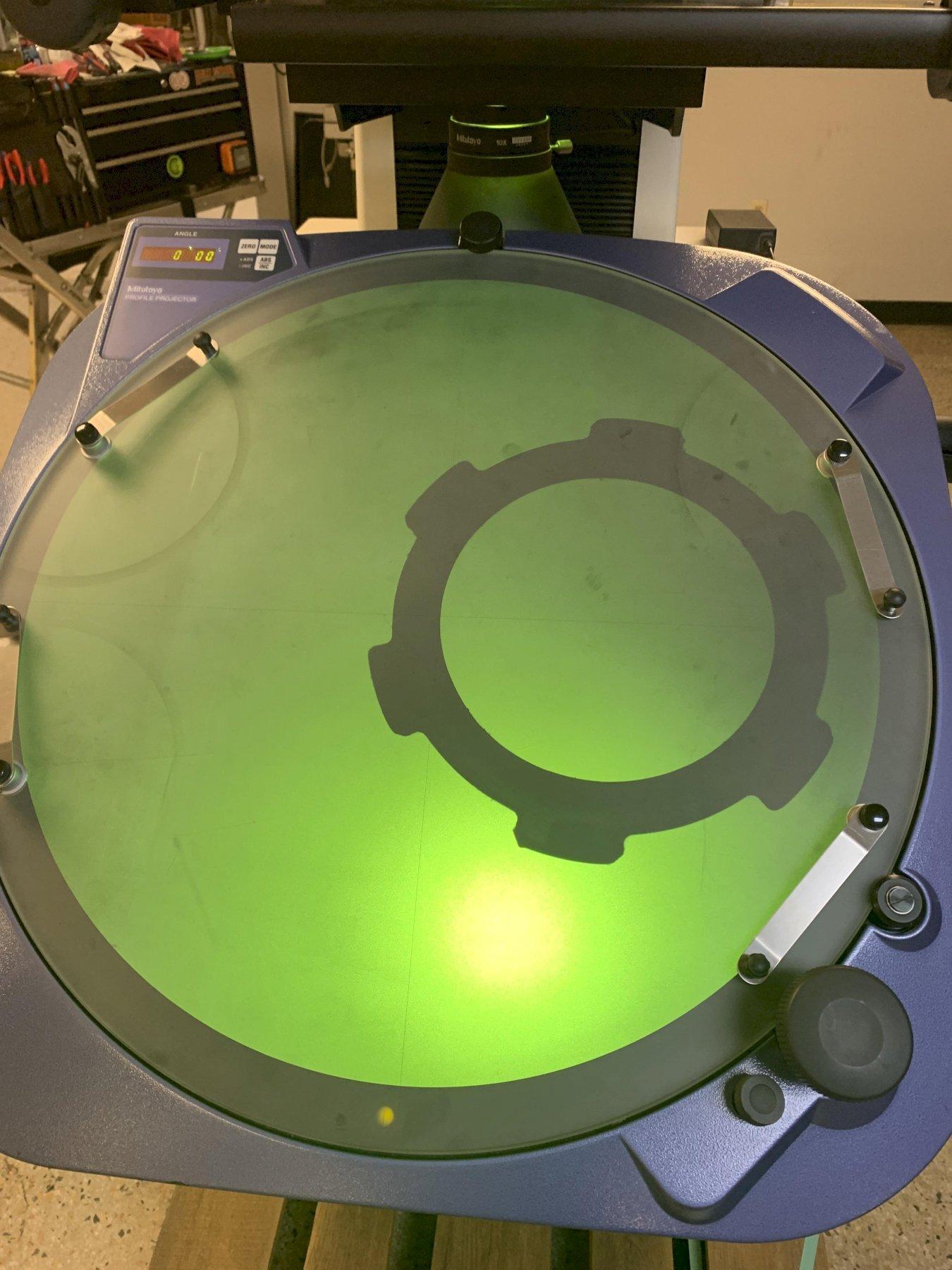

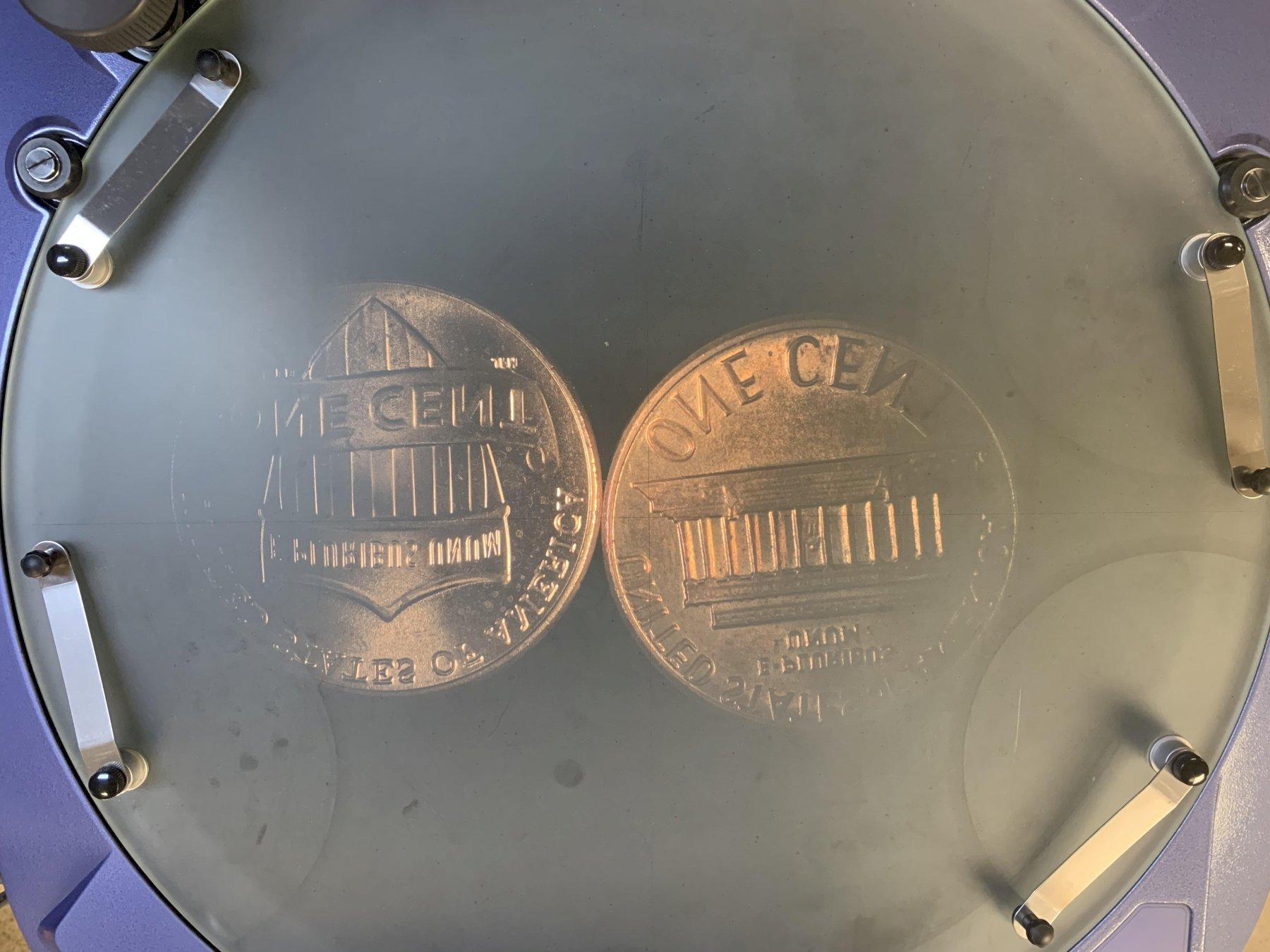

• Effective Screen Diameter – 20”
• Distance Screen Ctr from Floor – 35”
• Work Table Size – 15” x 9.8”
• Effective Table Area – 10.5” x 6.7”
• XY Range – 8” x 4”
• Focus Travel – 6.3”
• Max Workpiece Table Load – 11 Lbs.
• Contour and Surface Illumination – Halogen 24V 150W (FCS)
• Electrics – 1/60/120VAC with Cord & Plug
• Dimensions including DRO – 32.7” LR x 42.1” FB x 59.9” H
• Net Weight, Approx – 425 Lbs.


  Equipped with:

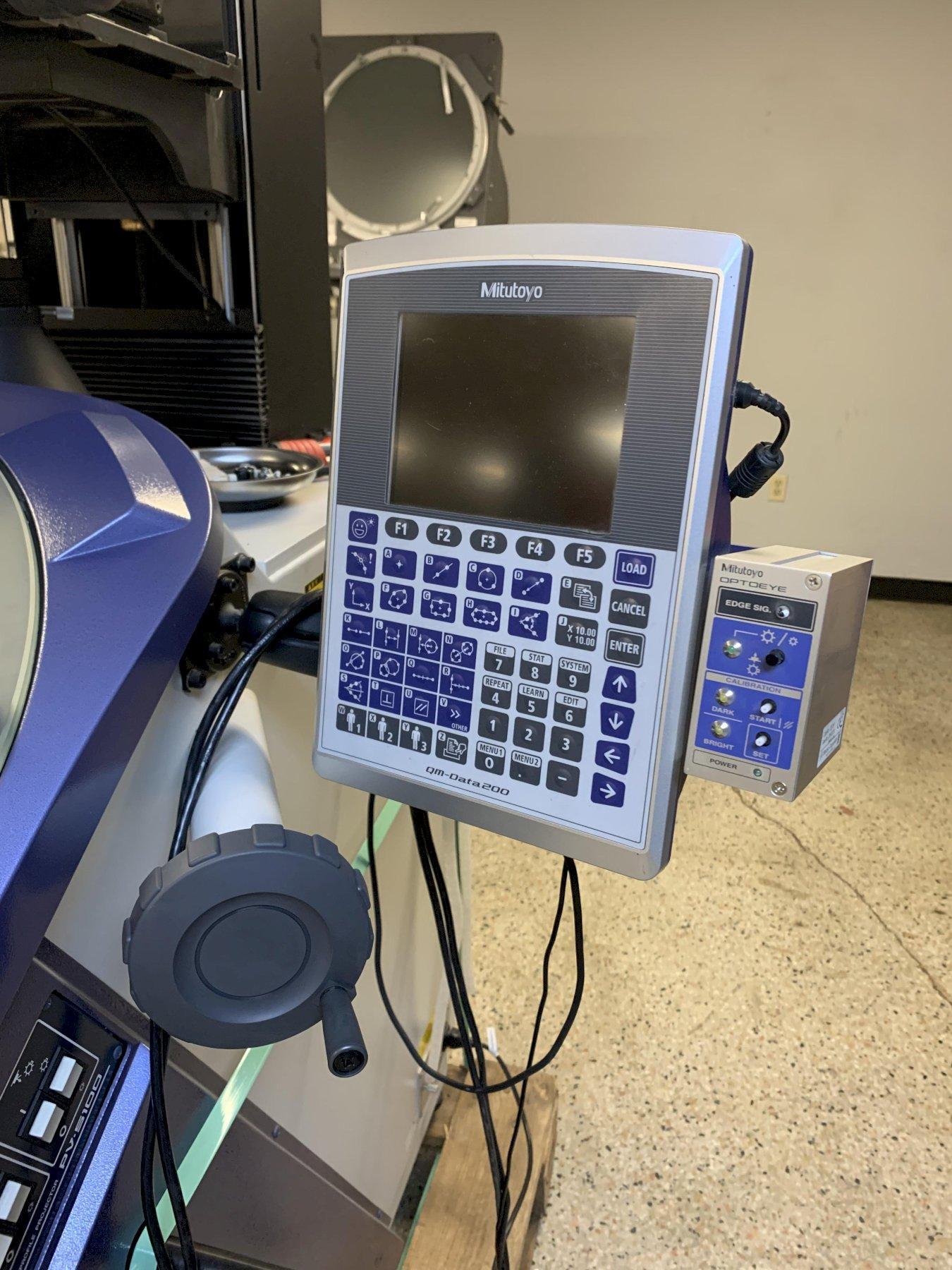

• QM-Data 200 Computational Digital Readout
• Opto Eye Edge Sensing
• Digital Angle Display
• 1 Lens - 10X Mag
• Glass Crosshair Chart with Clips
• Dual Surface Illuminators
• Green Filter
• Excellent Condition and Appearance
• All Necessary Manuals

Specifications subject to independent verification by the buyer.
Machine has been serviced and passes calibration. It is in good very working order.
Buyer will need to recalibrate upon arrival if they deem necessary.
