Ricoh Digital Printing Press

Print Technology

• Type: Color Laser (Dry Electrostatic Transfer System)

• Toner: Ricoh PxP-EQ toner (polymerized)

Performance

• Print Speed: Up to 65 ppm (pages per minute) – letter size

• First Page Out Time:

  • Color: ~7.5 seconds

  • B/W: ~5.5 seconds

• Warm-Up Time: Less than 30 seconds

Resolution

• Print Resolution: Up to 2,400 × 4,800 dpi (VCSEL technology)

• RIP Resolution: 1,200 × 1,200 dpi

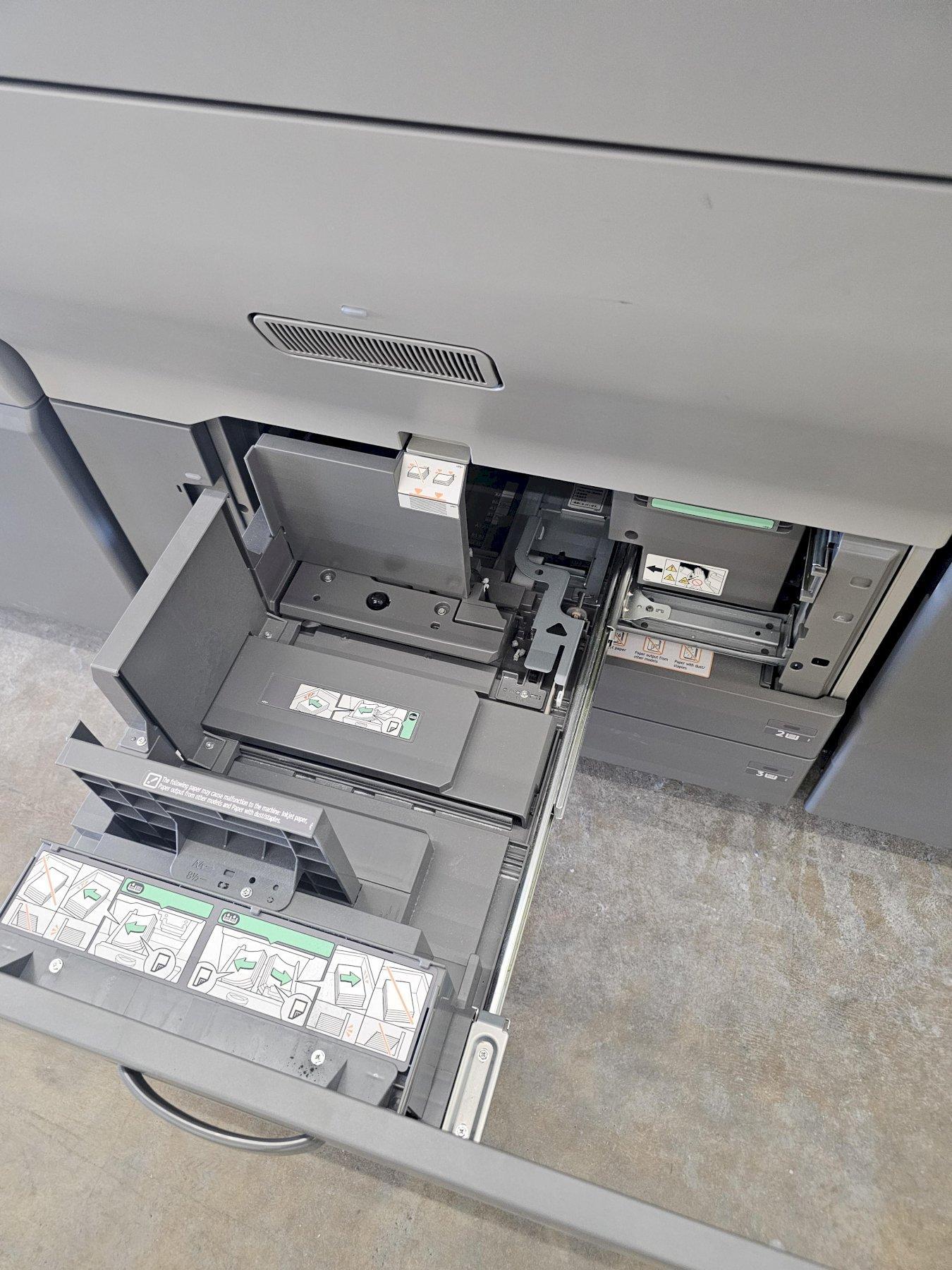

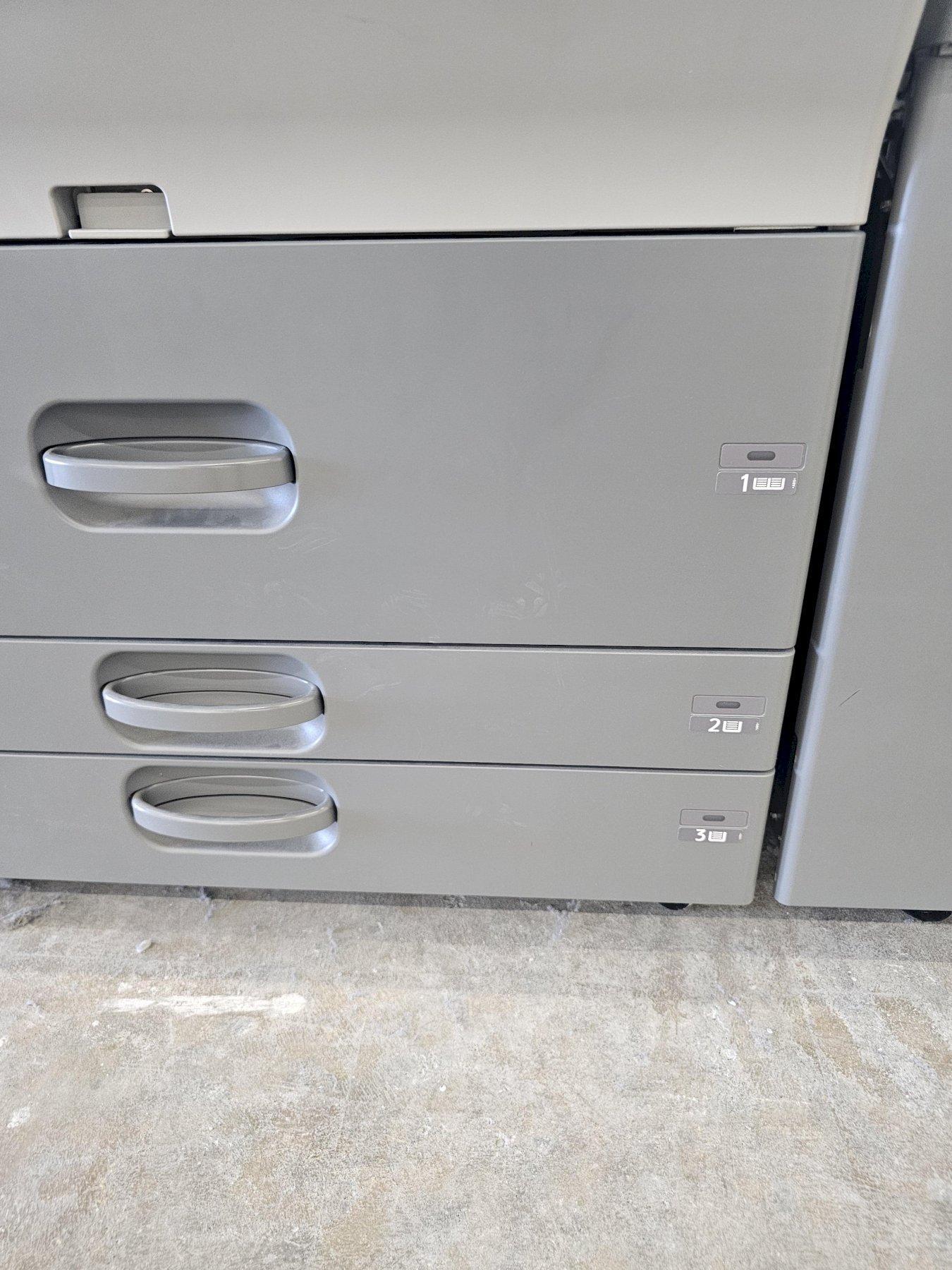

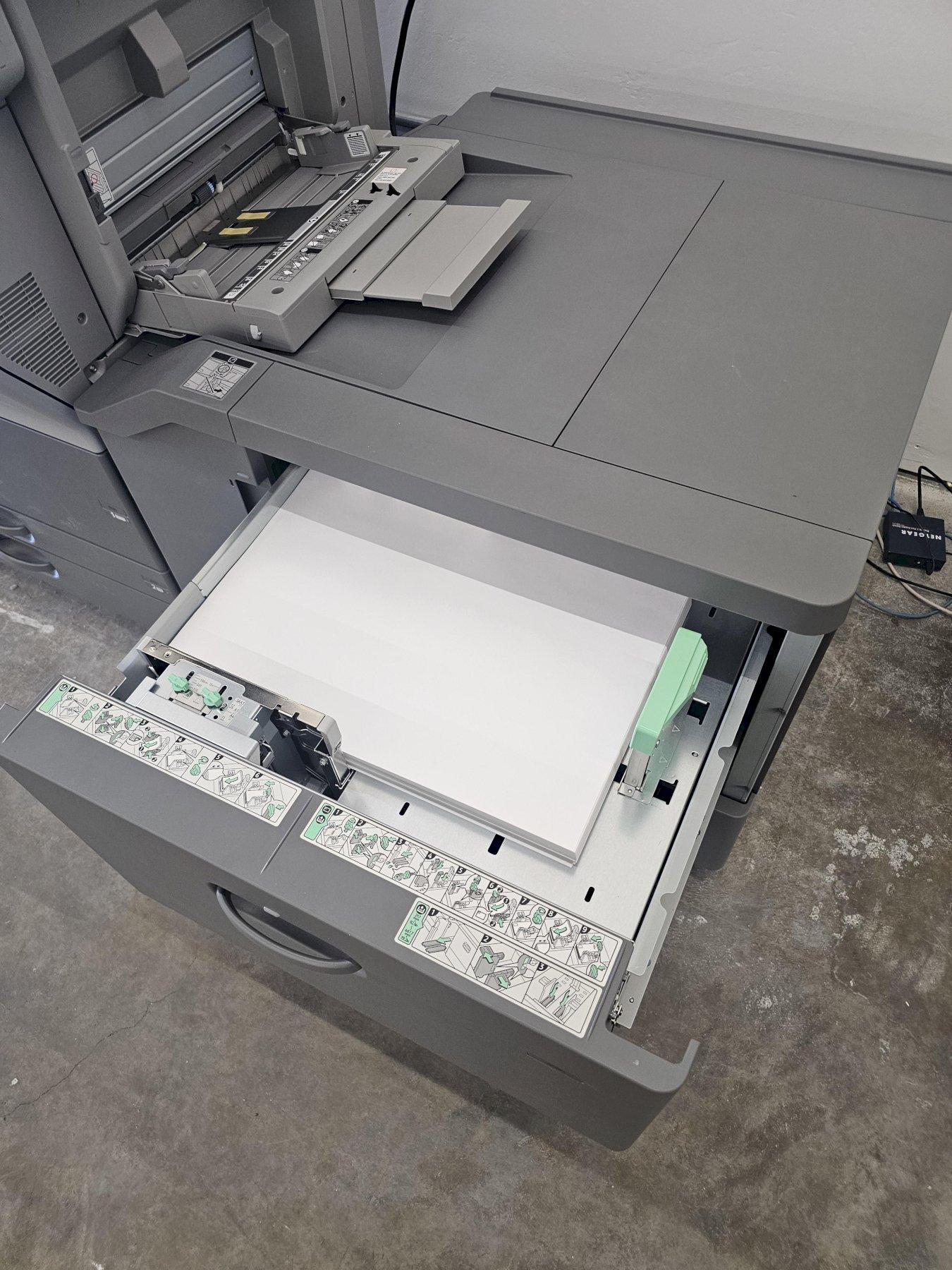

Paper Handling

• Paper Sizes:

  • Standard trays: 5.5" × 7.2" to 13" × 19.2"

  • Duplexing: up to 13" × 18.5"

  • Banner printing: up to 13" × 49.6"

• Paper Weights:

  • Tray: 52 – 360 gsm

  • Duplex: 52 – 360 gsm

• Max Input Capacity: Up to 8,850 sheets (with all optional trays)

• Max Output Capacity: Up to 3,300 sheets

Media Types

• Coated and uncoated stocks, textured papers, envelopes, synthetics (within approved range), transparencies

Controller Options

• Standard: Ricoh GW Controller

• Optional: EFI Fiery E-27B or E-47B Color Controllers

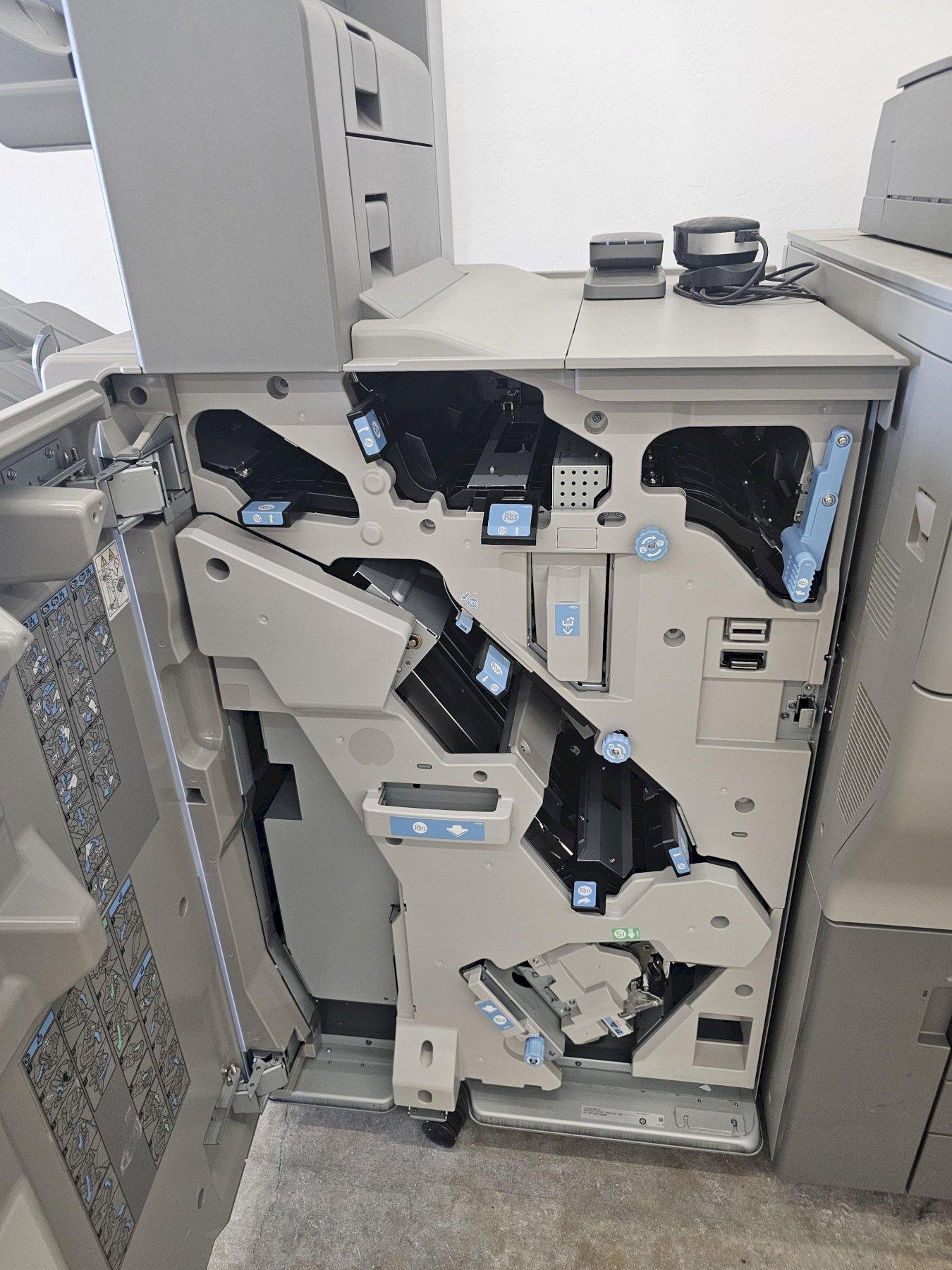

Finishing Options

• 2,000-sheet booklet finisher (with optional folding and trimming)

• 3,500-sheet staple finisher

• Multi-folding unit

• GBC punching unit

• Cover interposers

• Ring binder

Dimensions & Weight

• Mainframe Footprint: Approx. 36.2" W × 35.4" D × 48" H

• Weight: ~441 lbs (main unit only, varies with configuration)

Power Requirements

• 208–240V, 16A, 60Hz

• Typical Electricity Consumption (TEC): Approx. 5.7 kWh/week

Duty Cycle

• Monthly Duty Cycle: Up to 450,000 pages/month

• Recommended Monthly Volume: 20,000 – 150,000 pages
