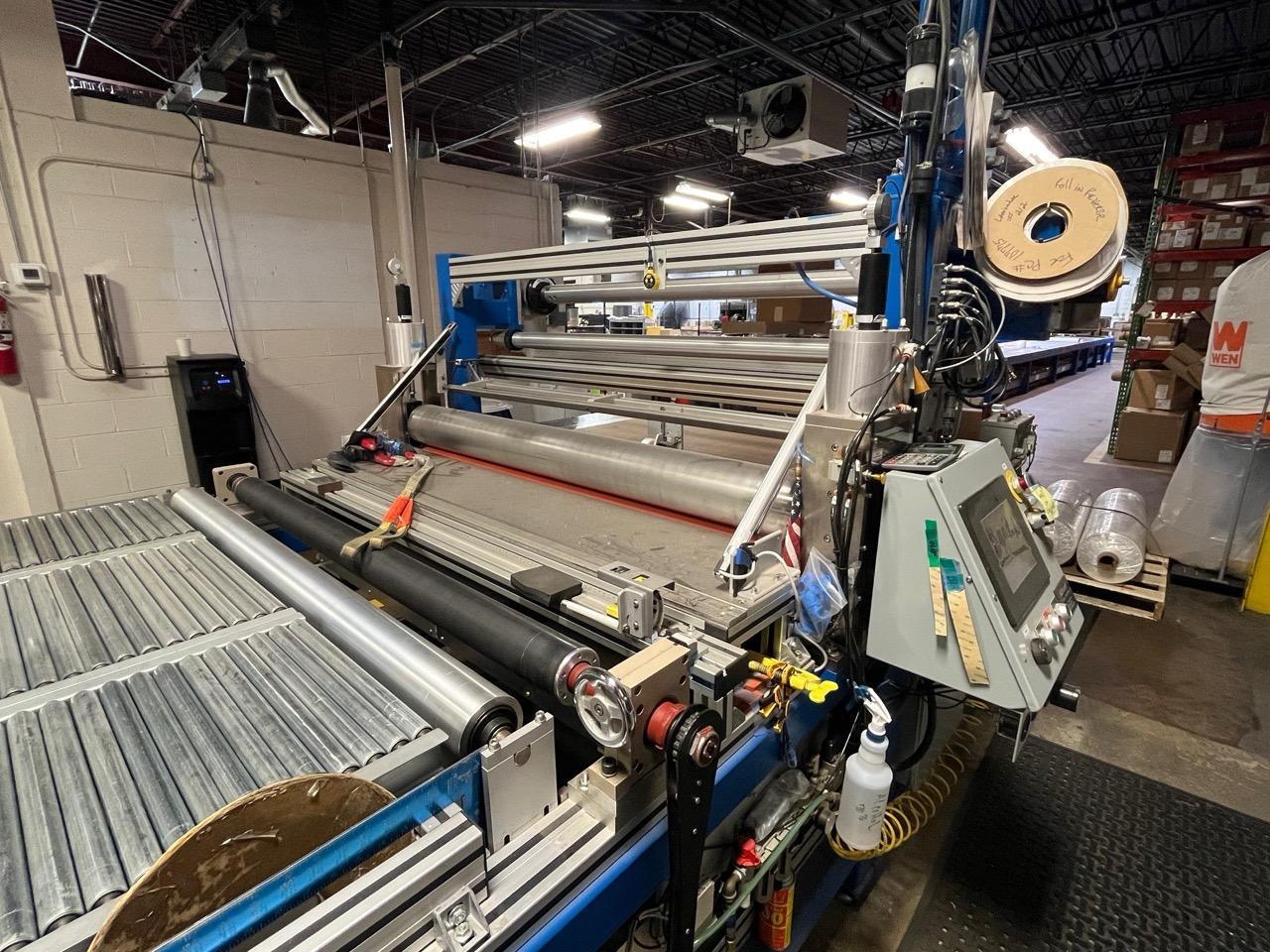

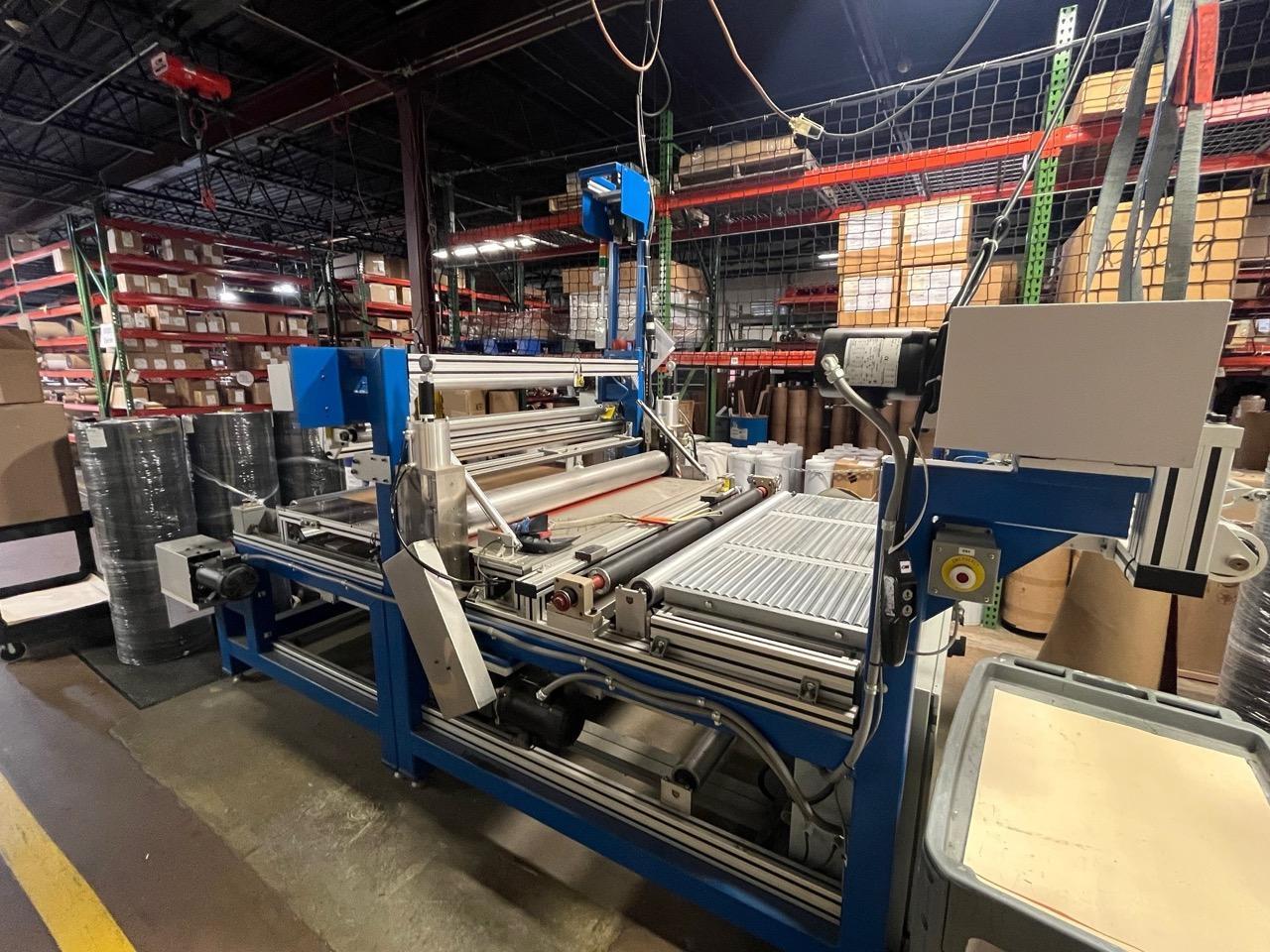

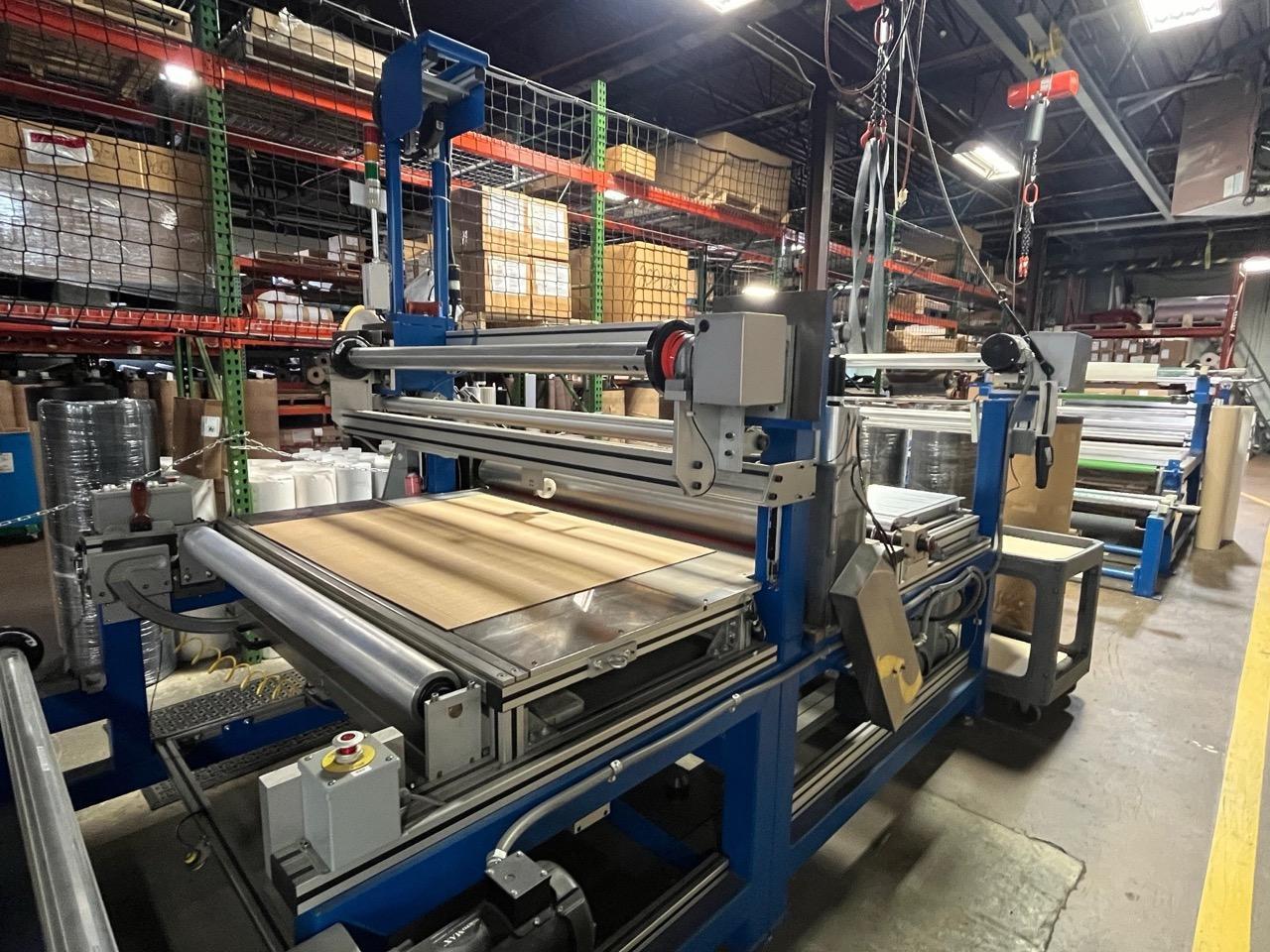

60″ Wide Advent Design Corporation Laminating Machine, 2013

Description: This laminating system is designed for applying pressure-sensitive adhesives (PSA) carried on release paper onto various substrates such as plastic film, rubber, and foam. Adhesive and substrate materials are unwound from supply rolls, guided into adjustable laminating rolls, and re-reeled on a take-up roll. Materials can also be discharged onto a flat surface for shorter, cut-to-length products.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Key Features:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Dual unwinds with adhesive & substrate air shafts

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Edge guide sensors for both adhesive and substrate for precise alignment

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Integrated HMI & gauge display for real-time process monitoring

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Cut guides for both adhesive and substrate

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Specifications:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Maximum material width: 60″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Overall dimensions: 11′ L x 7′ W x 9′ H

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Electrical: 208/120V (4-wire), 3 phase, 30 amps, 60 Hz

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Air: 80–120 PSI @ 5 SCFM

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Largest motor: 1 HP

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Additional specs on nameplate (attached)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Applications:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Multi-layer lamination of elastomers, foams, and films

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,PSA application with accurate edge alignment
