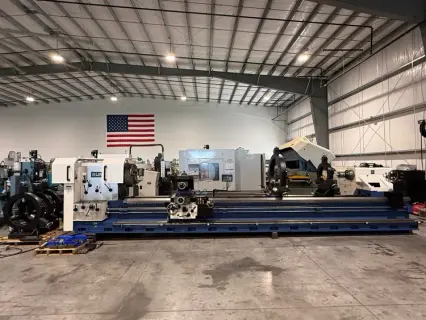

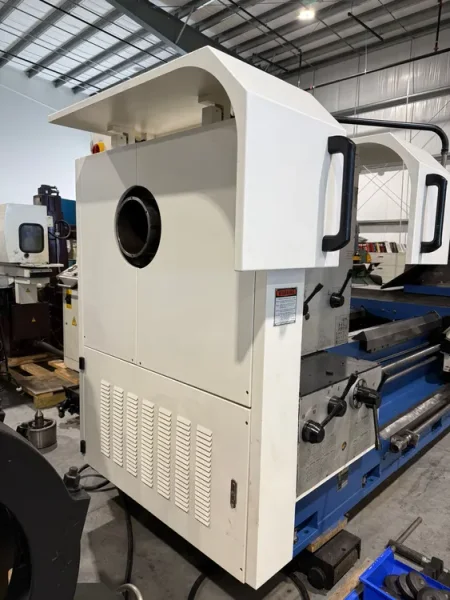

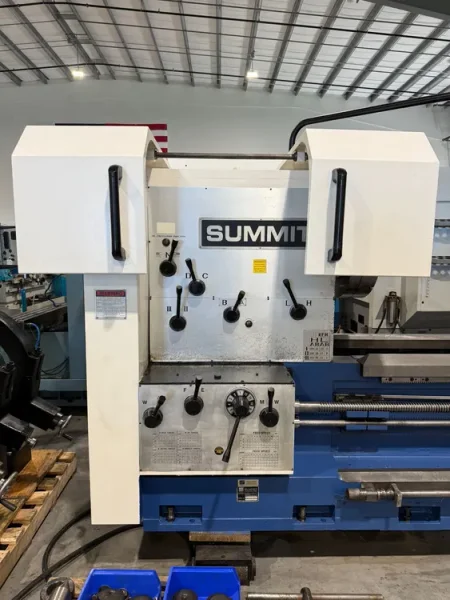

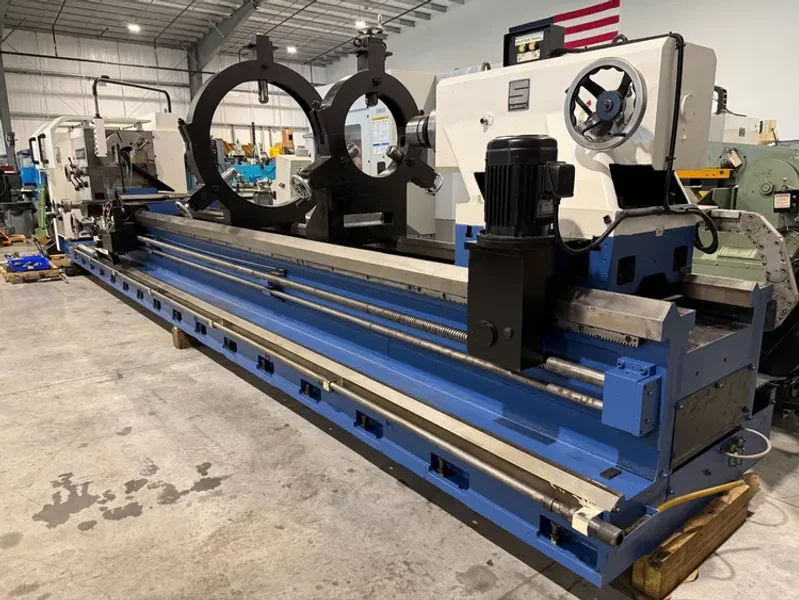

SUMMIT 47-9 x 240”cc Hollow Spindle Lathe 2013’ 9” Bore DRO #7628

SUMMIT 47-9 x 240”cc Hollow Spindle Lathe 2013’ 9” Bore DRO #7628

Name: SUMMIT 47-9 x 240”cc Hollow Spindle Lathe 2013’ 9” Bore DRO #7628
Brand: SUMMIT
SKU: 7628
Availability: PreOrder

Brand

SUMMIT

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

Engine Lathes

Manufacturer:

SUMMIT

Model:

47-9X240

Year:

2013

Stock #:

7628

Status:

For Sale

Description

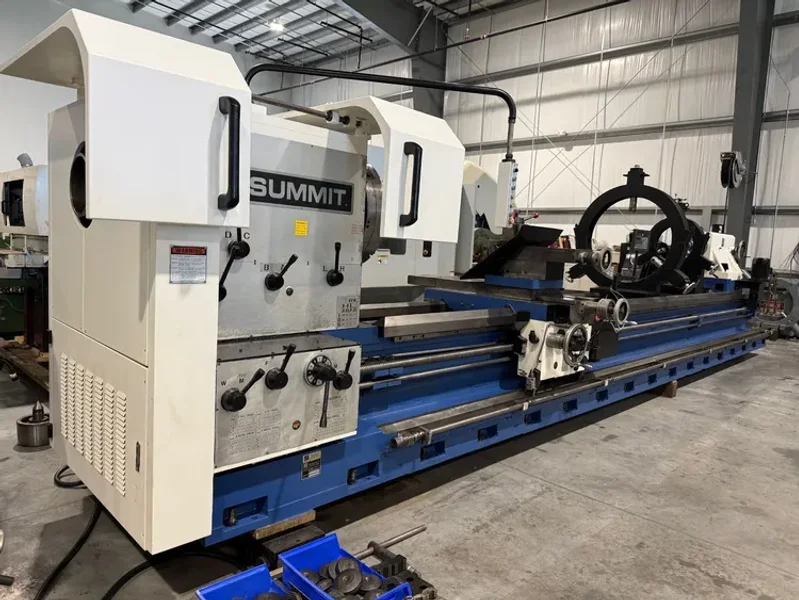

SUMMIT 47-9 x 240”cc Hollow Spindle Lathe 2013’ 9” Bore DRO #7628

SUMMIT 47-9 x 240”cc Hollow Spindle Lathe 2013’ 9” Bore DRO #7628
Reference #7628
Model # 47-9x240
Serial # 13039
Year of manufacture- 2013’
Swing over bed- 47”
Swing over cross slide- 32.6”
Distance between centers- 240”
Maximum workpiece between centers- 22,000 Lbs. (supported)
Spindle nose- A2-15

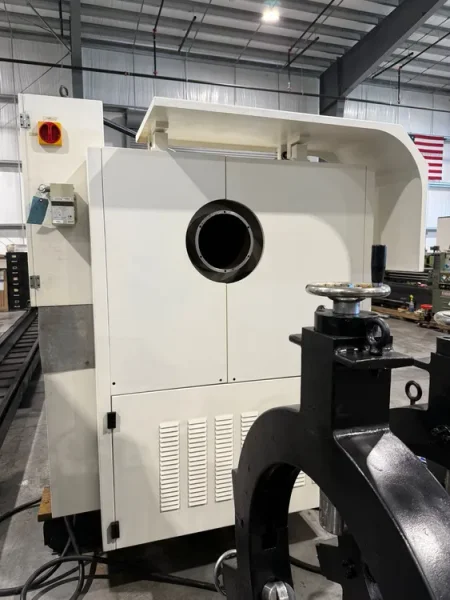

Spindle bore- 9”
Spindle speeds- (12) 6 – 400 R.P.M.
Cross slide trave- 30.7”
Compound travel- 13.7”
Bed width- 31.5”
Leadscrew diameter- 1.97”
Longitudinal feeds- (48) .13 – 1.92 I.P.R.
Cross feeds- (48) .065 - .96 I.P.R.
Inch threads- (48) 1 – 15 T.P.I.
Metric threads- (48) 2 – 30 mm
Tailstock taper- #7 Morse taper
Tailstock quill travel- 11.8”
Tailstock quill diameter- 7.9”

Full cast HD Base design

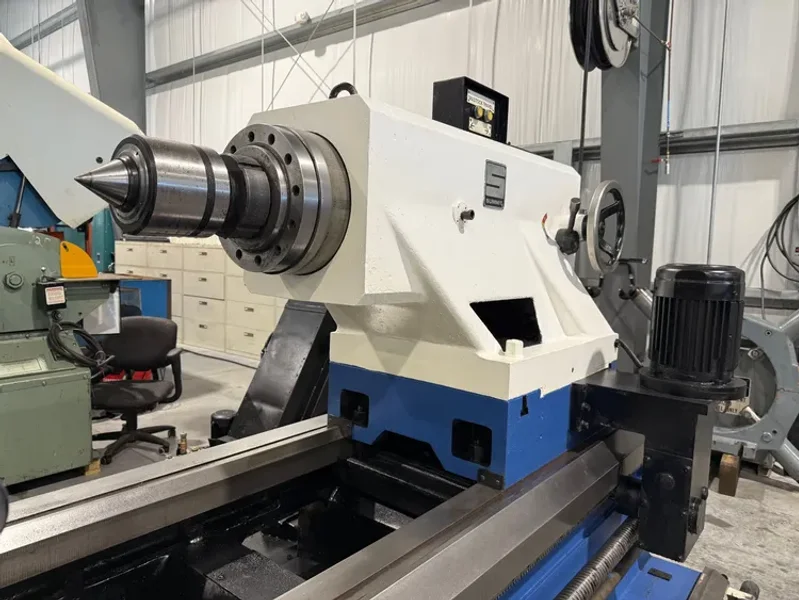

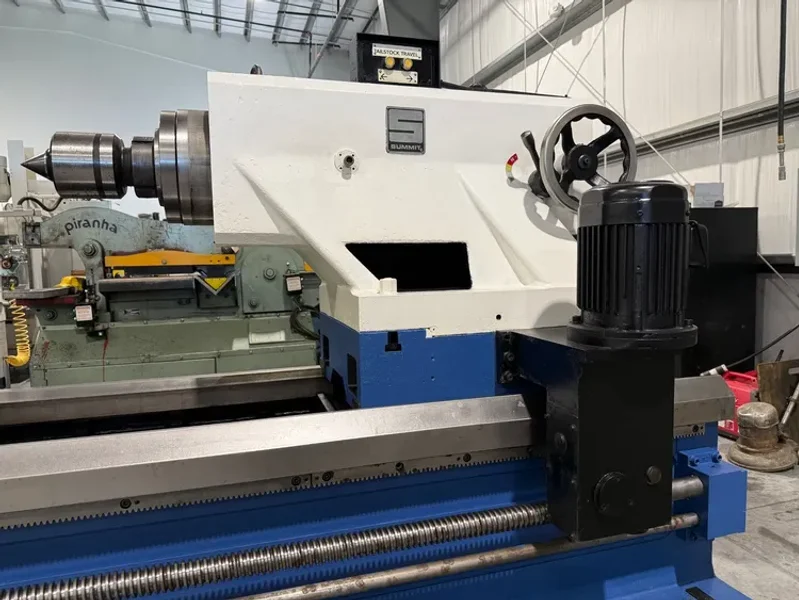

Power tailstock
2 Axis NEWAL DRO Digital Readout
Full length chip conveyor
2 way power rapids

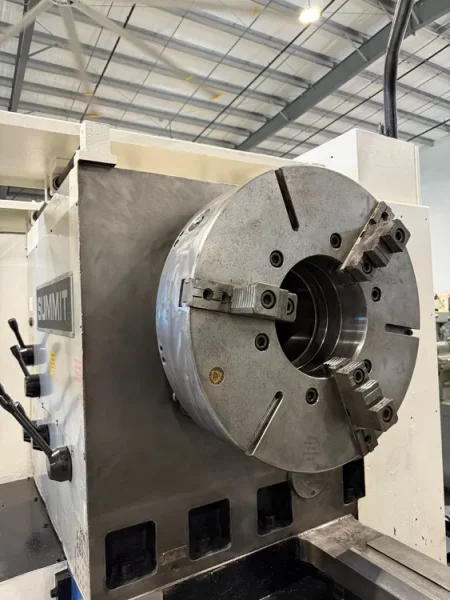

25” BISON “SET-TRU” 3 Jaw Chuck

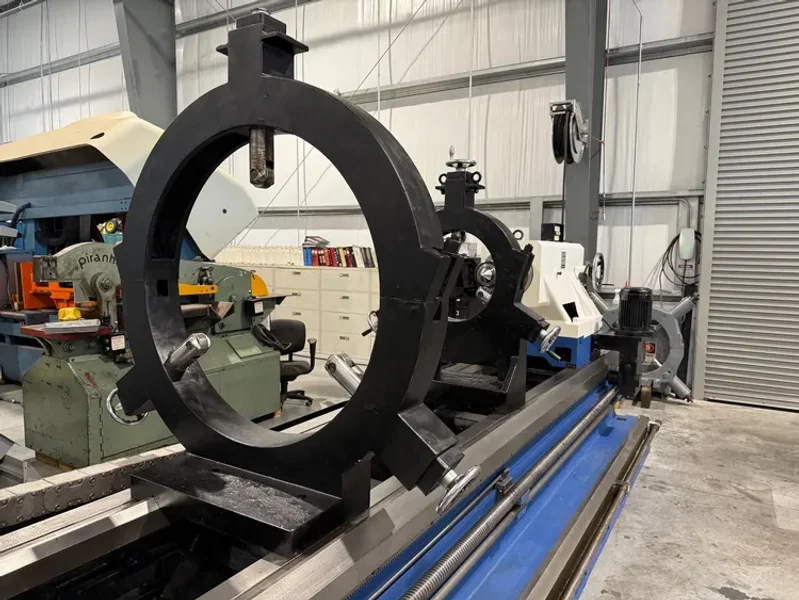

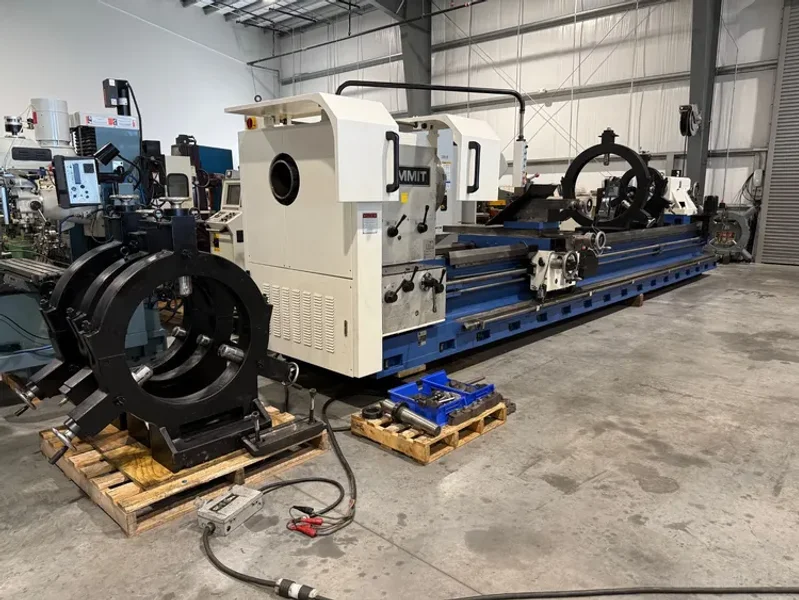

(5) Steady Restes Roller type- 35” Capacity, (2) 25” Capacity, 23” Capacity, 17” Capacity
HD Live center
Dead center
DORIAN HD Tool Post
25” 3 Jaw Chuck
Leveling Pads
40 H.P. Main motor
Machine location- F.O.B. Sarasota, Florida
Machine dimensions- 360” x 87” x 83” H
Machine weight- 43,120 Lbs.
