60" x 0.135" x 20,000# Pro Eco Cut to Length Line

60" x 0.135" x 20,000# Pro Eco Cut-to-Length Line

Consisting of the following:

-3 Arm Turnstile:
C-Hook Type Arms
Powered Rotation

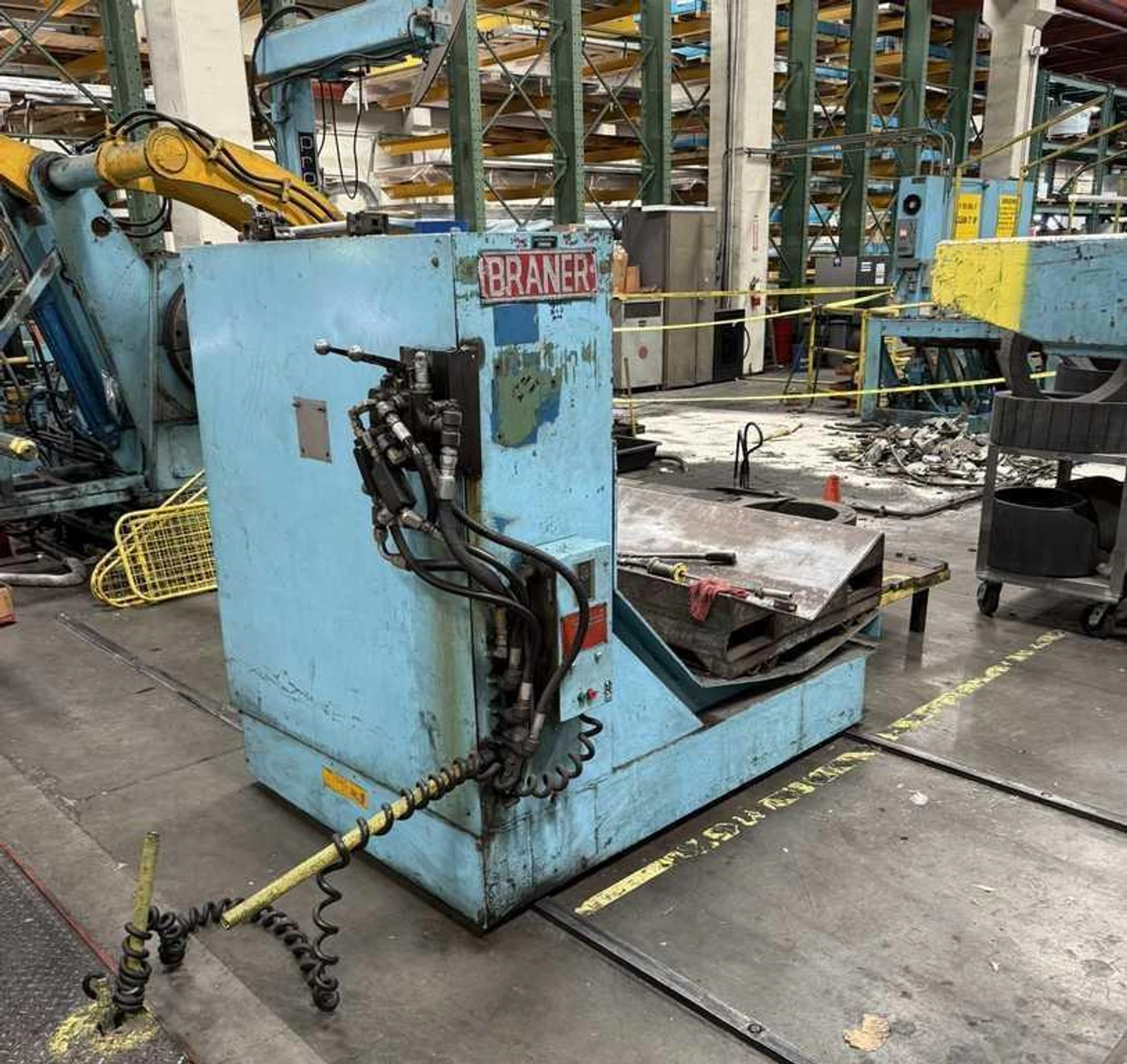

-Entry Coil Car: Braner
Above Floor Type
Self-Contained Hydraulics

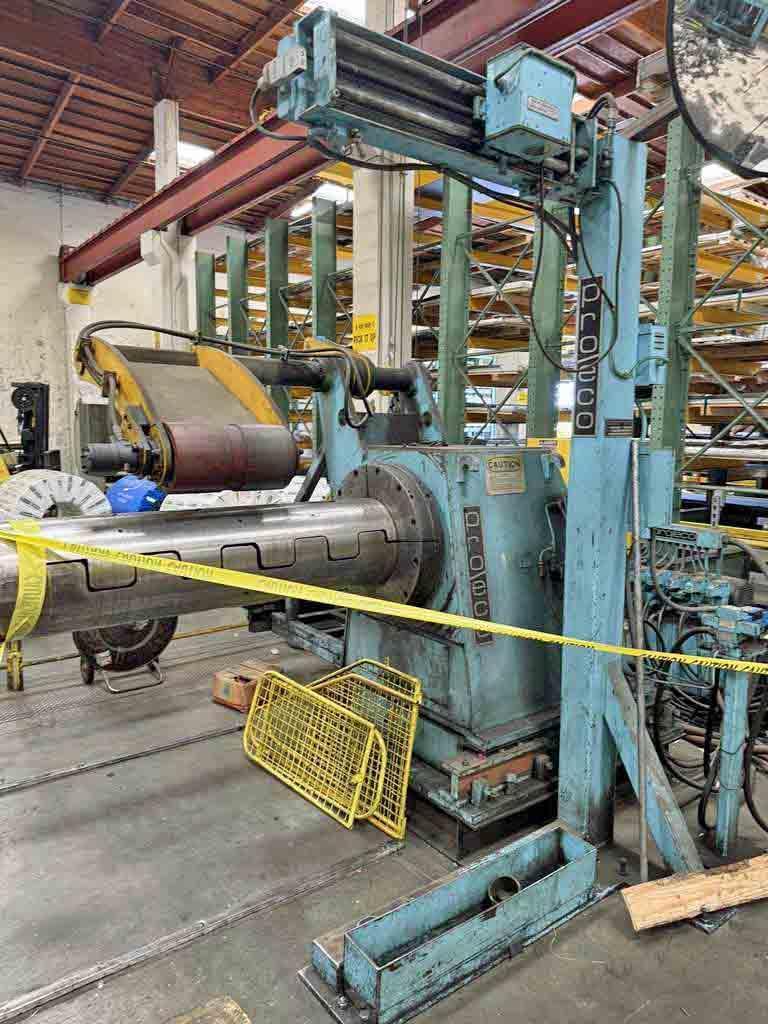

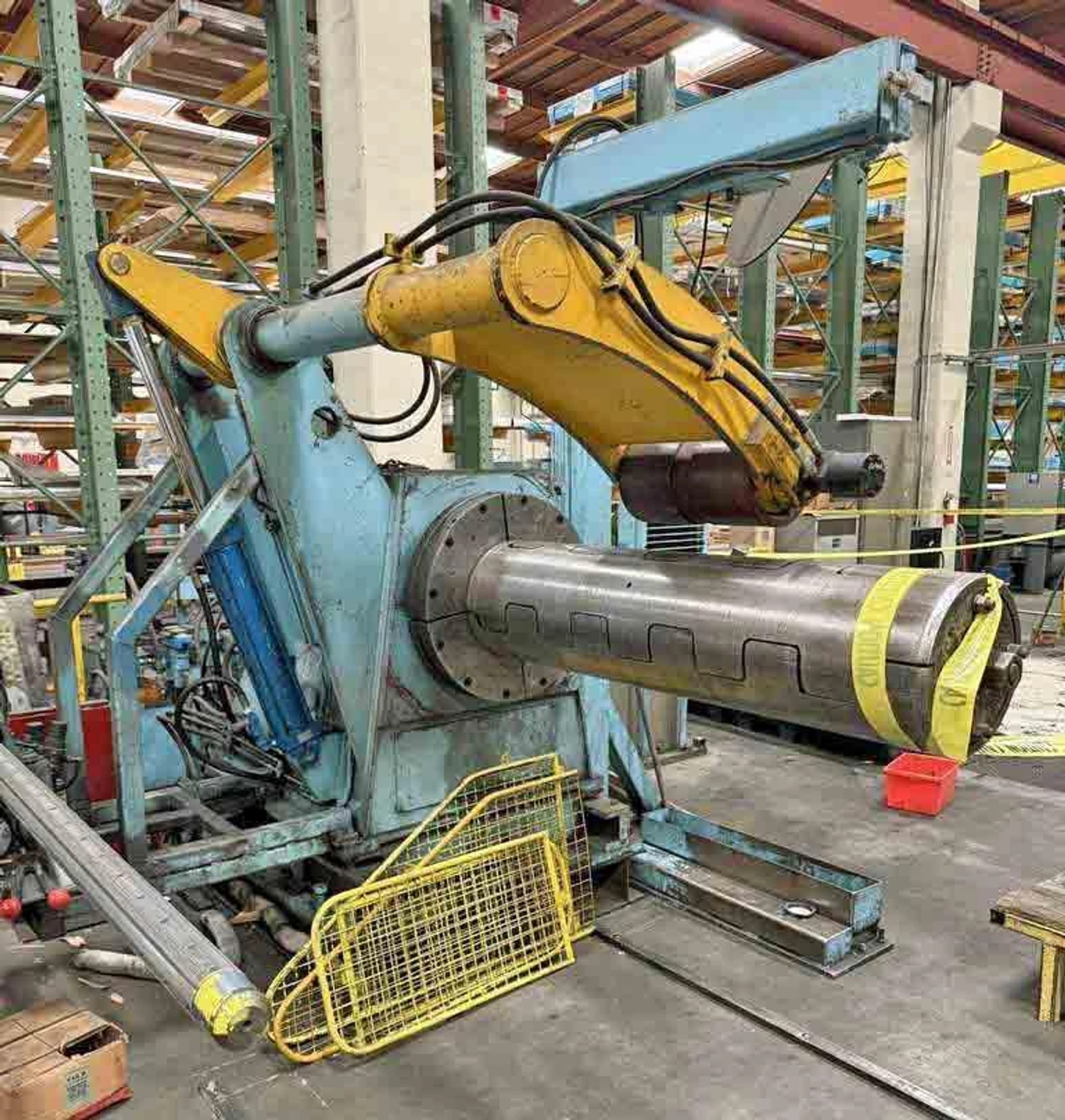

-Uncoiler:
Model: UNC-20-60
Hydraulic Expansion
Pumpkin Tooth Drum
Wichita Water Cooled Brake
Sliding Base
Powered Holddown Roll
60" O.D. Capacity

-Paper Winder:

-Less Leveler:

-Automatic Edge Control:
Model: EG-FIFE-20-60

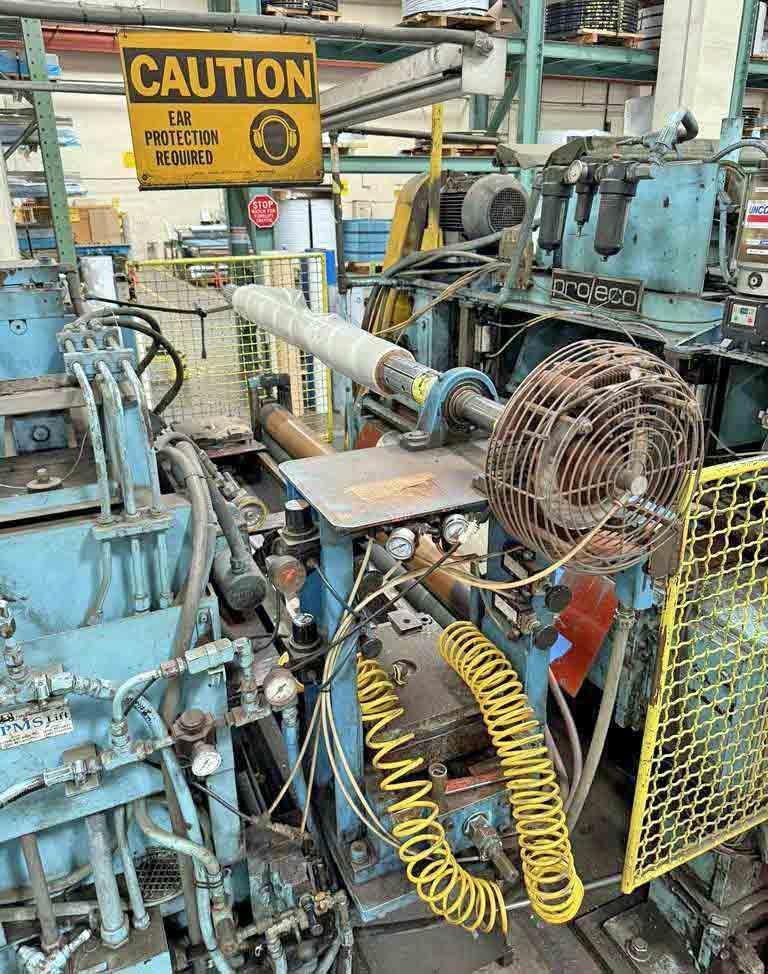

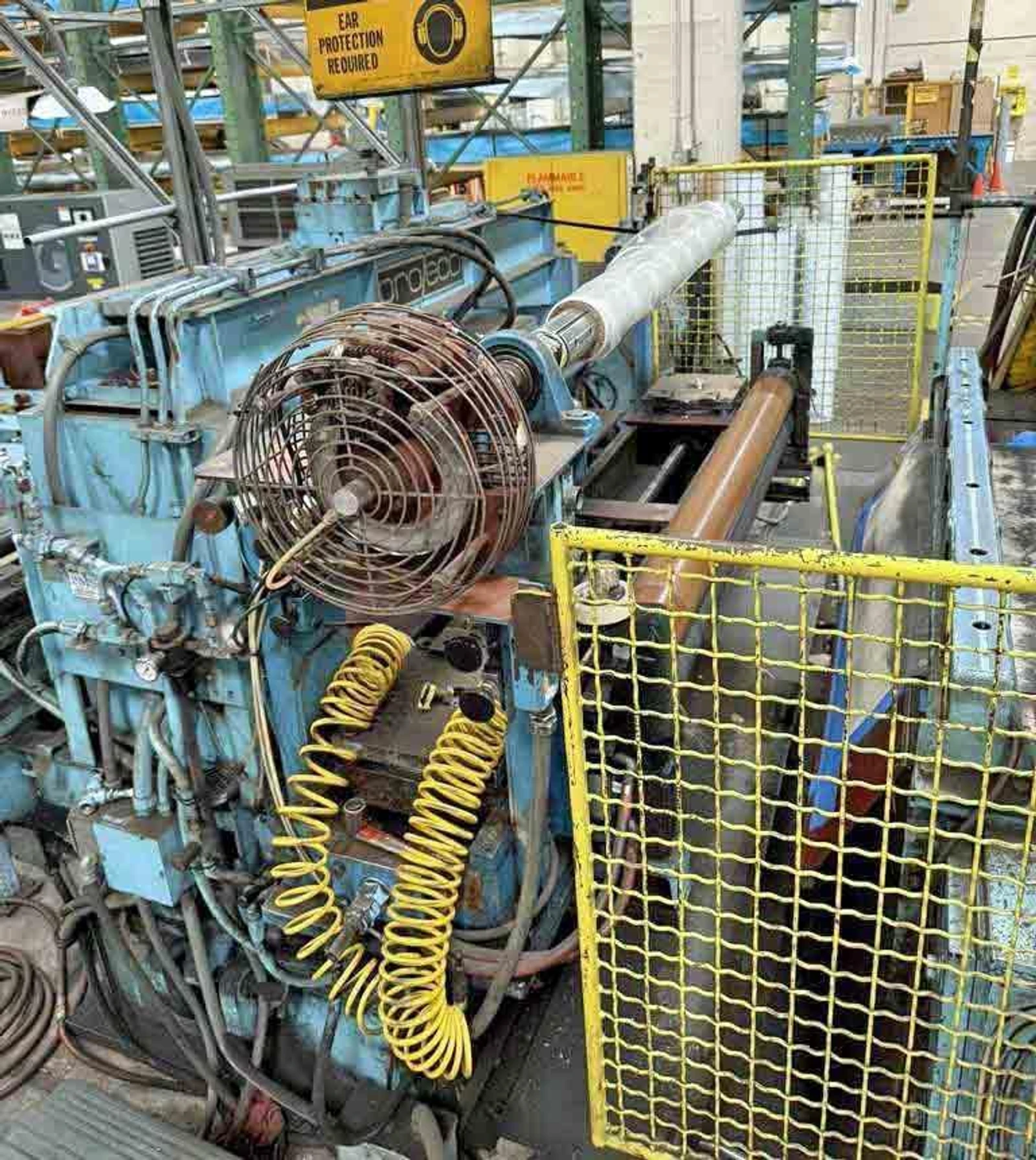

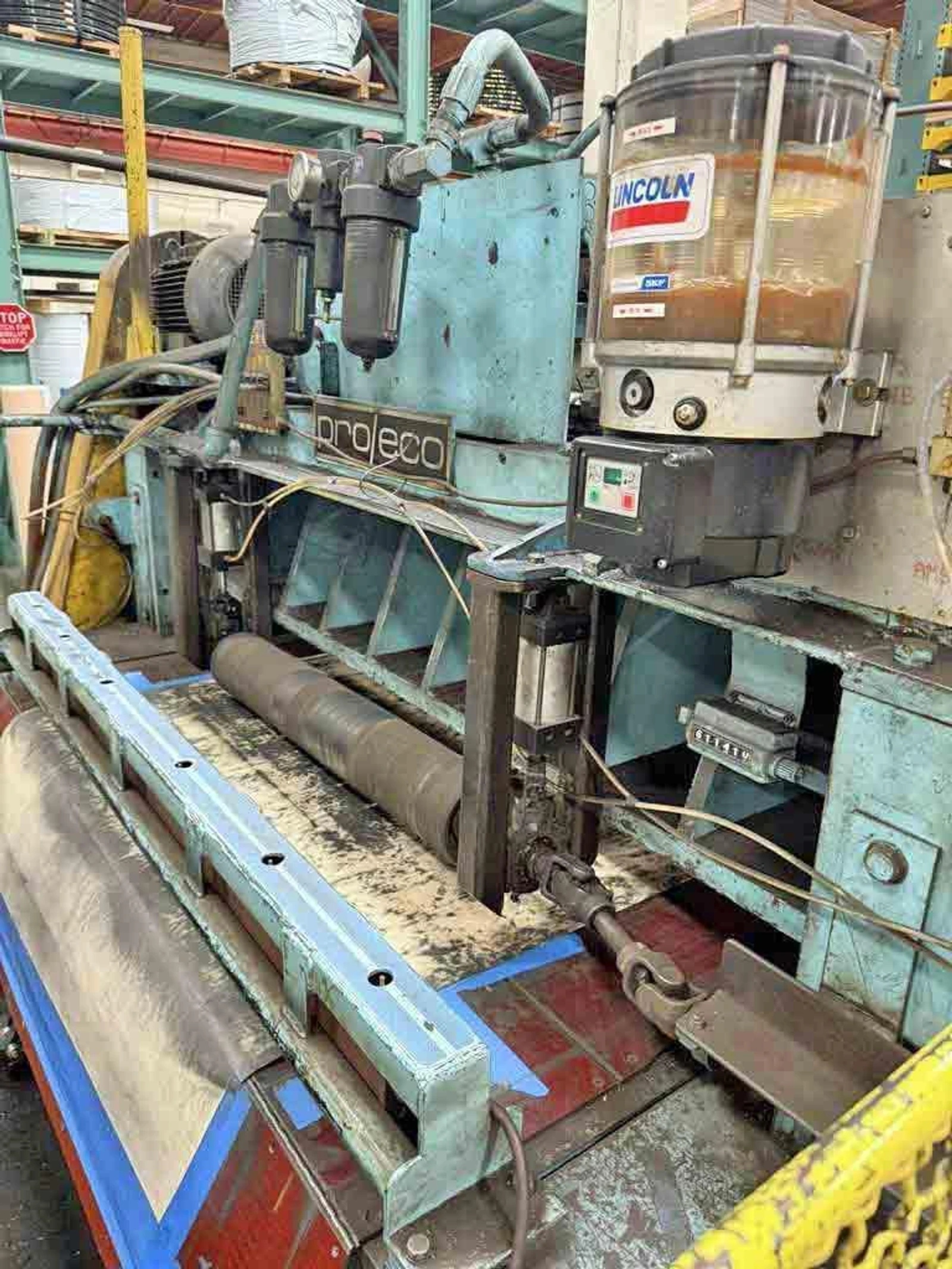

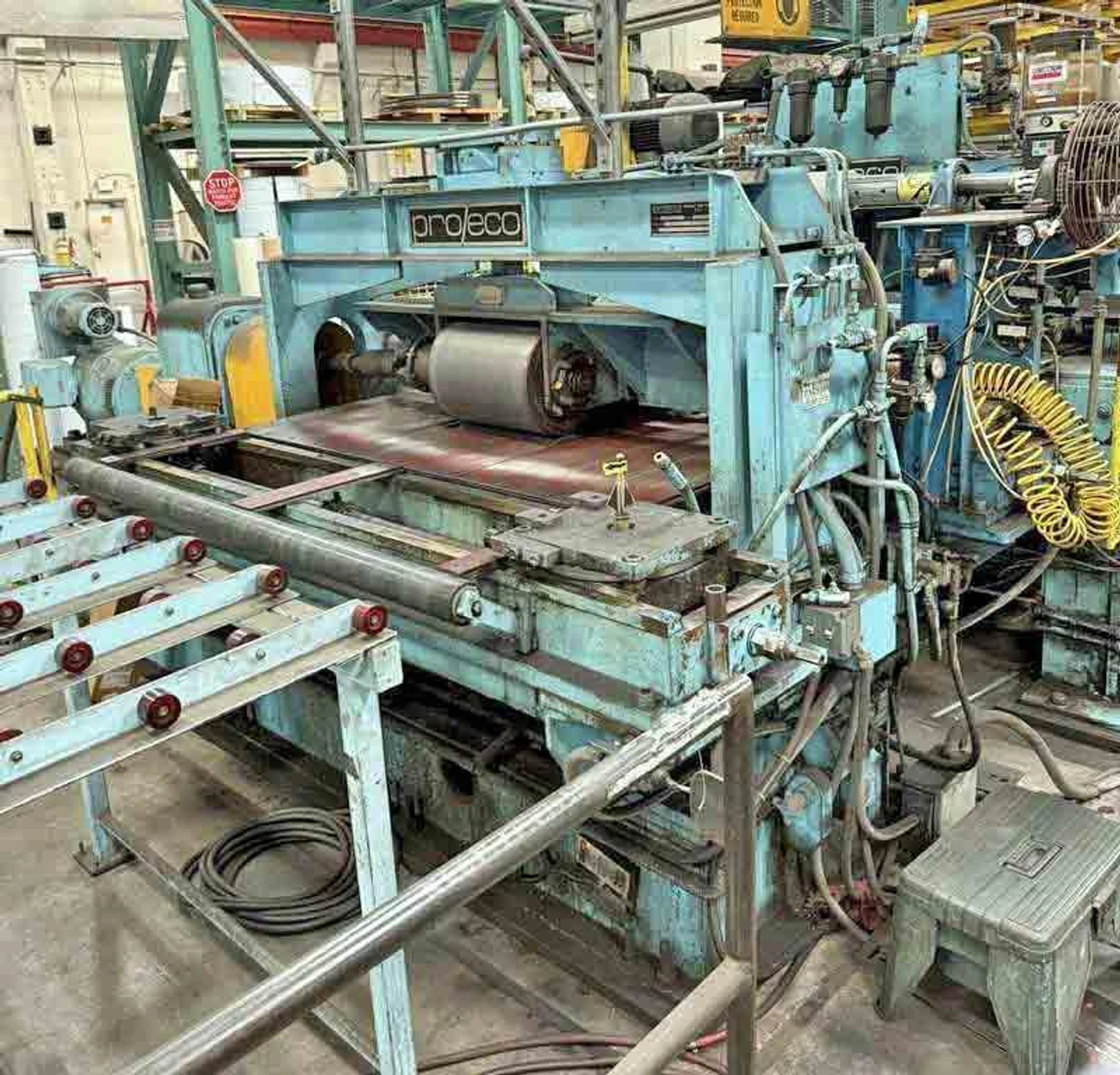

-Roll Feed:
Model: PFR-12-16-60
Entry Passline Roll
Entry Side Guides
Film Applicator
Exit Side Guides
Exit Passline Roll
Unico DC Drive, 32 HP, 1100 RPM, 240 V

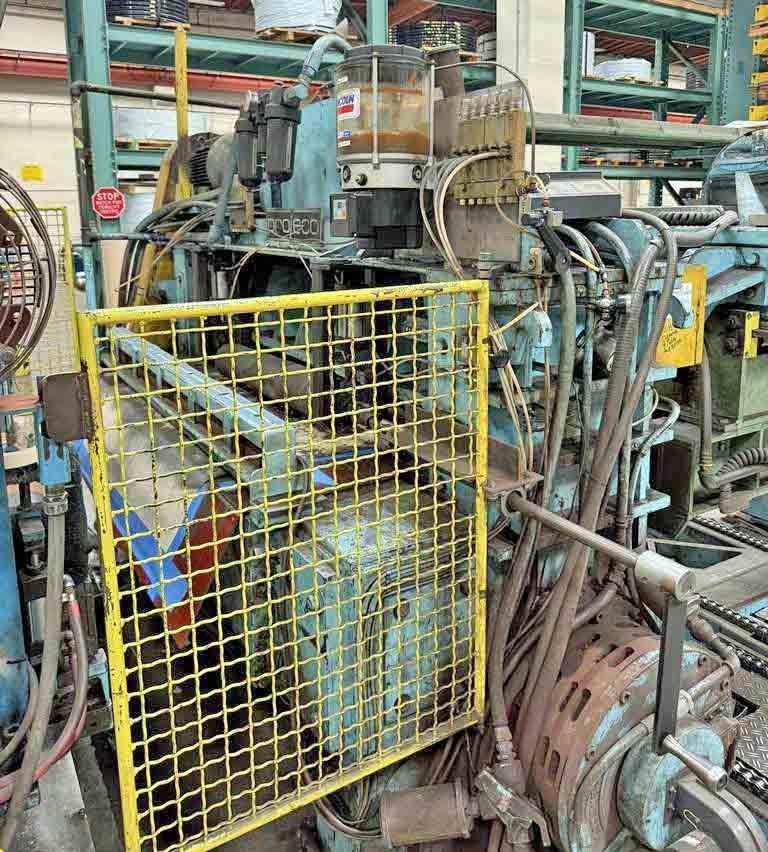

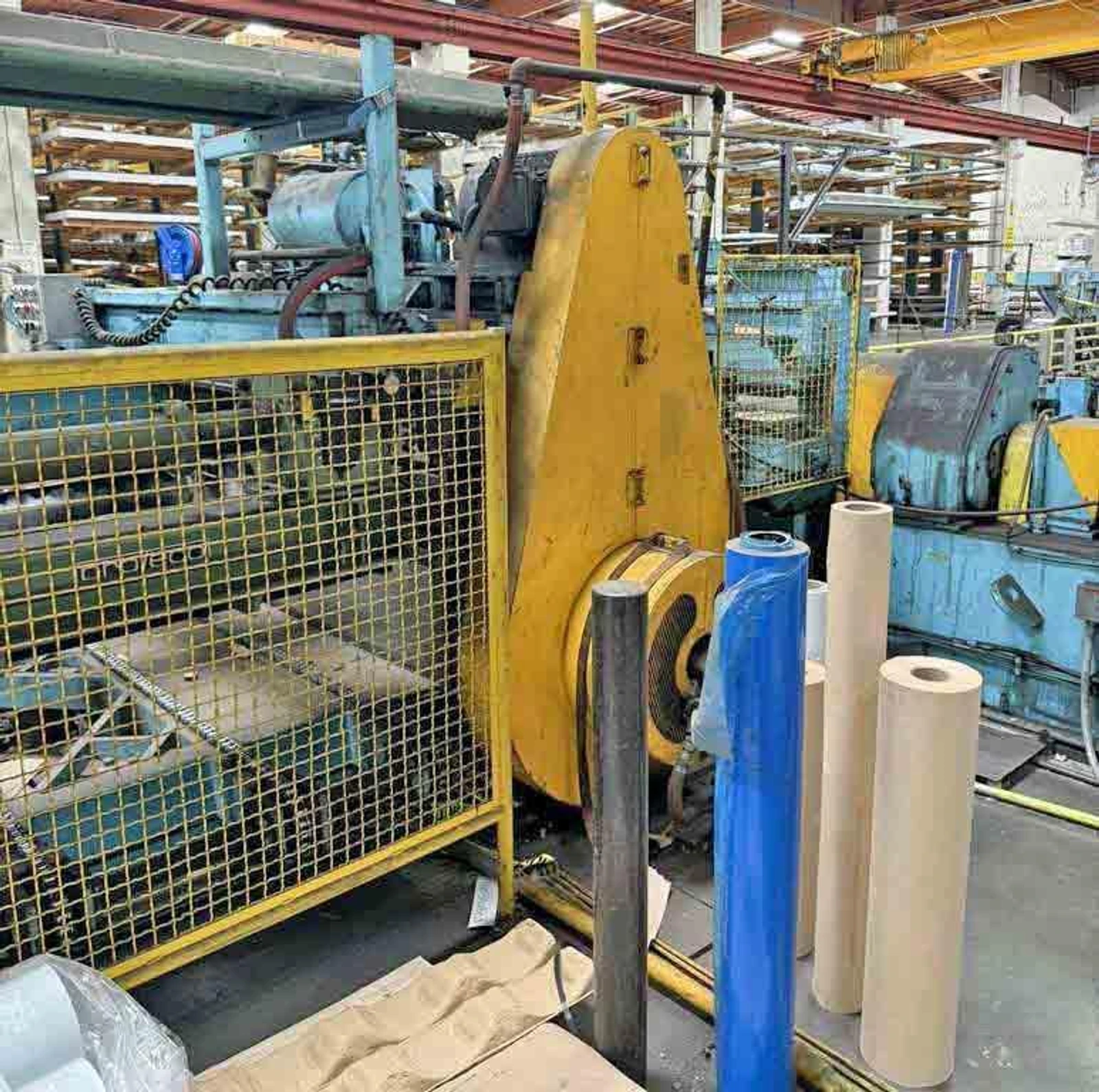

-High Speed Shear:
Entry Pinch Roll
AC Drive Motor
Air Clutch and Brake

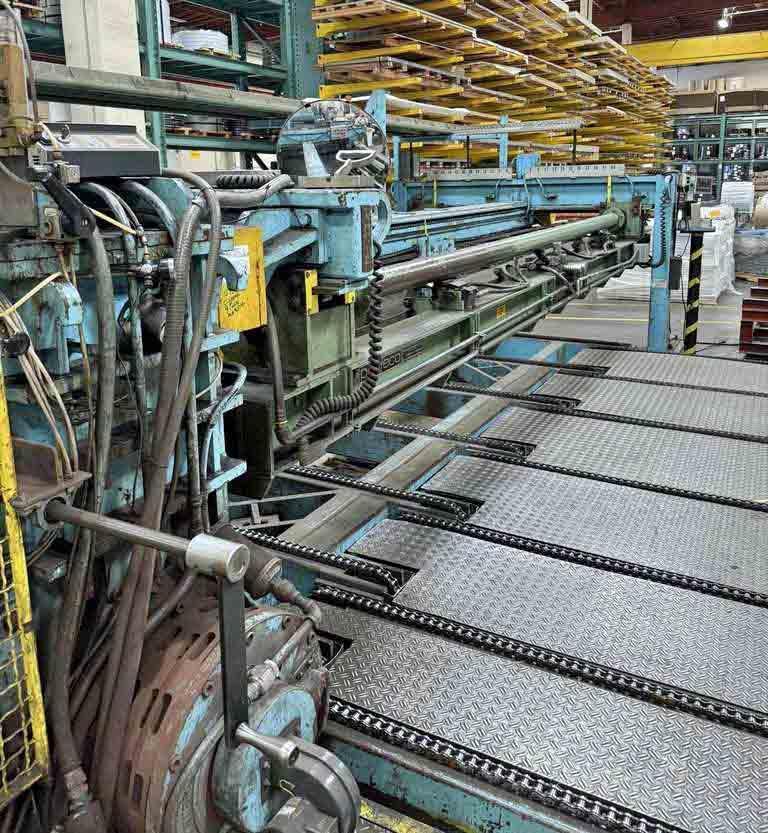

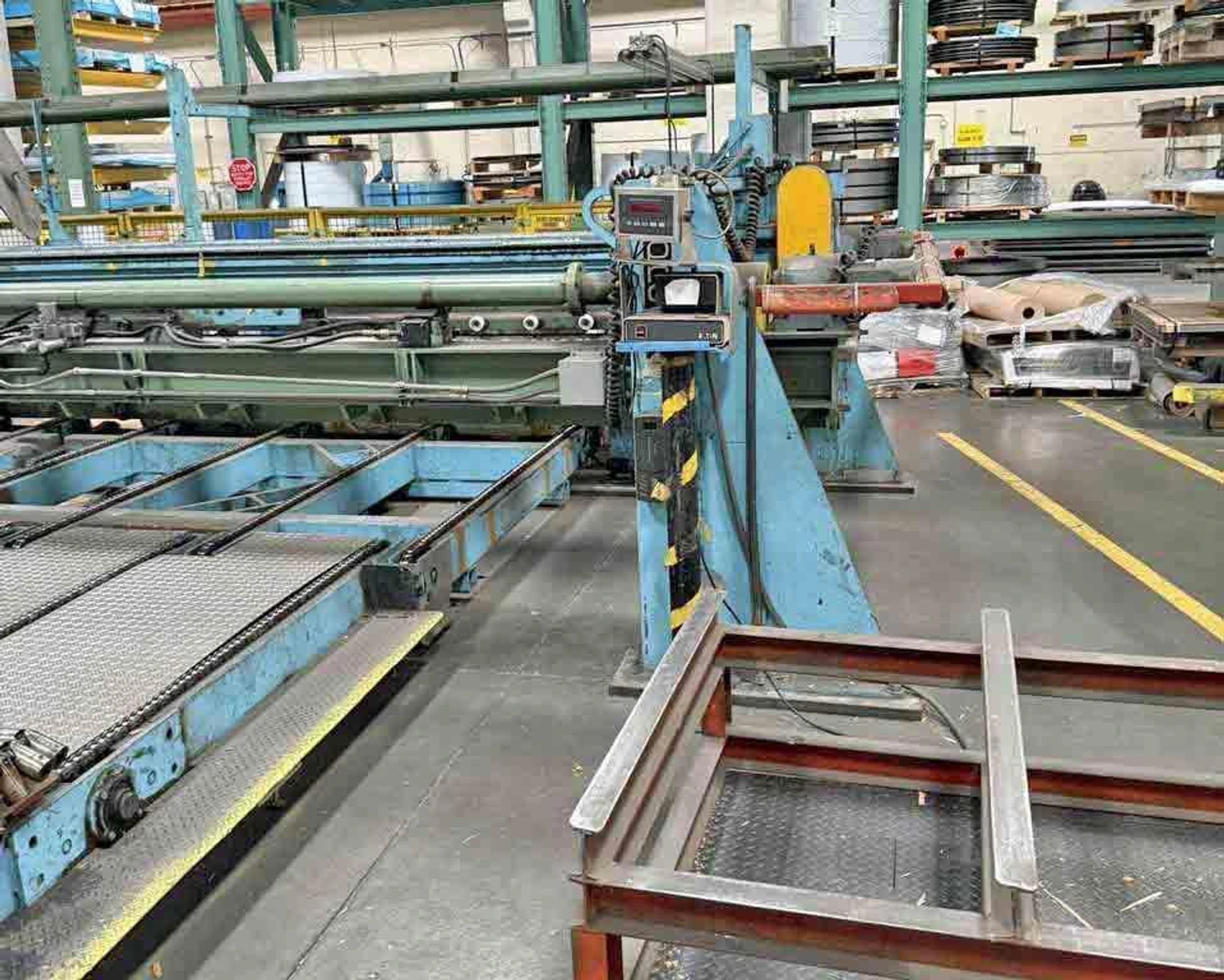

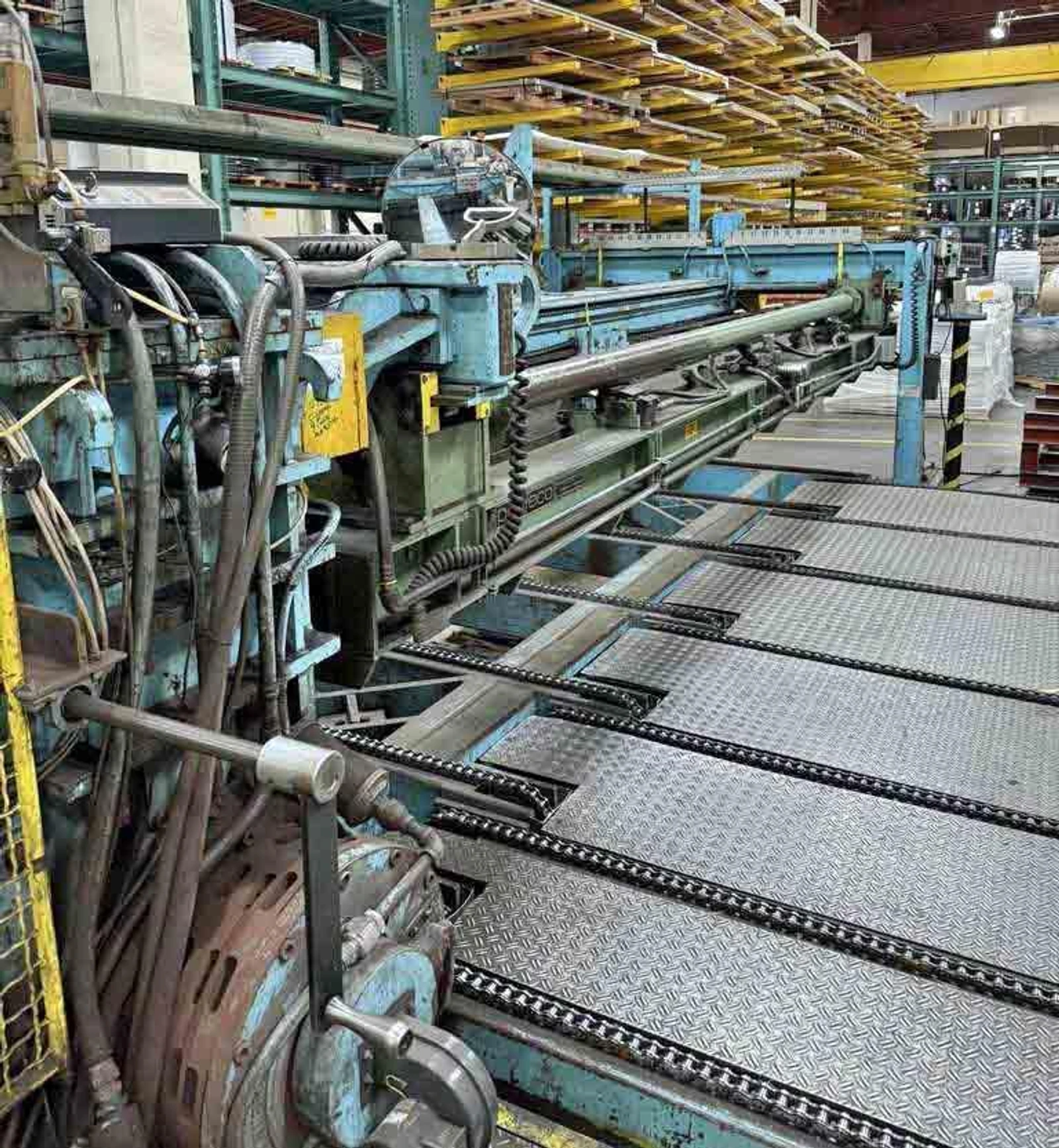

-Automatic Stacker:
10,000# Stack Capacity
Powered Width Adjustment
Powered Length Adjustment

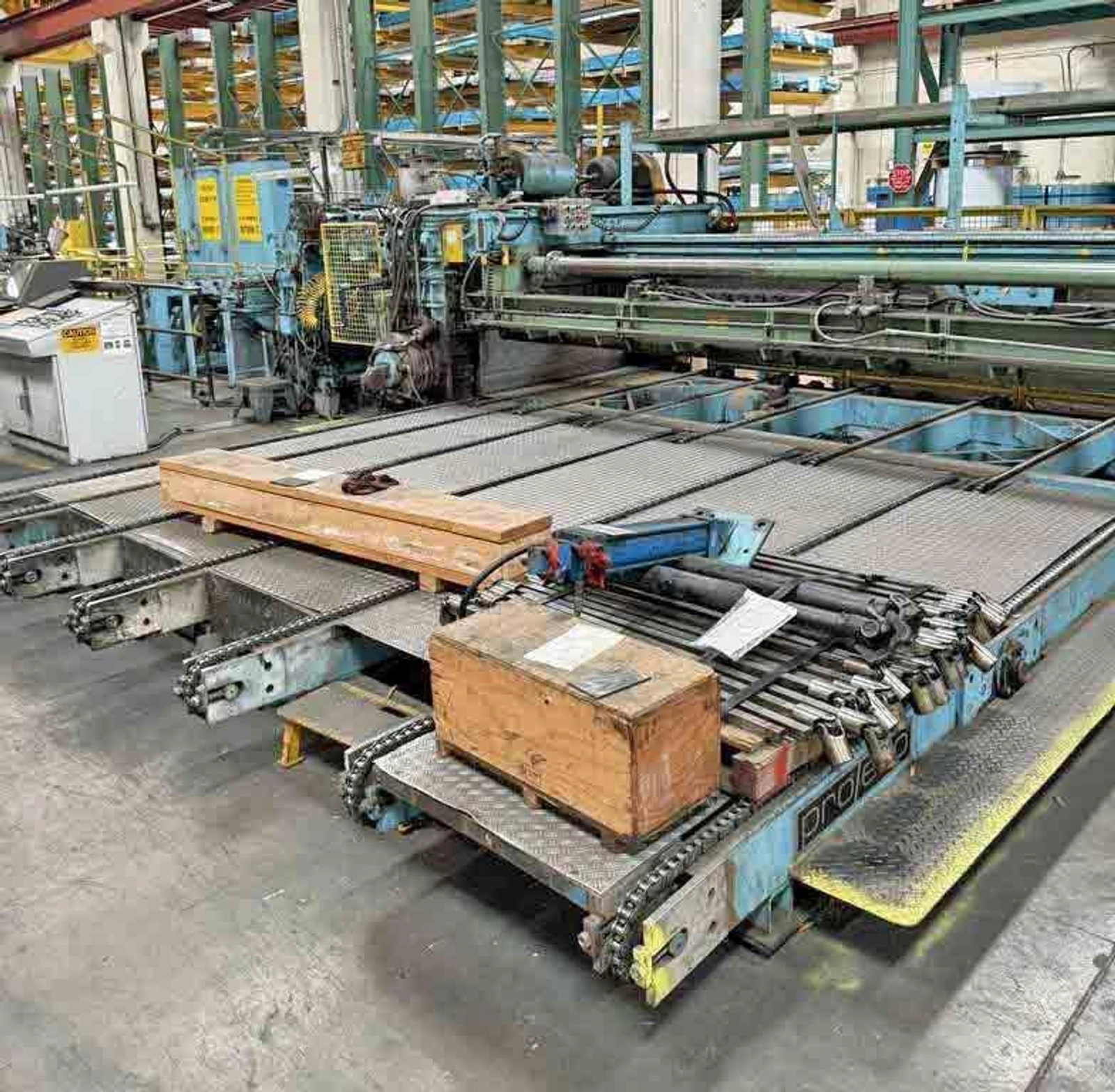

-Side Discharge Chain Conveyor:

-Line Direction: Left to Right
