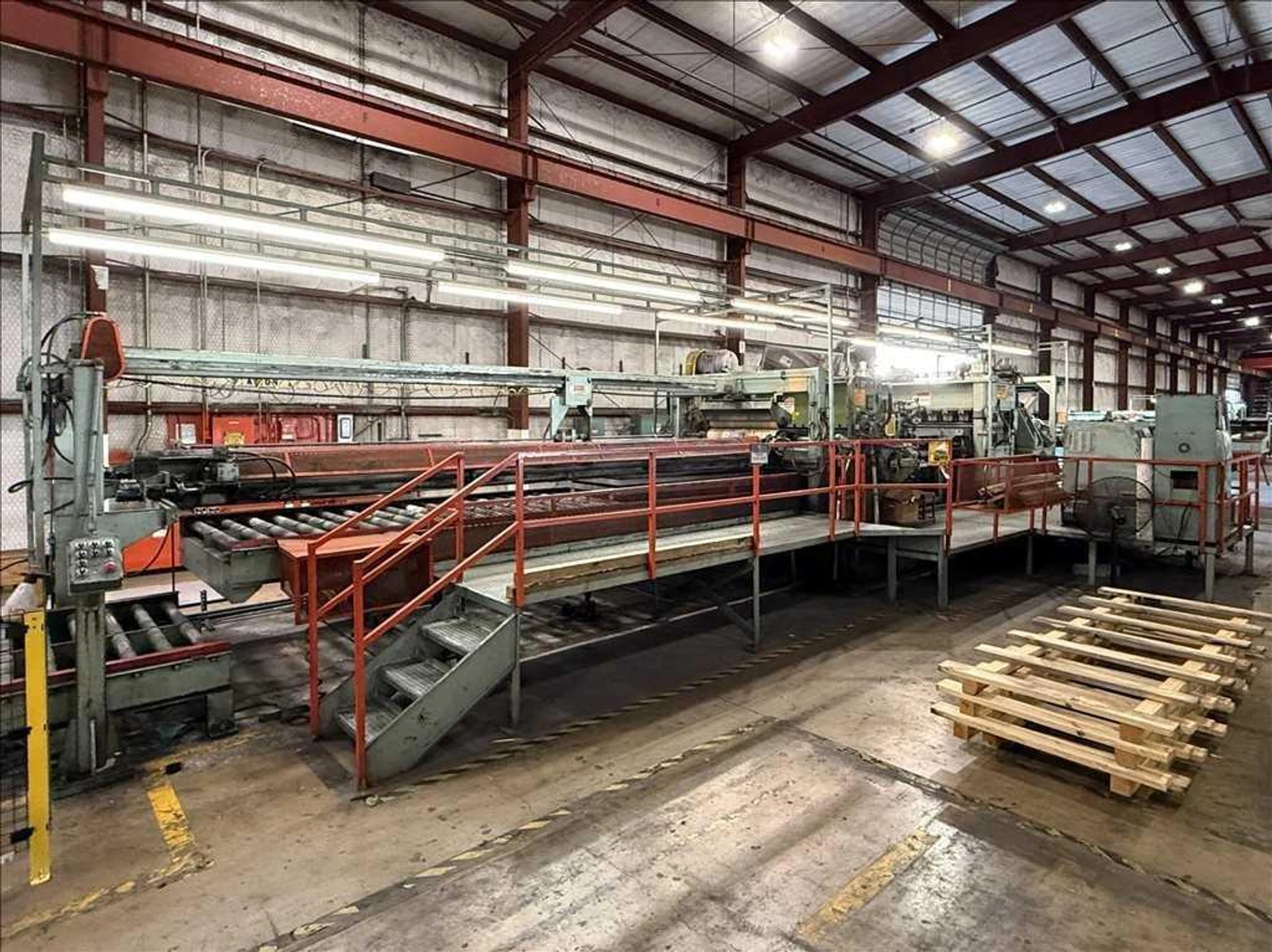

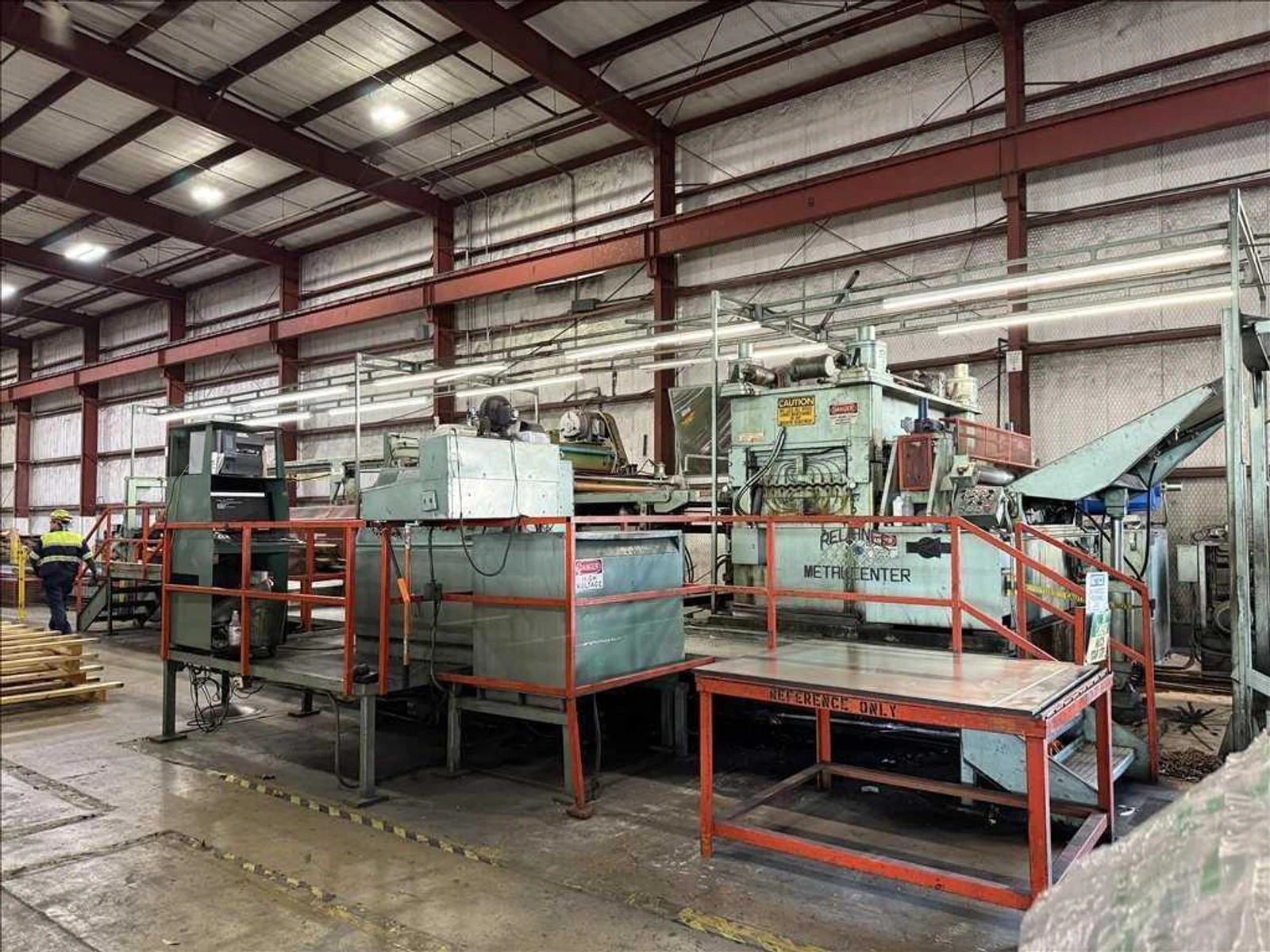

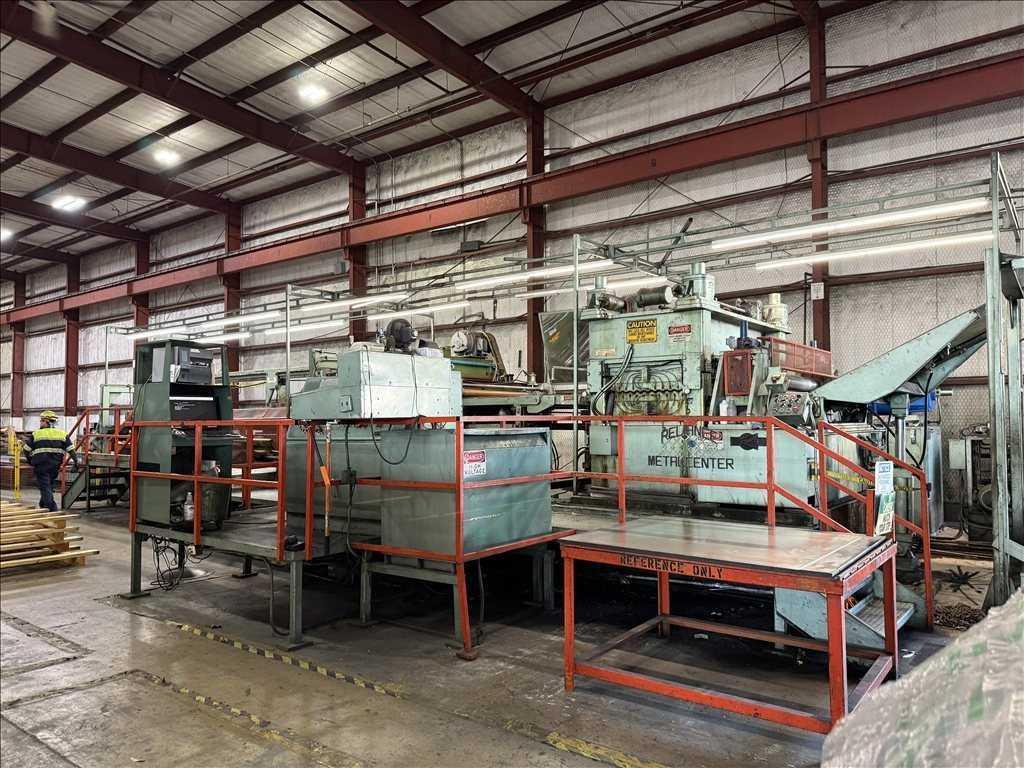

72" x 0.250" x 50,000# Delta Cut To Length Line

Material Thickness:
Aluminum: 0.250"
Carbon Steel: 0.188"
Stainless: 0.135"

Consisting of the following:

Coil Reel:
Coil Width: 18"-72"
Max. Coil Length: 240"
Max. Coil Weight: 50,000 lbs.
OD: 72"
ID: 19" - 27"

-Uncoiler:
Max. Material Width: 72"
Max. Coil Weight: 50,000 lbs.
Expansion: 19" - 23"

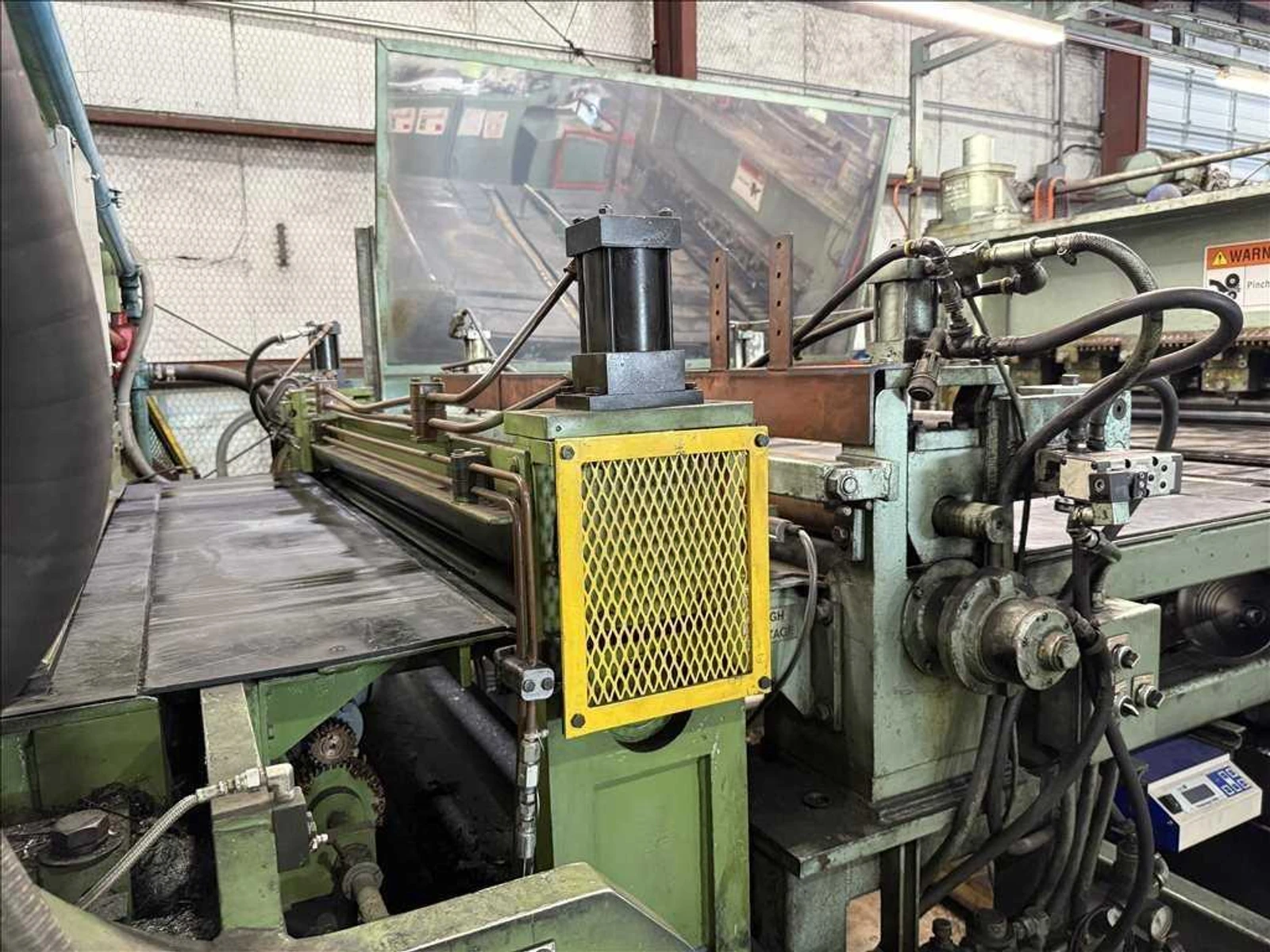

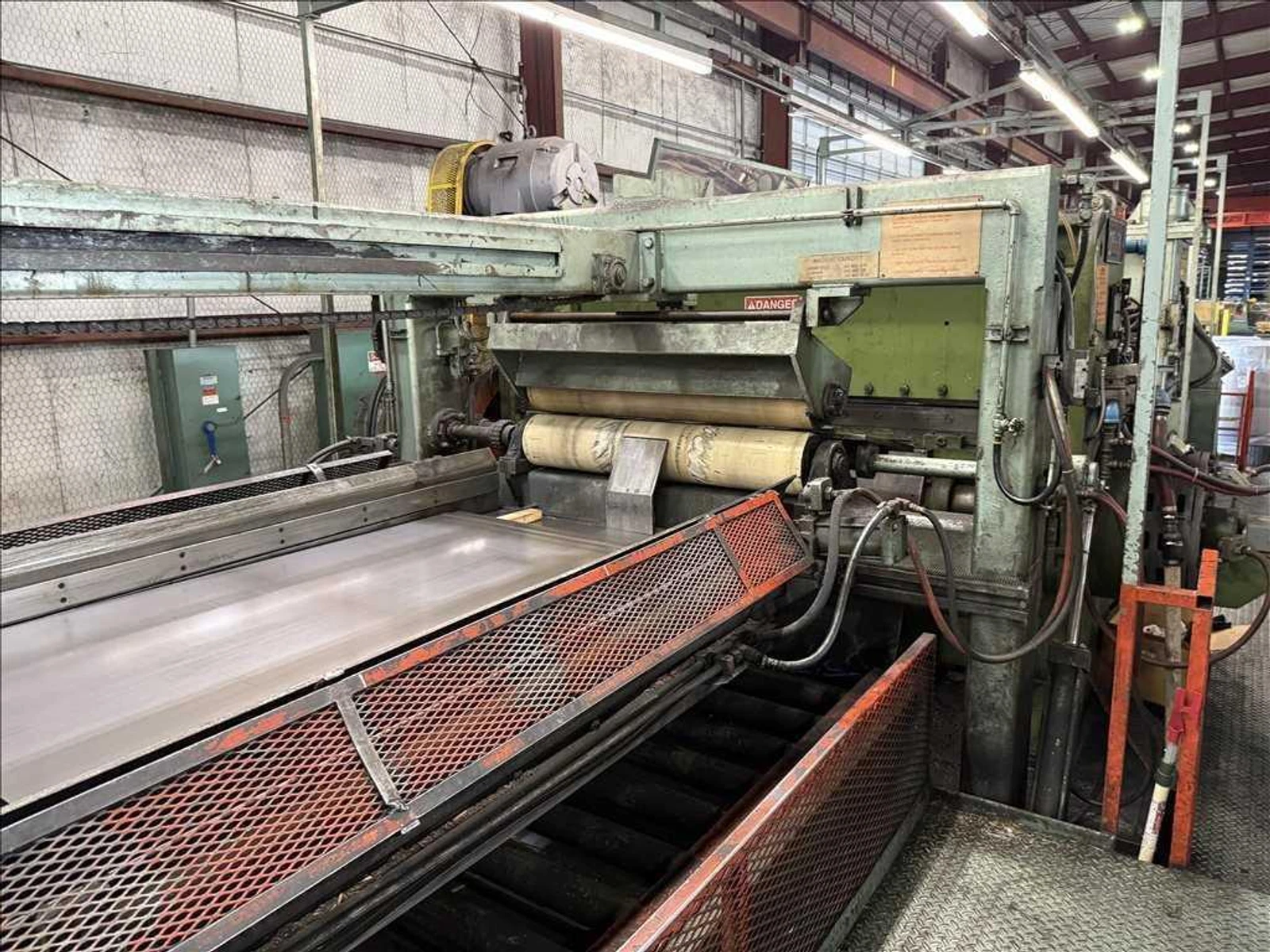

-Leveler:
Max. Thickness: 0.250"
Roll Diameter: 2.75"
Pinch Roll Diameter: 7"
Number of Rolls: 19
Motor: 250 HP

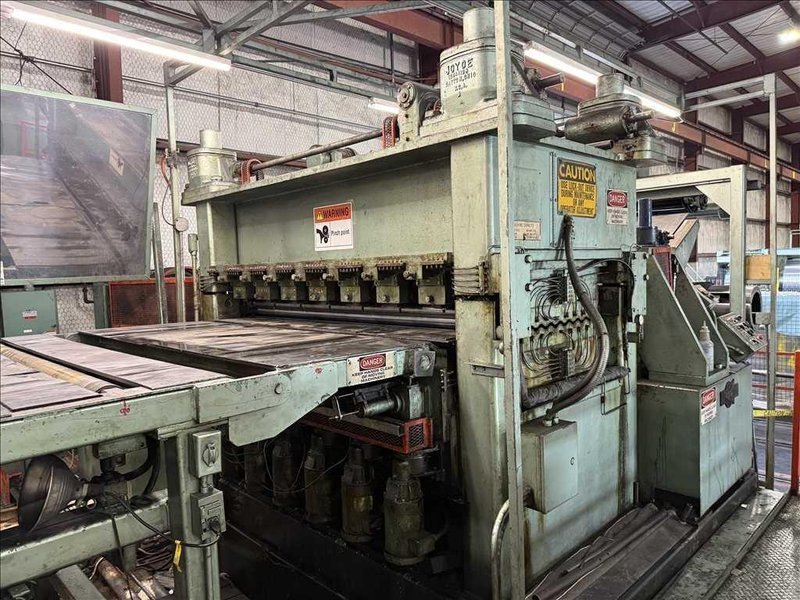

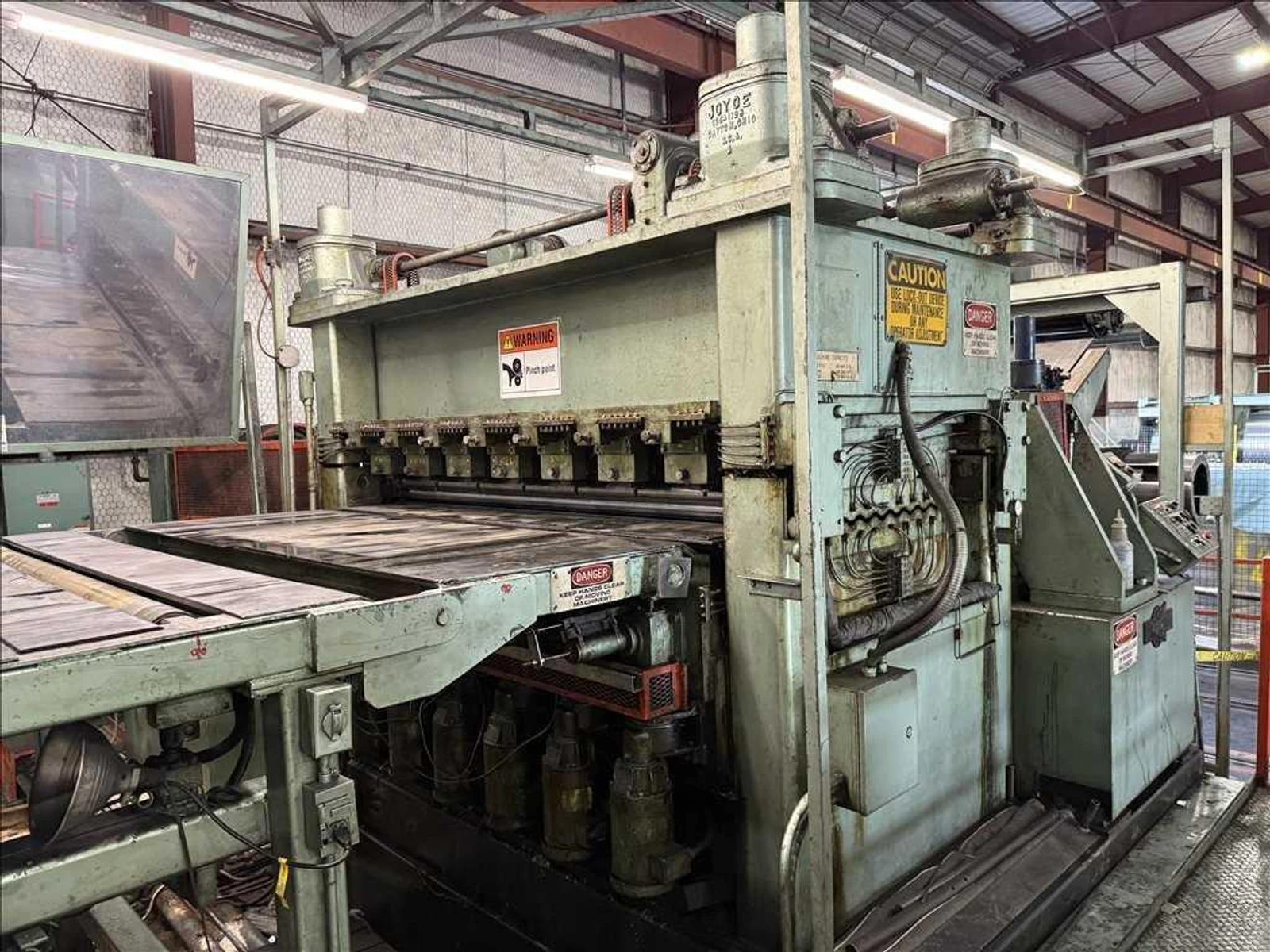

-Shear:
Max. Cutting Thickness: 0.250"
Speed: 300 SPM

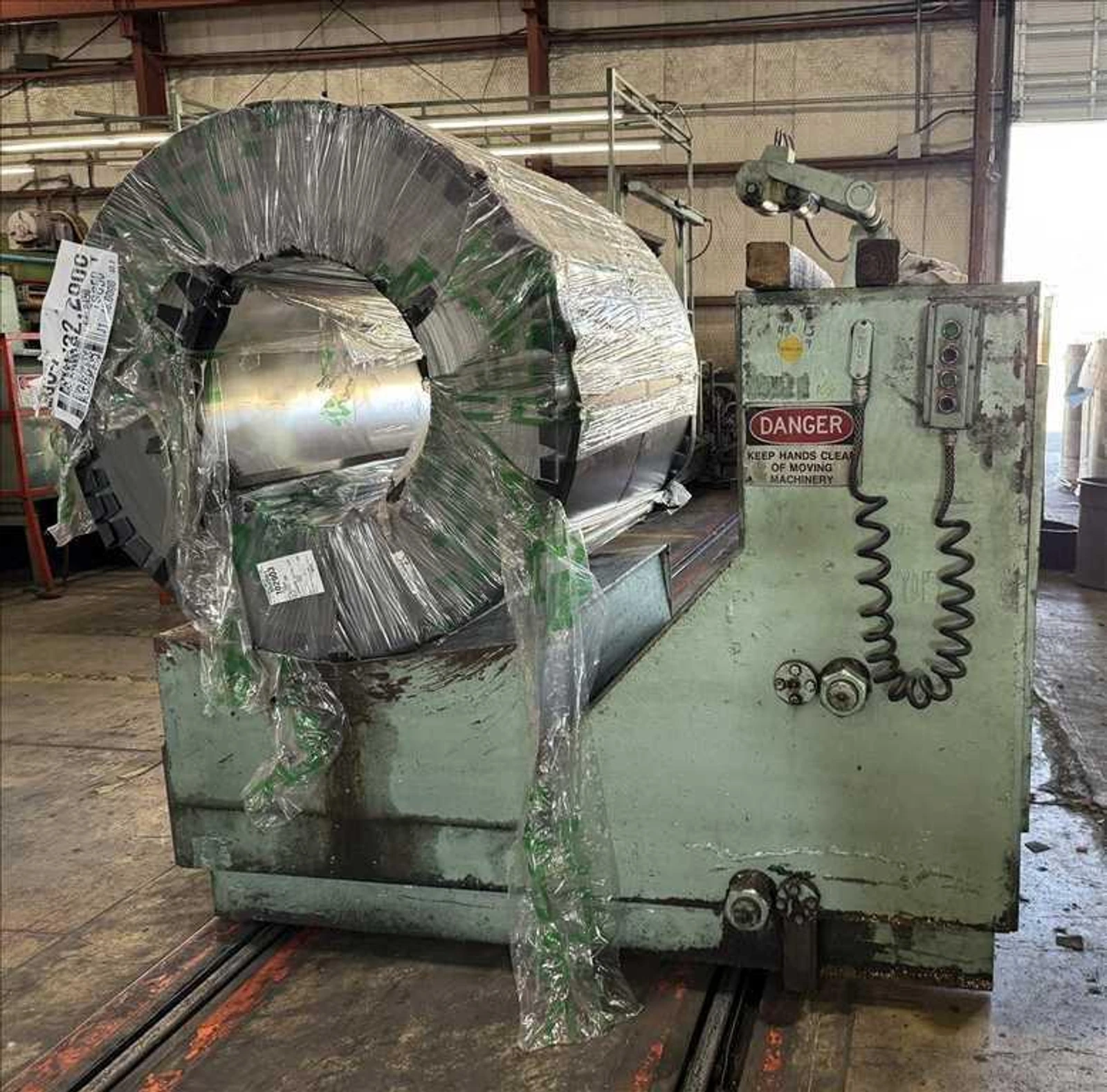

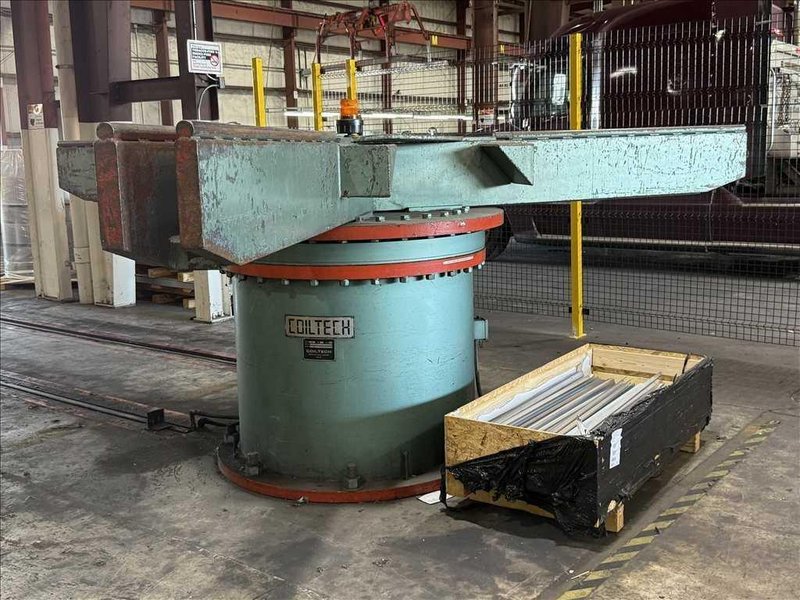

-Coil Cart:

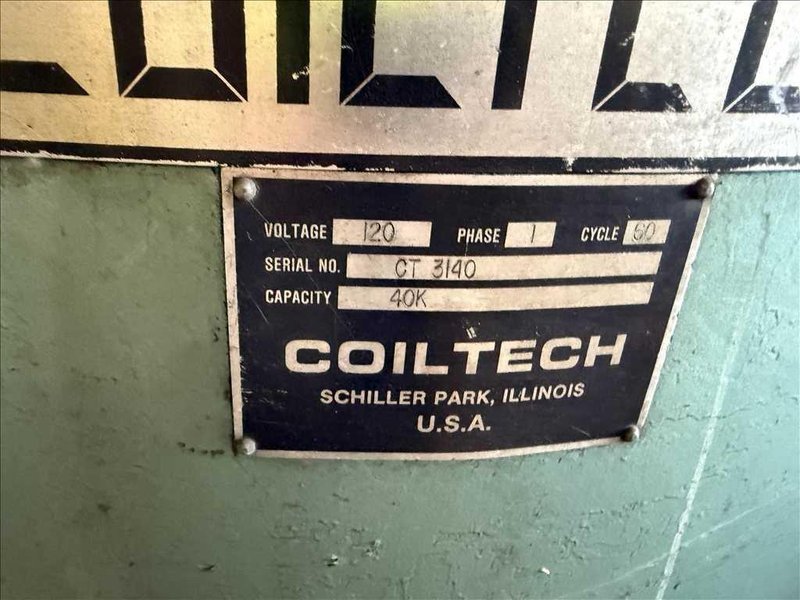

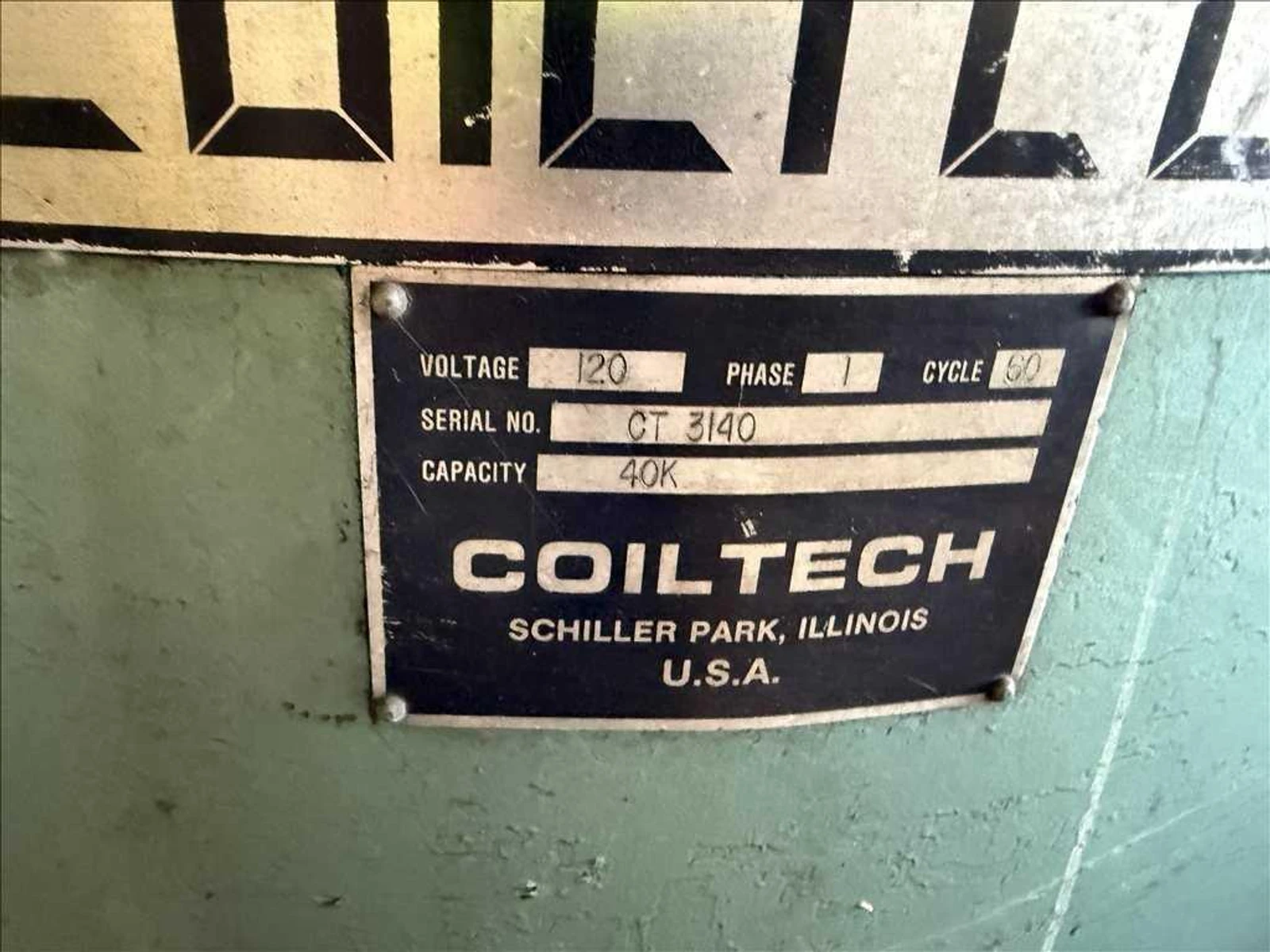

Capacity: 40,000 lbs.

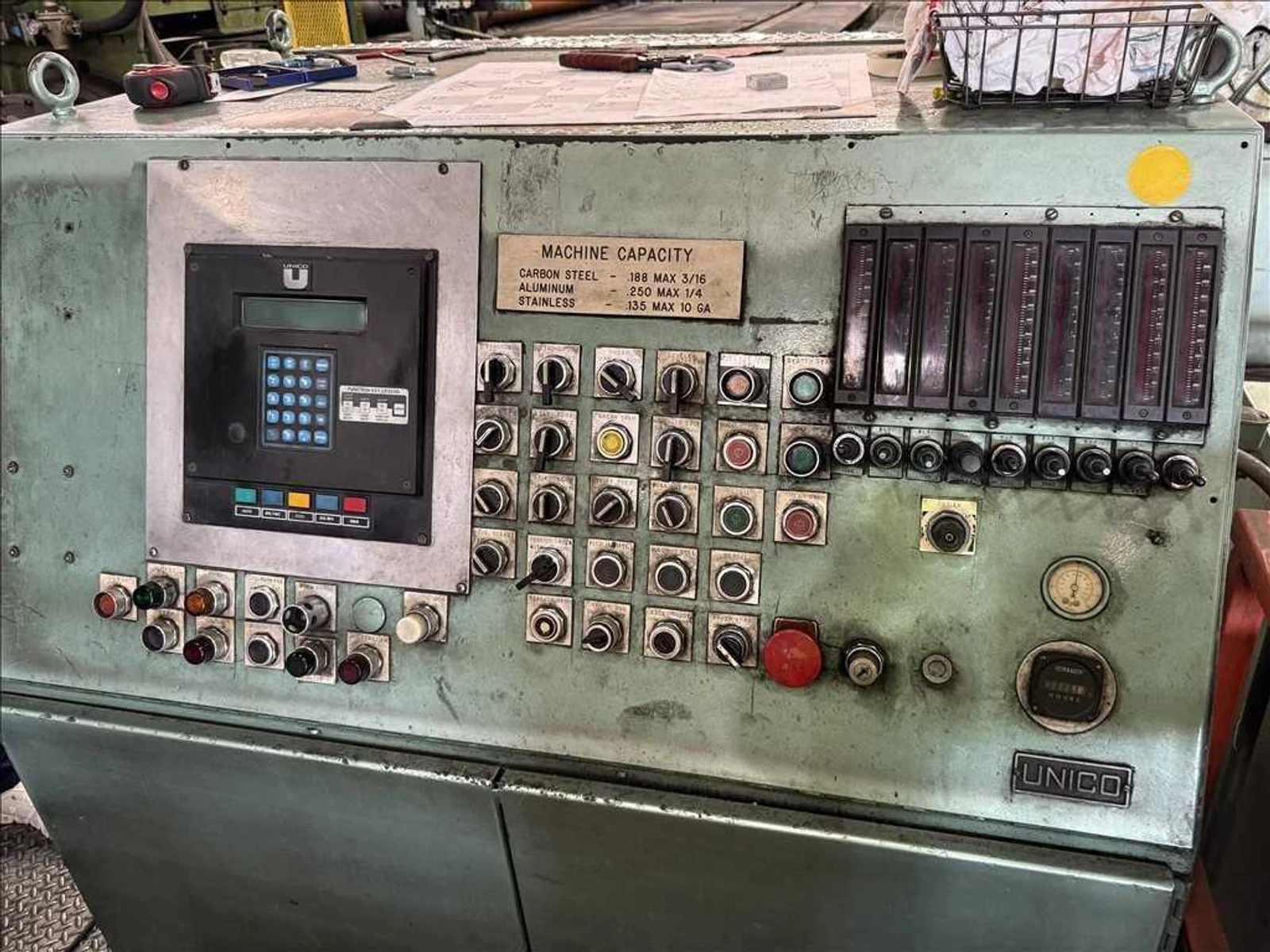

-Unico PLC Control Station with Delta Software
-Delta 19 Roll 4-HI Precision Leveler
-Travling Coil Cart with Elevation & in / out Movement
-Uncoiler with Snubber Roll
-4 Arm Stand
-Peeler Table
-Automatic Stacker
-250 HP DC Drive
-Under Power
