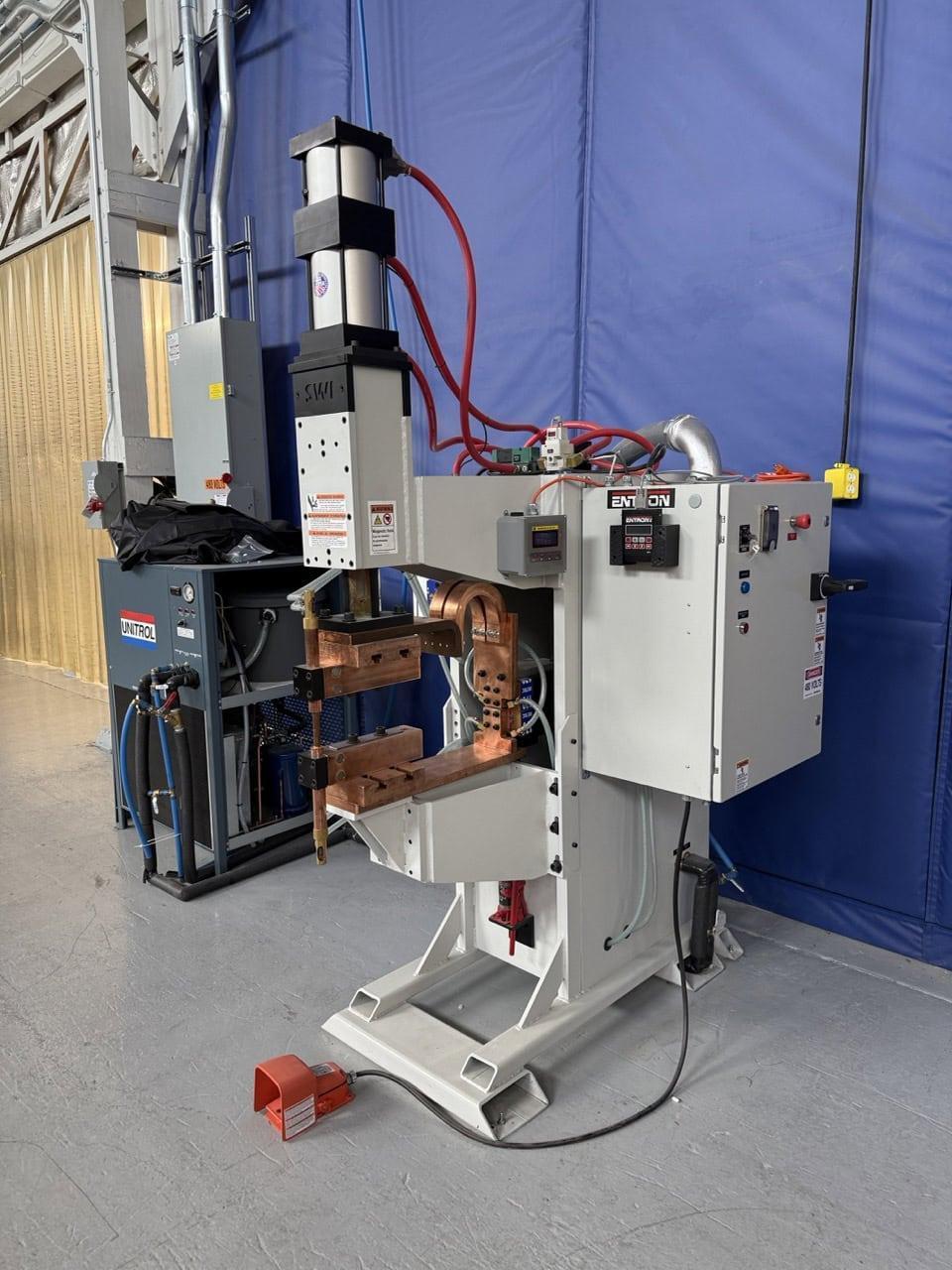

Electrical: 460V/60Hz/3Phase
Transformer Power: 170 KVA
Throat Depth: 18 inches (22″ with included arms)
Weld Cylinder: 6″ bore x 5″ stroke (~2800 lbs force @ 100 psi)
Electrode Holders: 1-1/4″ x 8″ long, 5RW/#2MT tapered ejector style
Arms: 3″ square copper

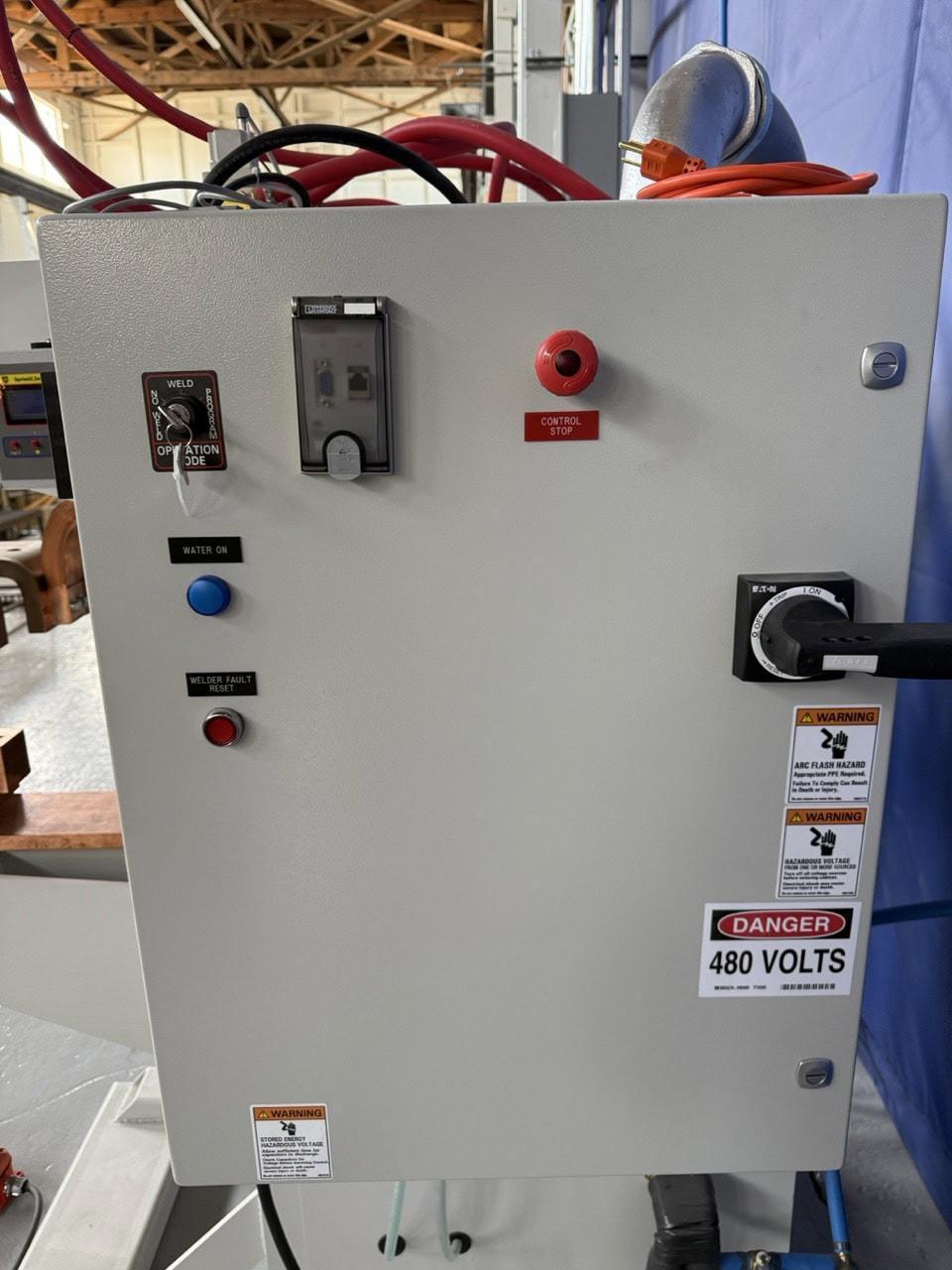

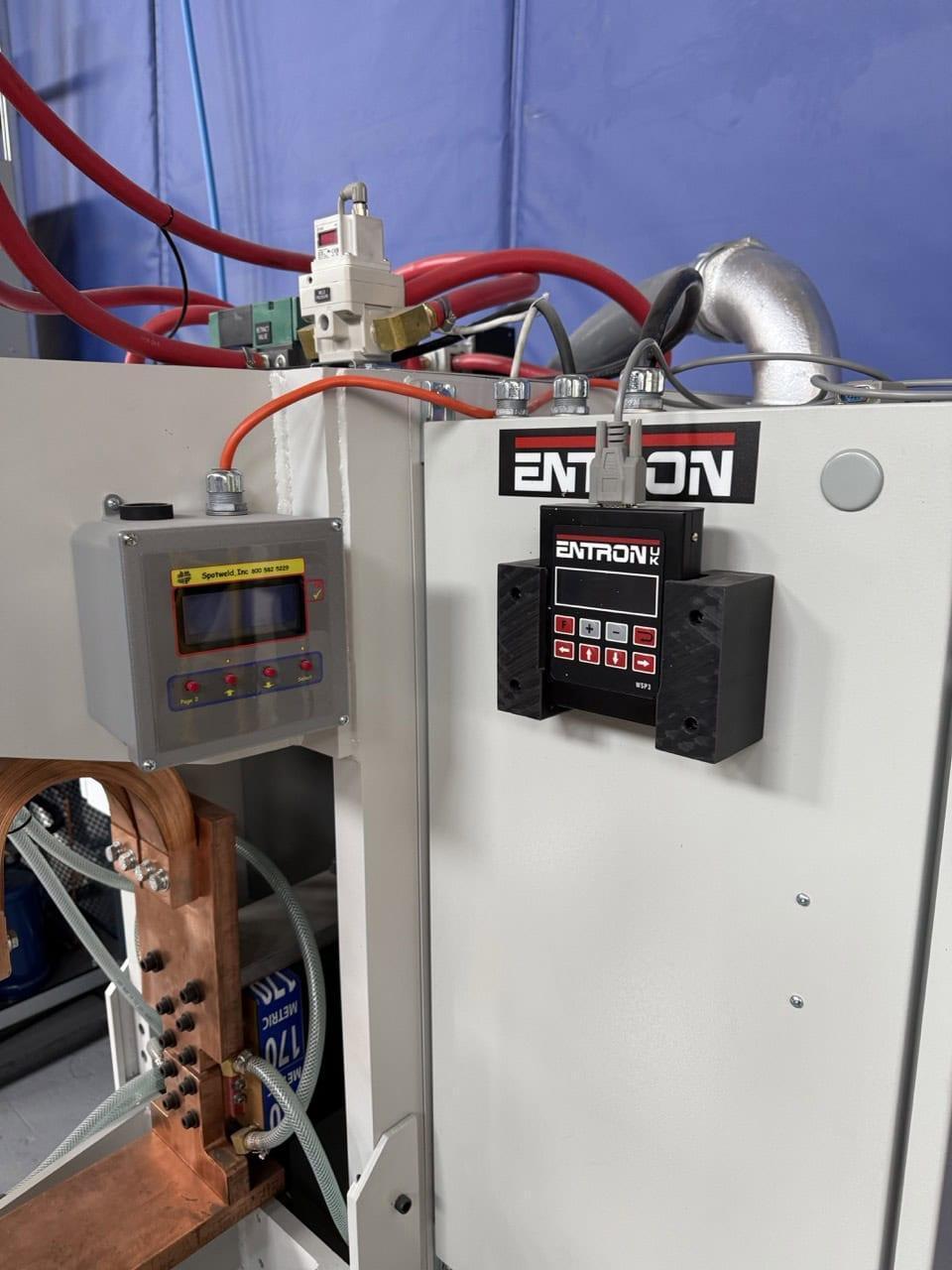

Weld Control: Entron iPAK2 Inverter, 1000-Amp IGBT, CE Breaker pendant
Air: 1/2″ NPT
Water: 3/8″ NPT, closed loop system
Secondary material: 99.9% electrolytic copper
Approx. Dimensions: 62″ x 86″ x 102″
Initiation: foot pedal
All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
