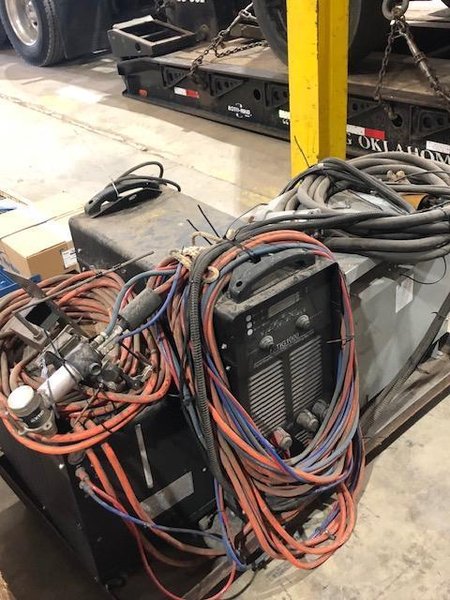

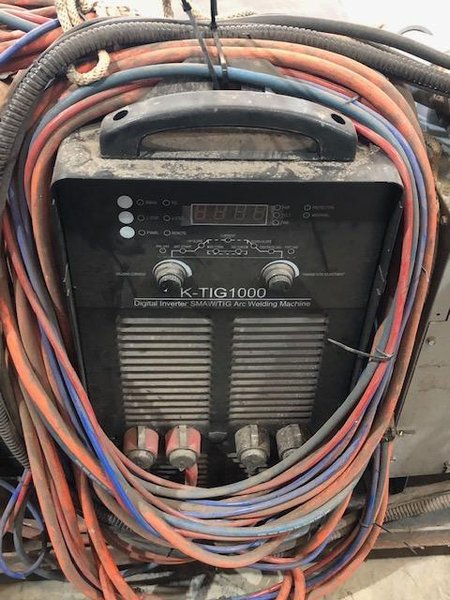

Model K-TIG 1000
Year 2020
Process Type Keyhole TIG (K-TIG)
Material Compatibility Stainless Steel, Duplex, Inconel, Titanium, High-Nickel Alloys
Wall Thickness Range 3mm to 25mm (1/8″ to 1″) in a single pass
Power Requirement 415V, 3 Phase (or as configured)
Current Range Up to 1,000 Amps
Torch Cooling Water-Cooled Torch
Control System K-TIG Touchscreen Control Interface
Automation Compatibility Integrates with CNC systems, orbital and column/boom welders
Shielding Gas Argon (typical)
Max Welding Speed Up to 600 mm/min (23.6 in/min) depending on material and thickness
Duty Cycle 100% @ 300 A, 60% @ 500 A (depends on power supply)
All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
