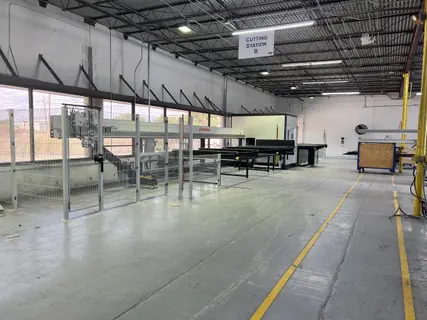

Elumatec SBZ 628 S CNC Profile Machining Center, 2024 – 8 Axis, Like New

The 2024 Elumatec SBZ 628 S is a state-of-the-art, fully automated CNC profile machining center designed for the high-speed processing of aluminum, PVC, and thin-walled steel profiles. Engineered for ultra-efficient fabrication of window, door, and curtain wall components, this unit delivers exceptional throughput with unmatched precision.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,With 8-axis control, dual independent processing zones, and integrated saw and tool stations, the SBZ 628 S provides end-to-end machining—including milling, drilling, notching, routing, and sawing—without manual repositioning.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Max. profile cross-section (WxH) 200 x 160 / 160 x 200 mm Min. profile cross-section 30 x 10 mm Blank bar length 7,600 mm Finished part length 350-4,600 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Feed magazine: Shortest blank bar length 3,000 mm Number of swing arms 5 (option for 9) Mounting positions 10 (above 120 mm 5)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Infeed: Servo drive linear Motorized gripper adjustment Y/Z Gripper rotation Optional Residual piece measurement – Residual piece processing manual feeding < 3,000

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machining station: Axes 4 Router spindles 4 (servo-assisted)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Saw: Axes 2 Saw blades (diameter) 1 (650 mm) Sawing angles 45° – 135° (pivoting)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Outfeed conveyor: Lifting station Yes Number of swing arms 8 Outfeed conveyor width (options) 4,000 mm
