USED HYD-MECH 30" X 25" FULLY AUTOMATIC VERTICAL TILT FRAME BANDSAW MODEL V-25APC-120 WITH 62' OF POWERED CONVEYOR, Year: 2014

USED HYD-MECH 30" X 25" FULLY AUTOMATIC VERTICAL TILT FRAME BANDSAW MODEL V-25APC-120 WITH 62' OF POWERED CONVEYOR, Year: 2014

Name: USED HYD-MECH 30" X 25" FULLY AUTOMATIC VERTICAL TILT FRAME BANDSAW MODEL V-25APC-120 WITH 62' OF POWERED CONVEYOR, Year: 2014
Brand: HYD-MECH
SKU: 11127
Availability: InStock

Brand

HYD-MECH

Location

Not specified

Specifications
Files & Videos

Overview

Type:

Saws, Band, Vertical

Manufacturer:

HYD-MECH

Model:

V-25APC-120

Year:

2014

Stock #:

11127

Status:

For Sale

Description

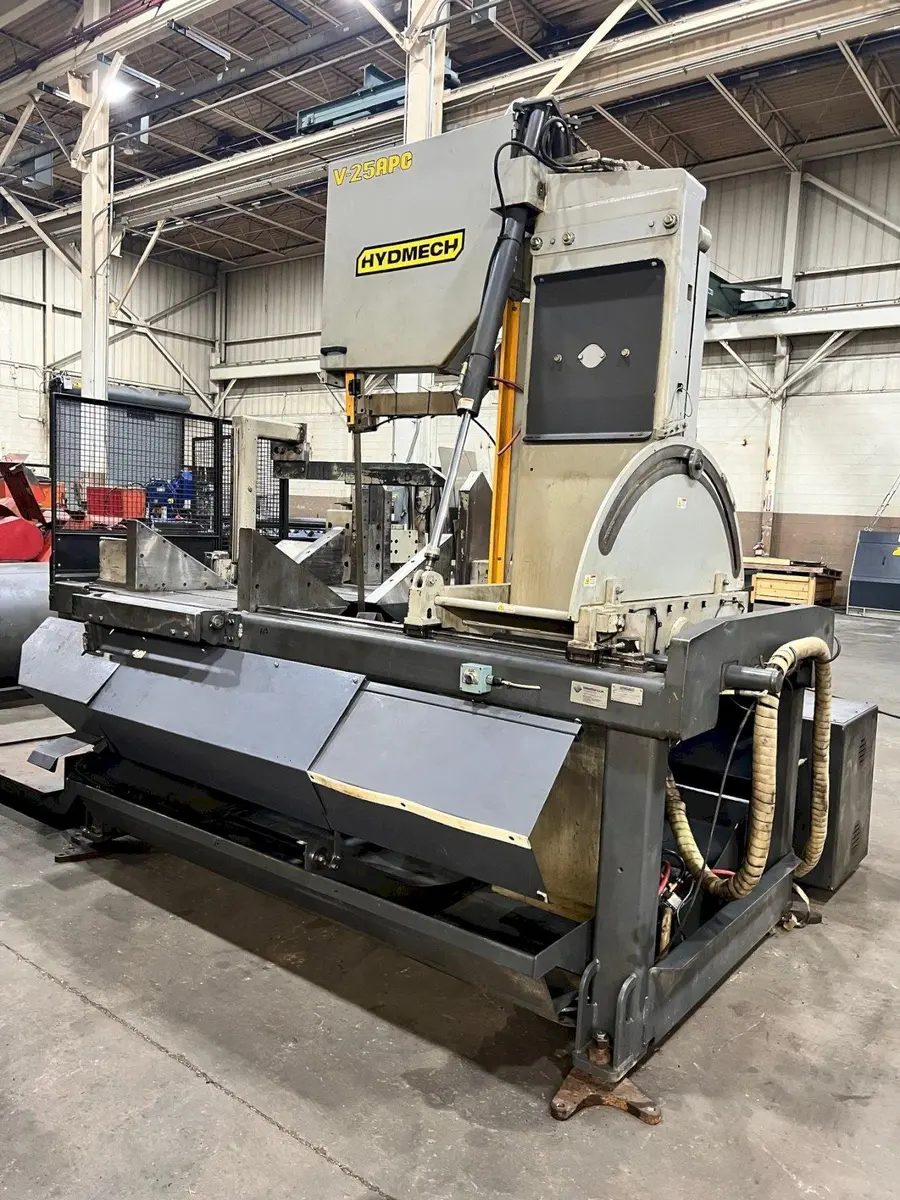

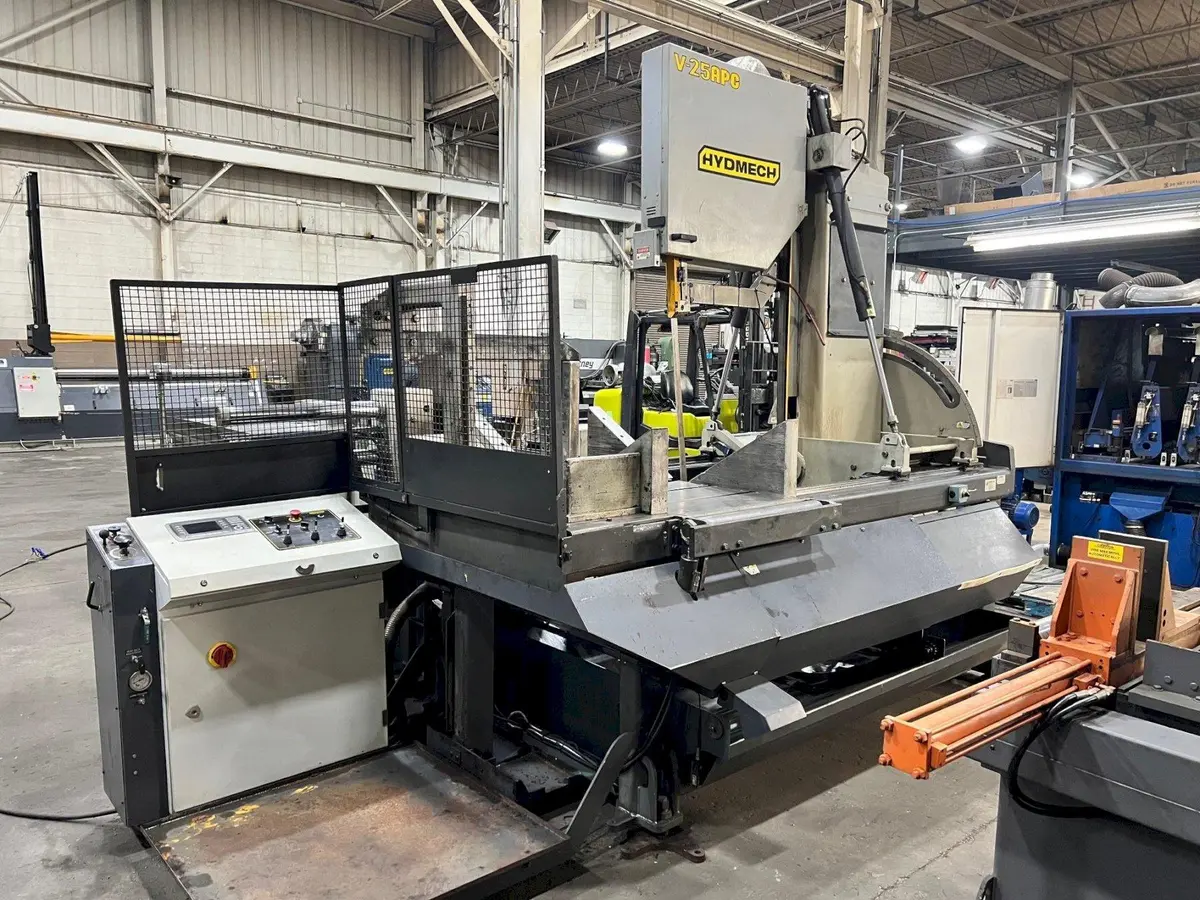

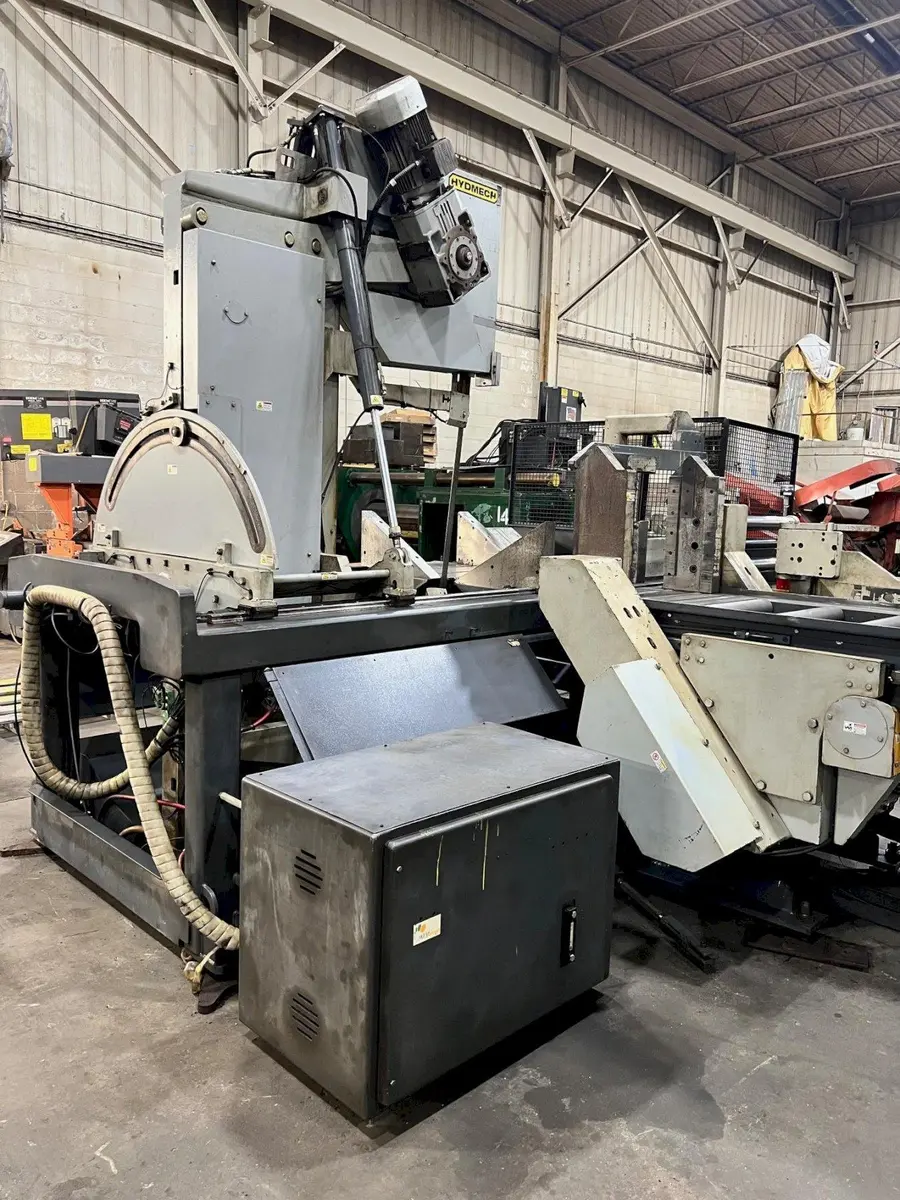

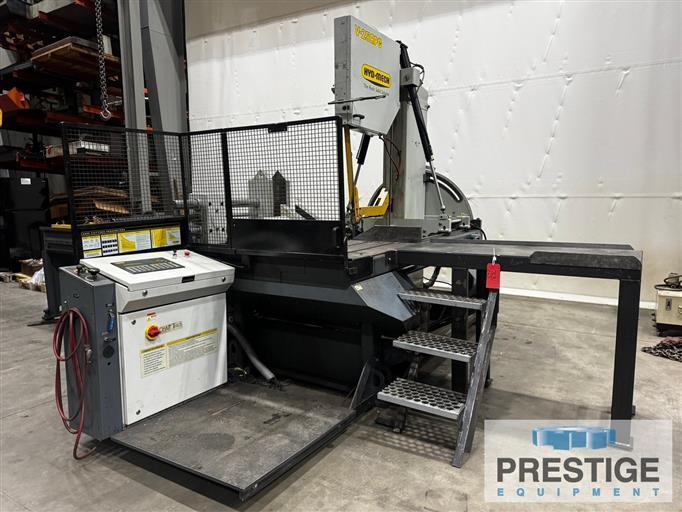

HYD-MECH V-25APC-120 vertical band saw, 2014 model, used condition. Features 30" x 25" capacity at 90 degrees, 10 HP motor, and 120" automatic shuttle feed. Includes Mitsubishi PLC, hydraulic system and Auxiliary 62' Powered roller conveyor System

ImperialMetric

Throat	25"	635 mm
Work Height	30"	762 mm
Power	10 hp	7.5 kW
Blade Width	1.5"	38.1 mm
Blade Length	21'	6,400.8 mm
FPM	75-350	75-350
Control	CNC (Mitsubishi)	CNC (Mitsubishi)
Weight	21,500 Lbs.	21,500 Lbs.

Brand: Hyd-Mech
Model: V-25APC-120

Specifications:
Capacity @ 90 degrees: 30" x 25" (20" x 25" with bundling clamps)
Capacity @ 45 degrees: 21" x 25" (18.5" x 25" with bundling clamps)
Capacity @ 60 degrees right: 14.5" x 25" (8.5" x 25" with bundling clamps)
Capacity @ 60 degrees left: 13" x 25" (8.5" x 25" with bundling clamps)
Blade size: 1-1/2" x 21' x .050"
Blade motor: 10 H.P.
Blade speed: 75 - 350 FPM (infinitely variable)
Blade guides: Carbide
Coolant type: Flood
Coolant tank capacity: 38 gallons
Hydraulic tank capacity: 7 gallons
Table height: 44"
Voltage: 480 volt 3 phase
Machine weight: 15,000 Lbs.
Shuttle weight: 6,500 Lbs.

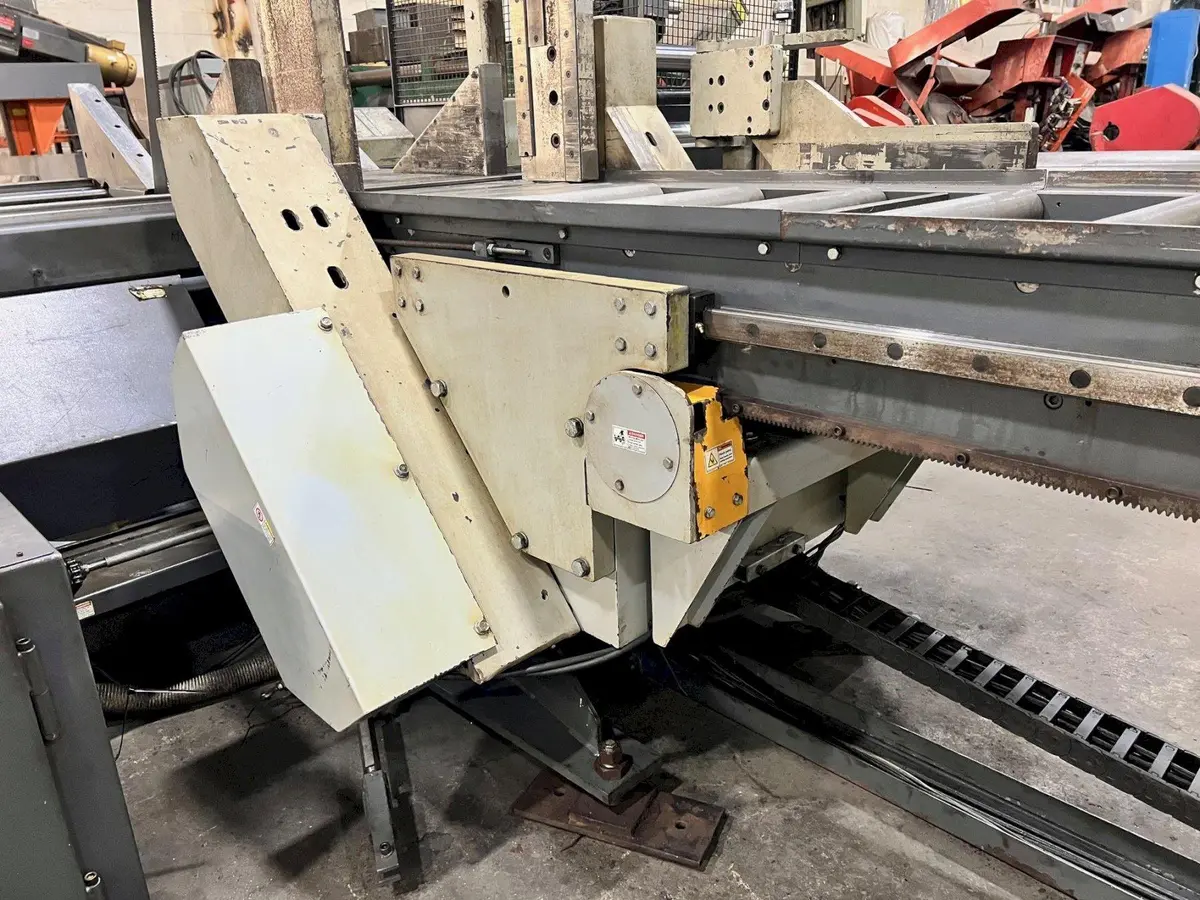

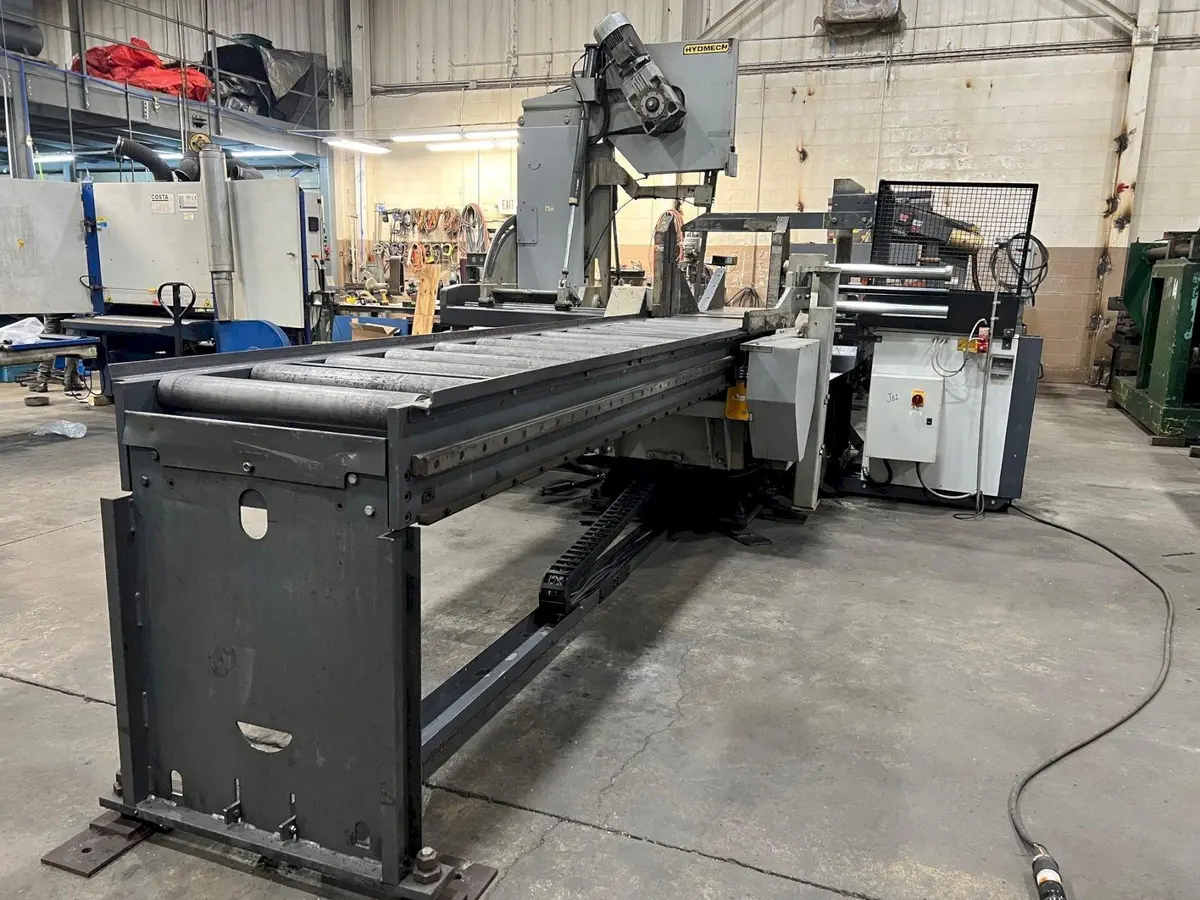

Optional 120" automatic shuttle feed with automatic kerf compensation, rack and pinion servo drive

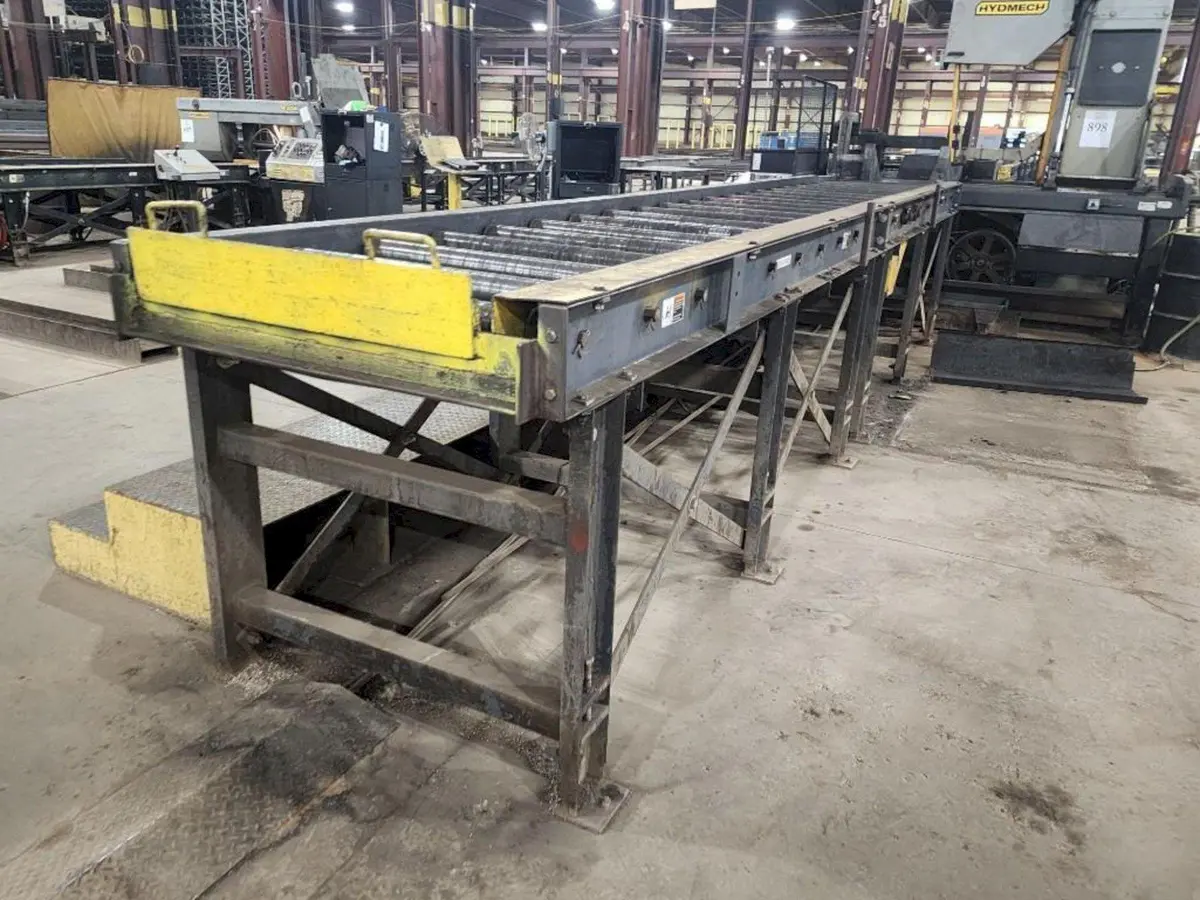

30" wide x 62' of powered heavy duty roller conveyor
Optional hydraulic overhead bundling clamps
Automatic programmable go-to angle from 60 degrees left and right

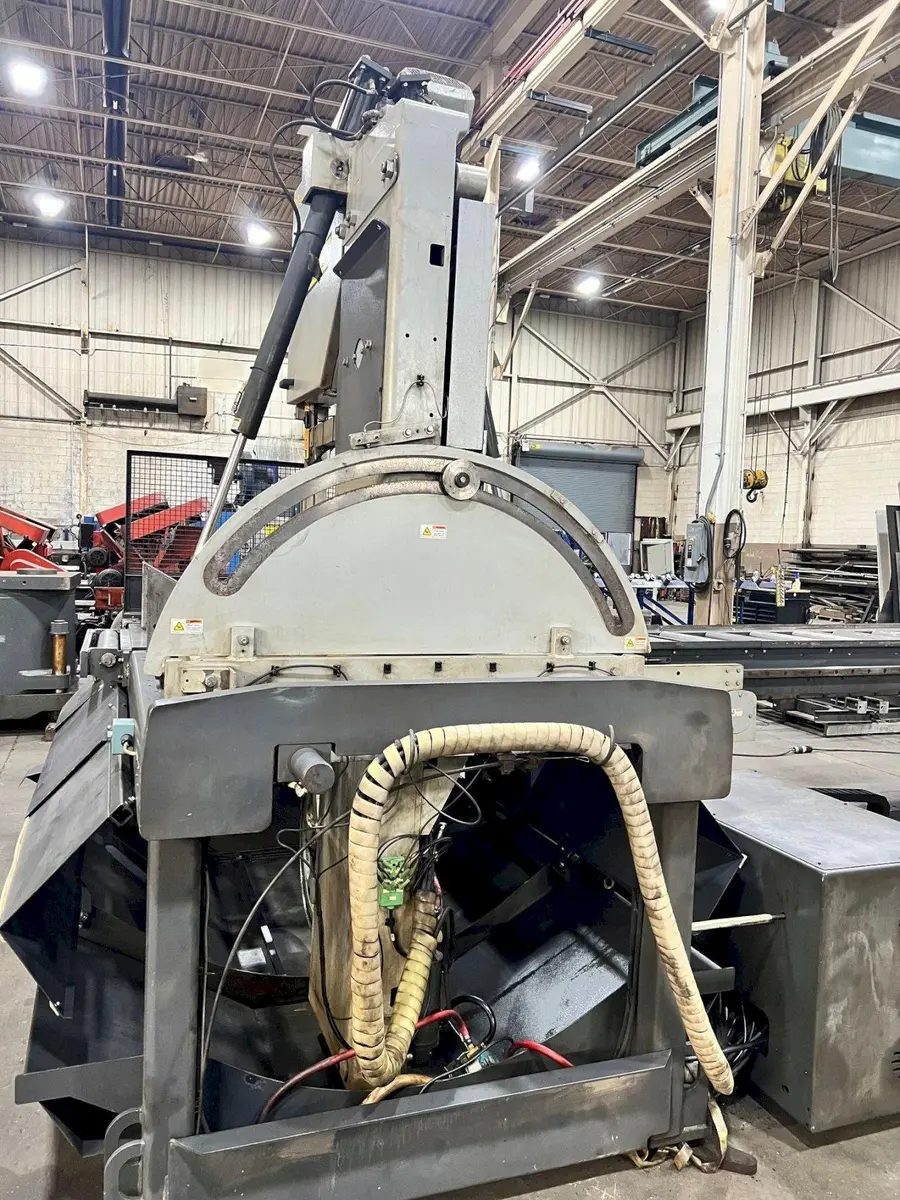

6 degree canted head
Hydraulic guide arm
Hydraulic head tilt

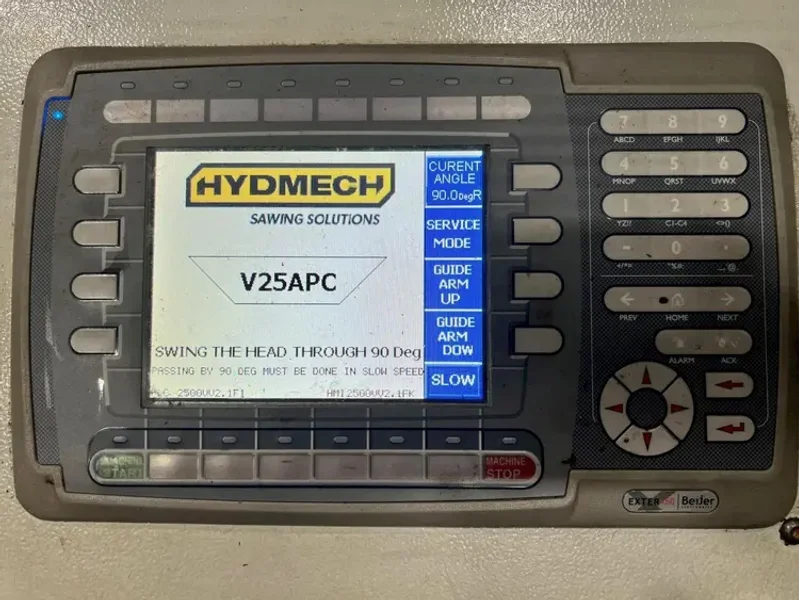

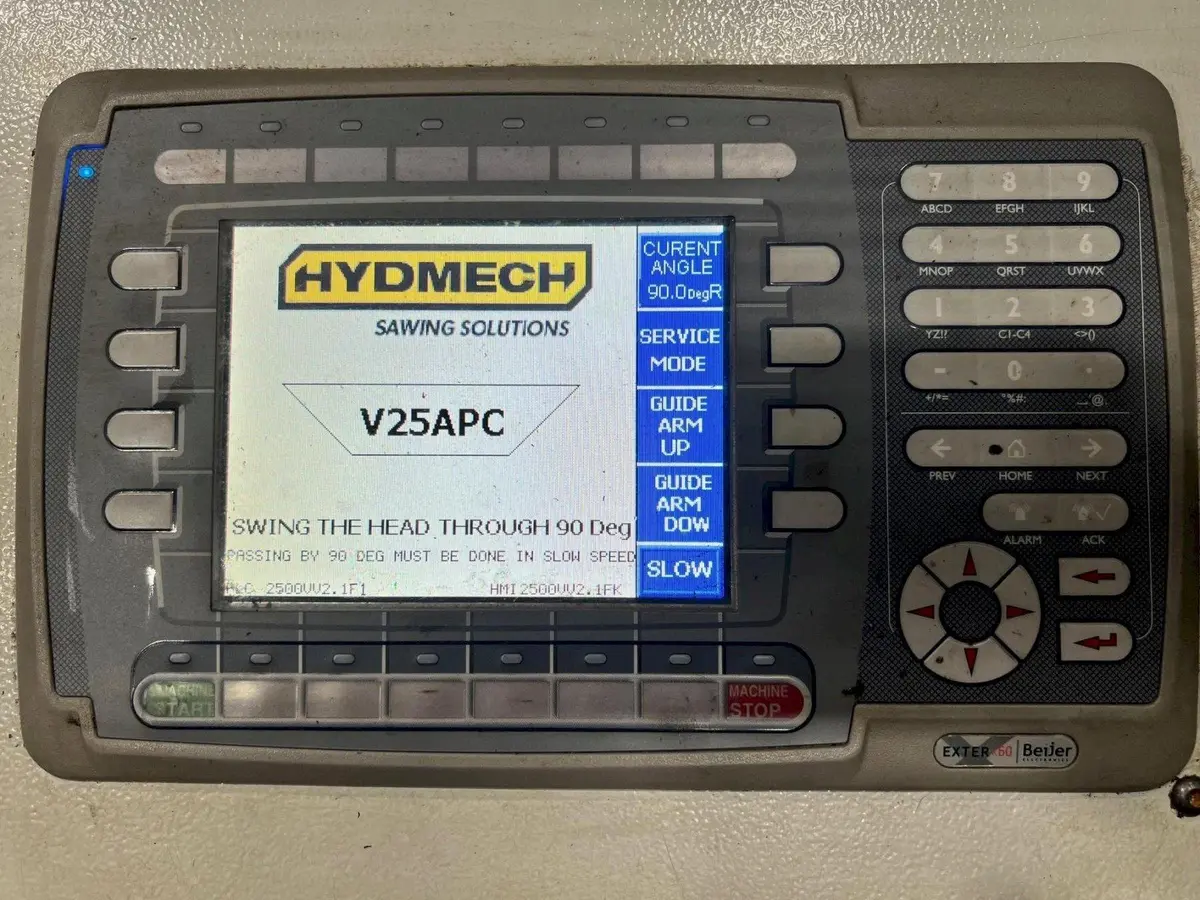

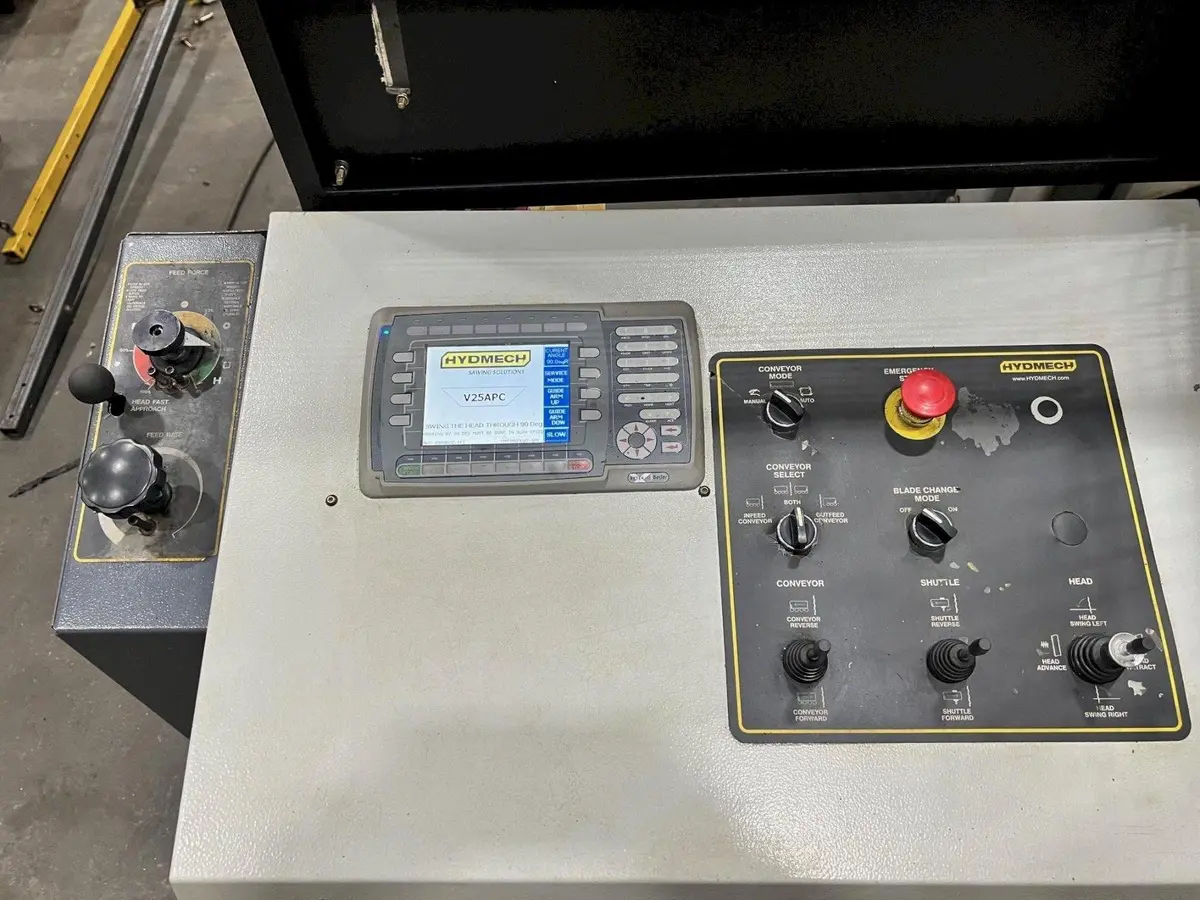

Mitsubishi PLC control

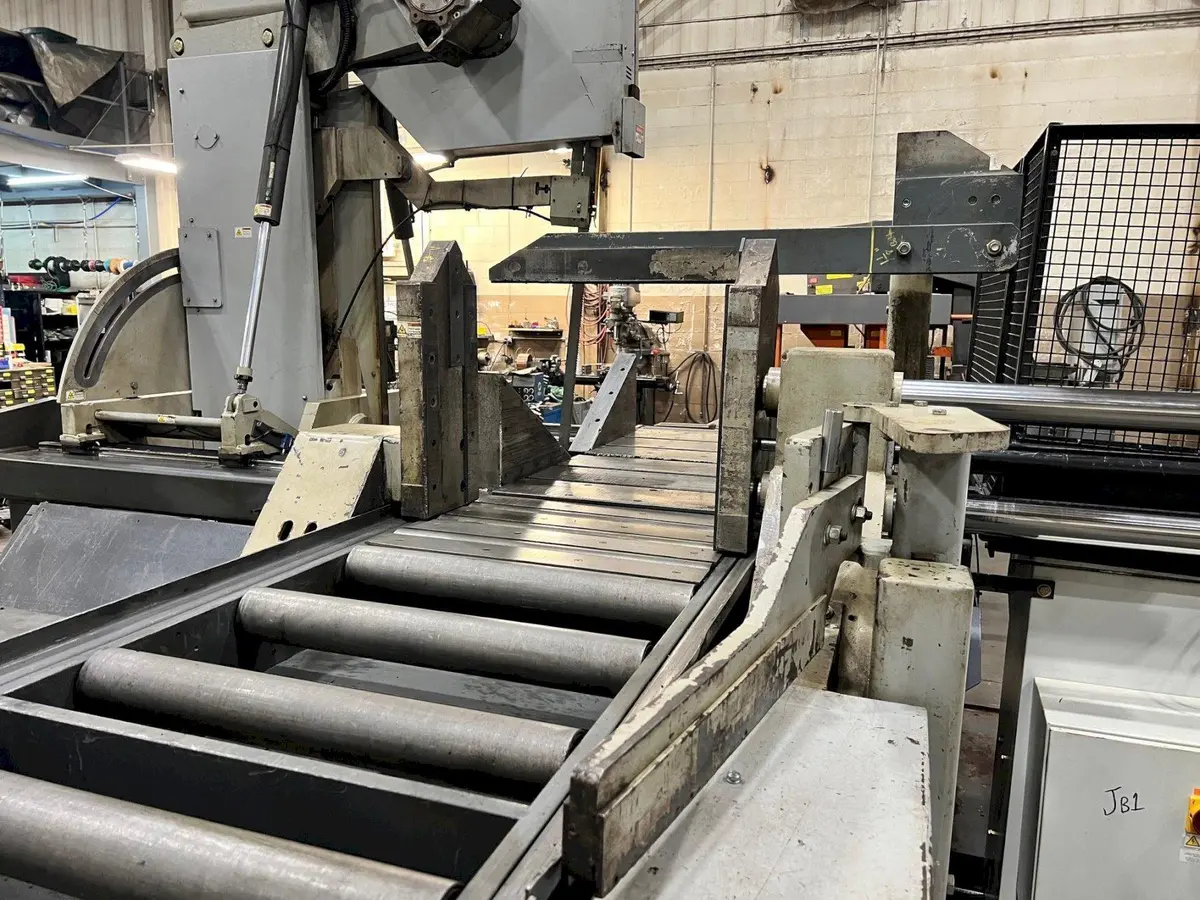

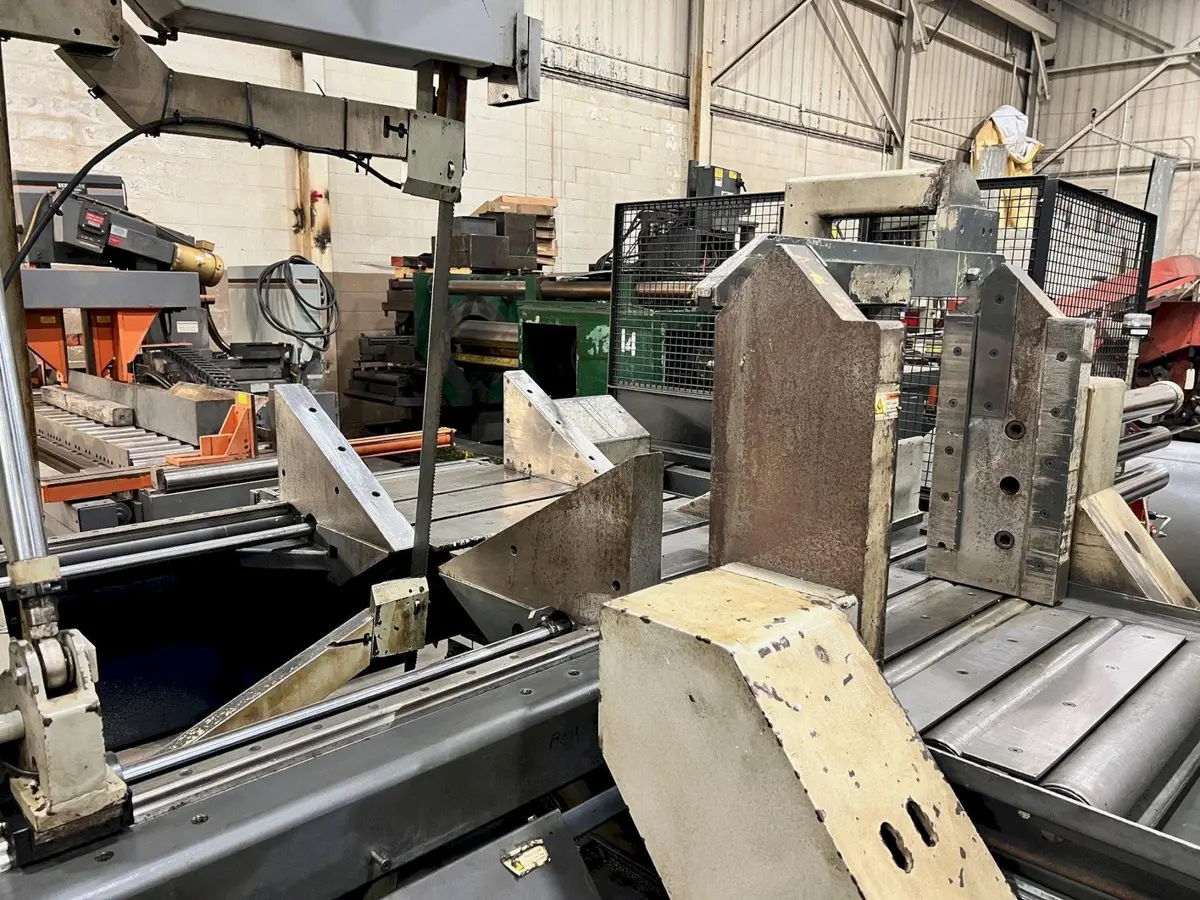

Two full stroking hydraulic vises

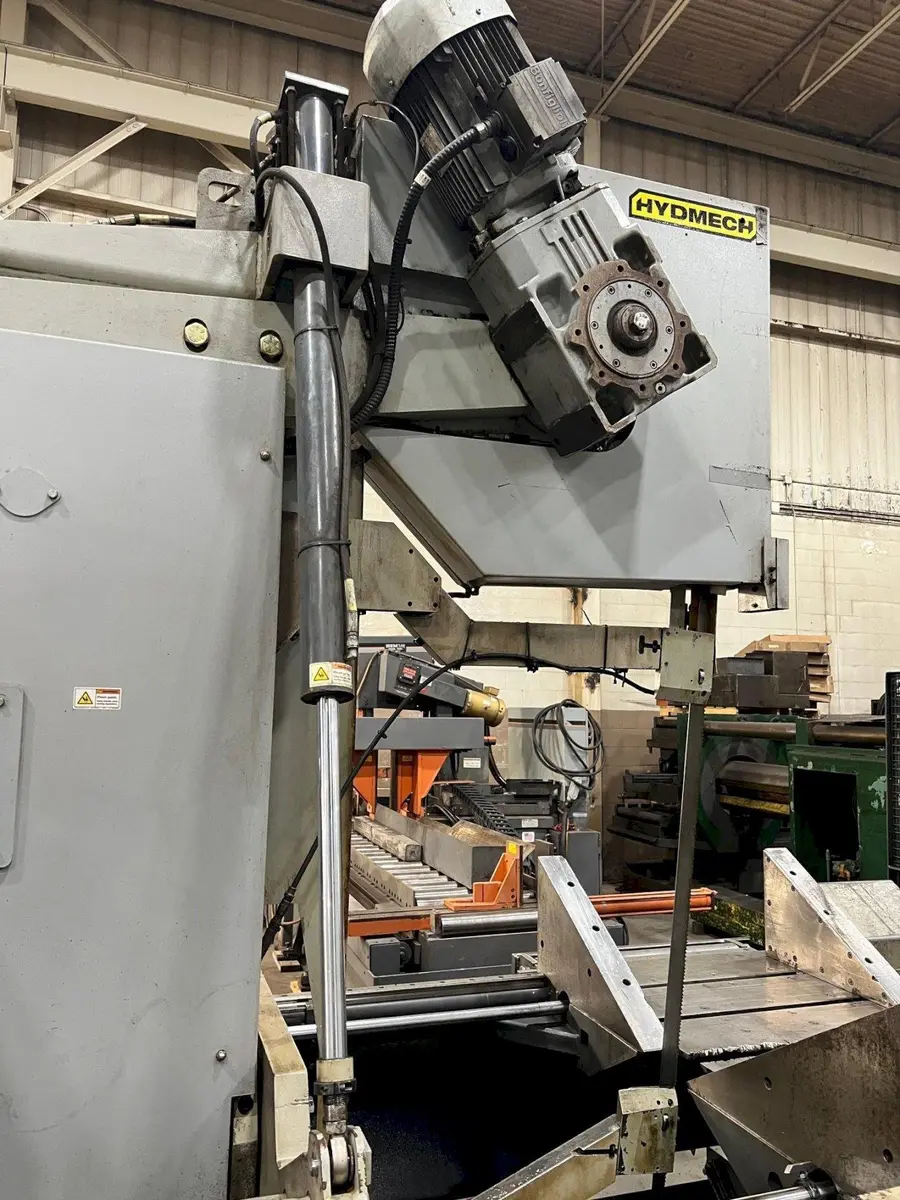

True direct blade drive with variable frequency drive
Blade chamber separates material from cut part
Hydraulic chip conveyor
Powered blade chip brush
Out of stock switch
Blade break switch
Pop-up feed roller
Hydraulic blade tension
Laser light
Variable vise pressure
Chip buckets
