Turnkey Vitalis R-200-H Extraction System with KeepRite Condensing Unit and Support Modules

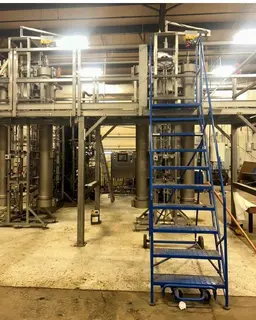

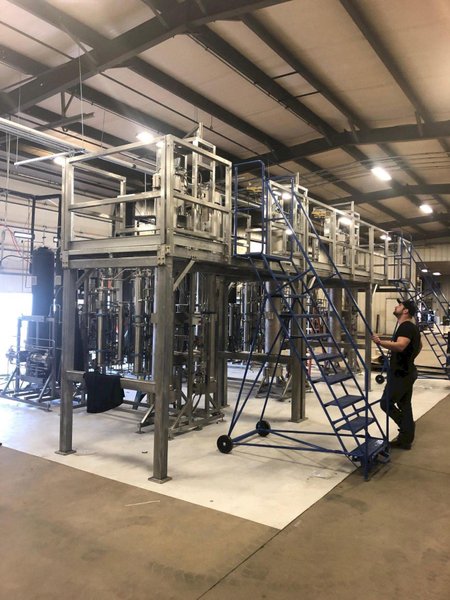

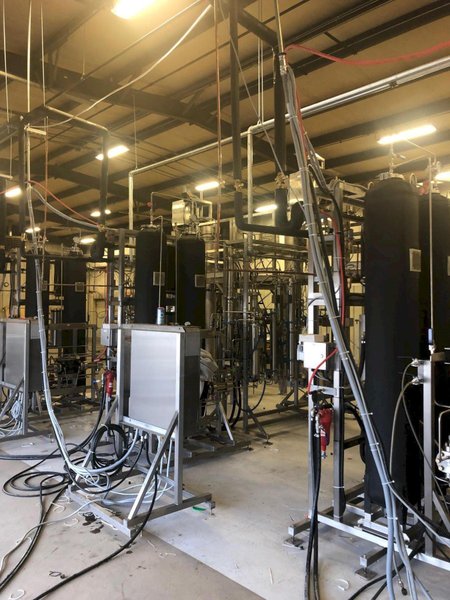

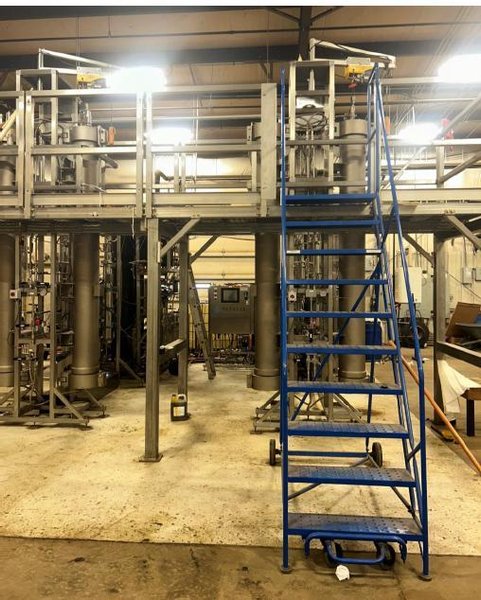

Machine Overview Turnkey Vitalis R-200-H extraction platform with all required thermal, hydraulic, and electrical components included

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Designed for continuous CO₂ botanical extraction up to 5,000 psi

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Modular layout for optimized facility integration

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,All skids pre-plumbed and pre-wired

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Certification-ready (ASME, CRN, UL, CSA)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,No visible corrosion or structural damage from images; condition assumed fair-to-good pending inspection

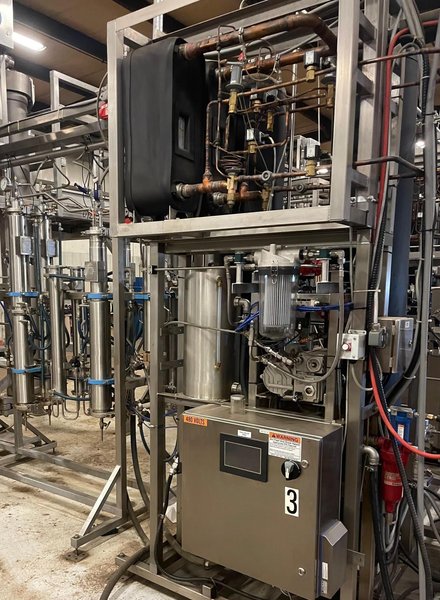

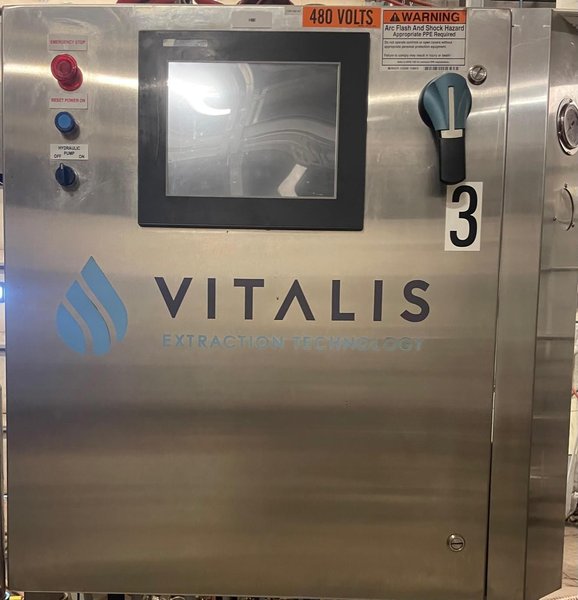

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,System Specs and Features -Extraction System (Vitalis R-200-H) -Supercritical CO₂ extraction -Flow Rate: 200 L/hr -Max Pressure: 5,000 psi -Vessels: 3x 20L separator vessels -Control: Touchscreen HMI, live batch tracking -Frame: 304/316 SS construction -CO₂ Pump: Dual pneumatically driven -Heating: 250,000 BTU/hr NG (Navien) -Certifications: ASME, CSA, CRN, UL -Refrigeration (Vitalis Unit, 3HP) -Temperature Range: -20°C to +15°C -Compressor: Hermetic scroll, air-cooled -Power: 460V, 60Hz, 3-phase

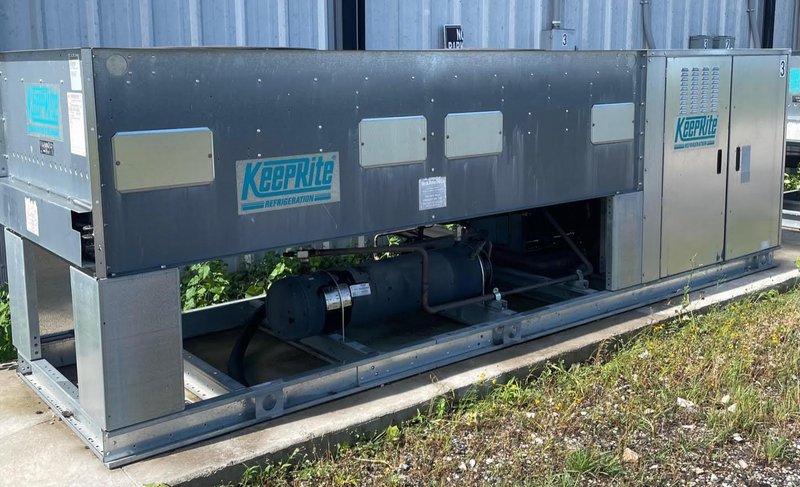

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Condensing Unit (KeepRite KVS030L6-HT4B-A2CM24) -Voltage: 460V, 3-phase -Compressor: 47.8 RLA / 235 LRA -Fan Motors: Dual 3.1A, single 0.44A -Refrigerant: R404A / R507 -PSIG: 450 (high) / 300 (low)

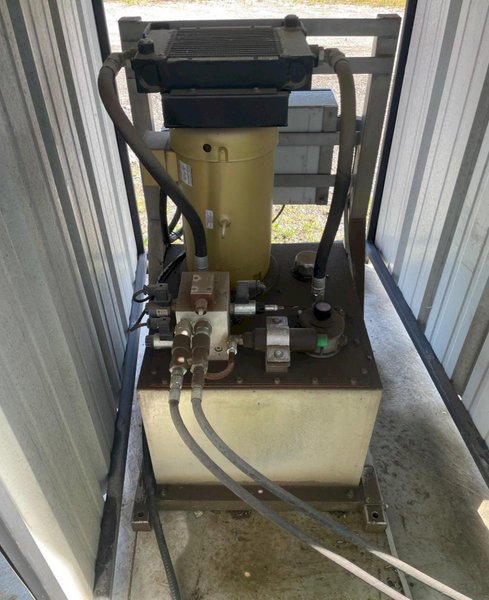

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Hydraulics -Hydraulic Power Unit: Skid-mounted -Estimated 10–15 HP drive support -Controls integrated with HMI -Water Heating System -Navien NPE-240S, 250,000 BTU/hr -Natural gas fired, tankless -Integrated with circulation and jacket heating
