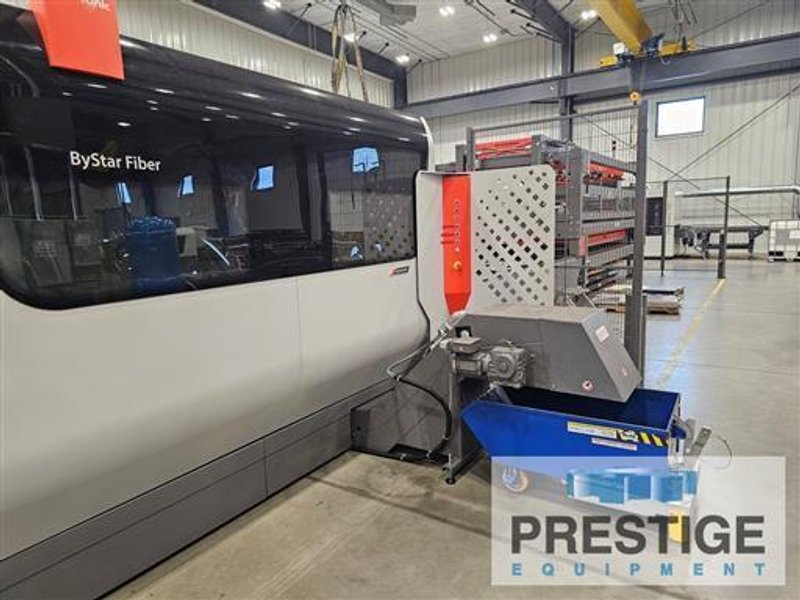

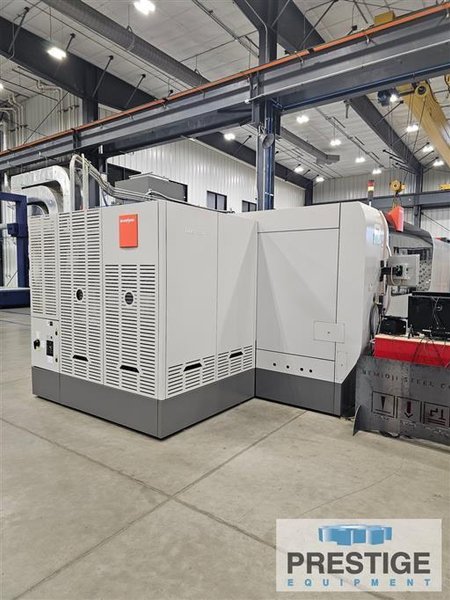

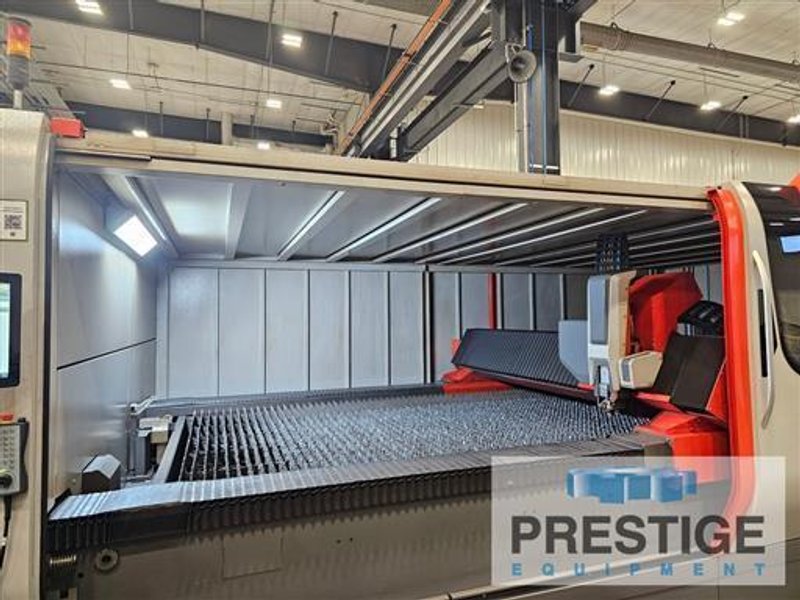

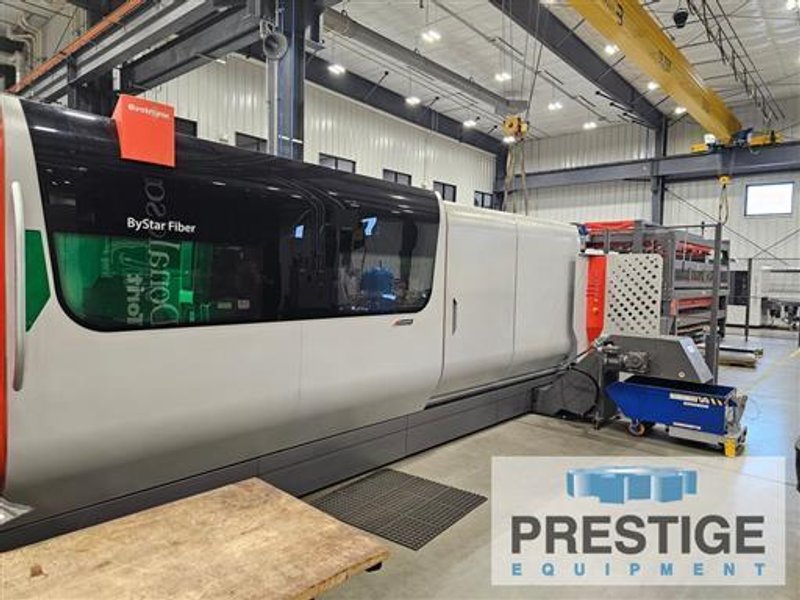

Bystronic Fiber 4020 Dynamic Edition 15KW Fiber Laser with ByTrans Extended Material Handling System

CAPACITY:
Laser Output 15 KW
Nominal Sheet Size, X-Axis 160"
Nominal Sheet Size, Y-Axis 80"
Cutting Area, X-Axis 162"
Cutting Area, Y-Axis 83"
Cutting Area, Z-Axis 4"
Maximum Work Piece Weight 4,190 Lbs.
Positioning Speed Parallel Axis X/Y 4,724 IPM
Positioning Speed Simultaneous 6,681 IPM
Max. Material Thickness - Mild Steel 1"
Max. Material Thickness - Stainless 1.18"
Max. Material Thickness - Aluminum 1.18"
Max. Material Thickness - Copper .47"
Max. Material Thickness - Brass .59"
Approximate Dimensions 559" x 248" x 126"
Approximate Machine Weight 32,000 Lbs.



Equipped With:
Bystronic ByVision CNC Control with 21.5" Touch Screen
IPG 15 KW Fiber Laser Source
Automatic Nozzle Changer
Position Electrical Cabinet: Rear Side
Dust Extraction System

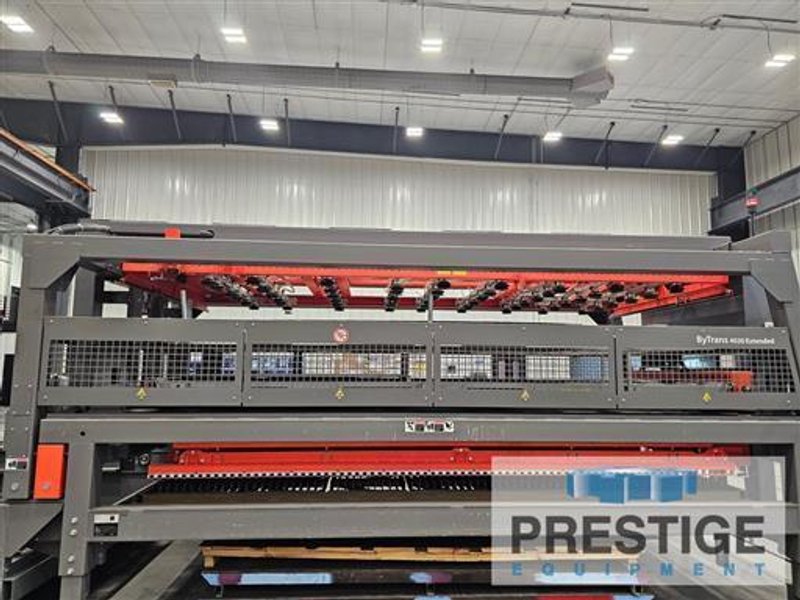

ByTrans Extended Material Load & Unload System


NOTE: Inspect in Plant Under Power
Very Clean, Only 2,360 Cutting Hours
