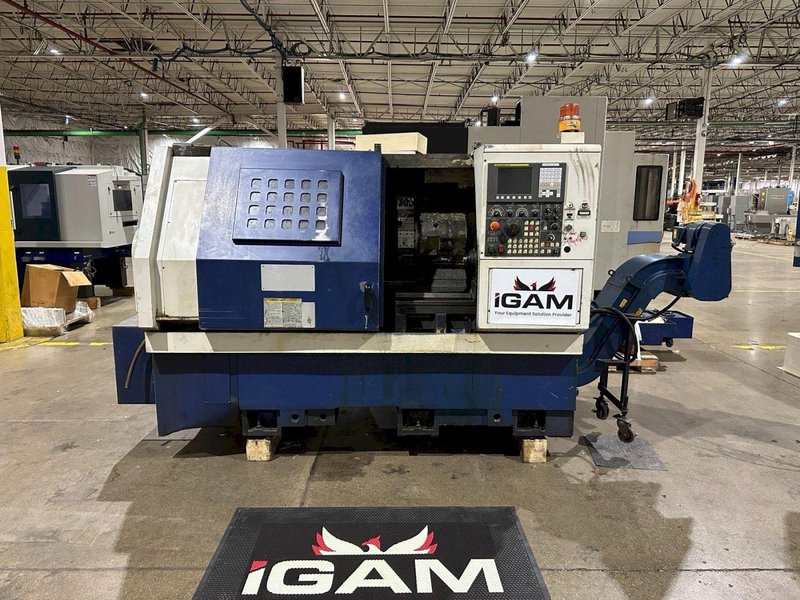

2008 Tongtai TNL-120AL II CNC Lathe

Product Specifications

• Model: TNL-120AL II

• Manufacturer: Tongtai

• Year: 2008

• Machine Type: CNC Turning Lathe

• Spindle Speed: Up to 4,500 RPM

• Spindle Bore: Approx. 2.6″

• Maximum Turning Diameter: Approx. 12″

• Maximum Turning Length: Approx. 18″

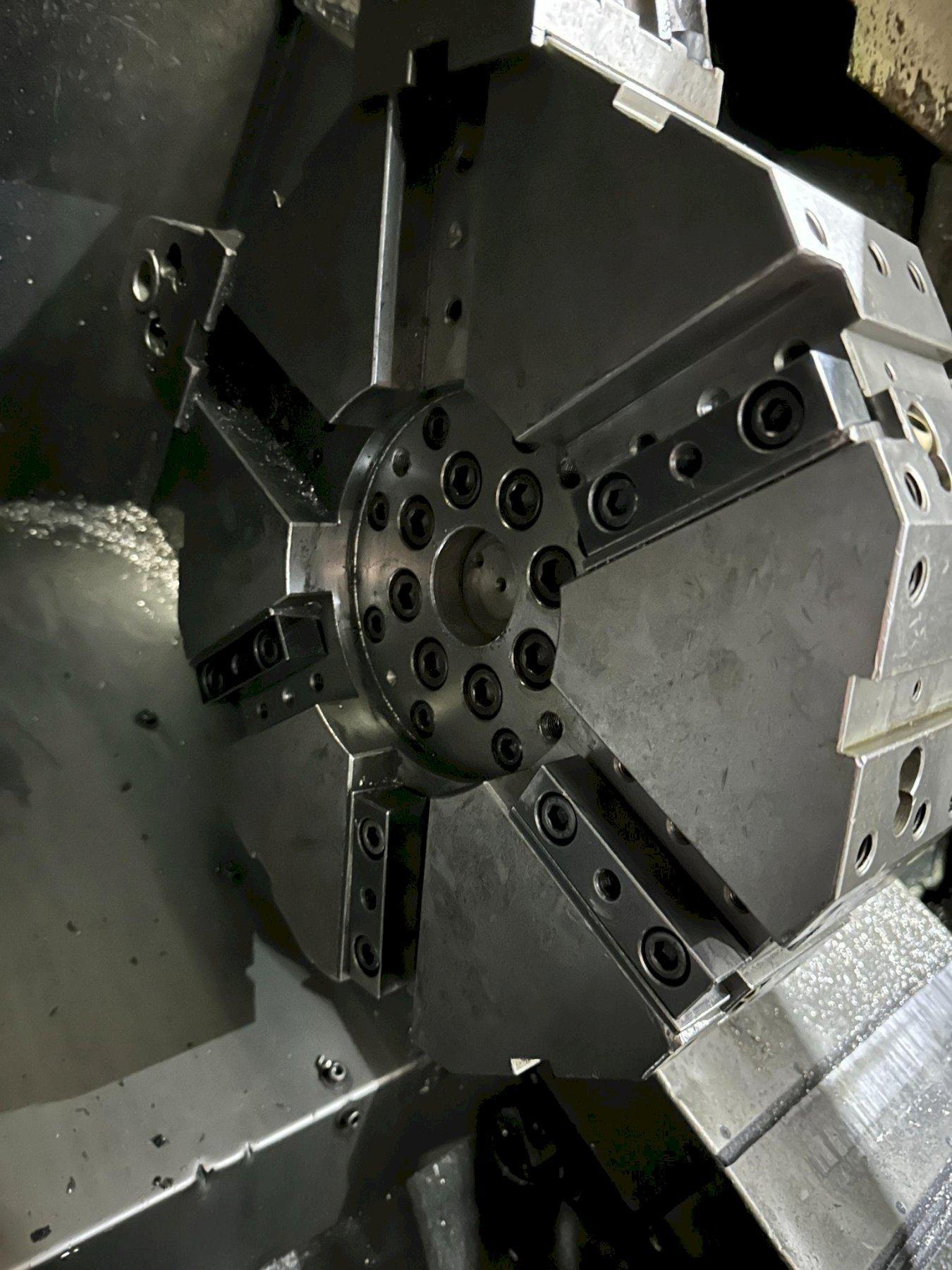

• Turret Stations: 12-position

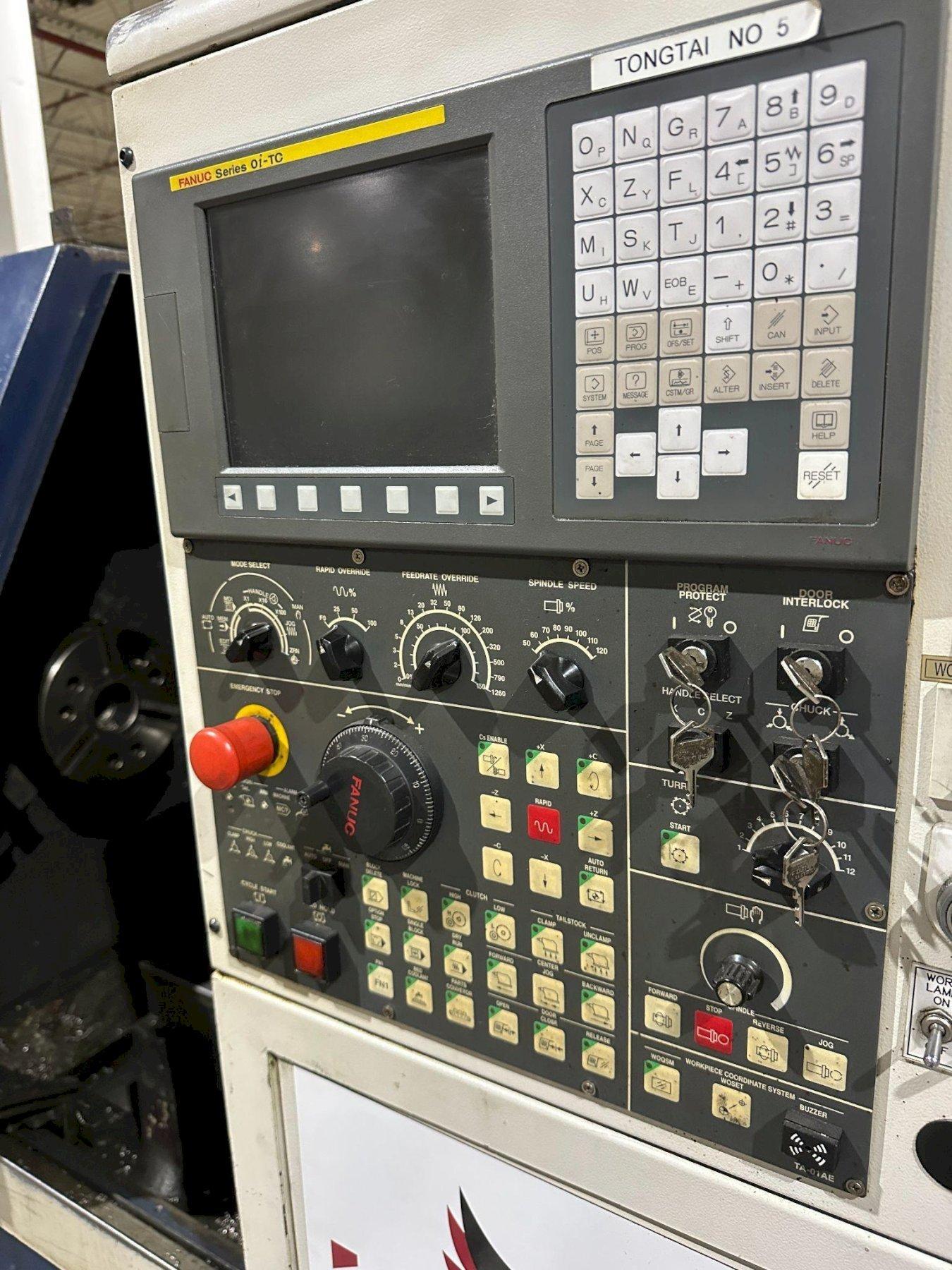

• Controller Type: Fanuc CNC (varies by unit)

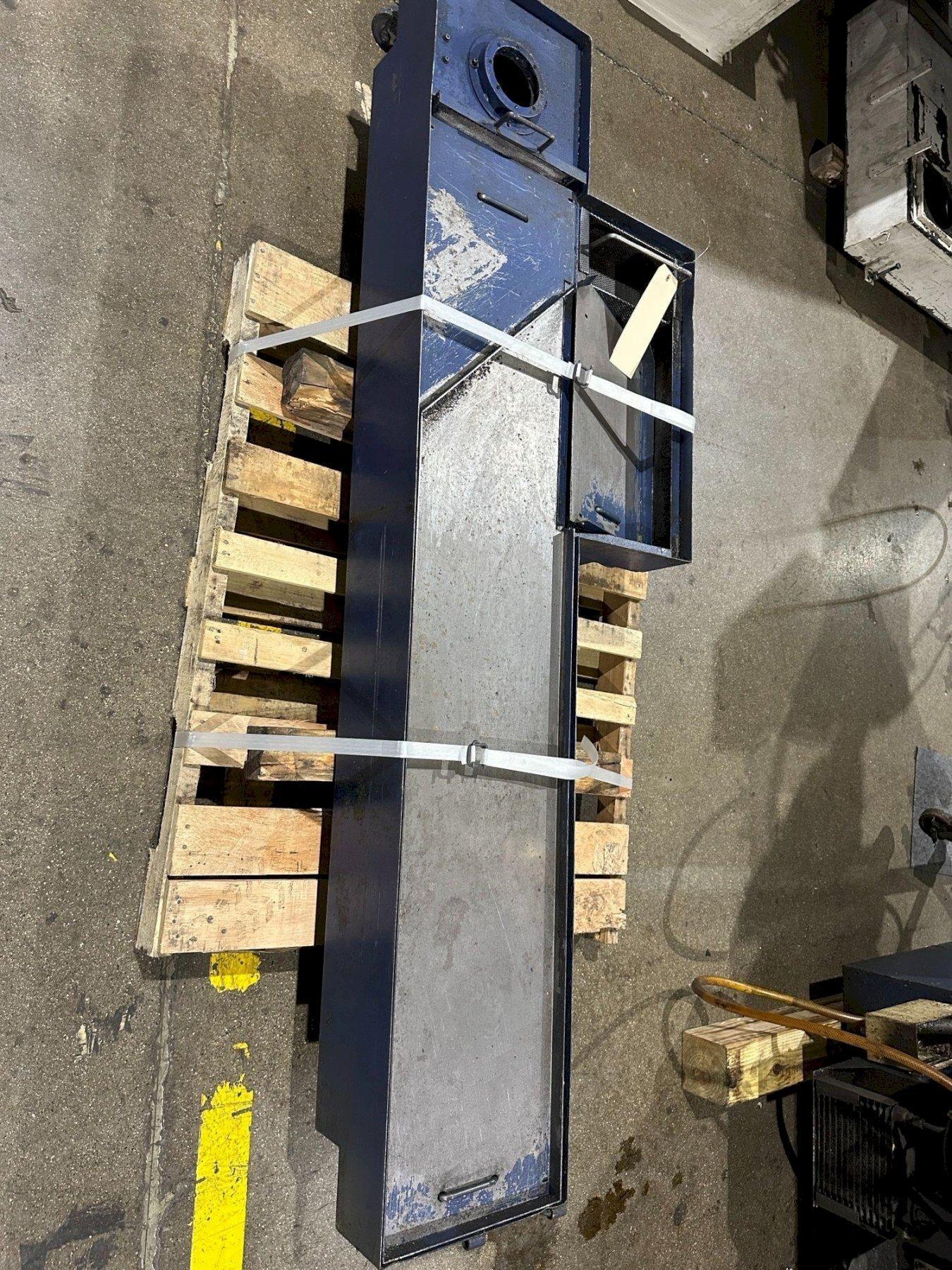

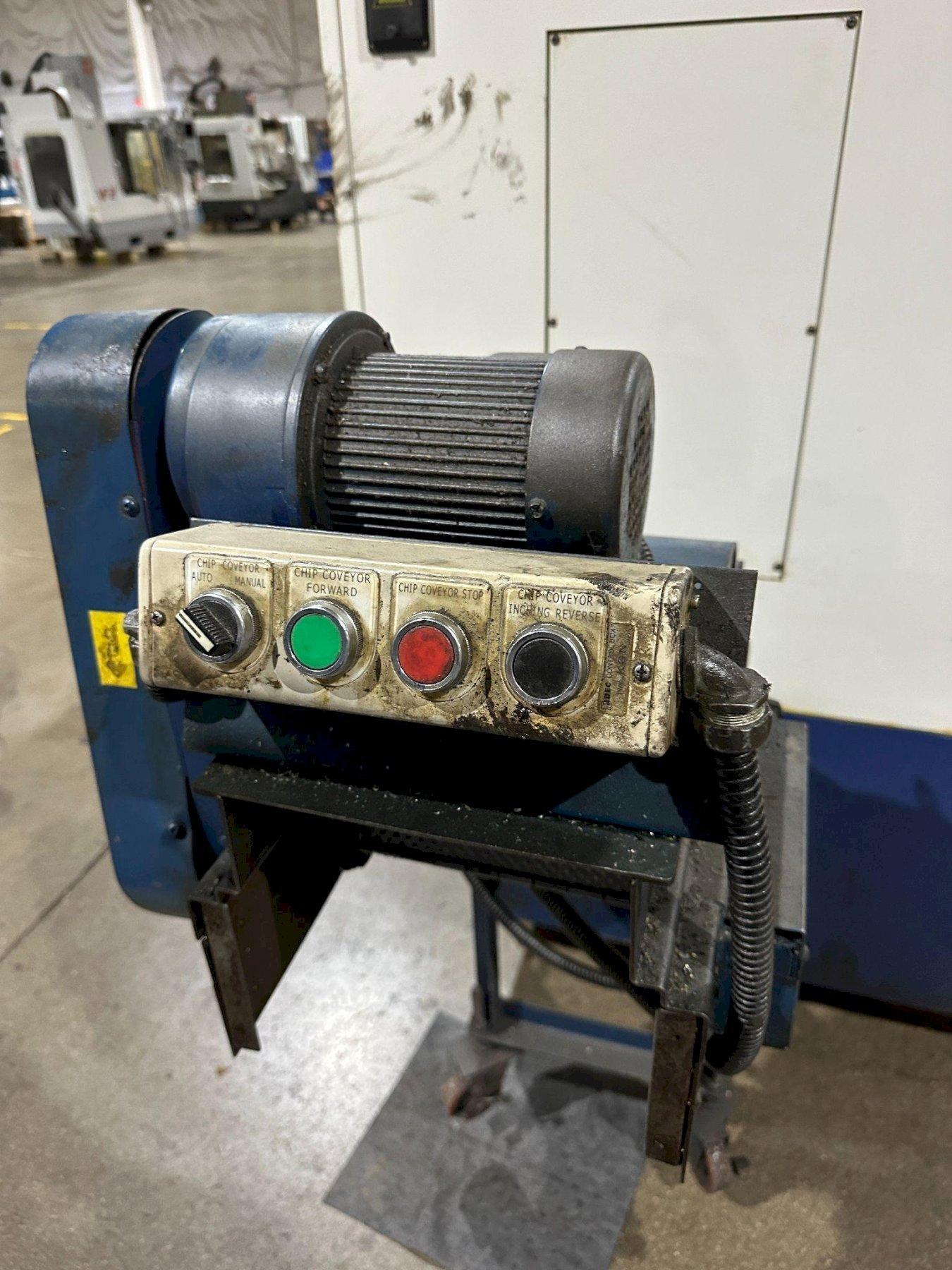

• Chip Conveyor: Included

• Power Requirement: 220V / 3 Phase

Key Features

• High-speed spindle for fast and precise turning cycles

• 12-position turret allows flexible tool configurations

• Robust cast iron base enhances stability and reduces vibration

• Built-in chip conveyor streamlines material removal and reduces downtime

• Advanced CNC control for programmable accuracy and reduced setup times

• Automatic lubrication system increases operational reliability

• Compact footprint suited for space-conscious shops

Applications

• Precision part production in automotive, aerospace, and medical industries

• Small- to mid-volume batch runs requiring consistent dimensional tolerances

• Machining of ferrous and non-ferrous materials

• Complex geometries with multi-step turning operations

• Secondary operations for mill-turn machining environments
