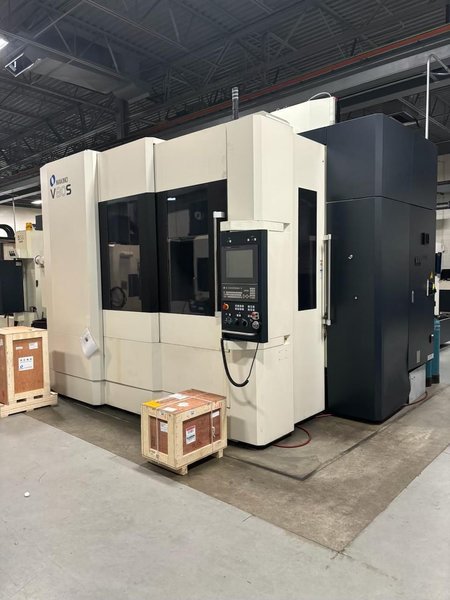

2018 Makino V80S 5-axis CNC Vertical Machining Center

2018 Makino V80S 5-axis CNC Vertical Machining Center

Name: Used MAKINO V80S For Sale iGAM0470003
Brand: MAKINO
SKU: iGAM0470003

Brand

MAKINO

Location

Michigan

REQUEST FINANCING

Specifications
Files & Videos

Overview

This used 2018 Makino V80S 5-axis CNC Vertical Machining Center offers precision, speed, and versatility for demanding machining applications. Engineered for high-performance operations, it features expansive travels of 51.2″ X, 39.3″ Y, and 23.6″ Z, making it suitable for large, complex parts. With a high-speed 20,000 RPM HSK-63A spindle and a 40-tool automatic tool changer (ATC), this machine delivers rapid cycle times, excellent surface finishes, and advanced 5-axis capabilities in a compact vertical platform.

Specification Table

CNC Control	Professional 6
# Axis	5
Table Size	51.81″ x 39.37″
Max Table Load	5512
X-axis Travel	51.2″
Y-axis Travel	39.3″
Z-axis Travel	23.6″
C-axis Index/Rotation	+60° to -60°
A-axis Travel	+30° to -30°
Rapid Traverse Rate (X/Y/Z)	2283 ipm
Spindle Taper	HSK-63A
Spindle Speed	20,000 RPM
Main Motor	30 hp
# ATC	40
Coolant Thru Spindle	Yes
Machine Dimensions	158″ x 127″ x 125″
Machine Weight	45,500 lbs

Equipped With

– Makino PRO6 Fanuc Based Control
– 40 Station ATC
– 20,000 RPM HSK63A Spindle (newly replaced)
– Swivel Head +/- 30 Degrees
– Through Spindle Coolant – 210 PSI
– Laser Tool Measuring
– Spindle Probe
– Core Cooled Ballscrews
– Overhead Shower Coolant
– Oil Skimmer
– Scale Feeback on Ballscrews
– Spindle Chiller
– Lift Up Chip Conveyor
– Fanuc 1GB Data Center
– Makino SGI.5 3D processing technology
– Various Fanuc 5 Axis Control Options

** MFG Date 2018 but machine installed in 2019 **

Product Specifications

Model Year: 2018
Machine Type: 5-Axis Vertical Machining Center
Control System: Makino Professional 6 (based on Fanuc)
Table Size: 700 mm x 700 mm (27.6″ x 27.6″)
X-Axis Travel: 1,050 mm (41.3″)
Y-Axis Travel: 800 mm (31.5″)
Z-Axis Travel: 600 mm (23.6″)
Rotary Axes (A/C): ±120° (A-axis), 360° continuous (C-axis)
Spindle Speed: 20,000 RPM HSK-A63
Spindle Power: 30 HP (22 kW)
Tool Magazine Capacity: 60 tools
Maximum Workpiece Weight: 1,000 kg (2,204 lbs)
Machine Weight: Approx. 19,000 kg (41,888 lbs)

Key Features

True 5-axis simultaneous machining for complex geometries
High-speed, high-torque 20,000 RPM HSK-A63 spindle
Thermally controlled core-cooled spindle and casting for dimensional stability
Tilt-rotary table design with high rigidity and positioning accuracy
Advanced Makino Super Geometric Intelligence (SGI.5) for ultra-smooth surface finishes
Large tool capacity to support long machining runs and reduced changeover
Intelligent performance monitoring and data tracking features
Optimized for high-speed finishing and deep cavity mold applications

Applications

Aerospace structural components and turbine blades
High-precision mold and die production
Medical implant manufacturing requiring complex 3D contours
Defense and energy sector parts with multi-face machining requirements
High-end automotive components with advanced geometries
