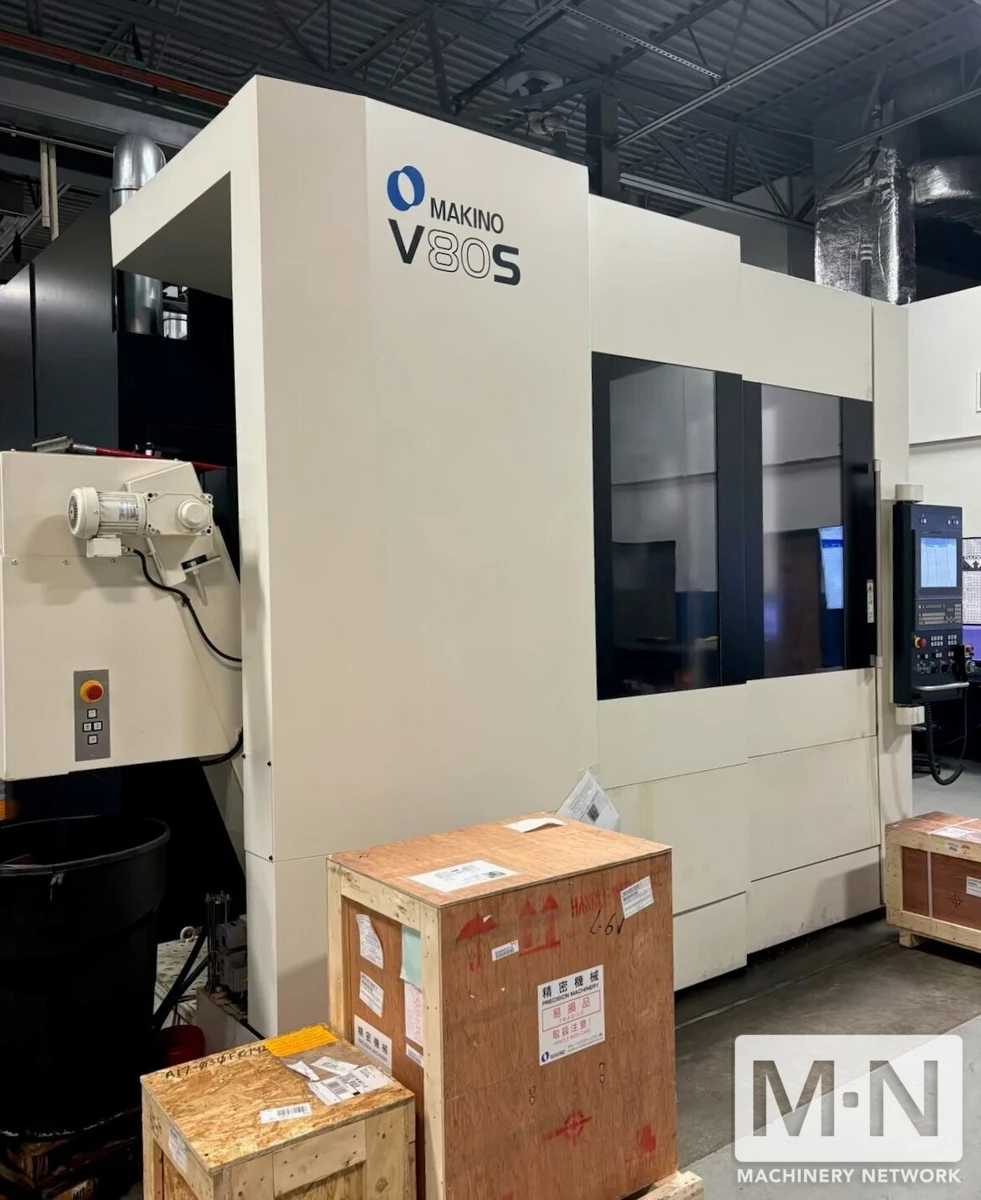

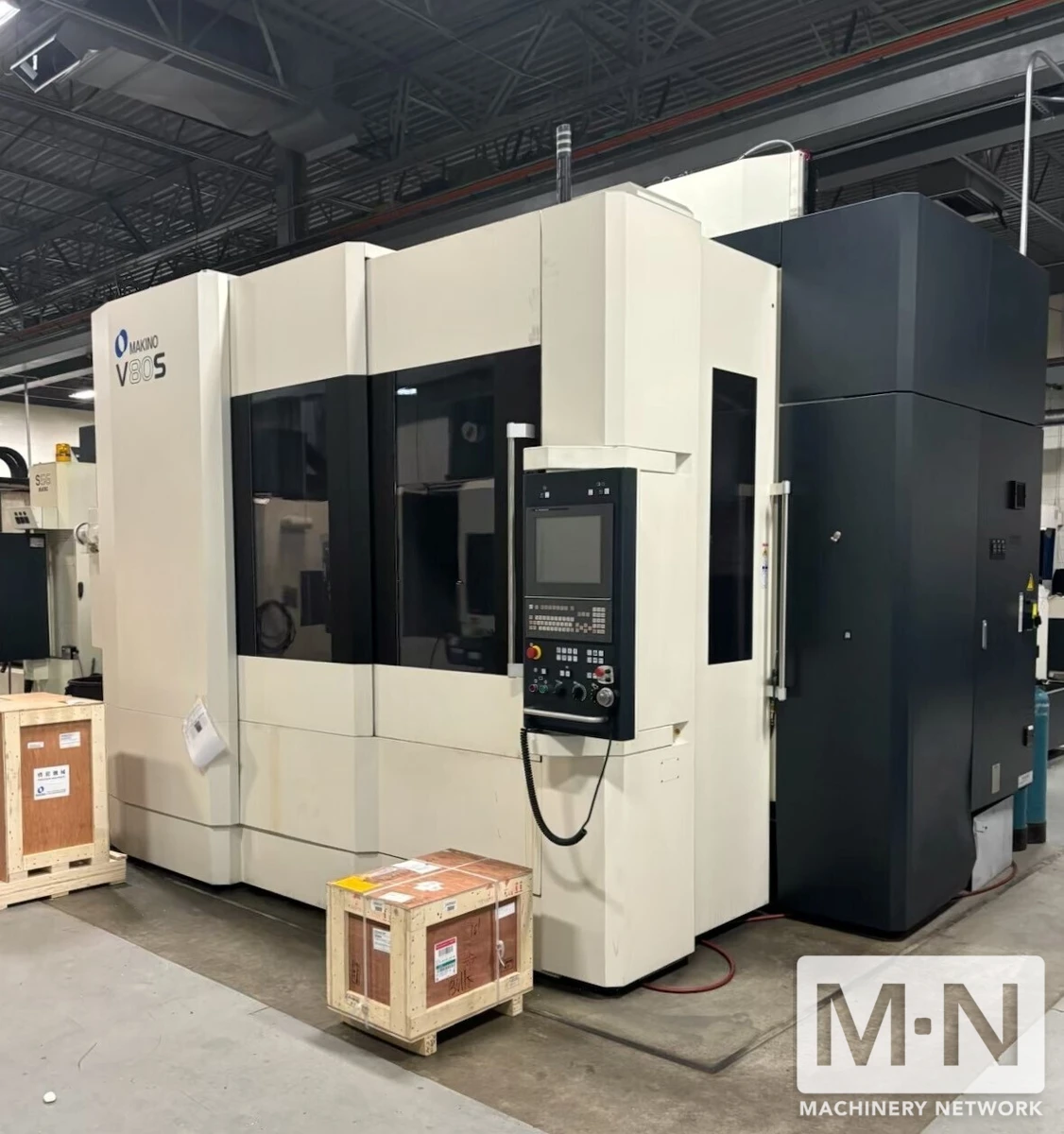

Makino V80S CNC 5-Axis Vertical Machining Center - 2018

Makino V80S CNC 5-Axis Vertical Machining Center - 2018

Name: Used LENCO V80S For Sale 51183
Brand: LENCO
SKU: 51183

Brand

LENCO

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

Vertical Machining Centers (5-Axis or More)

Manufacturer:

MAKINO

Model:

V80S

Year:

2018

Stock #:

51183

Status:

For Sale

Specifications

ImperialMetric

X-Axis	51.2"	1,300.5 mm
Y-Axis	39.3"	998.22 mm
Z-Axis	23.6"	599.44 mm
A-axis	60 degree	60 degree
C-axis	120 degree	120 degree
# Axis	5	5
Spindle Motor	30 hp	22.4 kW
Spindle Speed	20,000 RPM	20,000 RPM
ATC Capacity	40	40
Taper	HSK - A63	HSK - A63

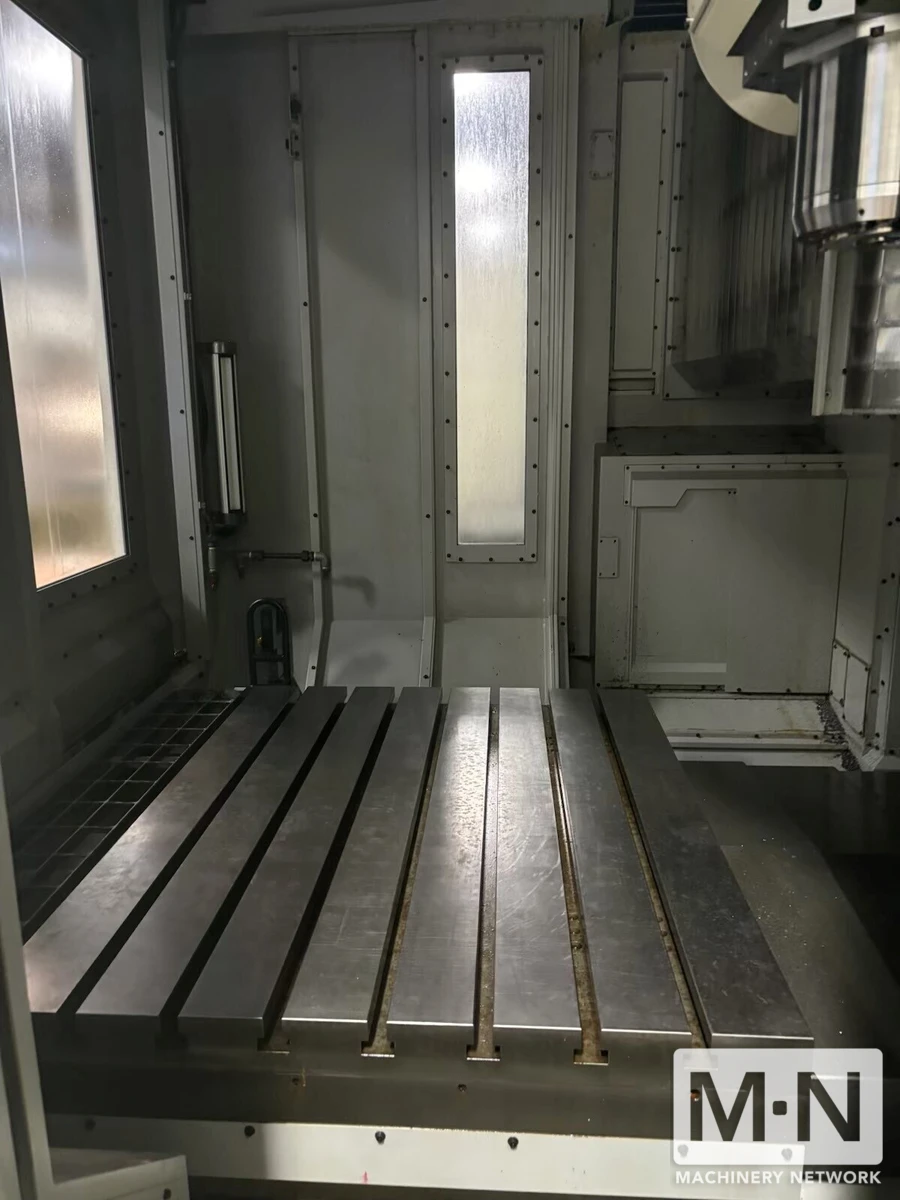

Table Size	51.18" x 39.37"	51.18" x 39.37"
Table Load Capacity	5512 lb

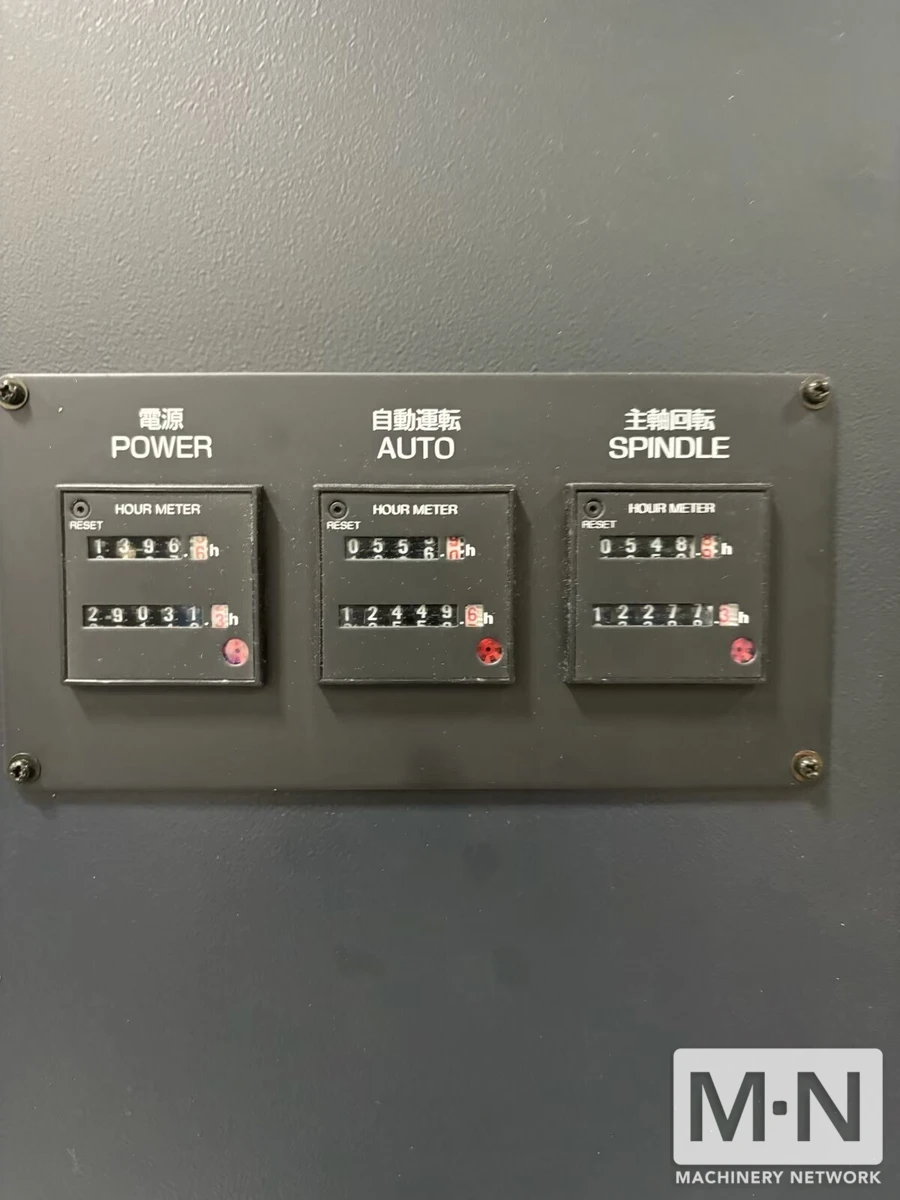

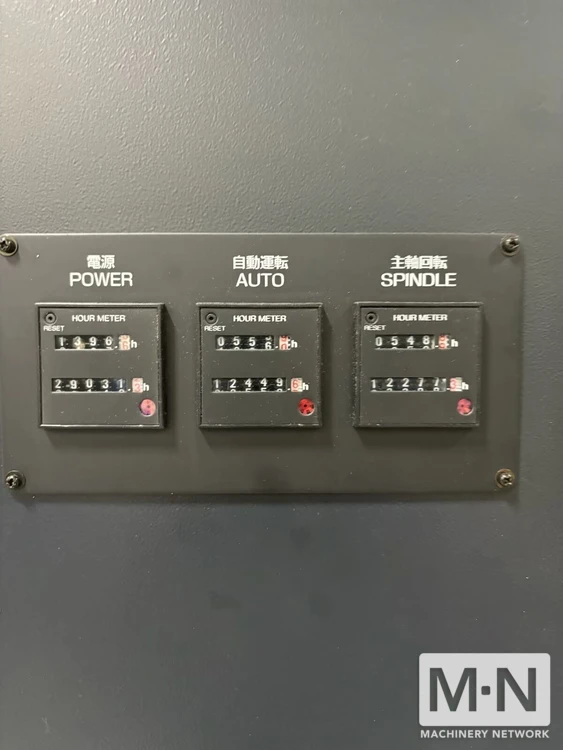

Cut Hours	538 hr.	538 hr.
Control	CNC (Pro 6 Control)	CNC (Pro 6 Control)

Equipped With:

- Makino PRO6 Fanuc Based Control
- 40 Station ATC
- 20,000 RPM HSK63A Spindle (newly replaced)

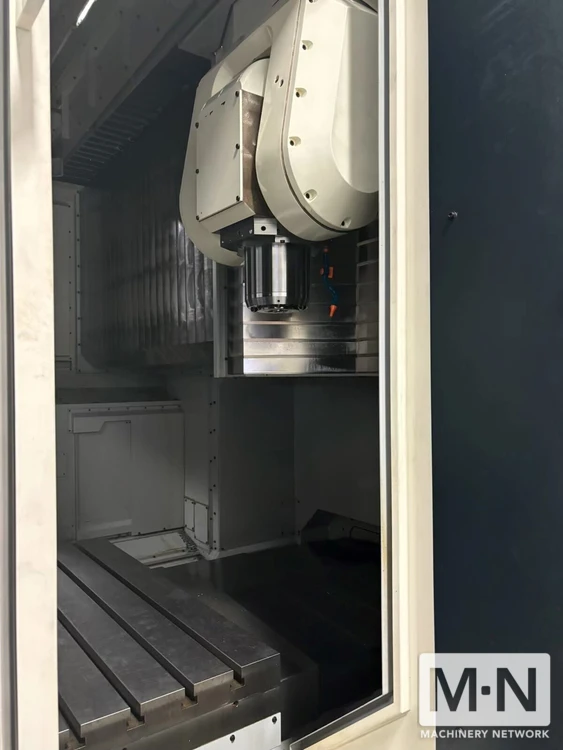

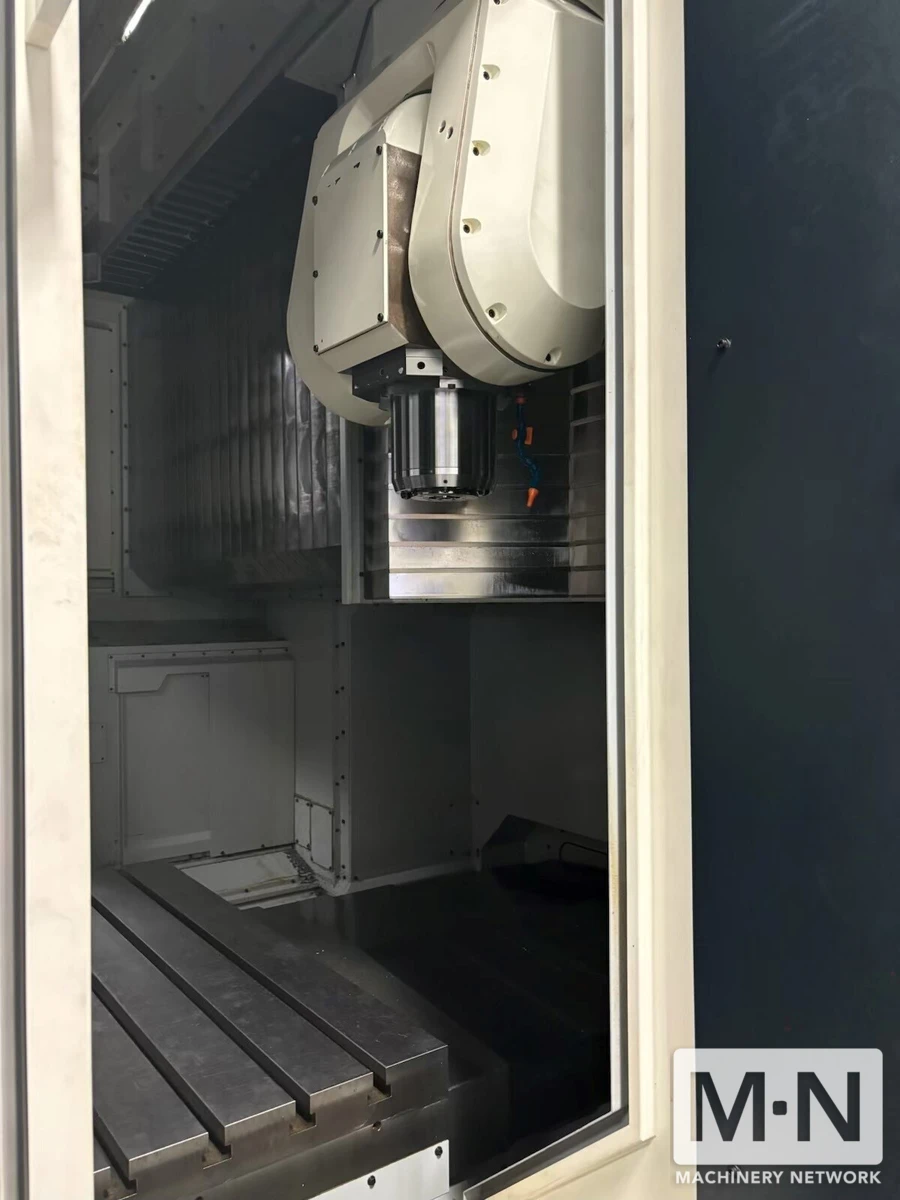

- Swivel Head +/- 30 Degrees
- Through Spindle Coolant - 210 PSI
- Laser Tool Measuring
- Spindle Probe
- Core Cooled Ballscrews
- Overhead Shower Coolant
- Oil Skimmer
- Scale Feeback on Ballscrews
- Spindle Chiller
- Lift Up Chip Conveyor
- Fanuc 1GB Data Center
- Makino SGI.5 3D processing technology
- Various Fanuc 5 Axis Control Options

** MFG Date 2018 but machine installed in 2019 **
