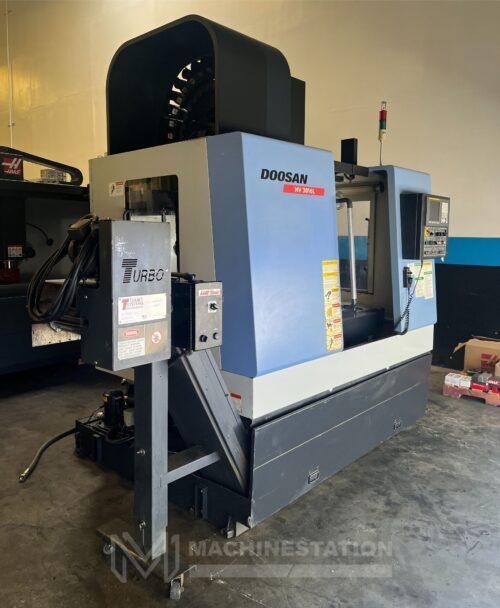

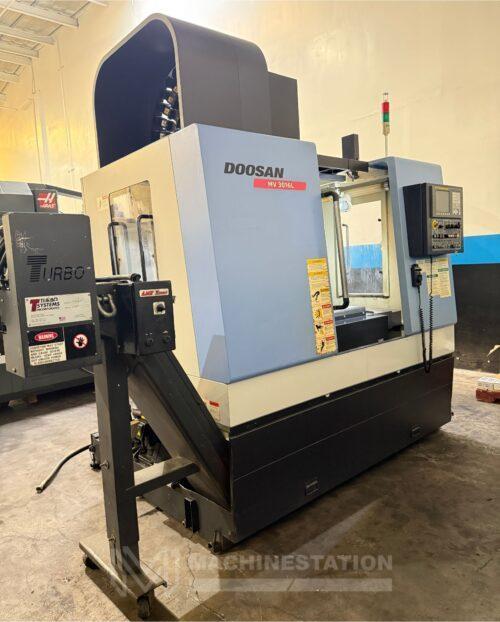

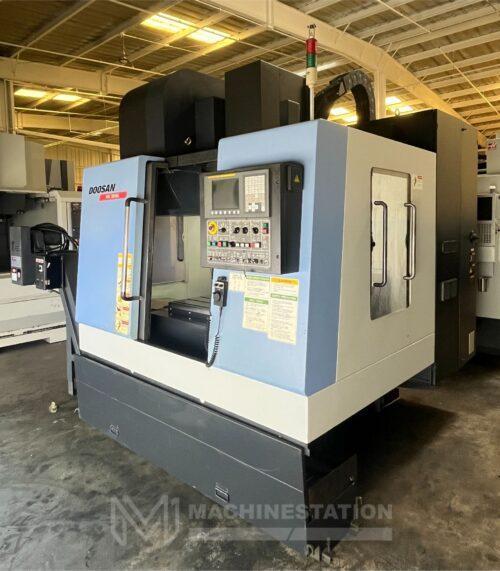

Doosan MV-3016L CNC Vertical Machining Center – Mill

Doosan MV-3016L CNC Vertical Machining Center – Mill

Name: Used DOOSAN MV-3016L For Sale 112803
Brand: DOOSAN
SKU: 112803

Brand

DOOSAN

Location

California

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Doosan
Model:	MV-3016L
Year:	2007 (Sold & Installed in 2008)
Condition:	Used-Good

Equipped With:

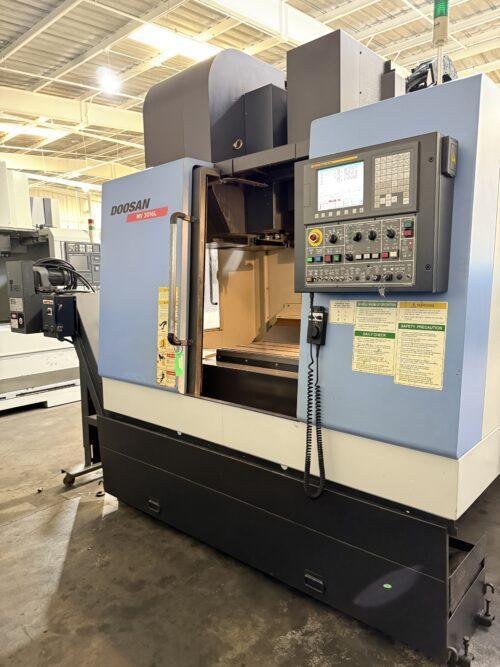

Fanuc Oi-MC CNC Control
Through Spindle Coolant -300 PSI
8000 RPM Precision Spindle
1417 Inch Per Min Rapid
30 Automatic high speed tool changer
MPG Handwheel Control
Rigid Tapping
Spindle Orientation
PCMCIA Card Slot
Telescopic Way Covers
Coolant System
Chip Conveyor
Levelling Pads

Travels:
X-Axis: 30.2″
Y-Axis: 17.1″
Z-Axis: 20.1″
Spindle Nose to Table (Min.- Max.): 5.9″ – 24.25″
Rapid Traverse rates: 1417 IPM
Feed Rates: 590 IPM

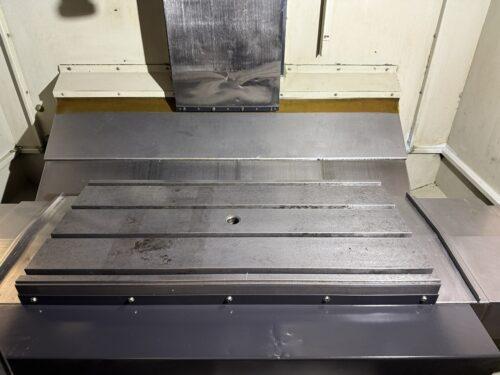

Table:
Length: 36.2″
Width: 17.1″
Number of Std T-Slots: 4
T-Slot Width: 5/8″
Max Weight on Table: 1300 lbs

Spindle:
Taper Size: CAT-40
Speed Range: 0 – 8,000 RPM
Spindle Power: 15 HP

Automatic Tool Changer:
Capacity: 30 Station Side Mounted
Max Tool Dia: 3.65″
Max Tool Length: 11.8″
Max Tool Weight: 17.6 lbs
Tool Changing Time: 1.3 Seconds

General:
Air Required: 80 psi, 4 scfm
Power: 220v / 34.31 kva / 3-Phase
Overall Dimensions: 130″ x 100″ x 110″ High Approx.
Weight: 11,023 lbs Approx.

No files or videos to display
