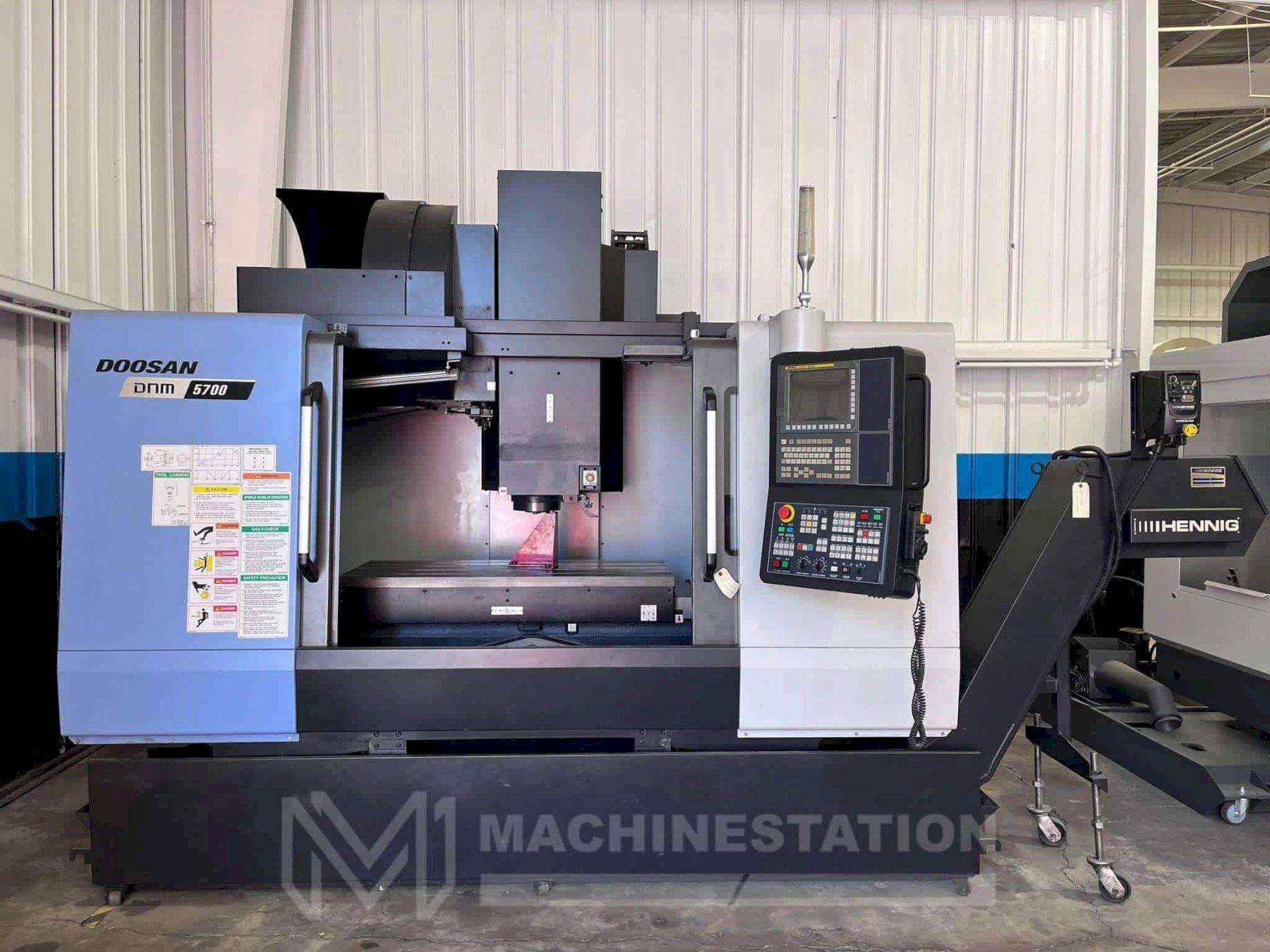

Doosan DNM-5700 CNC Vertical Machining Center – Mill

Doosan DNM-5700 CNC Vertical Machining Center – Mill

Brand

DOOSAN

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Doosan
Model:	DNM-5700
Year:	2017 (Installed in 2018)
Condition:	Used – Excellent

Equipped With:
Doosan-Fanuc i Series CNC Control
8,000 RPM Precision Spindle
1417 IPM Fast Rapids Traverse Rate
Through Spindle Coolant – 300 psi
Air Through Spindle
30 Station High Speed Automatic Tool Changer
Renishaw Probing System Ready (Probe Needed)
40 Big Plus Taper Spindle
USB Drive
PCMCIA Card Slot
MPG Handwheel Control
Rigid Tapping
Spindle Orientation
High Pressure Coolant System
Telescopic Way Covers
Oil Cooler
Hennig Chip Conveyor
Levelling Pads

Travels:
X-Axis: 41.3″
Y-Axis: 22.4″
Z-Axis: 20.1″
Rapid Traverse Rates X & Y Axis: 1417 IPM
Rapid Traverse Rates Z Axis: 1181 IPM
Cutting Feed Rates: 590 IPM
Spindle Nose to Table (Min.- Max.): 5.9″ – 26″

Table:
Length: 51.2″
Width: 22.4″
Number of Std T-Slots: 4
T-Slot Width: 4.9″ x 0.7″
Max Weight on Table: 2205 lbs

Spindle:
Taper Size: 40
Speed Range: 8000 RPM
Spindle Power: 15 HP

Automatic Tool Changer:
Capacity: 30 Station Side Mounted
Max Tool Weight: 17.6 lbs
Max Tool Dia: 3.1″ -4.9″
Max Tool Length: 11.81″
Tool Changing Time : 1.2 Seconds

General:
Air Required: 80 psi, 4 scfm
Power: 220v / 30 kva / 3-Phase
Overall Dimensions: 122.4″ x 95″ x 117.5″ High
Weight: 14,330 lbs
