Liberty Systems P7X-F4400 Nitrogen Generator System for Use With Laser Cutting

SPECIFICATION:
System Type On-Demand PSA Nitrogen Generator
Nitrogen Flow Rate 4,400 SCFH @ 99.5% purity (5,000 ppm O2)
(Upgradable to 8,800 SCFH with additional components)
Delivery Pressure 400–450 PSI
Voltage 460V / 3PH / 60H
COMPRESSED AIR SYSTEM:

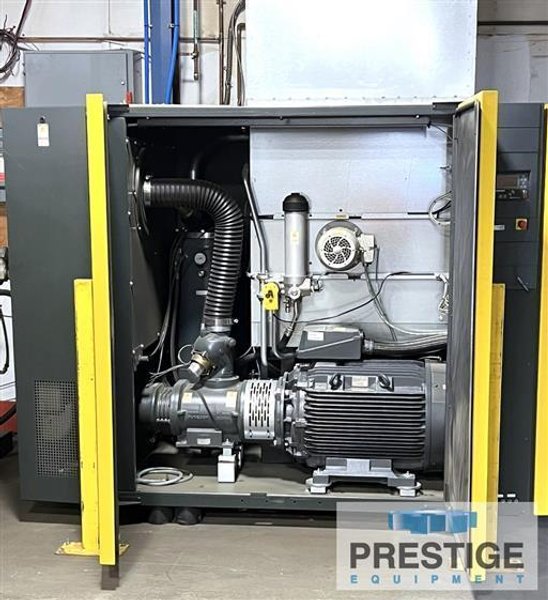

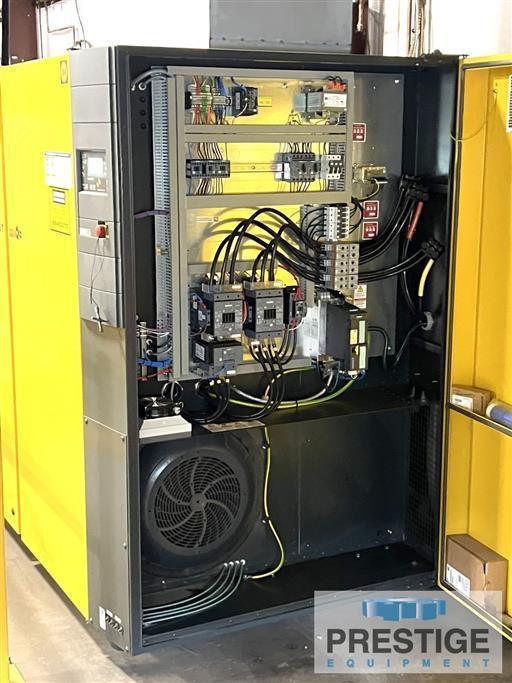

Kaeser CSD125T Air Compressor (2020)
125 HP/93 kW
Oil Injected, Rotary Screw, Load/Unload
Integrated Refrigerated Air Dryer
Rated 480 SCFM @ 175 PSI
COMPRESSED AIR STORAGE:
1,550-Gallon Air Receiver Tank
Oil Mist Eliminator
4-Stage Low-Pressure Filtration System
NITROGEN GENERATION & BOOSTING:

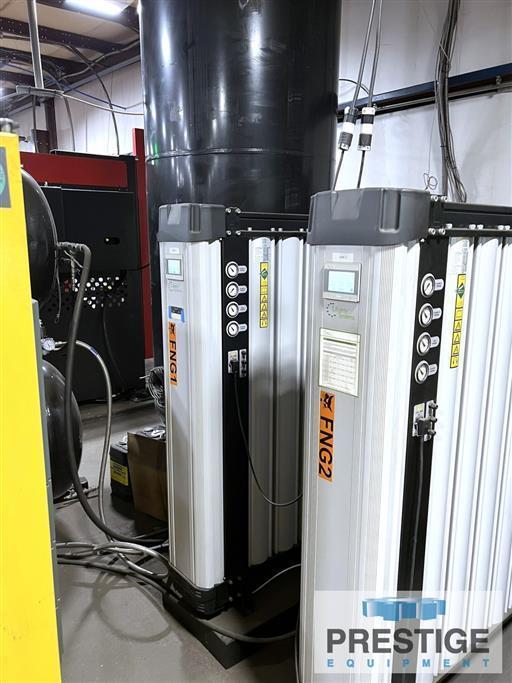

Nitrogen Modules, (2) PSA Modules (+15-year life span from time of use)
Buffer Tanks, (2) 400-Gallon Nitrogen Buffer Tanks

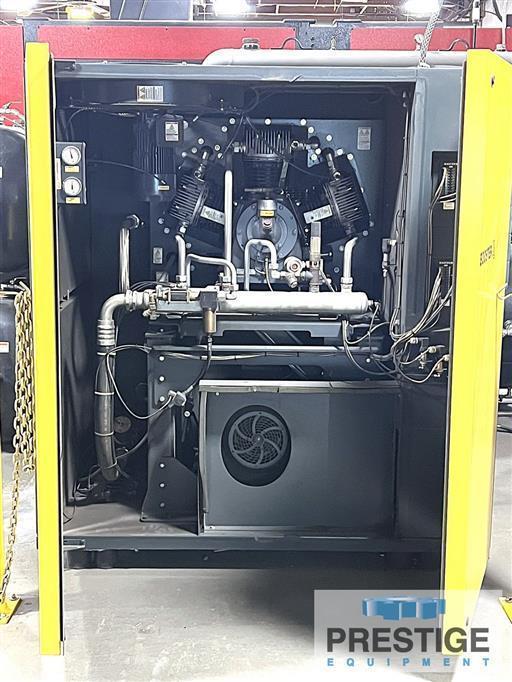

BOOSTER COMPRESSOR:
Kaeser 30 HP/22 kW (2018)
Oil Injected, Reciprocating, Load/Unload
SUCTION TANK:
660 Gallon
HIGH-PRESSURE TANK:
660 Gallon
FILTRATION:
3-stage
ADDITIONAL EQUIPMENT:
All Flexible Hose Connections
Condensate Filtration
OEM Manuals
NOTE:

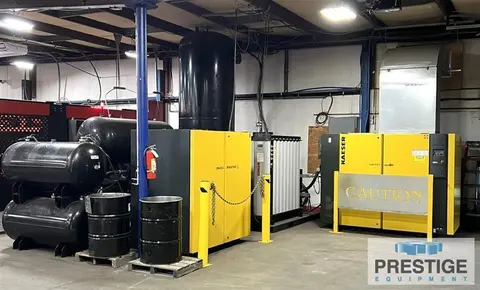

This Liberty Systems P7X-F4400 is a complete, high-pressure PSA nitrogen generation package ideal for laser cutting applications. It includes integrated air supply, booster compression, & filtration.
NOTE:
Inspect In Plant Under Power
