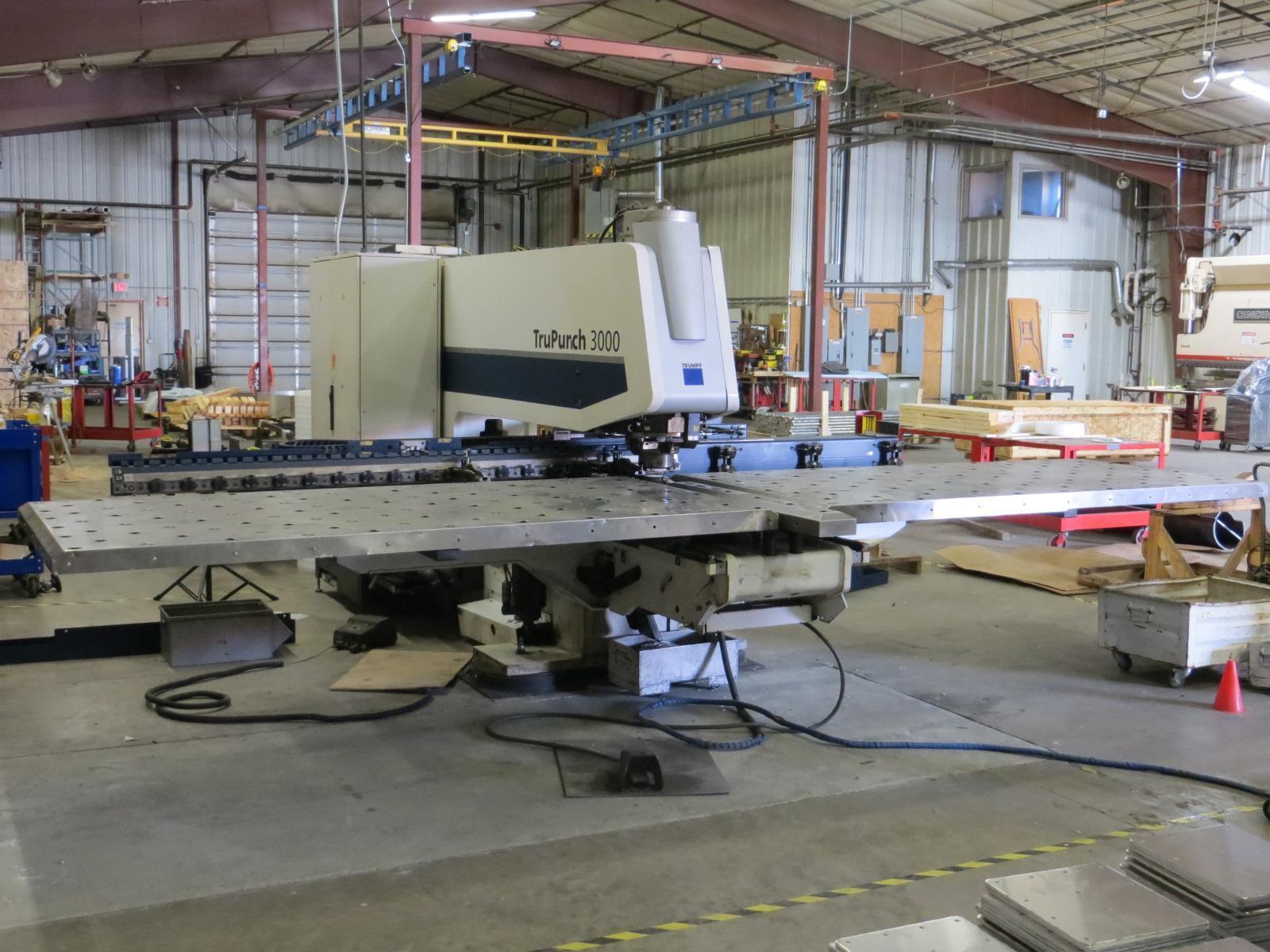

Trumpf TruPunch 3000 CNC Electric Punching Machine

Brand
TRUMPF
Category
Punching Equipment
Type
Punches, Turret
Model
TruPunch 3000
Stock #
C1022
Year
2012
Condition
Not specified

Location

Minnesota
REQUEST FINANCING

CNC Control: Trumpf CNC Control

Tonnage Capacity: 20 Tons

Max Sheet Size: 48" x 96"

Max Sheet Weight: 330 LBS

Max Sheet Thickness: 0.250"

Throat Depth: 50

Turret Stations: 18-Station Linear Rail with 2-Clamping Stations

Punching Rate: Punching - 1000 SPM / Marking - 2500 SPM

Max Sheet Positioning Speeds (X/Y): X-3,543 IPM, Y-2,362 IPM, Simultaneous - 4,250 IPM, C-Axis - 330 RPM

Tooling Style: Trumpf Cartridge

Equipped With:

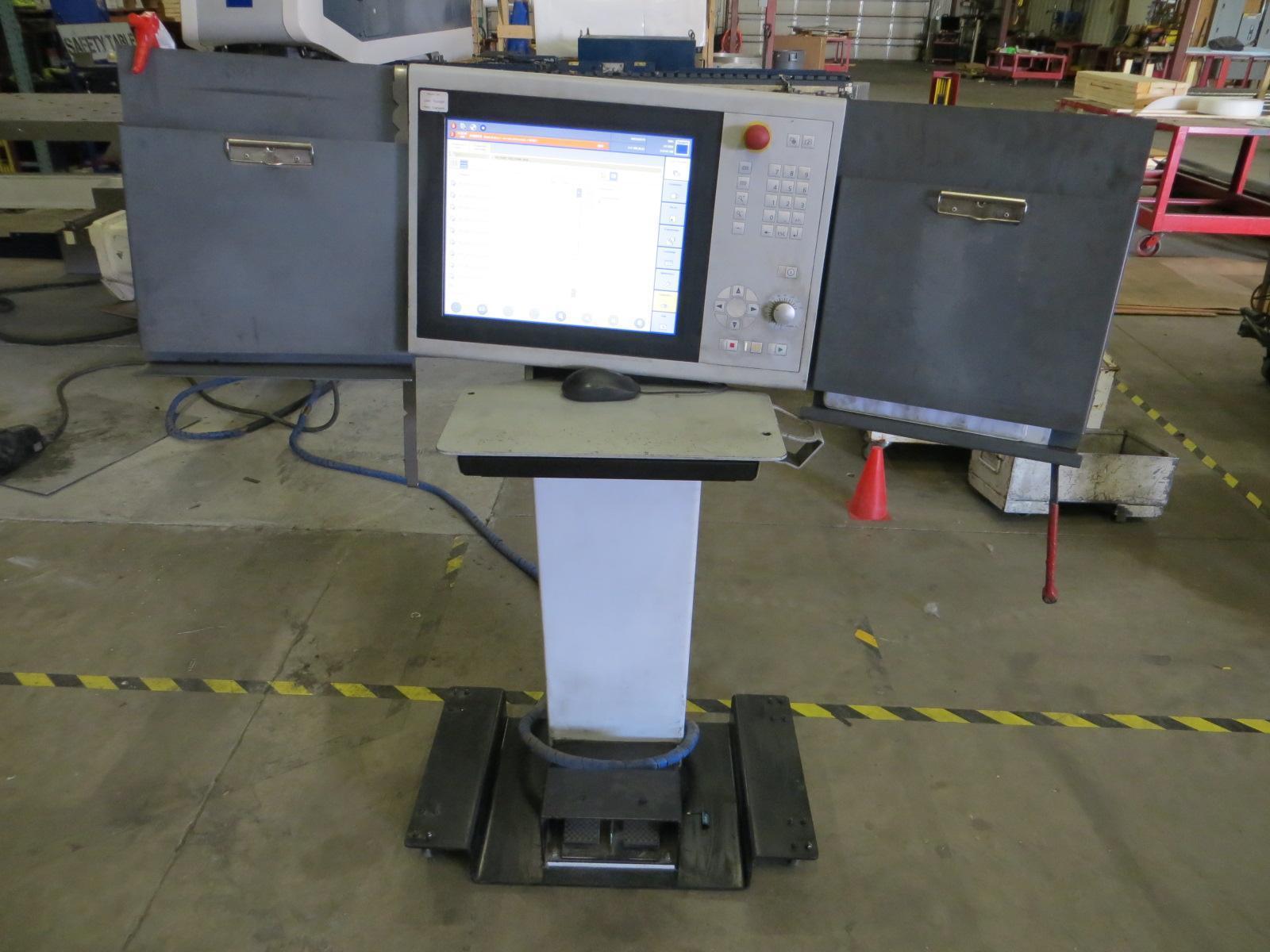

Trumpf CNC Control with 14" Screen, 18-Station Linear Tool Rail, Electric Servo Punch, Riedel Chiller, Foot Trip, Light Curtain, Roller Ball Table,

Electrics:

440 Volt, 3 Phase
