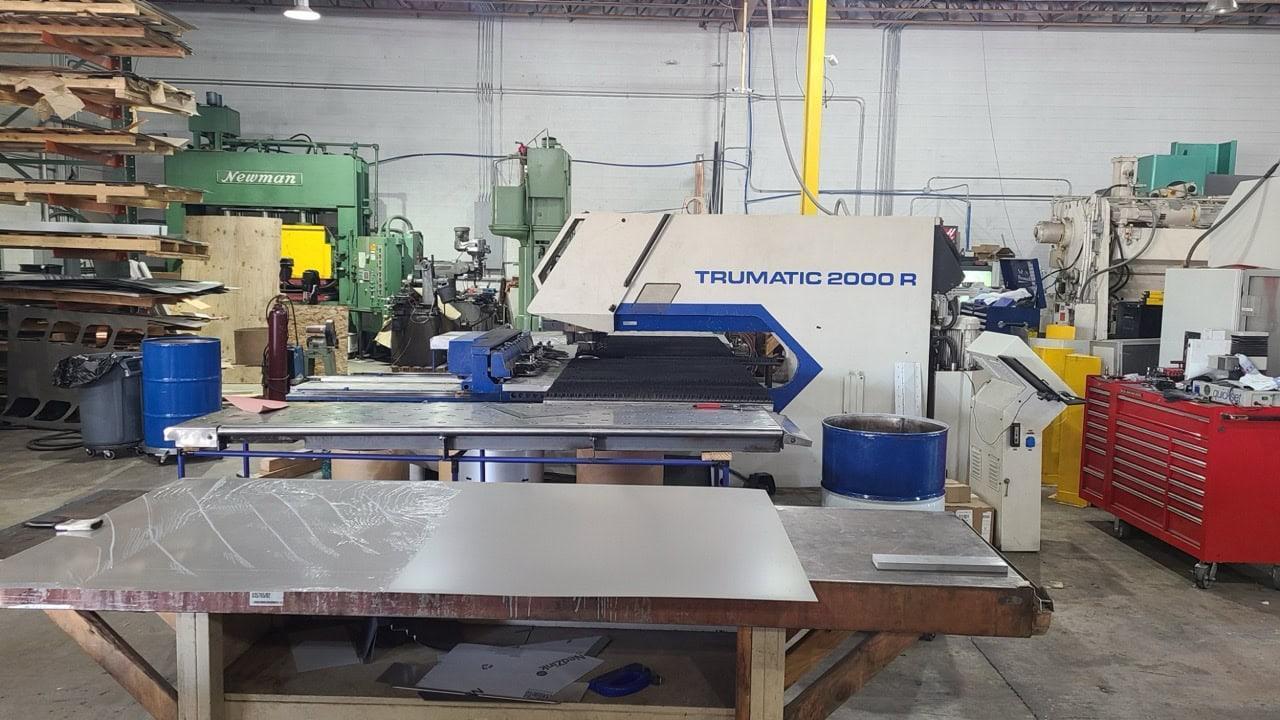

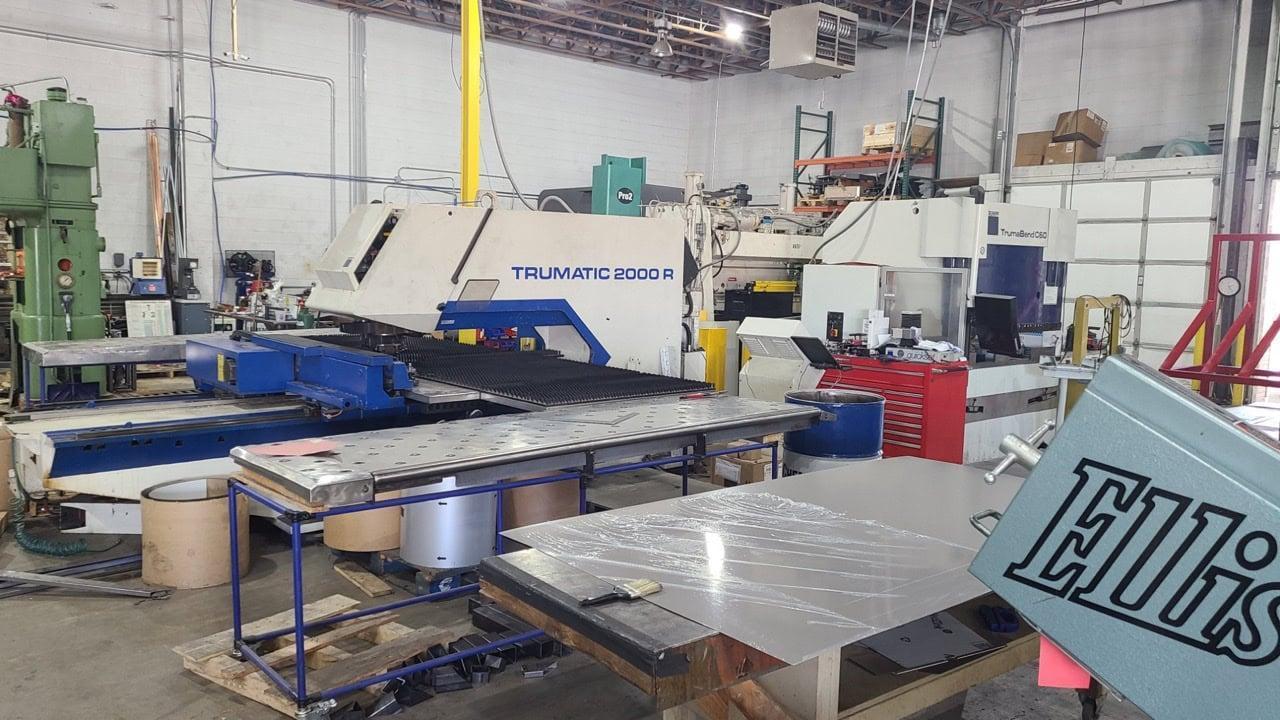

22 Ton Trumpf Trumatic 2000R Turret Punch, 1999
Brand
Category
Type
Model
Trumatic 2000R
Stock #
645384
Year
1999
Condition
Not specified
Location
Not specified
|
Table L: 50″
Table W: 50″
X-Axis: 50″
Y-Axis: 50″
# Turret Stations: 9
Max Sheet Weight : 165 LBS
Max Material Thickness: 0.25″
Stroke Rate (1mm pitch): 900 L/MIN
Stroke Rate (25mm pitch): 420 L/MIN
X-Axis Speed: 35×43 IPM
Y-Axis Speed: 2362 IPM
X/Y Simultaneous: 4251 IPM
Rapid Traverse (X/Y): 3550 / 2360 IPM
Control: CNC (BOSCH)
Dimensions: 224.5″ X 161″ X 89″
Weight: 17,637 LBS

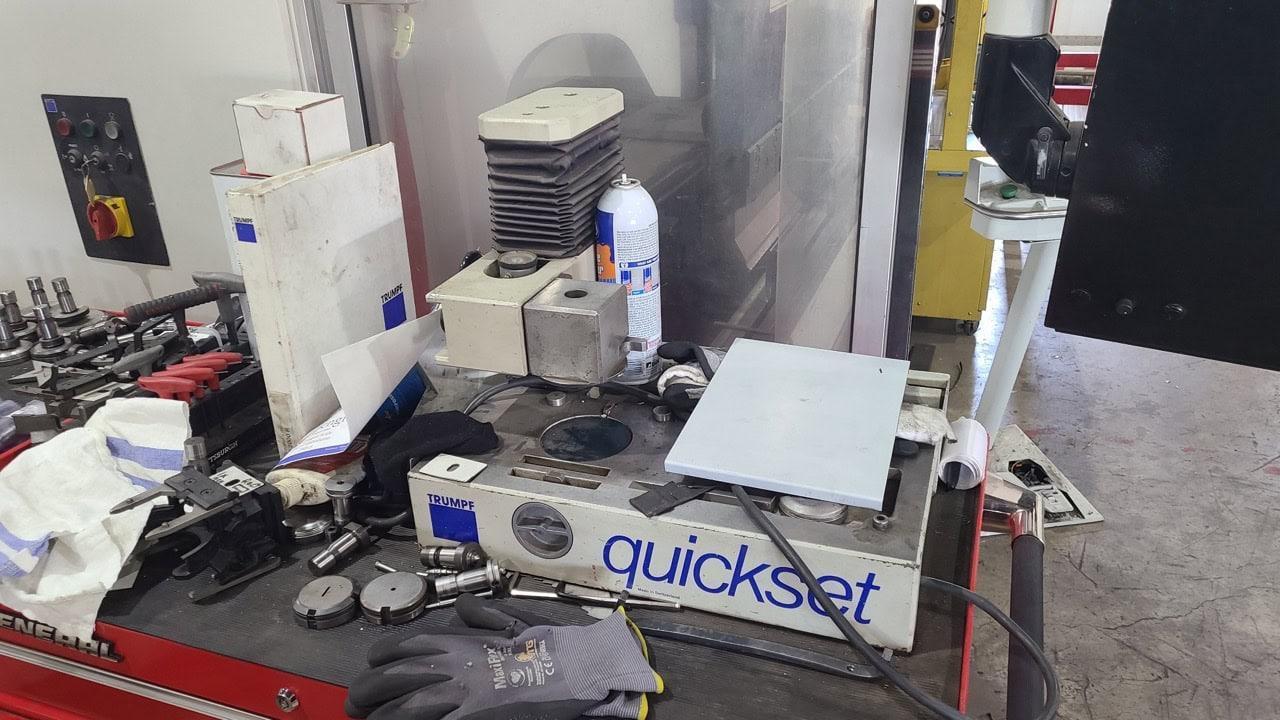

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,***Most Parts Replaced or Refurbished in 2021*** ***Over 100 Tools included*** All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
