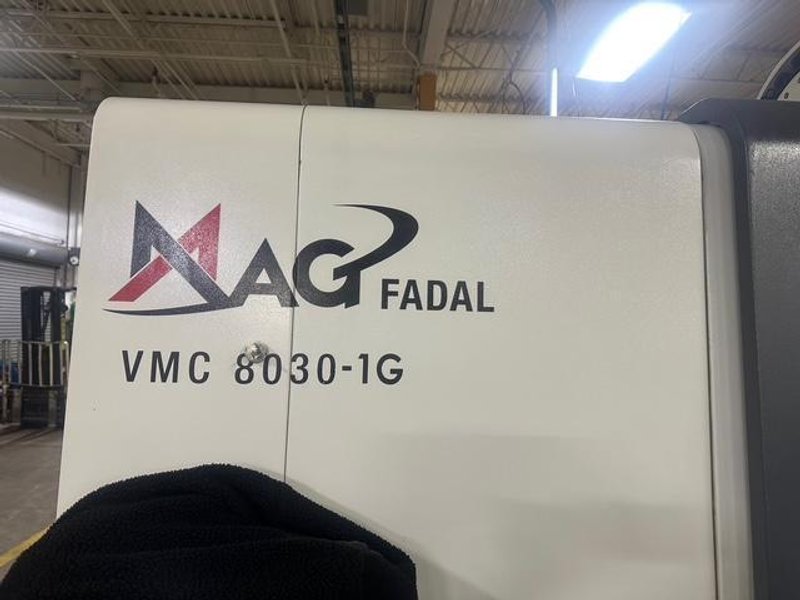

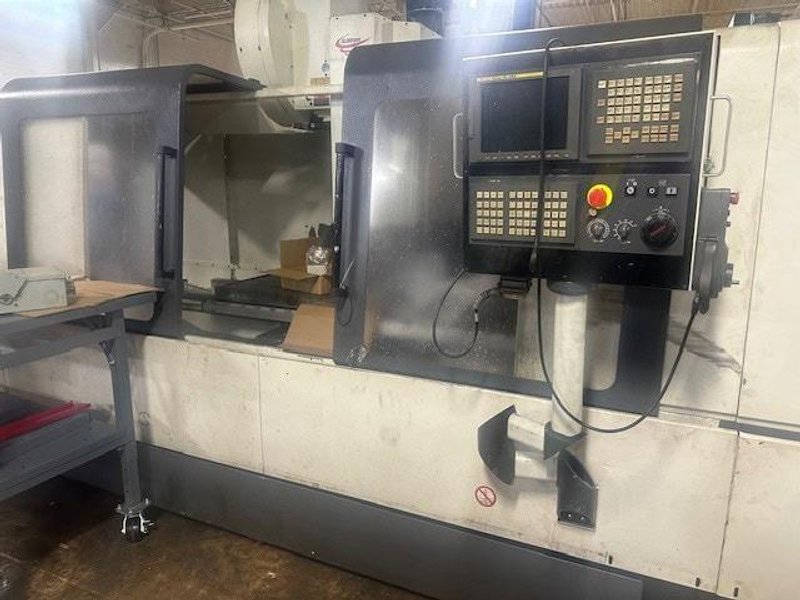

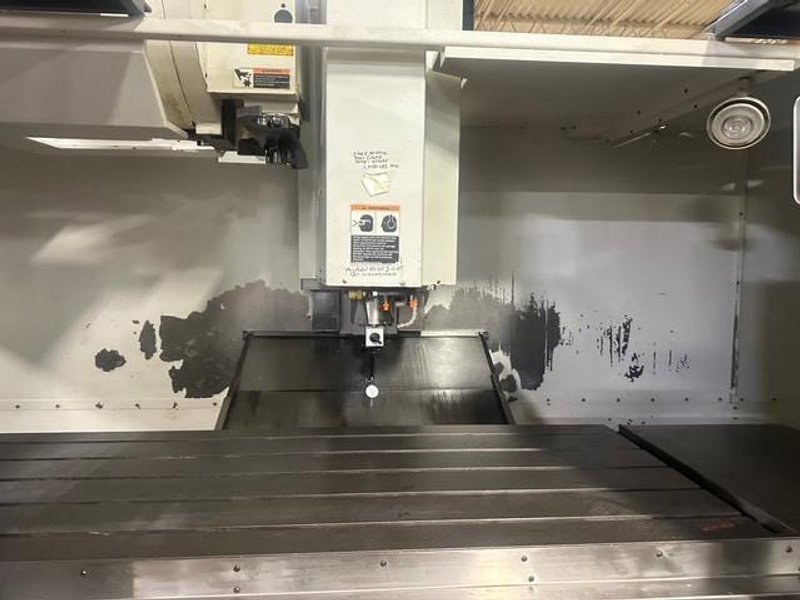

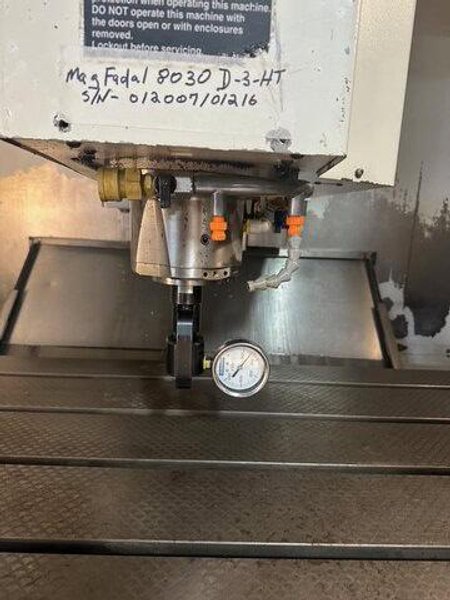

Mag Fadal VMC 8030 HT CNC Vertical Mill, 2007
Brand
Category
Model
VMC-8030D-3 HT
Stock #
683301
Year
2007
Condition
Not specified
Location
Not specified
|
X-Axis Travel: 80″
Y-Axis Travel: 30″
Z-Axis Travel: 30″
Table Size: 82.5″ x 30″
Max Table Weight: 3,750 – 4,840 lbs
Spindle Taper: CAT 40
Spindle Speed: 10,000 RPM
Spindle Motor: 22.5 – 30 HP
Tool Capacity: 21 – 24 tools
Rapid Traverse: Up to 787 IPM (X, Y), 590 IPM (Z)

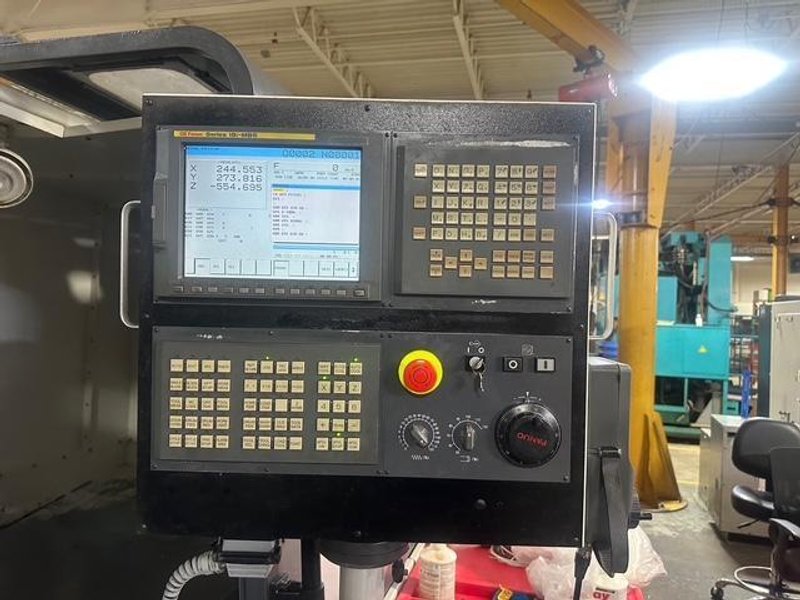

Control: Fadal CNC
Machine Weight: 18,000 – 30,000 lbs
Dimensions: 218″L x 118″W x 132″H
All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
