Name: Haas VF-4SS CNC 5-Axis Vertical Machining Center, Haas TR-160-2 Trunnion, 12K RPM, 40 ATC, Probing, TS Coolant.
Brand: HAAS
SKU: 7360
Availability: InStock

Brand

HAAS

Location

Not specified

Specifications
Files & Videos

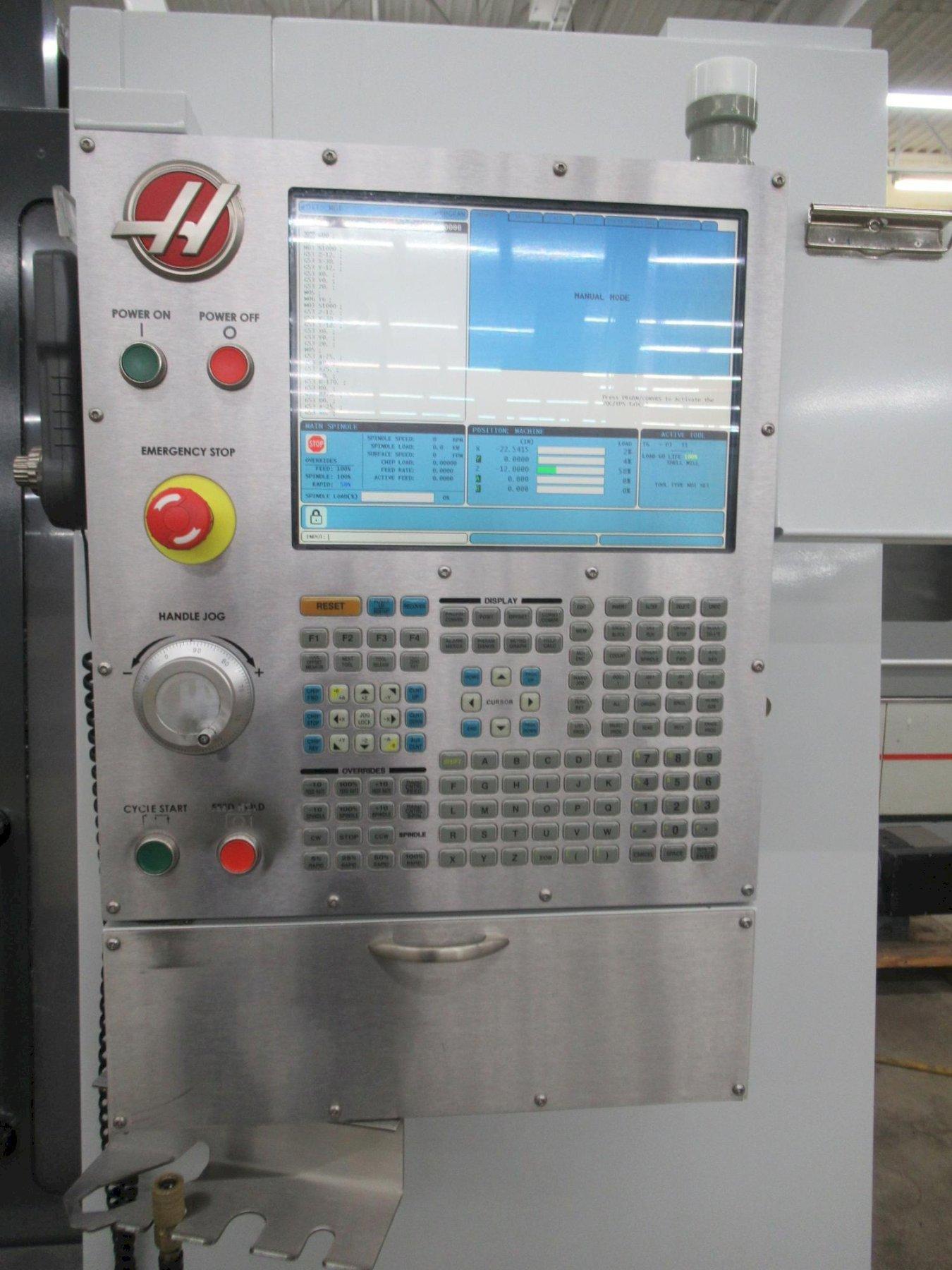

Machine Control: Haas MainCon CNC Control

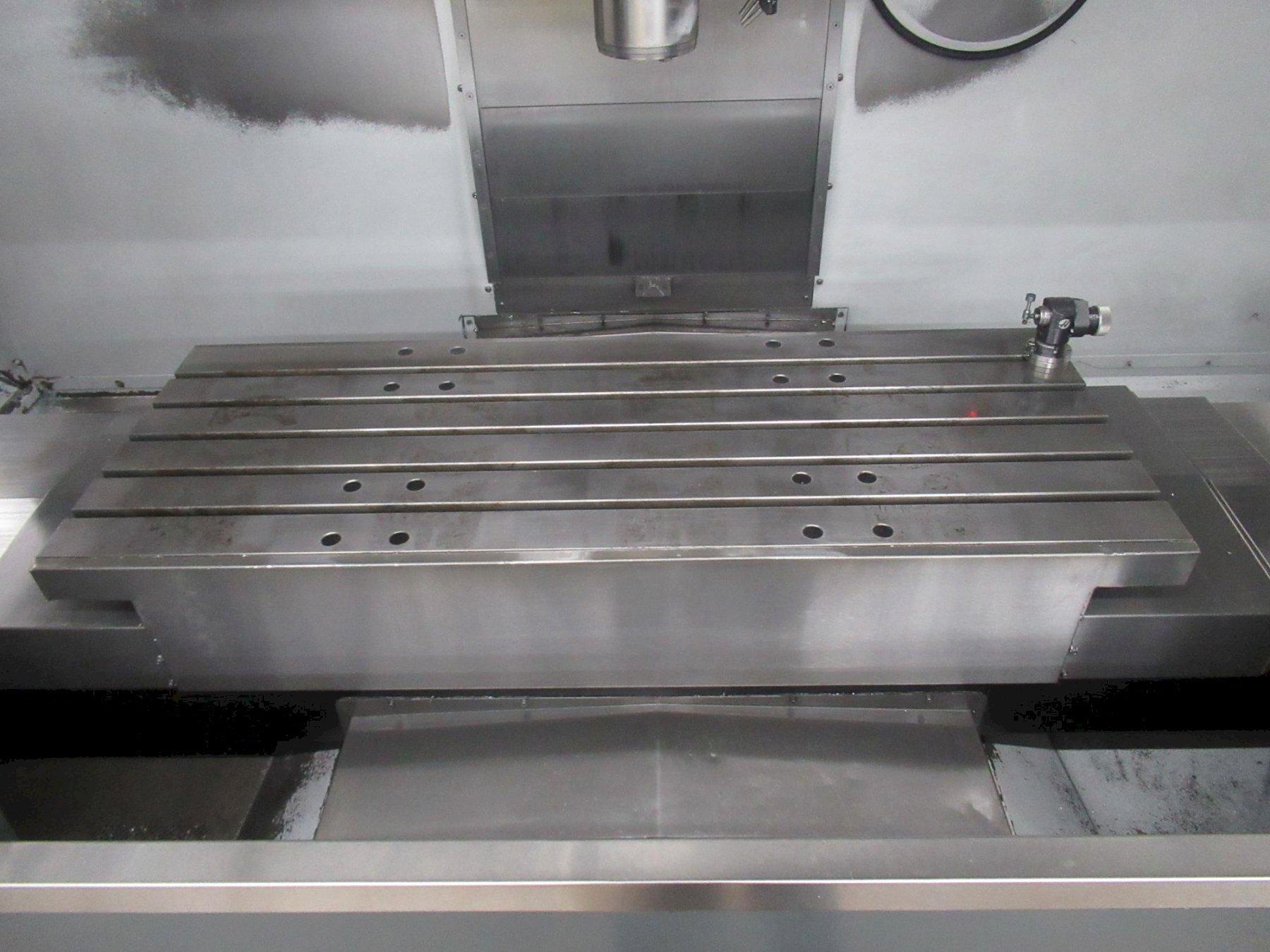

Table Size: 52" x 19.5"

Machine Travels (X/Y/Z): 50" x 20" x 25"

Spindle To Table Distance: 4" - 29"

Table Capacity: 1,750 Lbs.

Spindle Taper: Cat 40

Spindle Speeds: 12,000 Max RPM

Transmission: Direct Inline Drive

Rapid Traverse Rate (X/Y/Z): 1,400 IPM

Maximum Cutting Feed Rate: 833 IPM

Tool Changer Style: Side-Mount Twin-Arm

Tool Changer Capacity: 40+1 Stations

Tool Change Time: 1.6 Seconds Tool to Tool

Max Tool weight: 12 Lbs.

Spindle Drive: 30 HP Vector Drive

Description:

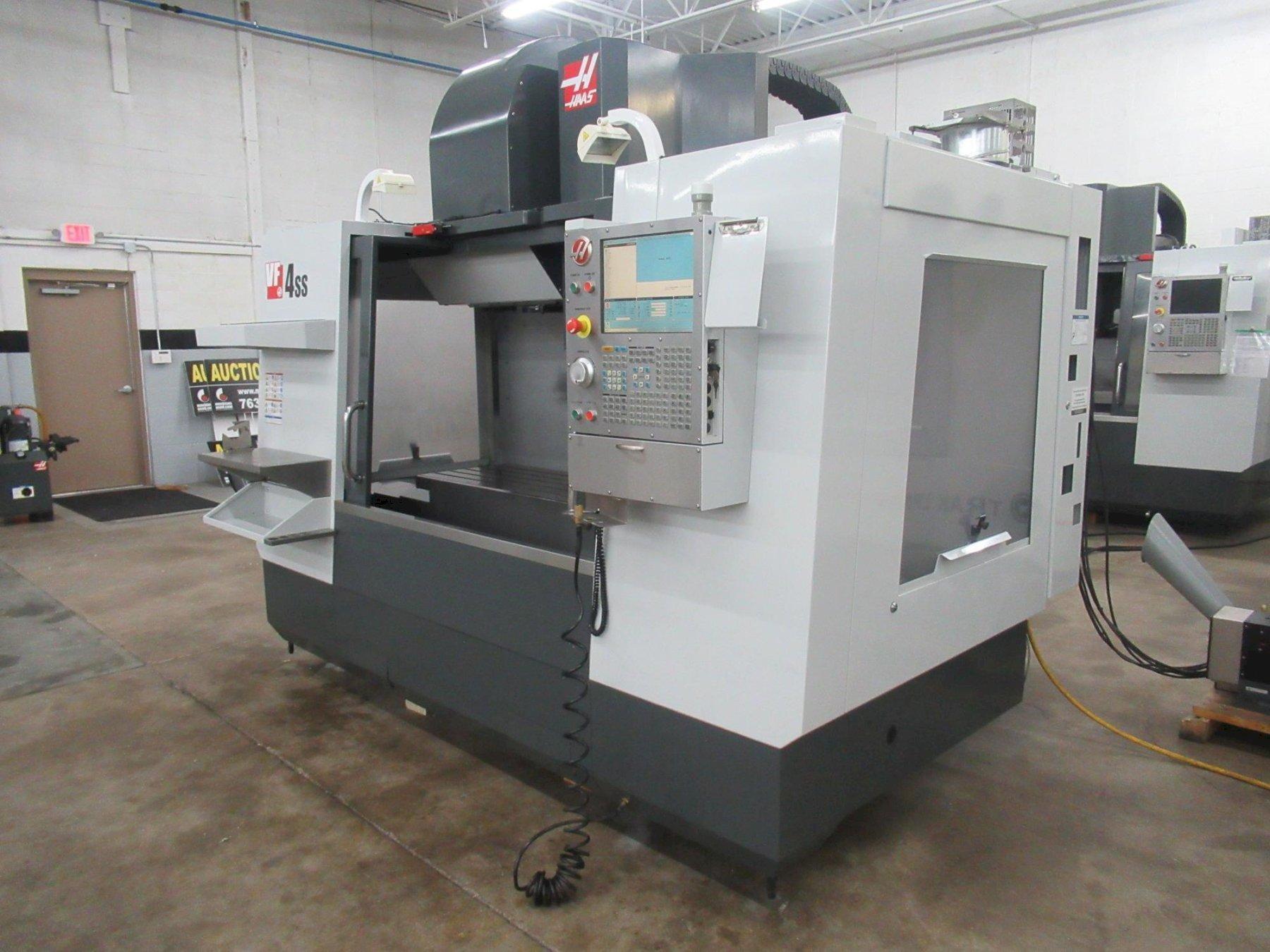

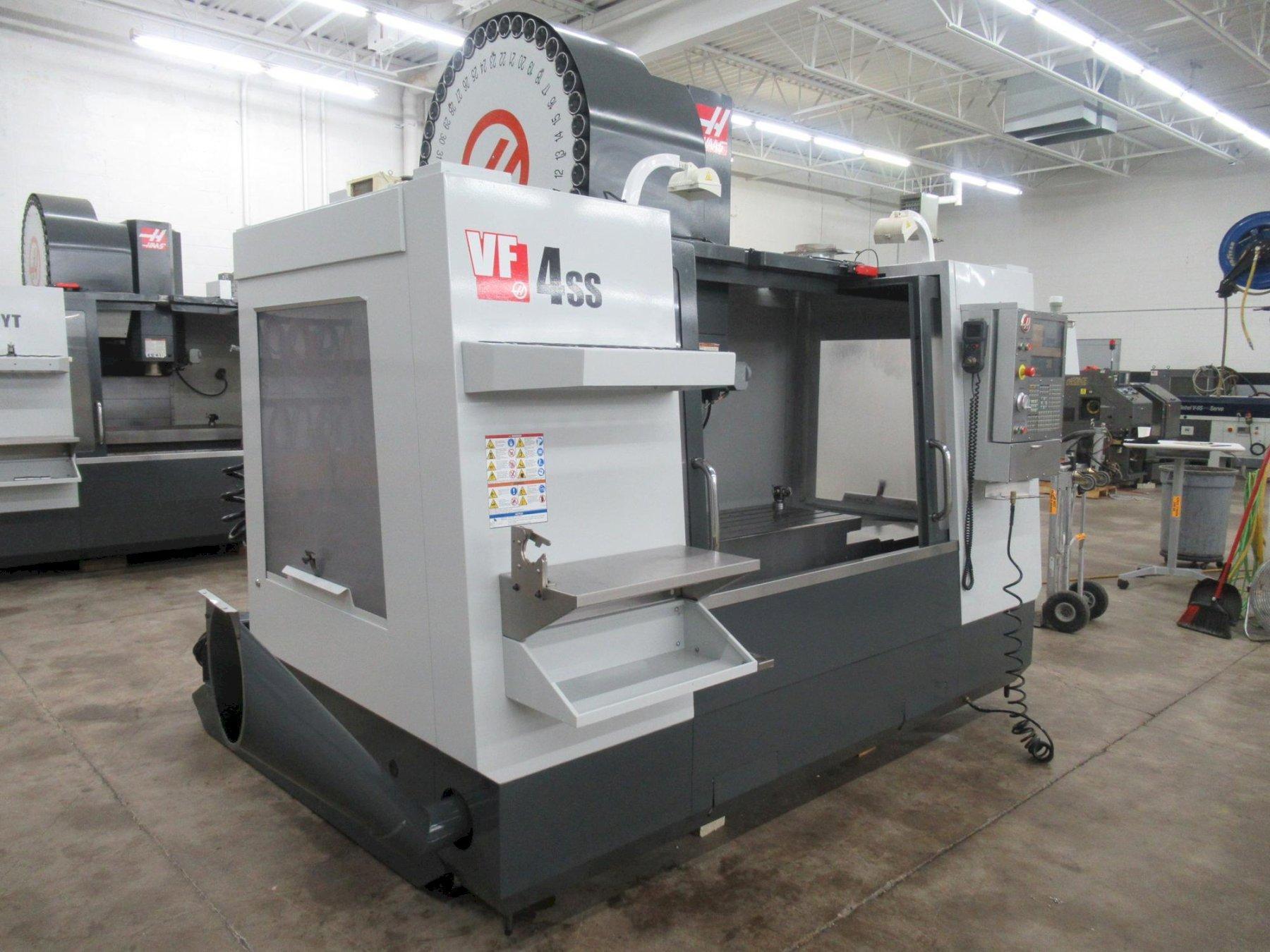

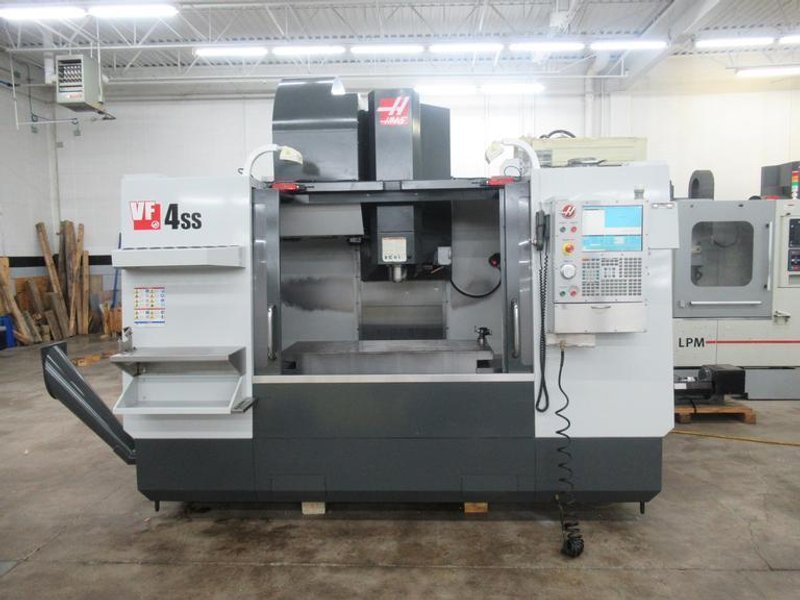

The Haas VF-4SS Super Speed Vertical Machining Center equipped with full 5-axis capability and the Haas TR-160-2 dual-axis trunnion table is designed for high-speed, highly accurate, multi-sided machining. This configuration enables full simultaneous 5-axis interpolation, reducing setup times and improving part accuracy for complex geometries.

Equipped With:

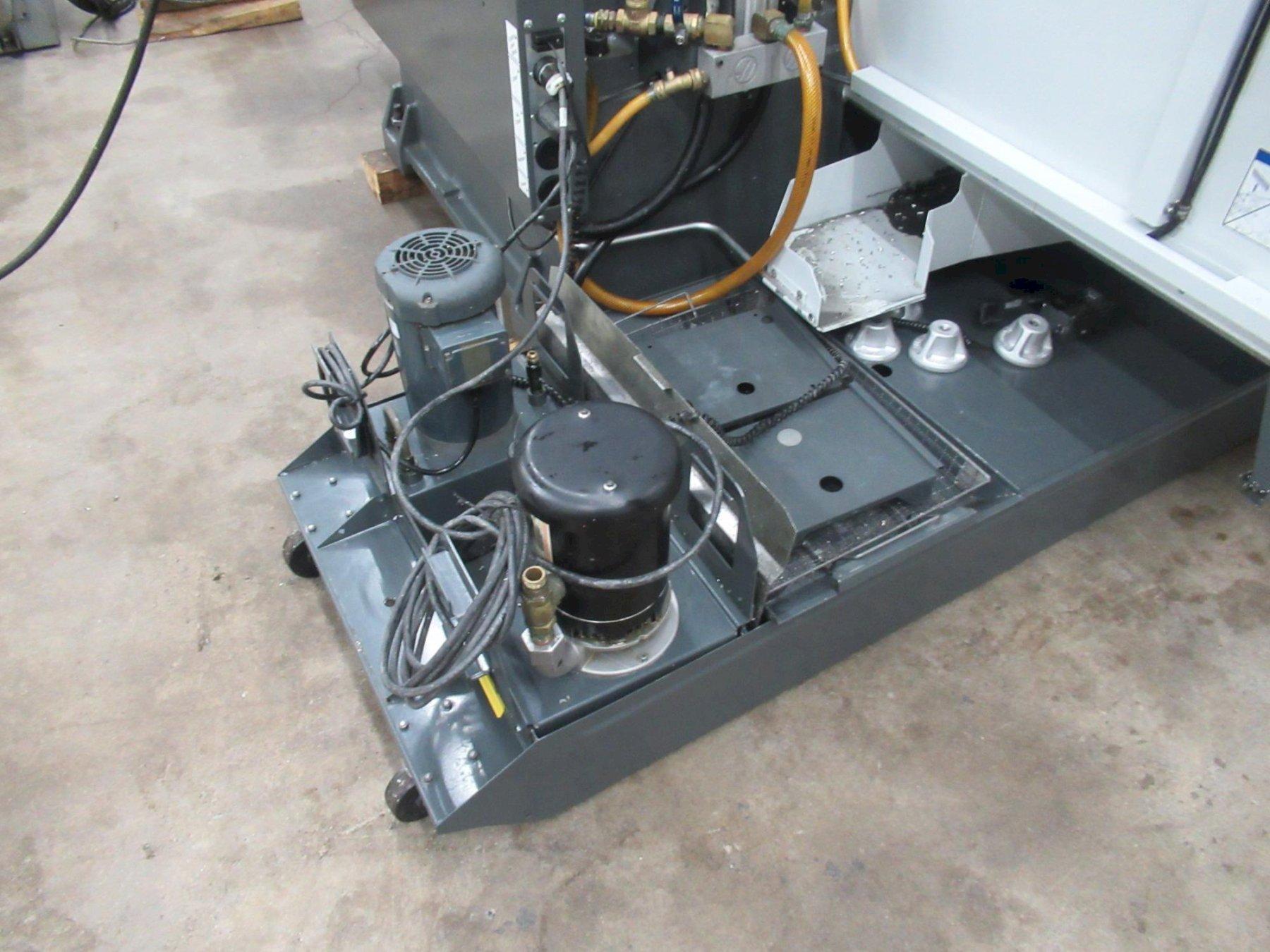

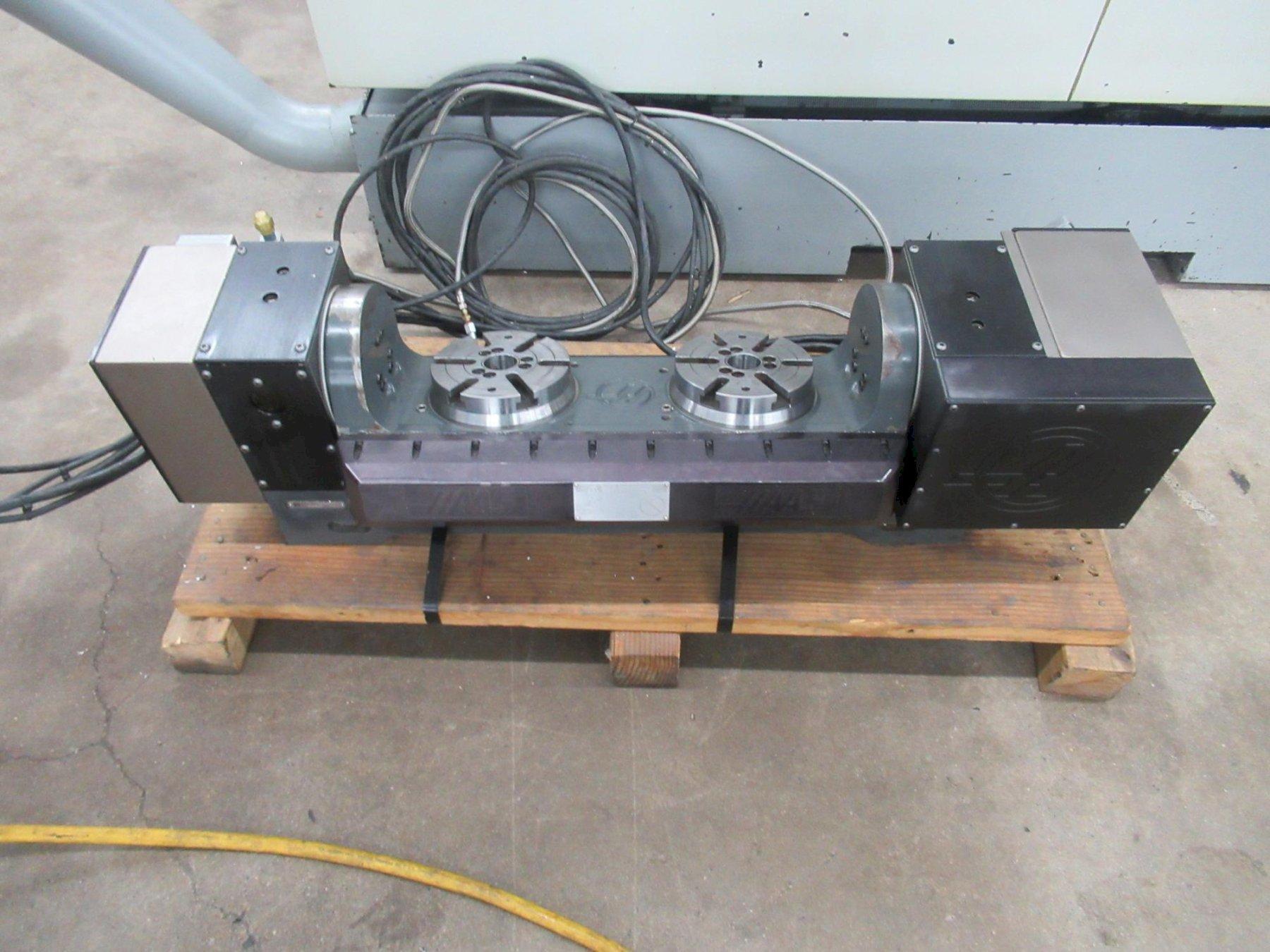

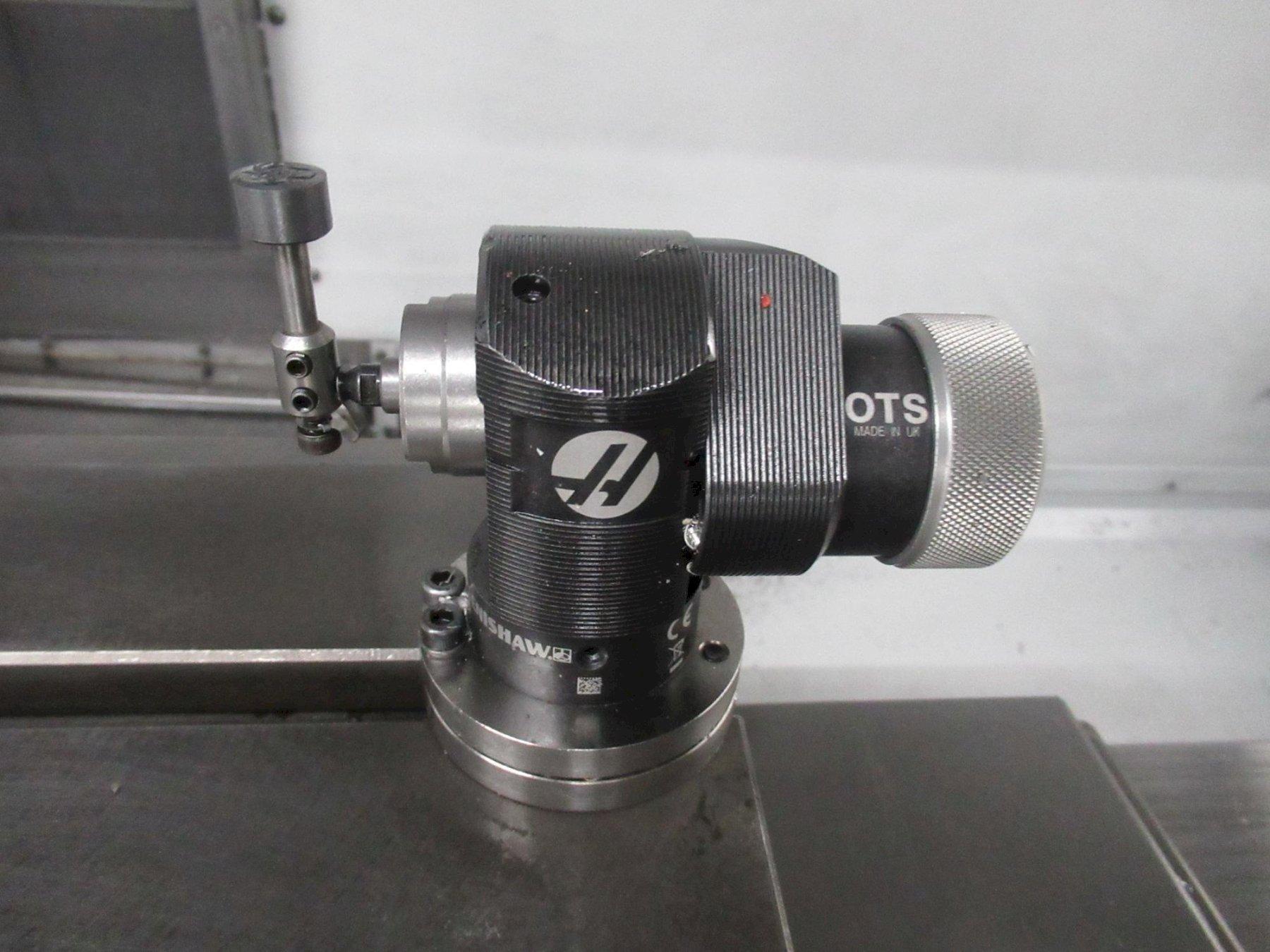

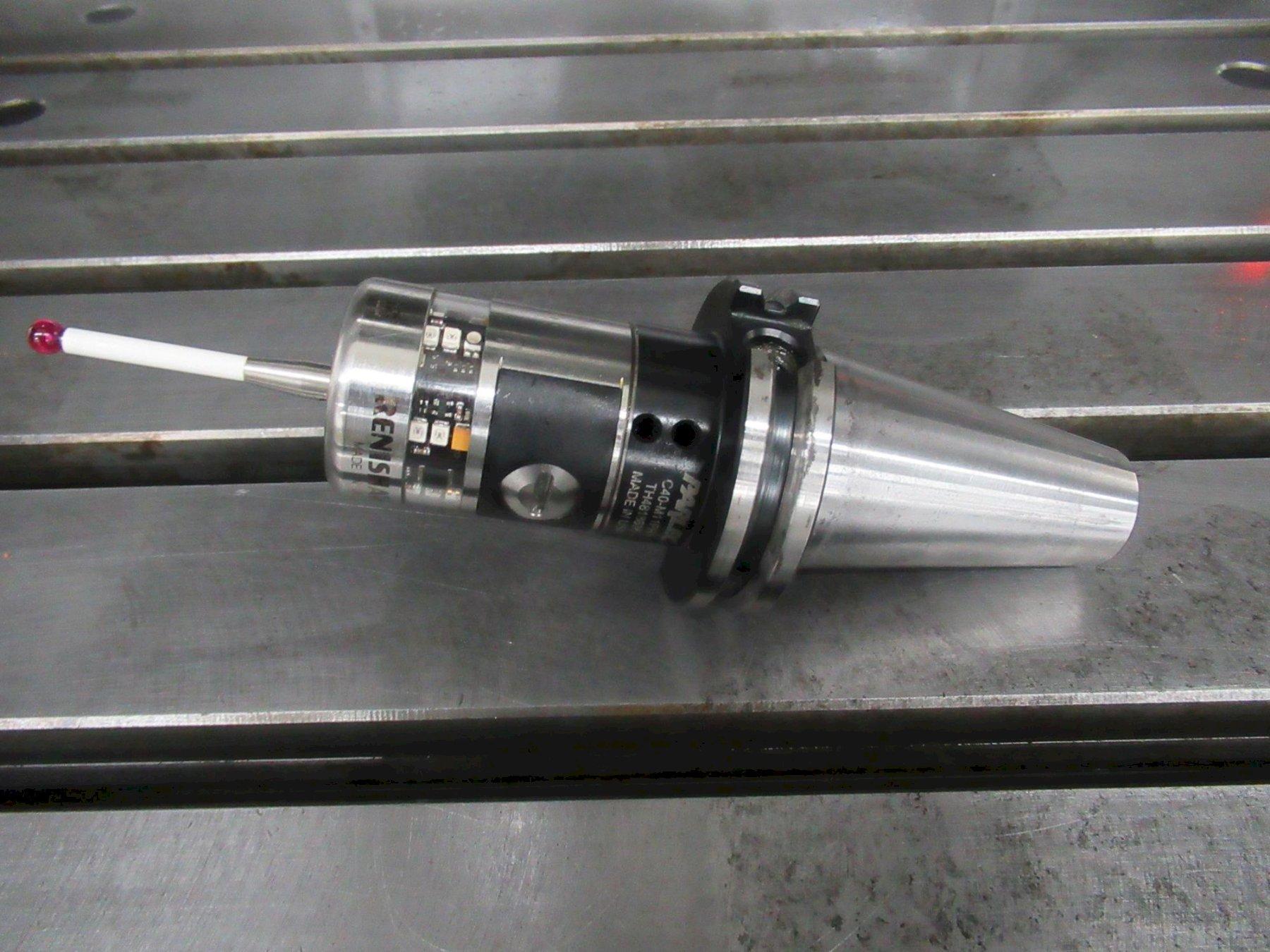

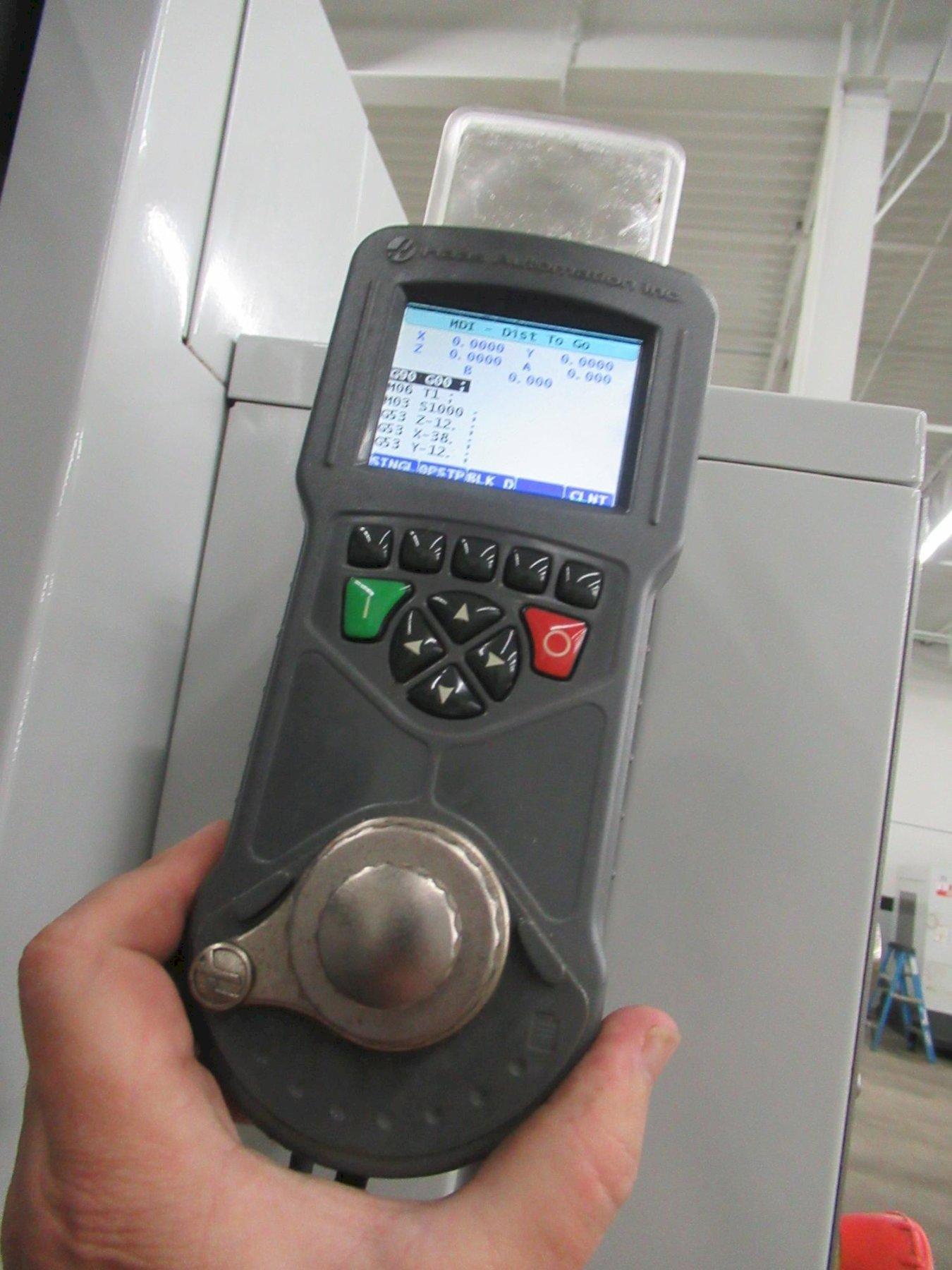

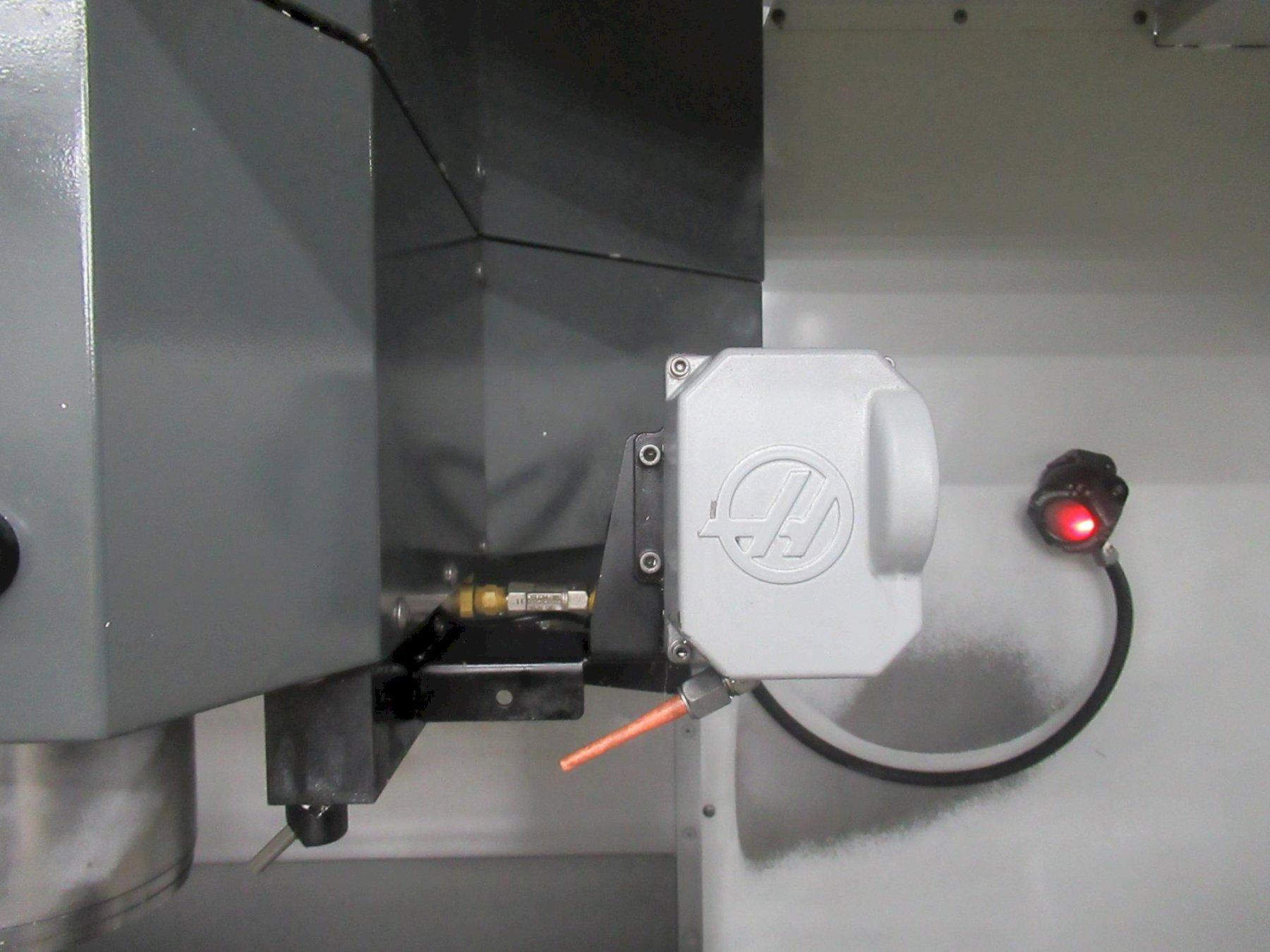

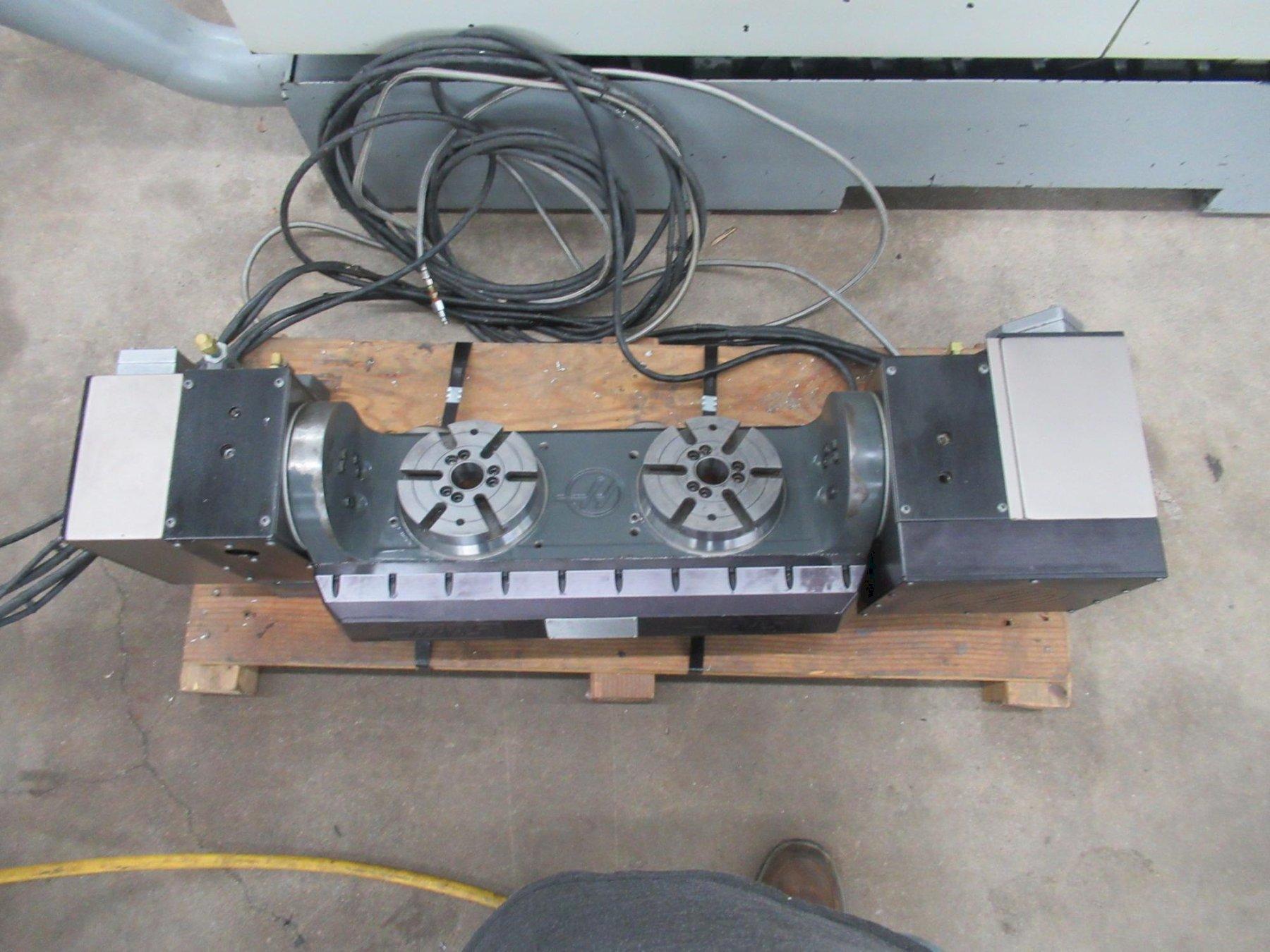

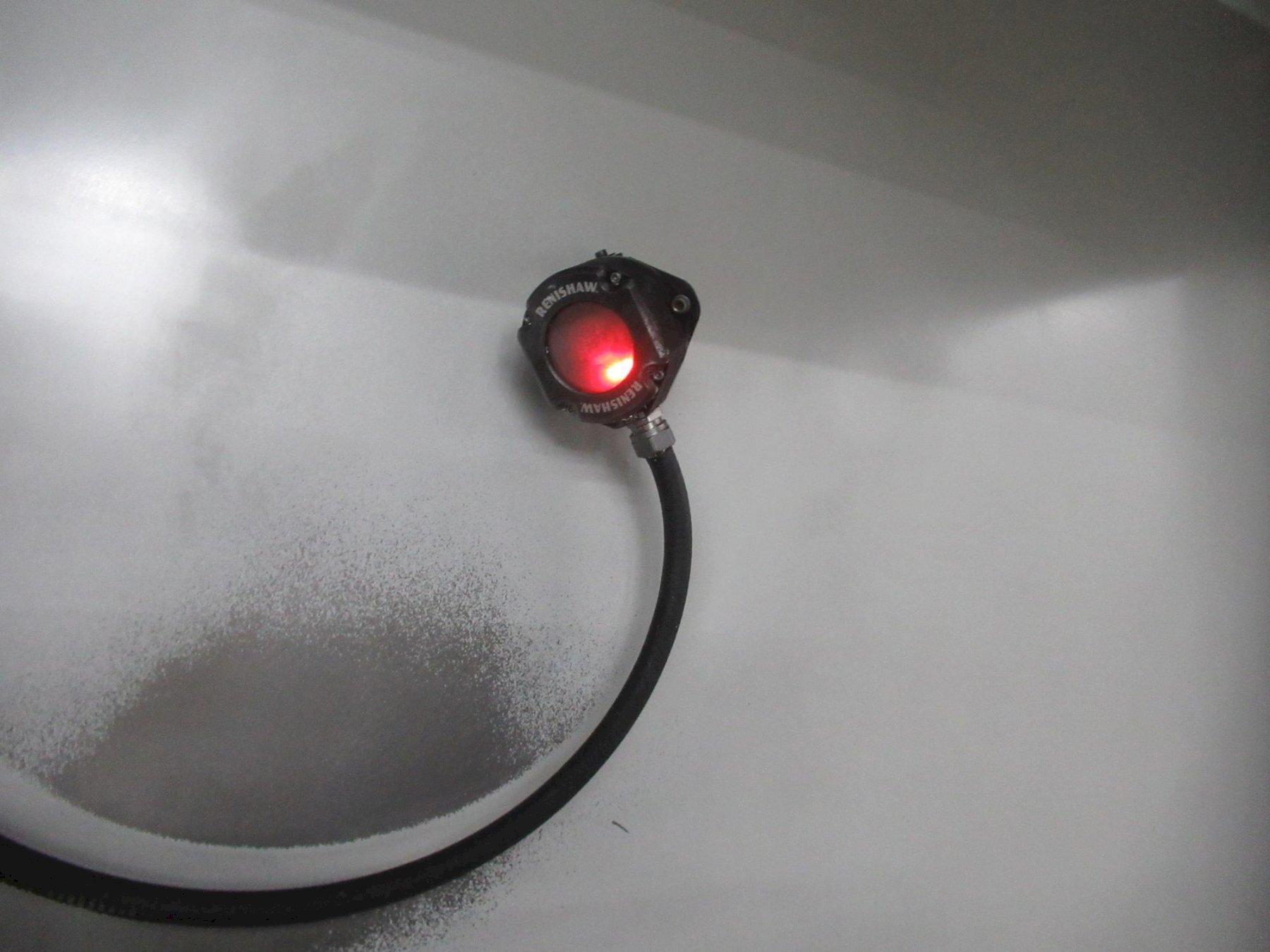

Haas Maincon CNC Control, 12,000 RPM Spindle, Brushless 4th & 5th Axis Drive, Renishaw Probing System with Part & Tool Probes, Haas TR160-2 Brushless Sigma- 5 Programmable Dual Trunnion Table with Scale ( S/N 906822)Version P4,Thru Spindle Coolant - 300 PSI, Programmable Coolant Nozzle, High Speed Machining, Remote Jog Handle, 40-Station Side Mount Twin Arm Automatic Tool Changer, Chip Auger & Cone, Coolant Tank, Keys, Visual Quick Code Programming System, Macros, Coordinate Rotation & Scaling, Spindle Orientation, Rigid Tapping, Manuals and Documentation.

Electrics:

195-260 Volt, 3 Phase
