Toshiba BTD 110R16 CNC Table Type Boring Mill

SPECIFICATIONS:
Spindle Diameter 4.33"
Taper In Spindle #50
Milling Spindle Diameter 8.86"
Vertical Travel of Headstock, Y-Axis 59.05"
Table Cross Travel, X-Axis 78.7"
Spindle Travel, Z-Axis 19.68"
Saddle Travel, W-Axis 57.08"
Spindle Speeds 5-3000 RPM
Spindle Motor 40 HP
Table Size, Built-in Rotary 55.12" x 62.99"
Table Index 0.001 Degree
Table Capacity 13,860 Lbs
Feed Rates 0.04"-236.2"
Machine Footprint 250" x 260"
Machine Height 153"



Equipped With:

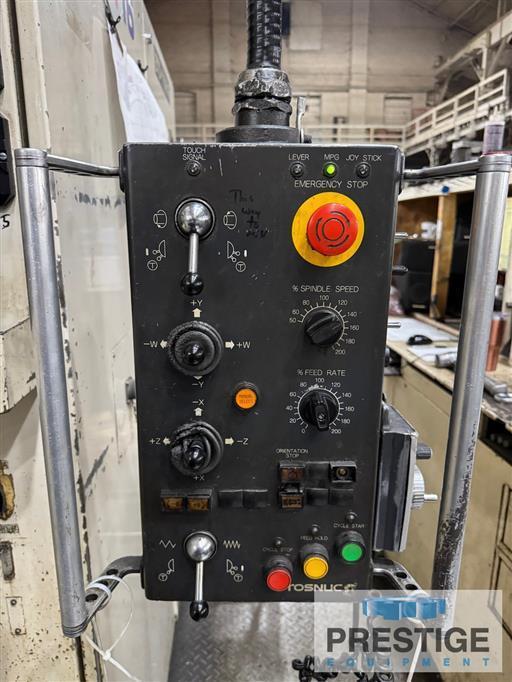

Tosnuc 888 CNC Control
38 Station Automatic Tool Changer
55.12" x 62.99" B-Axis Rotary Table
4-Way Bed Construction
Way Covers
Through Spindle Coolant
Chip Conveyor
40 HP Spindle Drive Motor


Note: Inspect In Plant Under Power in Midwest!
Owner Needs room for New Machine on the way In!
