CAPACITY:

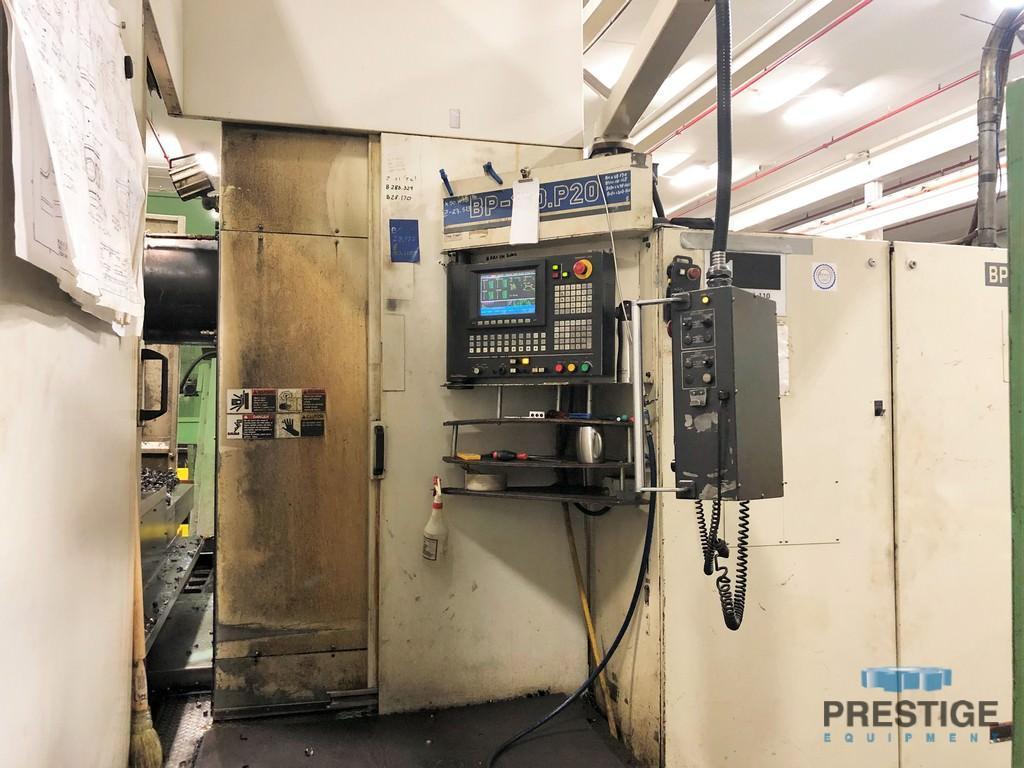

Spindle Diameter 4.33" Milling Spindle Nose Diameter 8.85" Spindle Taper #50 ISO Vertical Head Travel, Y 65" Table Travel, X 100" Column Infeed, Z 45" Spindle (Quill) Travel, W 20" Table Size 80" x 55" Table Size 59" x 39" Rotary Table Spindle Speeds 5-3000 RPM Table Load Capacity 40,000 Lbs Rapid Traverse: X,Y,Z Axes 472.4 IPM Rapid Traverse: W Axes 196.9 IPM Feed Rate: X,Y,Z Axes 0.04 to 236.2 IPM Feed Rate: W Axis 0.04 to 196.9 IPM Power Source (65 KVA) 200/220V 50/60 HZ Floor Space 289.4" x 259.8" Overall Height 162.8" Equipped With: Tosnuc 888 CNC Control 38-Station Automatic Tool Changer Ballscrews & Independent Servo Drives 80" x 55" T-Slotted Plain Table 59" x 39" Delken SCNI-100 CNC Rotary Table Hardened & Ground Ways Box Ways Through Spindle Coolant Way Covers on X,Y & Z Axes 40 HP / 30 HP Spindle Drive Motor Chip Conveyor |
