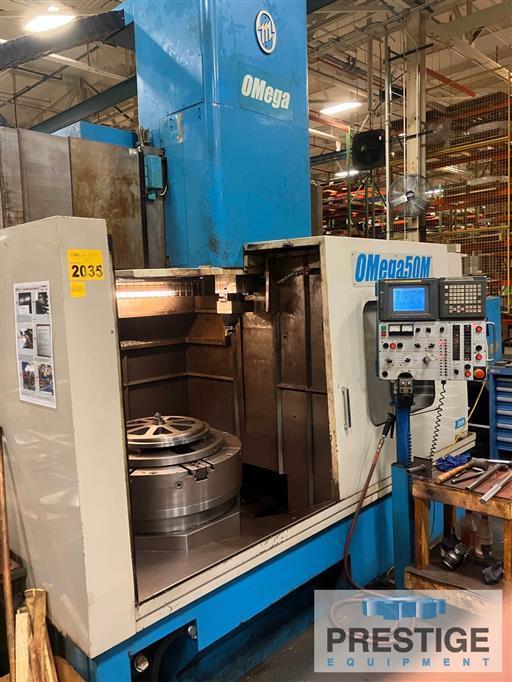

O-M Ltd Omega 50M CNC Vertical Boring Mill w/ Milling

Specifications:
Table Diameter 36"
Maximum Swing 49.21"
Maximum Turning Diameter 39.37"
Maximum Height Under Ram Face 34.62"
Ram Stroke 31.5"
Ram Cross Section 7" x 7"
Table Speeds (2-Ranges, Inf. Var.) 4-800 RPM
Table Spindle Nose A2-20
Table Indexing .001 degrees
Table Capacity 3,300 lbs.
Max Table Torque 6,500 Nm
Max Cutting Force 25,000 N
Live Spindle Speeds 20-2500
Live Spindle Taper #50 BT
Live Spindle Motor 14.75 HP / 20 HP
Machine Footprint (W x D) 148" x 165"
Machine Height 172"
Machine Weight 26,400 lbs



Equipped With:
Fanuc 18i-T CNC Control

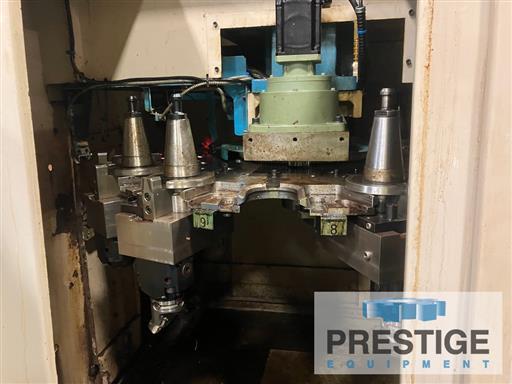

Ram W/ 15-Station Automatic Tool Changer
with 6-Turning Stations & 8 Milling Stations
C-Axis for Milling & Drilling Operations
Live Milling Spindle
Precision Ground Ways
Chip & Coolant Guarding
50 HP Table Drive
