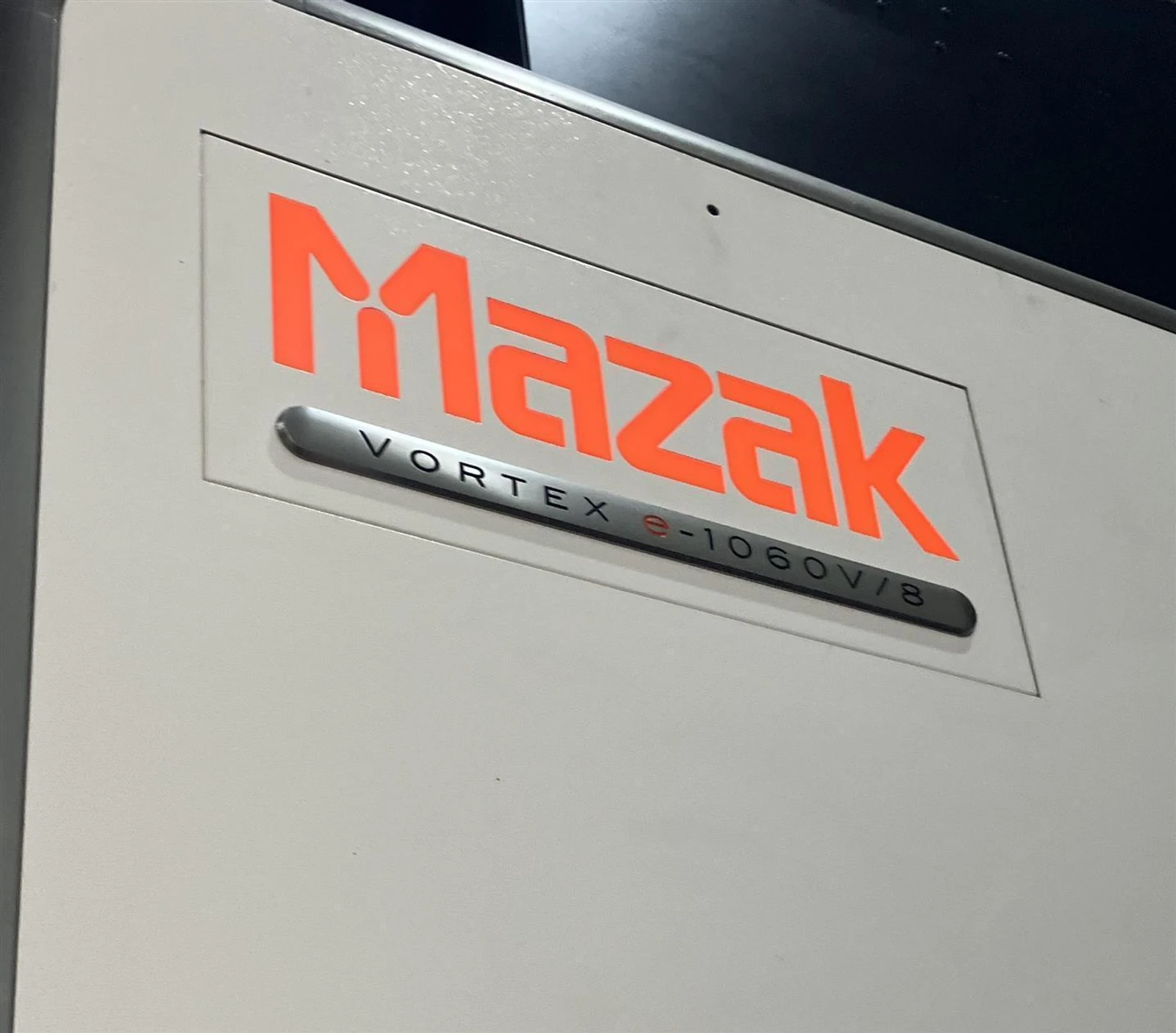

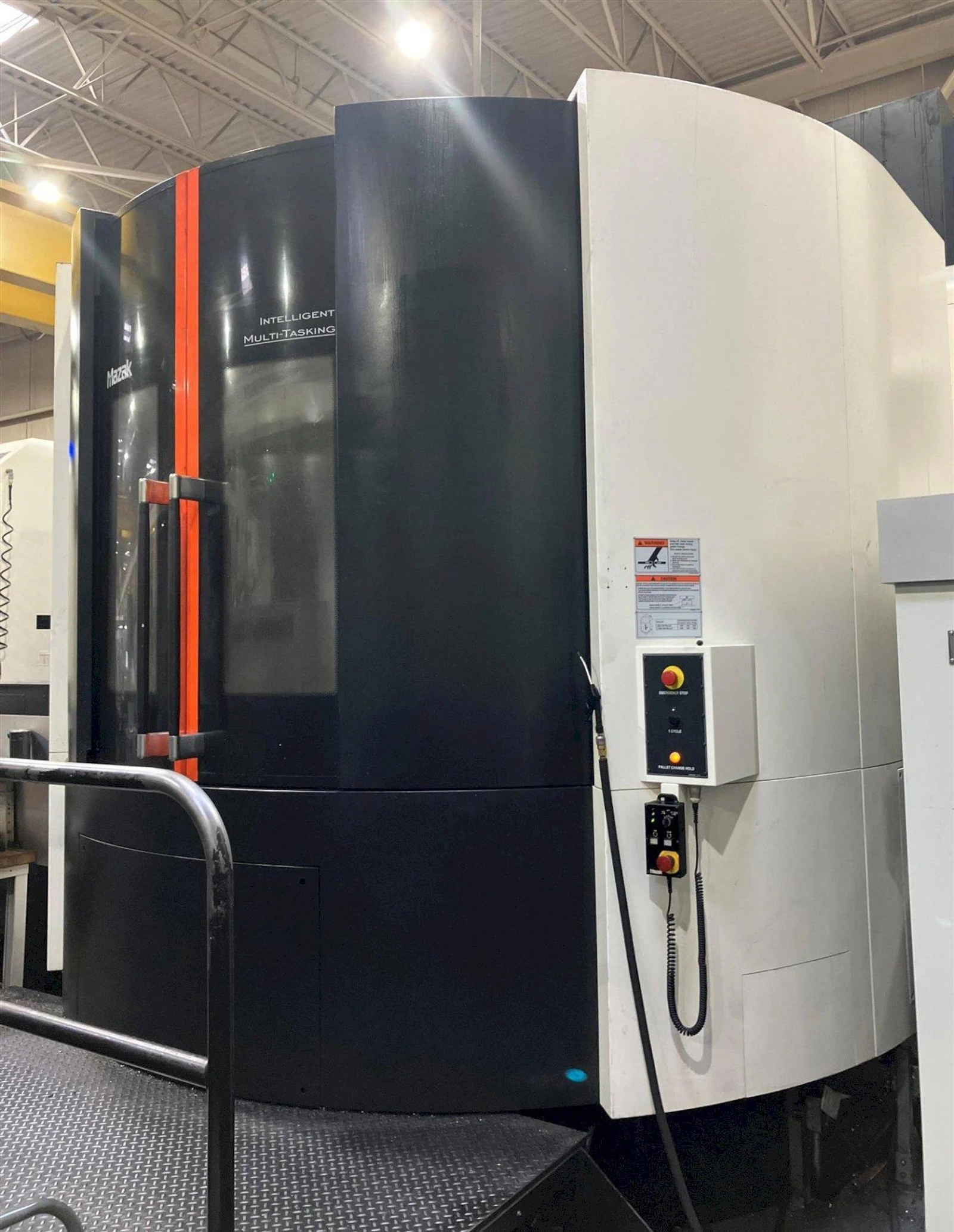

Mazak Vortex e1060-V/8 5-Axis Vertical Turning Center

Specifications:
X-Axis 73.82"
Y-Axis 41.73"
Z-Axis 52.95"
B-Axis, 150 Degree (Contouring) -30 Deg. to 120 Deg.
C–Axis .001 Deg.

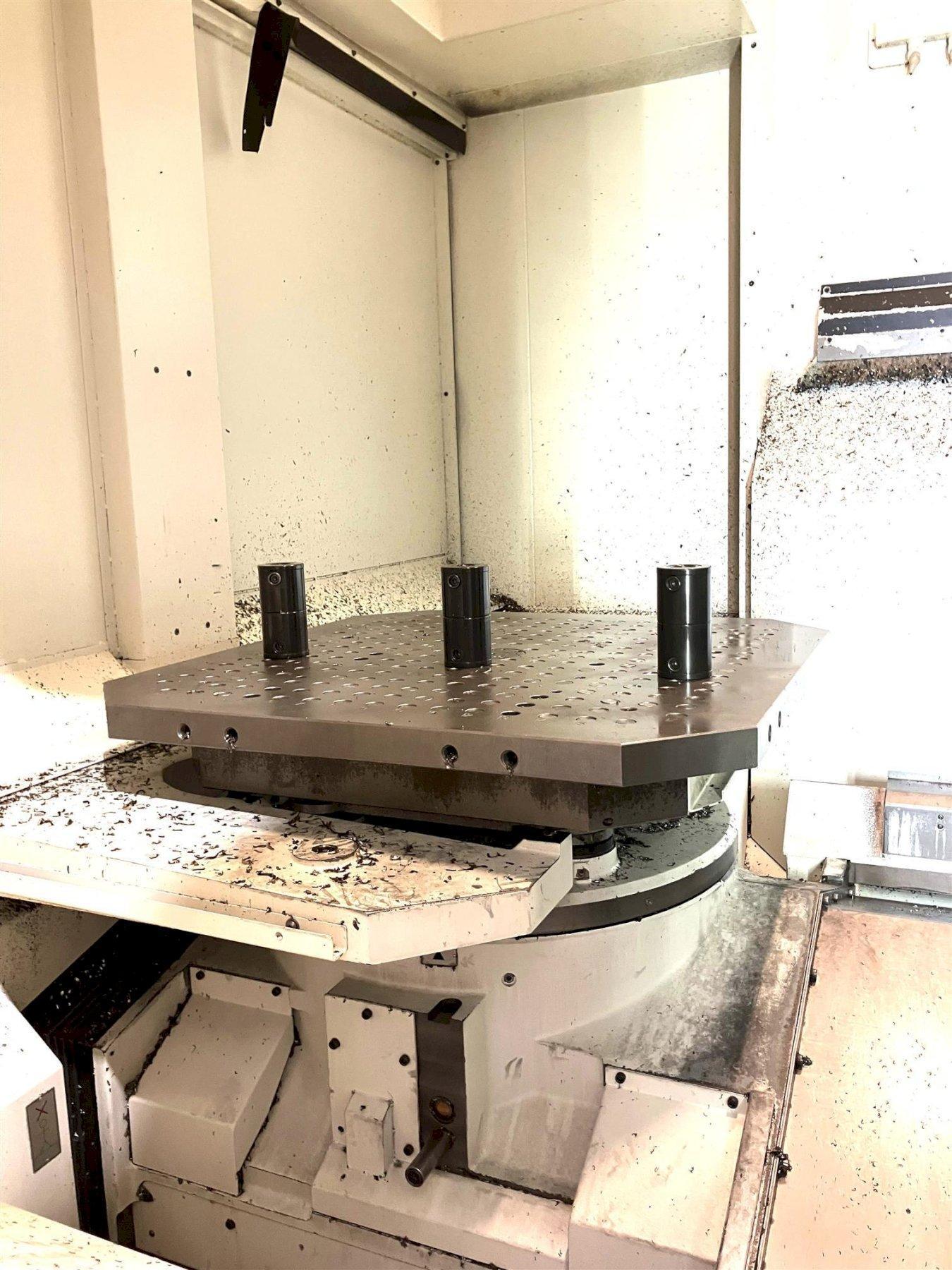

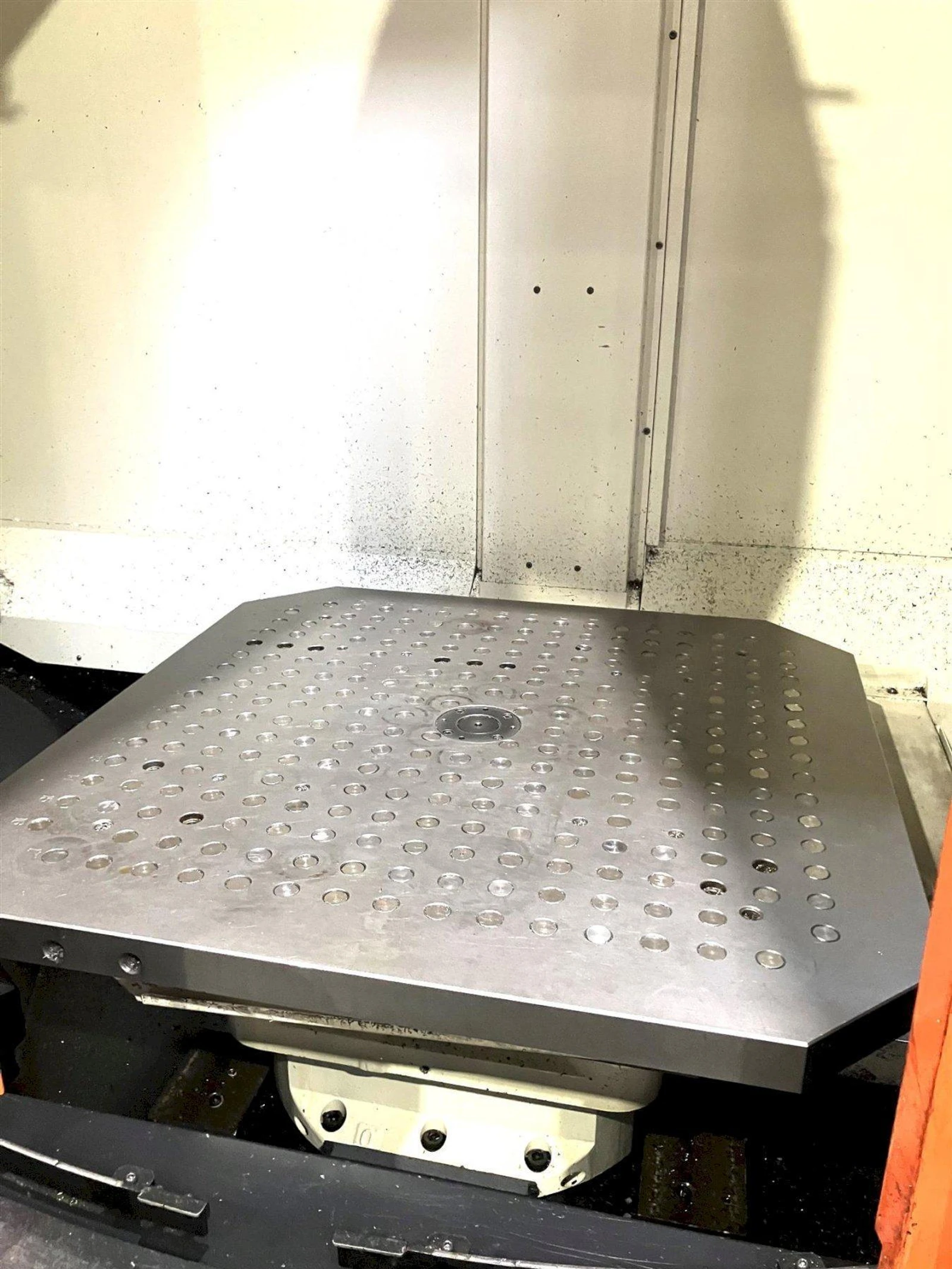

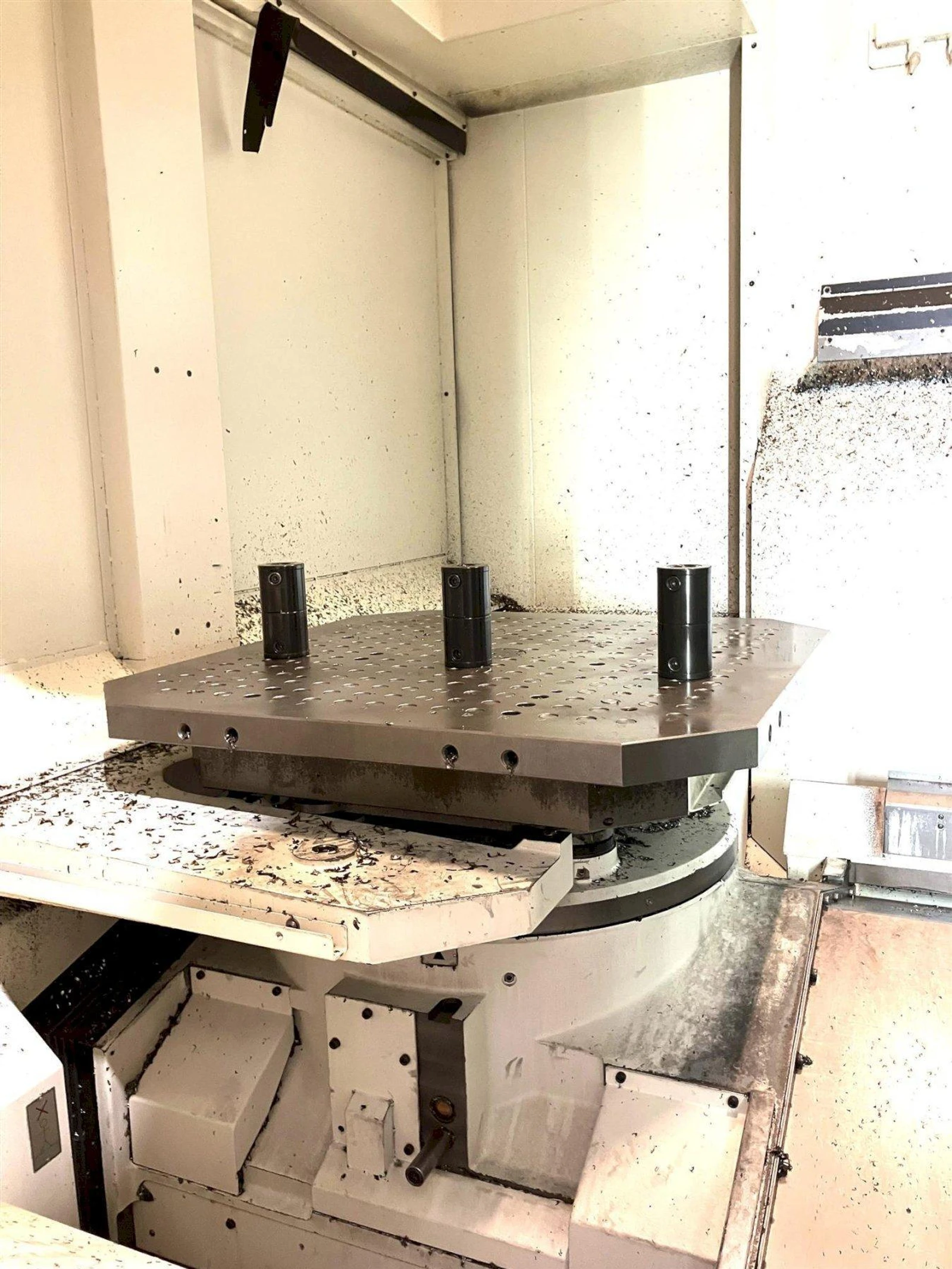

Pallets (2), 39.4" x 39.4"
Work piece Dimensions 49.21" X 49.21"
Weight Capacity 4784 pounds
Milling Spindle Speed 10,000 RPM / 2 Windings
Spindle Taper CAT 50
Horsepower 50 Int. / 40 Cont.
Turning spindle Speed 500 RPM
Horsepower 50 Int. / 40 Cont.

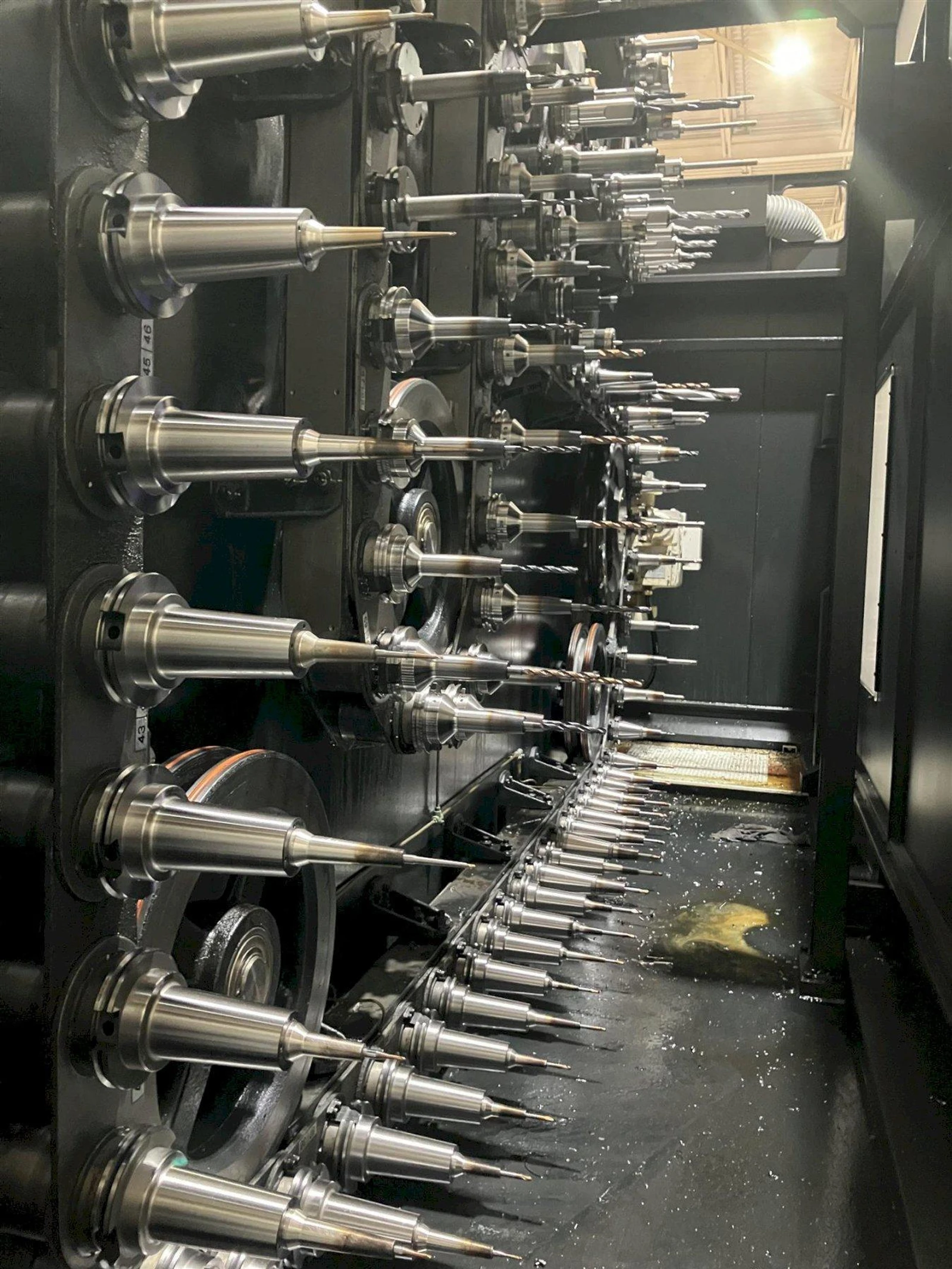

Tool Changer Capacity 120 ATC
Tool Diameter 5.31" / 10.24"
Tool length 19.69"
Tool Weight 66 Pounds
Rapid Traverse X, Y, Z Axis 1653 IPM
B Axis 30 RPM
C Axis 18 RPM
Machine Weight 85,800 pounds



Equipped With:

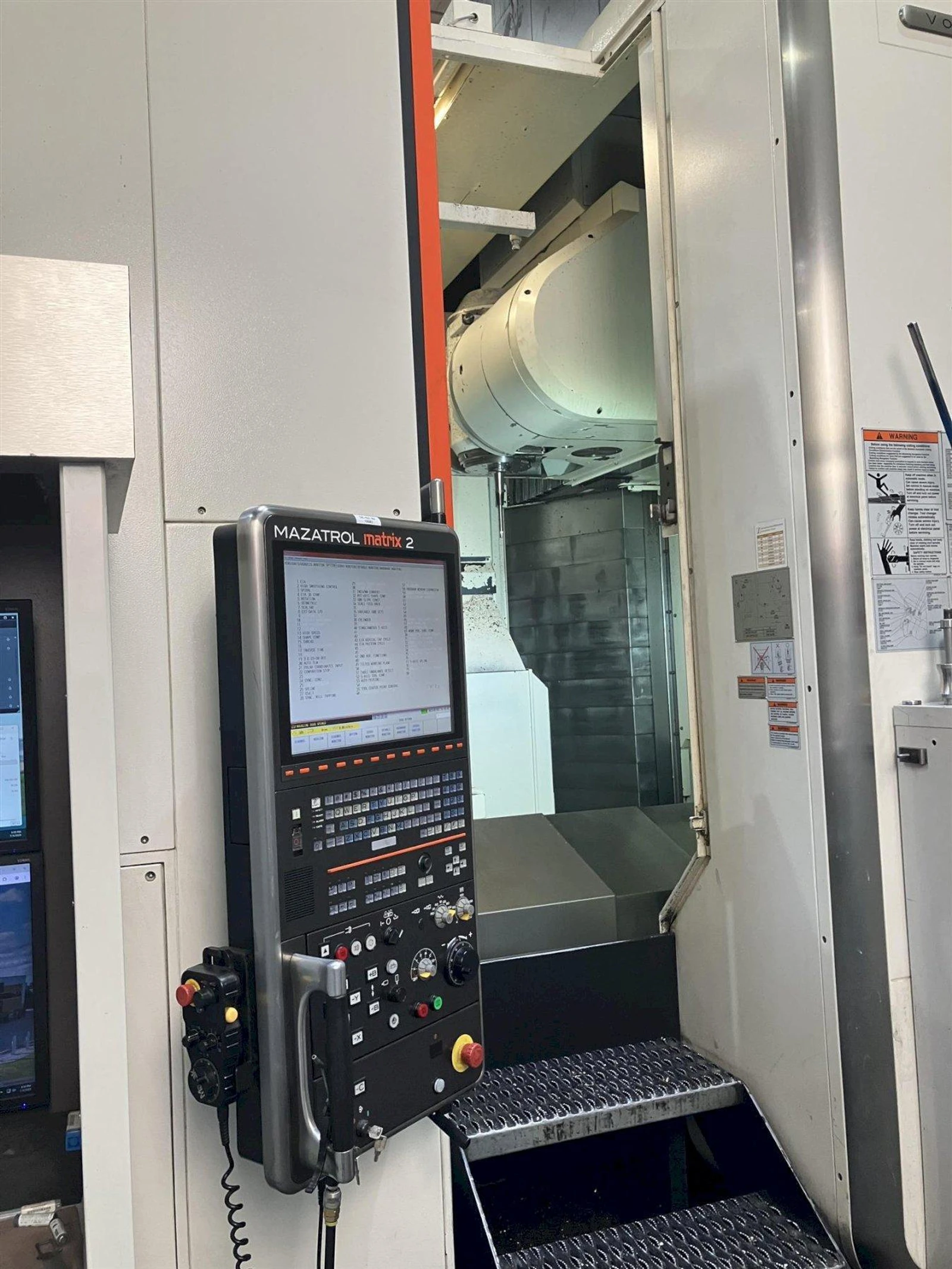

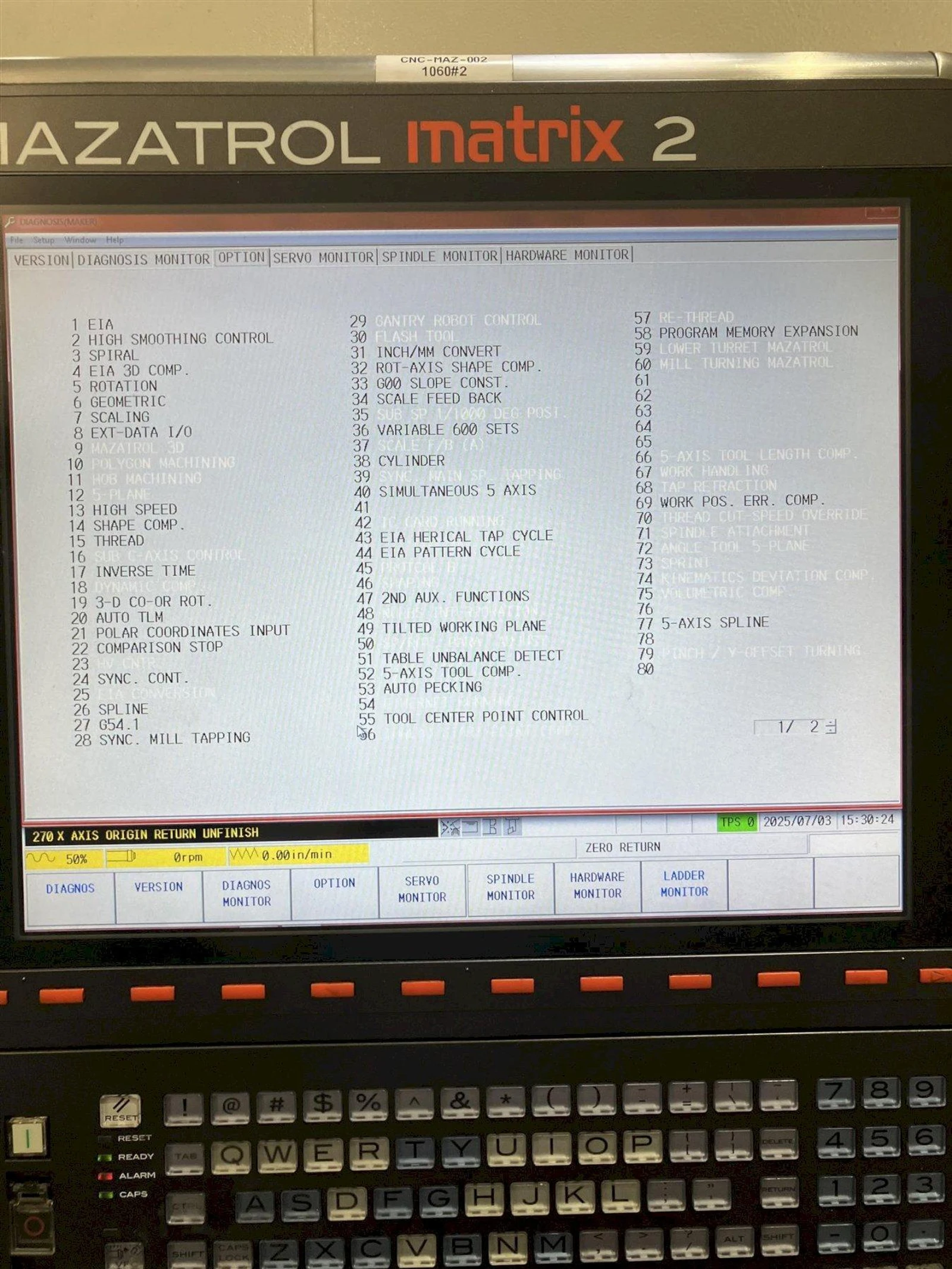

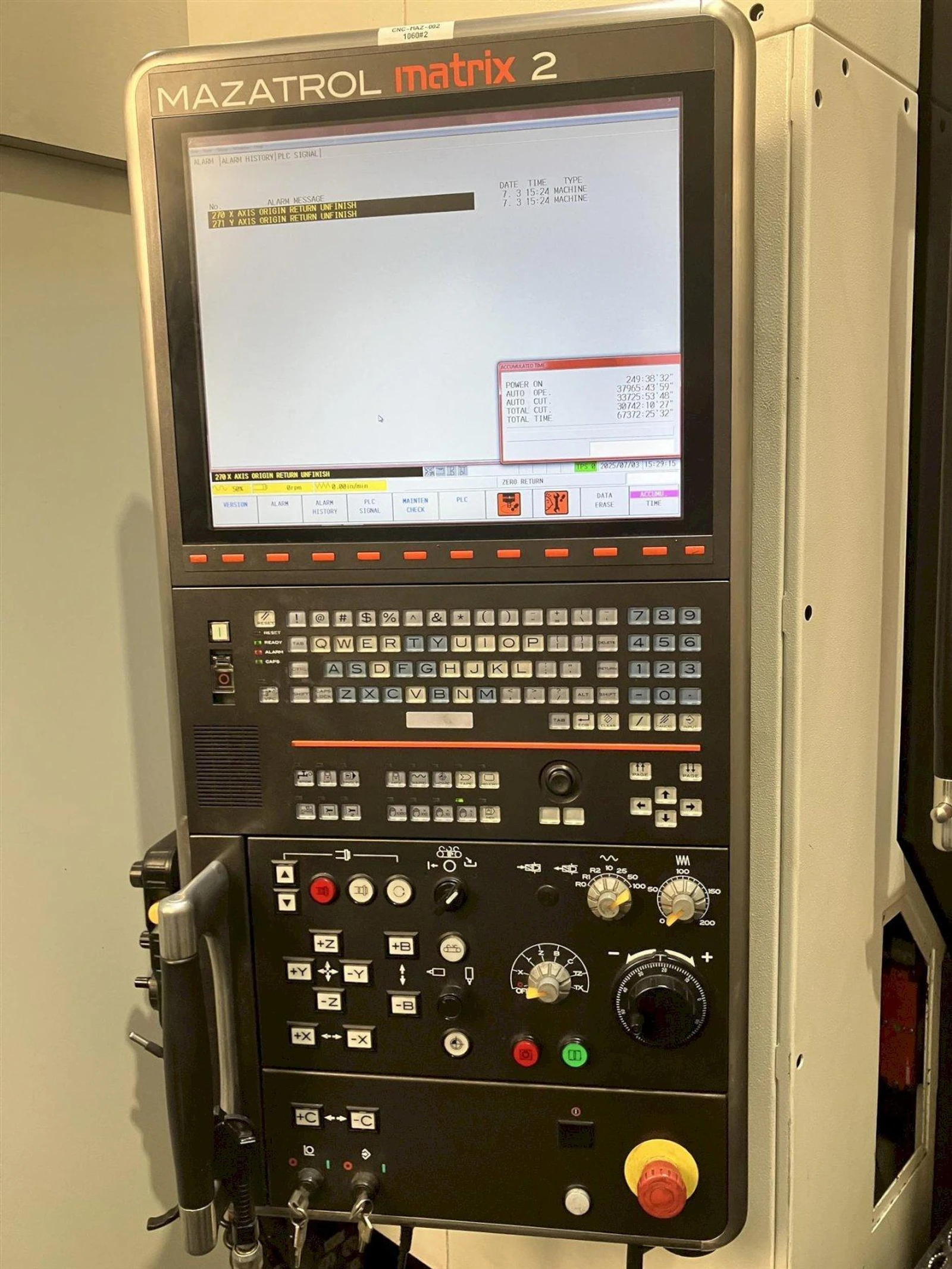

Mazatrol Matrix 2 CNC conversational control w / 15" display

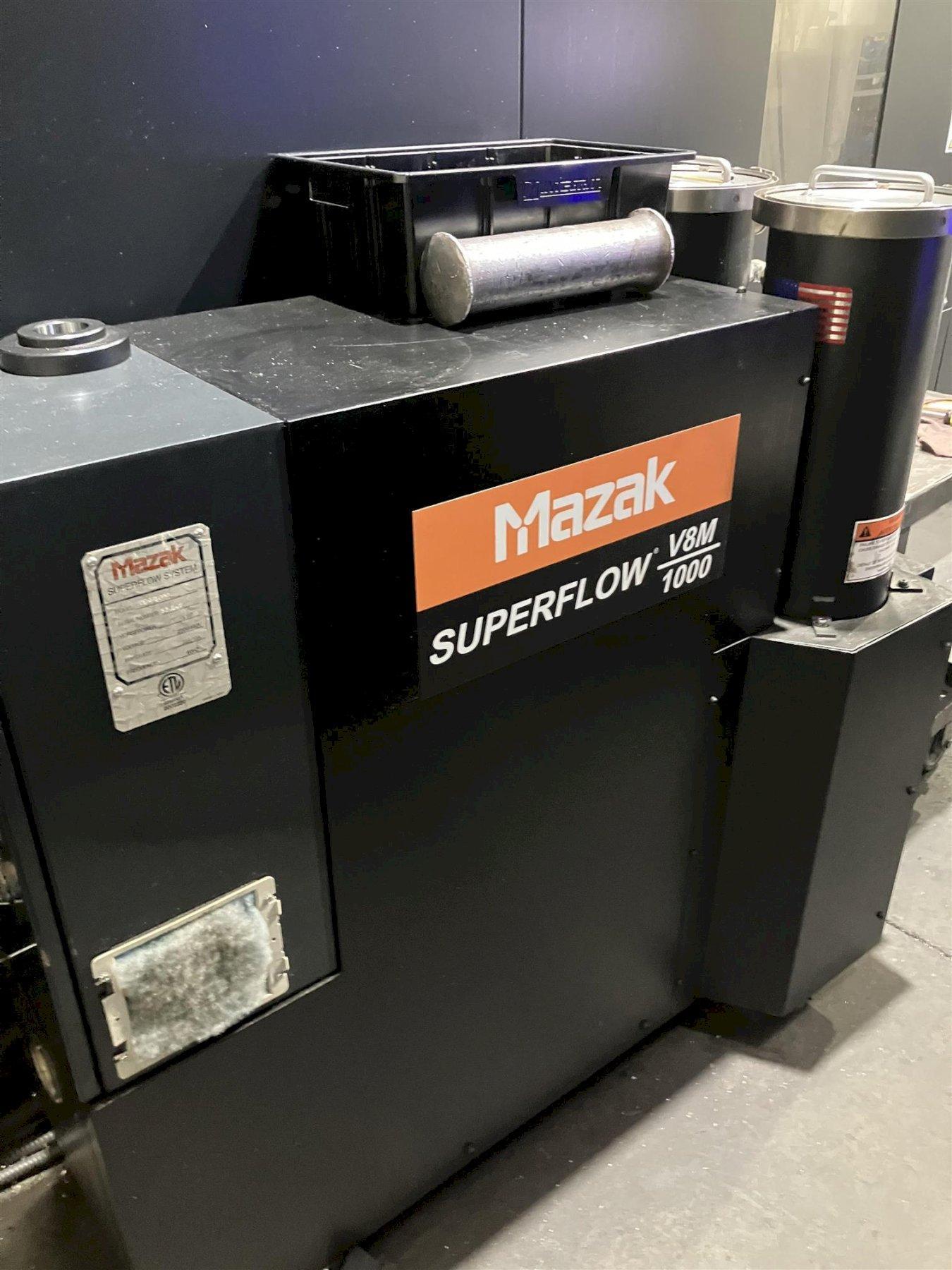

1000 PSI high pressure coolant through spindle w / Mazak Superflow V8M Pump
Manual pulse generator
Automatic Pallet Changer
(2) 39" Square Pallets
Automatic Tool eye
ConSep chip conveyor system
Coolant washdown at operator and pallet load stations
Heidenhein linear scales X, Y, Z
Renishaw NC4 laser tool measurement
Renishaw H/V OMP60 probe
