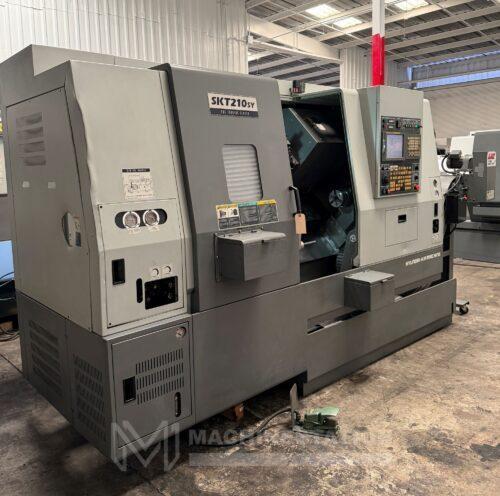

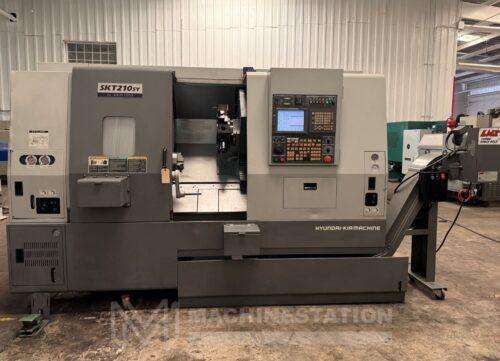

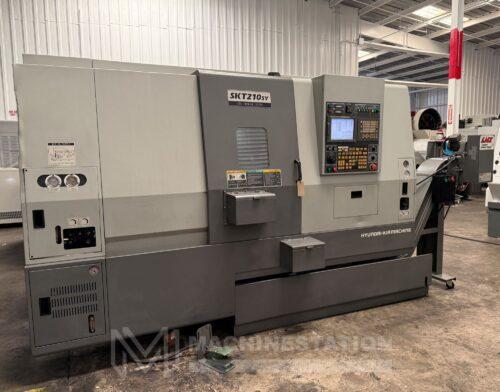

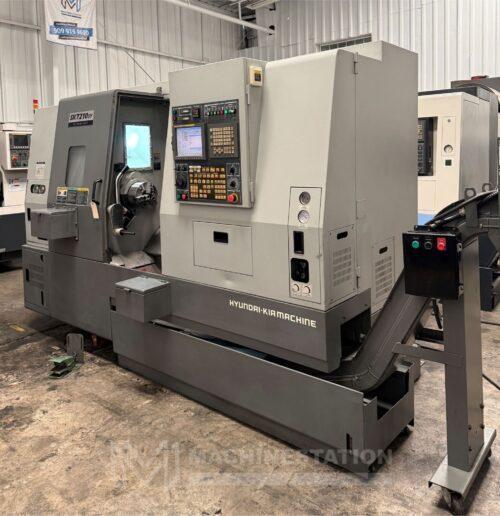

Hyundai Kia SKT-210SY CNC Turning Center – Sub Spindle Y Axis Lathe

Brand
HYUNDAI
Category
Lathes & Turning Machines
Type
Turning Centers
Model
SKT-210SY
Stock #
112780
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:Hyundai Kia
Model:SKT-210SY
Year:2006
Condition:Used – Good



Equipped With:

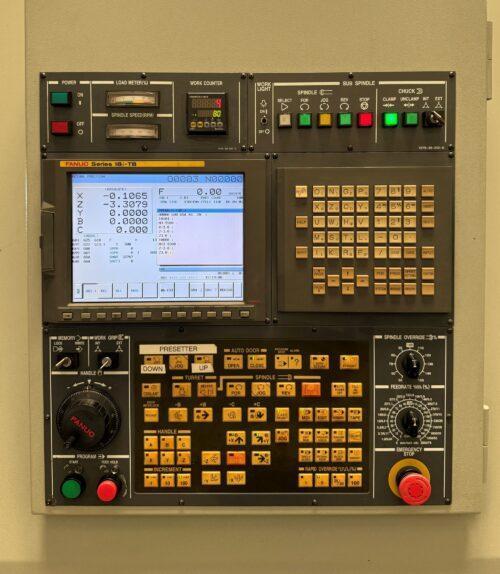

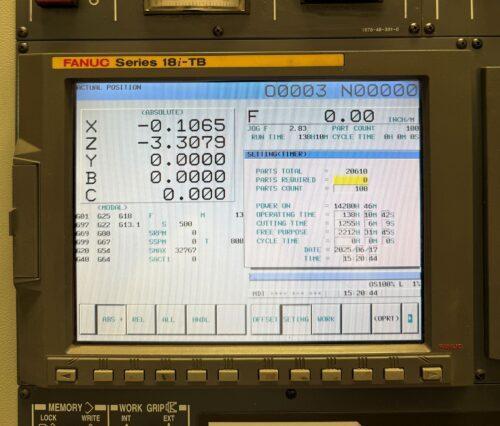

Fanuc 18i-TB CNC Control

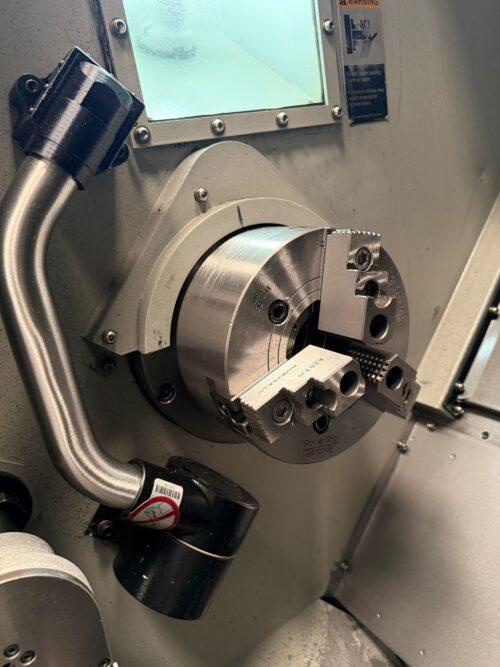

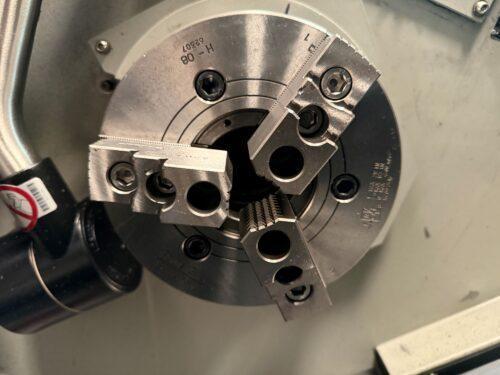

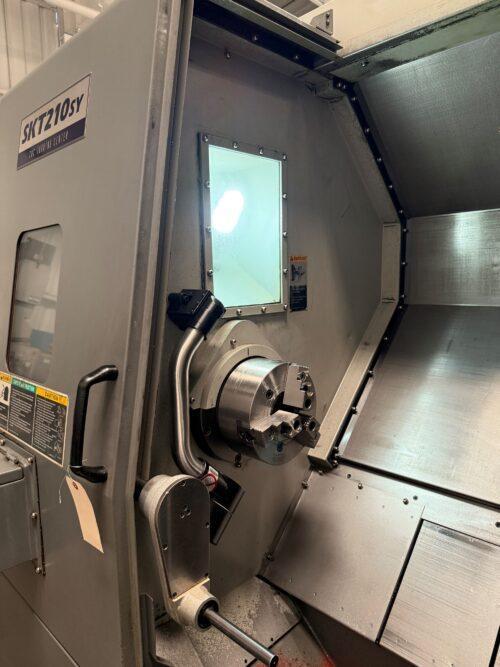

8″ 3-Jaw Chuck on Main Spindle
6″ 3-Jaw  Chuck on Sub Spindle
Servo Controlled C Axis on Both Spindles
Sub Spindle

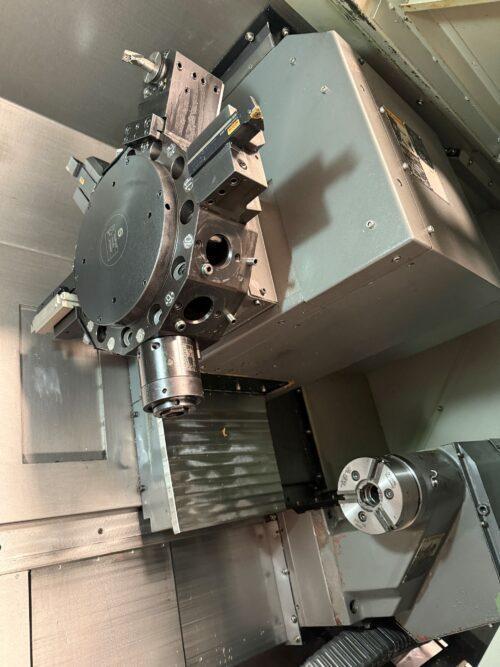

12 Station Automatic Turret – Live Tool
Y Axis on Turret
Tool Presetter
Part Catcher
Bar Feeder Interface
Coolant System

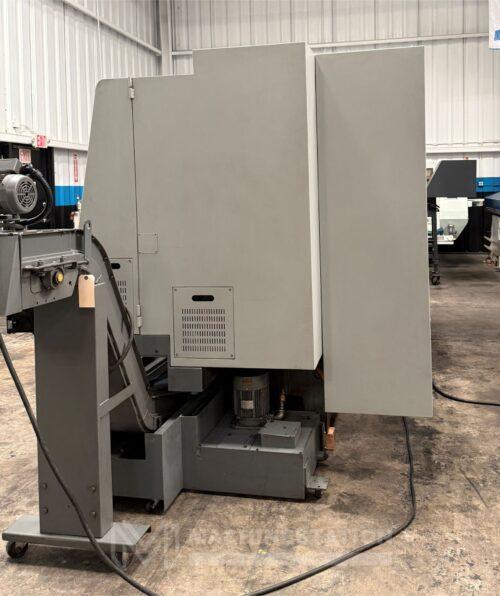

Chip Conveyor

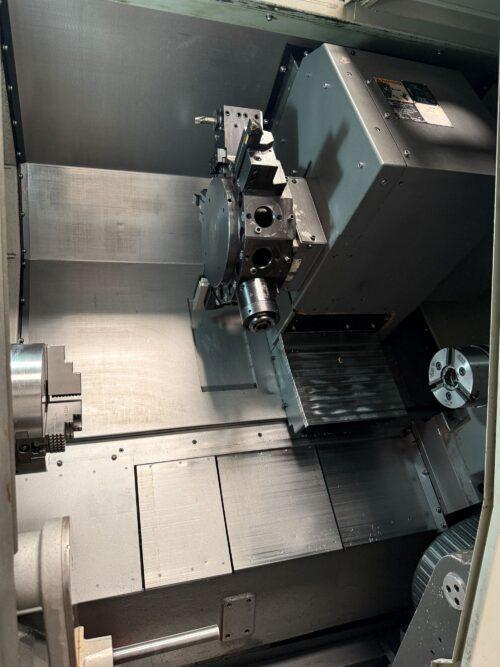

(4) Statics Tool Holders  & (1) Live Tool Holder Equipped on Turret (As shown in the images)



Capacity:
Max Turning Diameter: 9.5″
Max Turning Length: 20.9″
Max Bar Capacity: 2.5″
Max Swing Over Bed: 21.7″



Travels:
X Axis Travel: 8.7″
Y Axis Travel: 3.1″ (+/- 1.55″)
Z Axis Travel: 21.7″
B Axis Travel (Sub Spindle): 28.3″
C Axis Indexing: 360 Degree (0.001)
Rapid Traverse Rate X & Z Axis: 1417 IPM
Rapid Traverse Rate Y Axis: 394 IPM



Main Spindle:
Main Spindle Bar Capacity: 2.5″
Main Spindle Speed: 4000 RPM
Man Spindle Motor: 20 HP



Sub Spindle:
Sub Spindle Bar Capacity: 1.7″
Sub Spindle Speed: 6000 RPM
Sub Spindle Motor: 5 HP



Turret:
Turret Capacity: 12 Stations
Turret Index Time: 1 Second
Rotary Tool Speed: 4,000 RPM
Rotary Tool Motor: 7.5 HP



General:
Power Source: AC 220 V /  Three Phase / 60 Hz
Overall Dimensions: 180″ x 84″ x 84″ High Approx.
Weight : 12,000 bs Approx.
