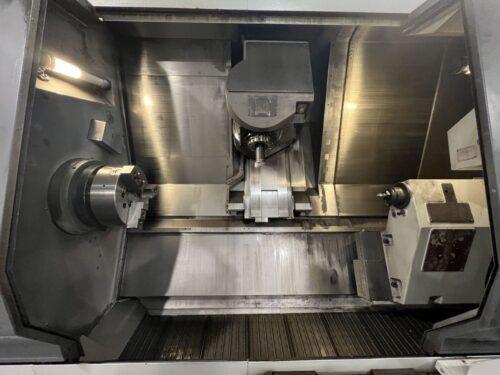

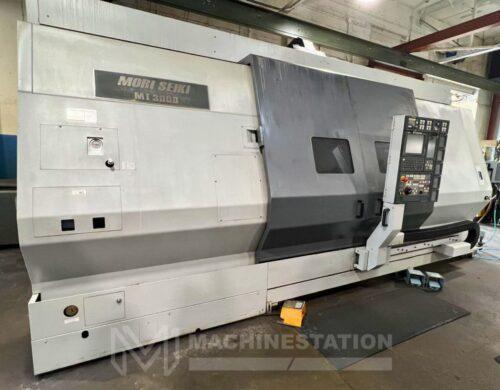

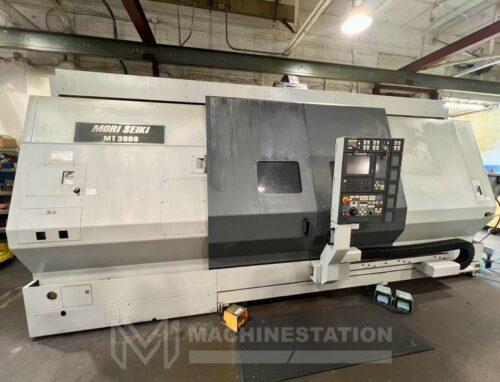

Mori Seiki MT-3000/1500 Multi Axis CNC Turning Center – Lathe

Brand
MORI SEIKI
Category
Lathes & Turning Machines
Type
Turning Centers
Model
MT-3000/1500
Stock #
112827
Year
2003
Condition
Not specified

Location

Not specified
REQUEST FINANCING

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:Mori Seiki
Model No.:MT-3000/1500
Year of Manufacture:2003
Condition:Used – Good



Equipped With:

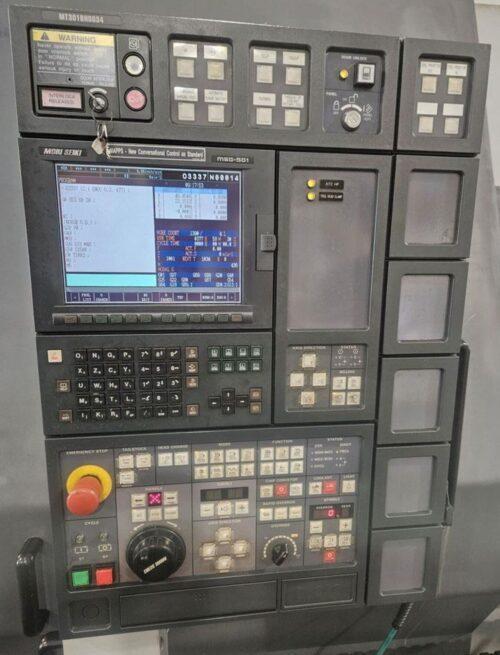

Mori Seiki MSG-501 (Fanuc) CNC Control
8,000 RPM Pendulum Milling Head
40 Station Tool Magazine

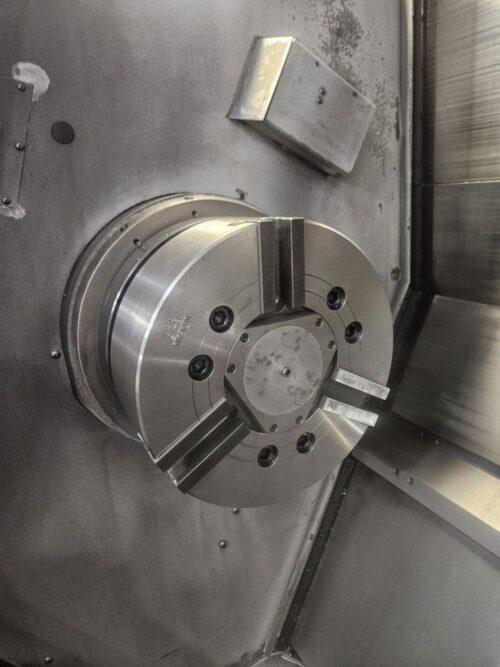

15″ 3-Jaw B-15 Kitagawa Chuck
Servo Controlled Full C-Axis on Spindles
Y-Axis on Upper Turret (Milling Head)
Tool Presetter
Tailstock
Rigid Tapping
Coolant System

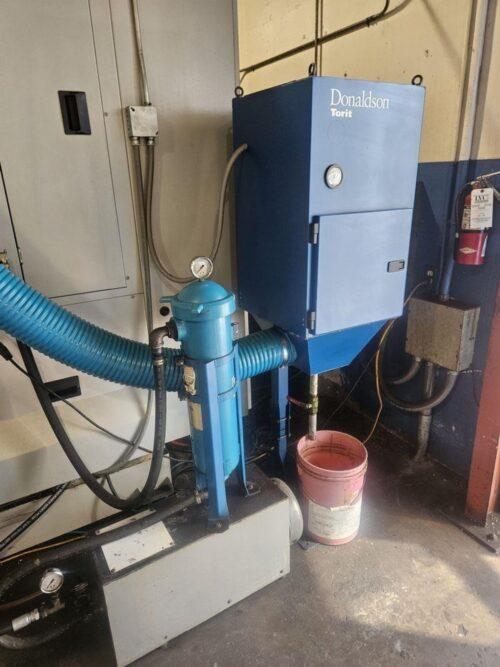

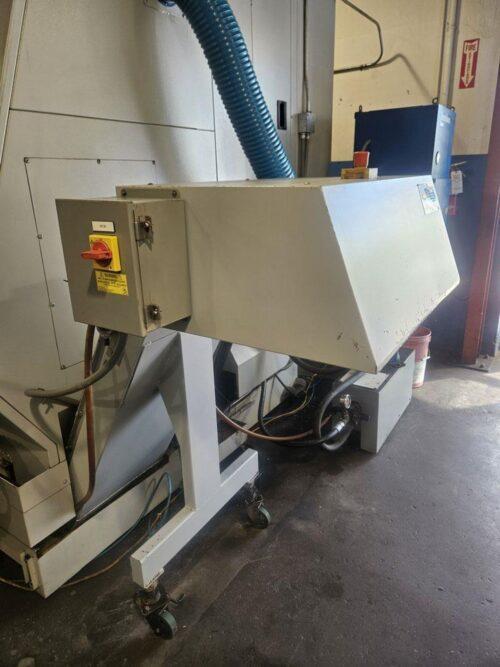

Torit Mist Collector
Chip Conveyor
Foot Switches

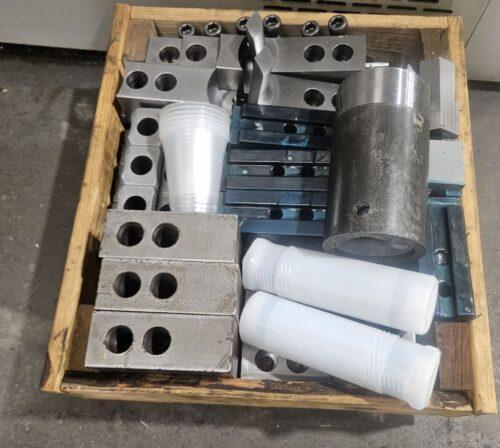

Misc. Jaws (As shown in the images)



Capacity:
Max Turning Diameter: 22.44″
Max Turning Length: 60.00″
Max Swing Over Bed: 31.50″
Max Bar Capacity: 3.50″



Travel:
X Axis Travel: 25.0″
Z Axis Travel: 62.7″
Y Axis Travel: 8.6″ (+/- 4.3″)
B Axis Travel: -120° / +105°
C Axis: 360° (0.001°)
Rapid Traverse X Axis: 945 IPM
Rapid Traverse Z Axis: 1181 IPM
Rapid Traverse Y Axis: 945 IPM



Spindle:
Spindle Nose: A2-8
Spindle Bore: 4.1″
Bar Capacity: 3.5″
Spindle Speed: 30 – 3,000 RPM
Spindle Power: 40 HP

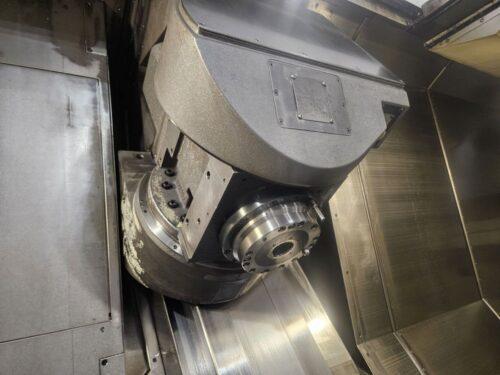

Milling Head:
Single Station Pendulum Head with 40 ATC
B Axis Indexing: -120° / +105°, 0.001 Degree
Tool Type: CAPTO C6
Tool Spindle Speed: 8,000 RPM
Tool Spindle Motor: 15 HP



Automatic Tool Changer:
Capacity: 40 Tools
Tool Type: CAPTO C6
Max Tool Diameter: 3.54″ – 4.72″
Max Tool Length: 11.81″
Max Tool Weight: 17.63 lbs
Tool Change Time: 4.2 Seconds

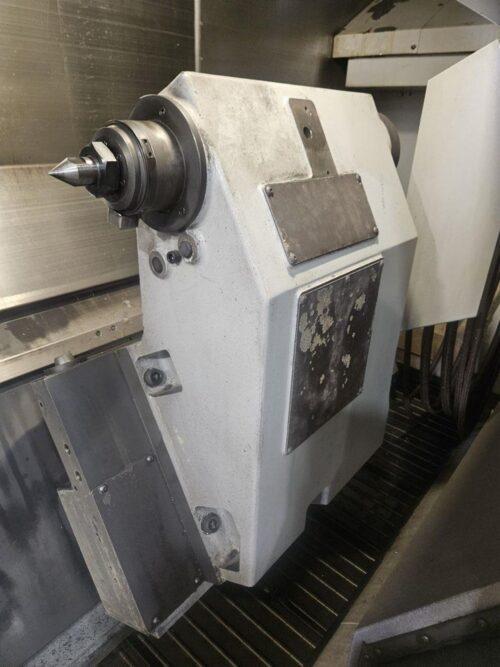

Tailstock:
Tailstock Taper: MT-5
Tailstock Quil Diameter: 4.33″
Tailstock Quil Travel: 5.90″



General:

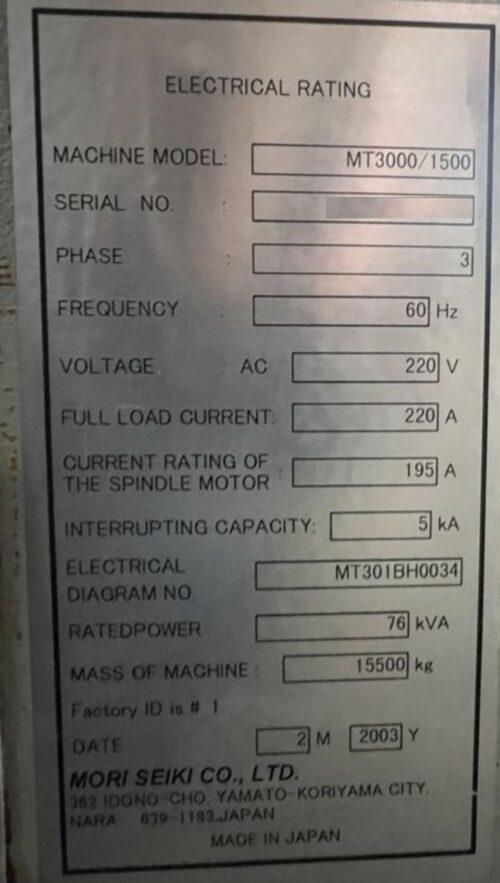

Power Source: 220v / 3-Phase / 60 Hz
Power Requirement: 76 kva
Overall Dimensions: 227″ x 120″ x 130″ High Approx.
Weight: 34,170 lbs Approx.
No files or videos to display
