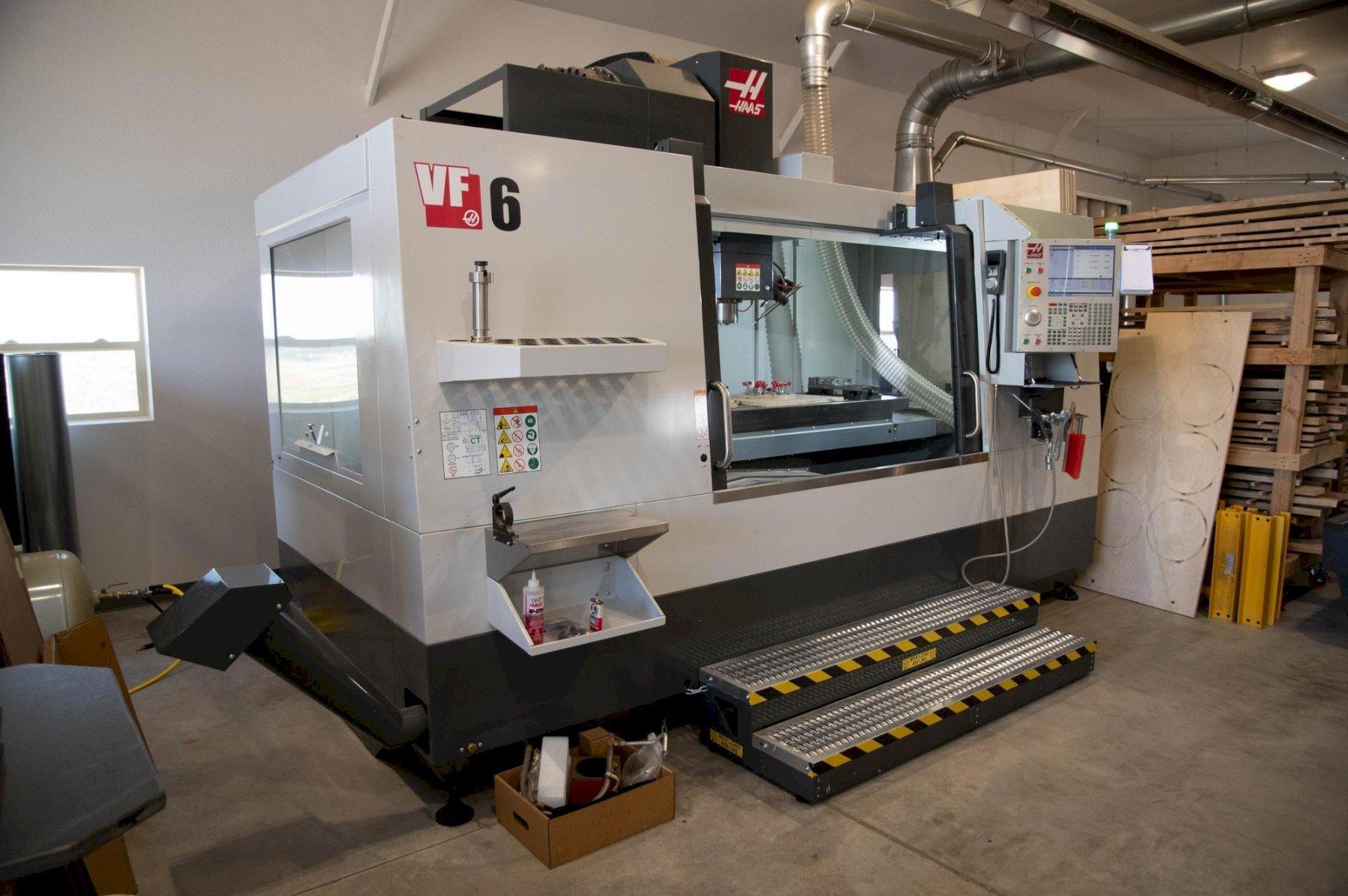

Haas VF-6/40 CNC Vertical Machining Center, Haas NextGen CNC Control, Probing, Thru Spindle Coolant, Auto Doors, 30+1 ATC
Brand
Category
Type
Model
VF-6
Stock #
Not specified
Year
2020
Condition
Not specified
Location
Minnesota
|
Machine Control: Haas NextGen CNC Control Table Size: 64" x 28" Machine Travels (X/Y/Z): 64" x 32" x 30" Table Capacity: 4,000 Lbs. Spindle Taper: Cat 40 Spindle Speeds: 8,100 RPM Transmission: Inline Direct-Drive Rapid Traverse Rate (X/Y/Z): 600 / 600 / 600 IPM Maximum Cutting Feed Rate: 500 IPM Tool Changer Style: Side-Mount Twin-Arm Tool Change Time: 2.8 Seconds Tool to Tool / 3.6 Seconds Chip to Chip Max Tool weight: 12 Lbs. Max Tool Length: 16" Tool Changer Capacity: 30+1 Stations Spindle Drive: 30 HP Vector Drive Spindle To Table Distance: 4" - 34" Equipped With: Haas NextGen CNC Control, Wireless Intuitive Probing with Renishaw Part Probe and Tool Setter, 300 PSI Thru Spindle Coolant, Chip Tray Filter Kit, Thru Tool Air Blast, Programmable Coolant, Standard Coolant System, Auto Door for Mill, Auto Air Gun, Remote Jog Handle with Touch Screen, Chip Auger Electrics: 220 Volts, 3 Phase |
