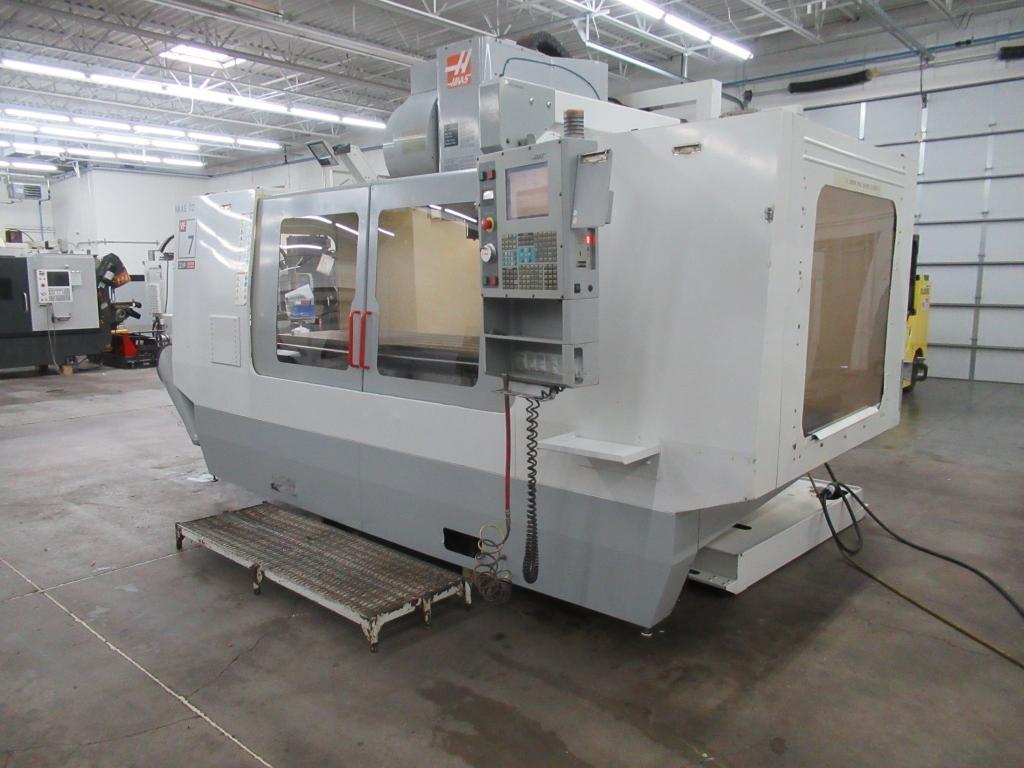

Haas VF-7D/40 CNC Vertical Machining Center, 24 Station ATC, 4th-Axis Brushless Drive, Programmable Coolant Nozzle, Chip Auger
Brand
Category
Type
Model
VF-7/40
Stock #
7185
Year
2004
Condition
Not specified
Location
Not specified
|

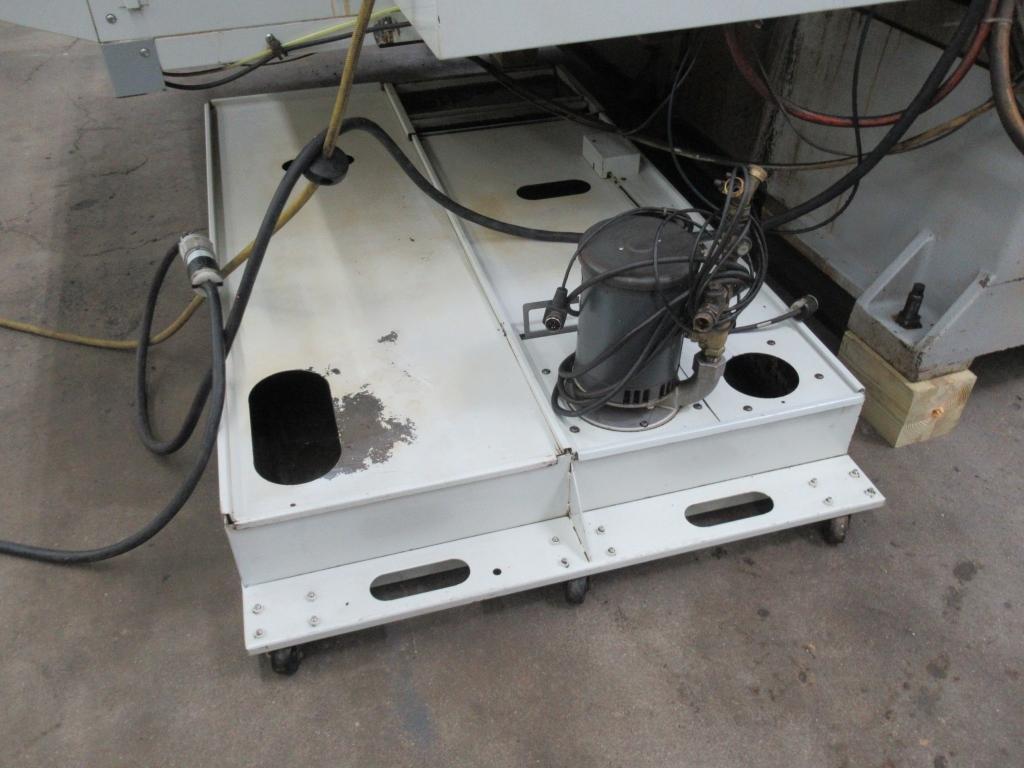

Machine Control: Haas 32bit CNC Table Size: 84" x 28" Machine Travels (X/Y/Z): 84" x 32" x 30" Table Capacity: 4,000 lbs Spindle Taper: Cat 40 Spindle Speeds: 7.500 RPM Transmission: Direct Belt Drive Rapid Traverse Rate (X/Y/Z): 600 IPM Maximum Cutting Feed Rate: 500 IPM Tool Changer Style: Side Mount, Twin Arm Tool Changer Capacity: 24 + 1 Tool Change Time: 1.8 Sec. Tool to Tool Max Tool weight: 12 Lbs. Spindle Drive: 20 Hp Vector Drive Power Requirement: 208/230 V, 3 Phase Spindle To Table Distance: 4" - 34" Equipped With: Haas 32 Bit CNC Control, 24 Station Side Mount Twin Arm Automatic Tool Changer, 4th-Axis Brushless Sigma 1 Drive, Programmable Coolant Nozzle, Chip Auger, Standard Coolant System, Remote Jog Handwheel, USB Emulator, 1MB Expanded Memory, Work Platform 75"x 24"x 6 1/4", Machine Pads (6), Manuals, Keys Electrics: 208/230 V, 3 Phase |
