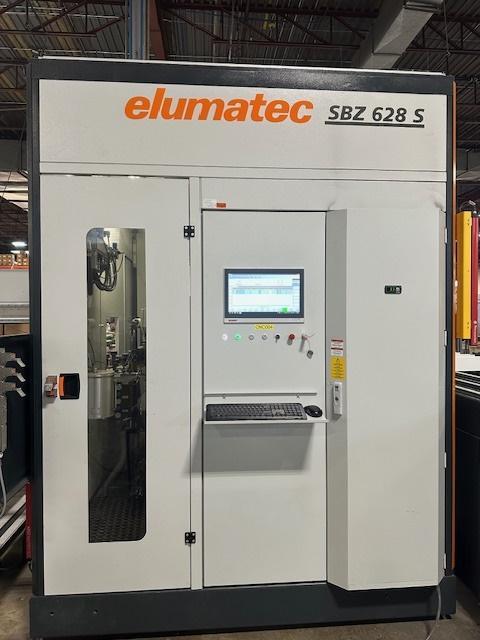

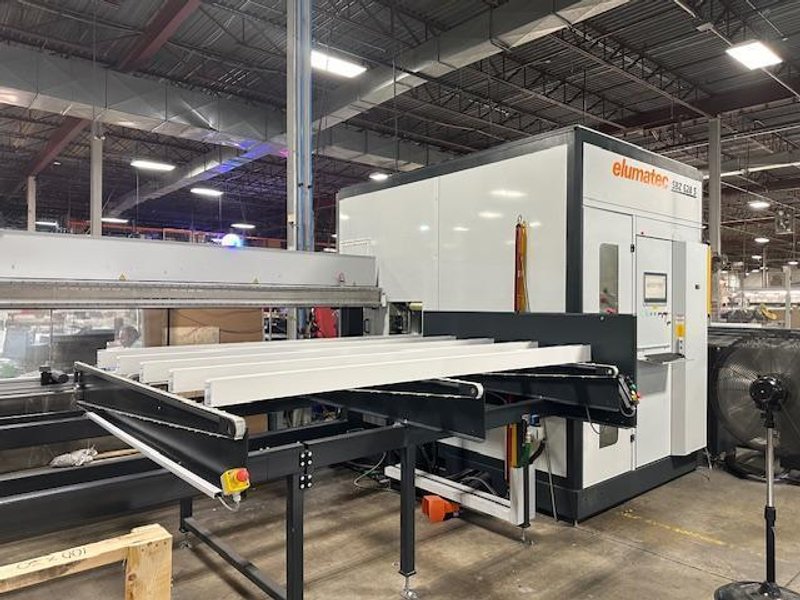

Elumatec SBZ 628s Profile Machining Center, 2021

Max. Bar Length: 7600mm Working Direction: Right to Left or Left to Right (switchable) Max. Profile Cross-Section: 200 x 160 / 160 x 200 mm Min. Profile Cross-Section (depending upon gripper position): 30 x 10 mm Finished Part Length: 250-4,600 mm Max. Spindle Speed: 24,000 rpm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machining Stations Axes: 4 Router Spindles: 4

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Sawing Station Axes: 2 Saw Blades (diameter): 1 (650 mm) Sawing Angles: 45°-135° (pivoting)

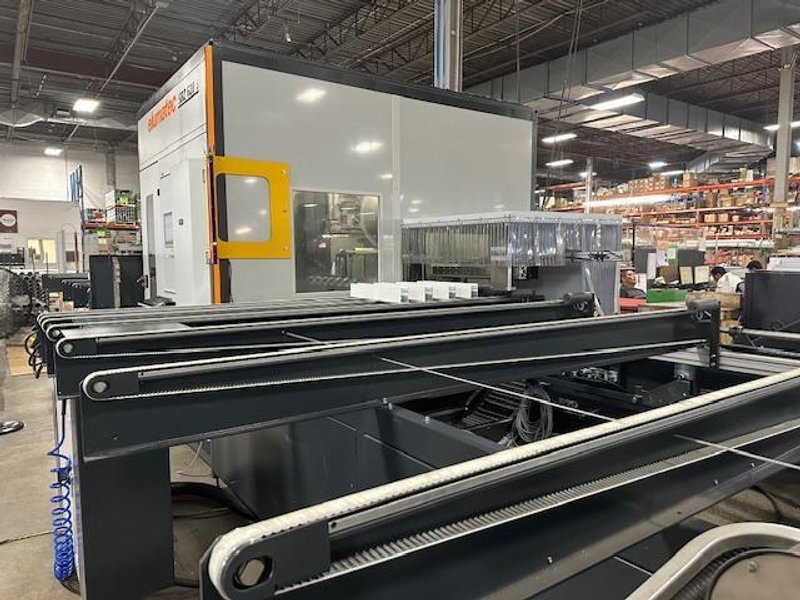

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Outfeed Conveyor Lifting Stations: Yes Number of Swing Arms: 8 Outfeed Conveyor Width: 4,000 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
