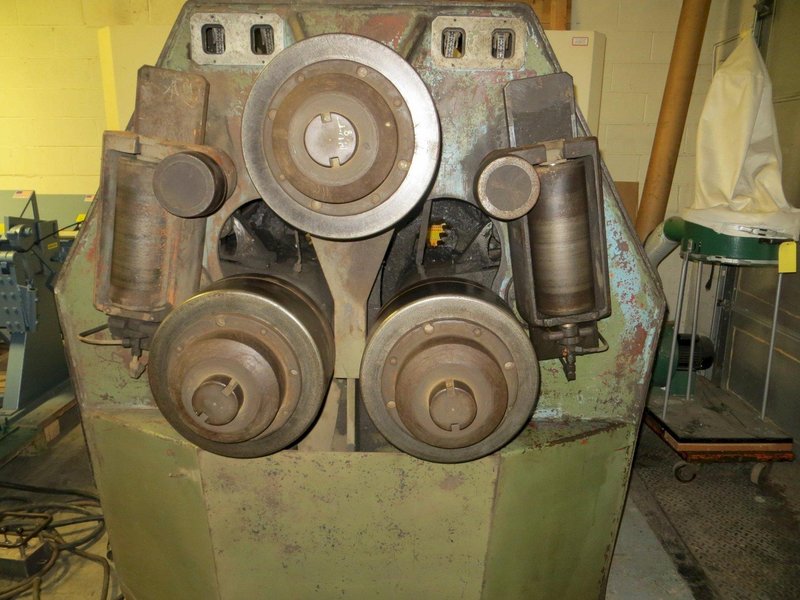

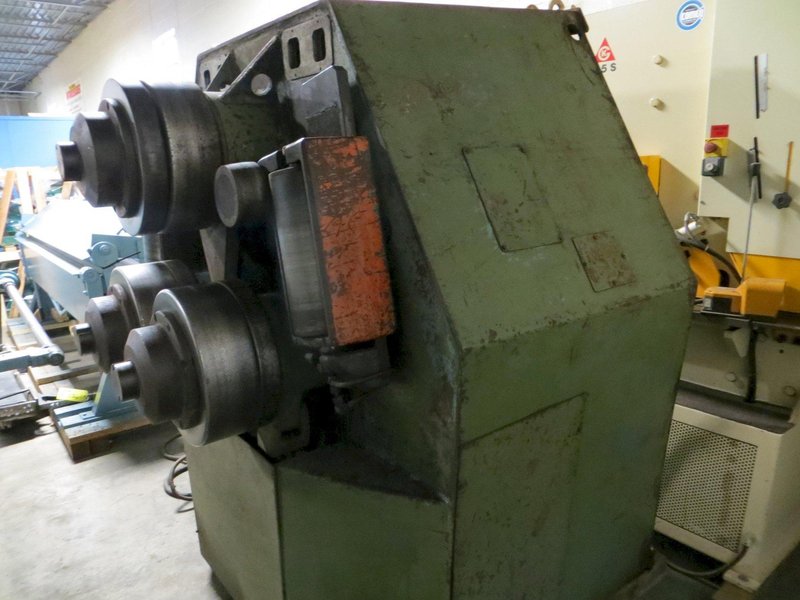

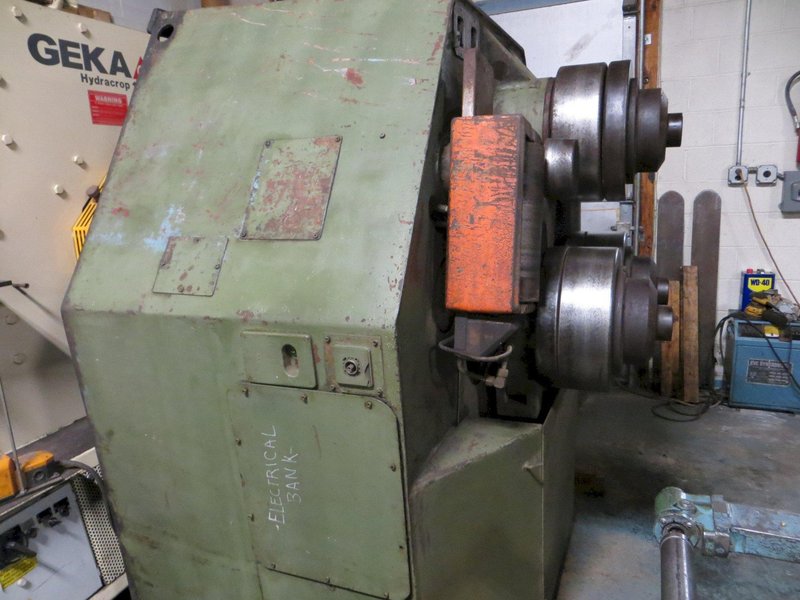

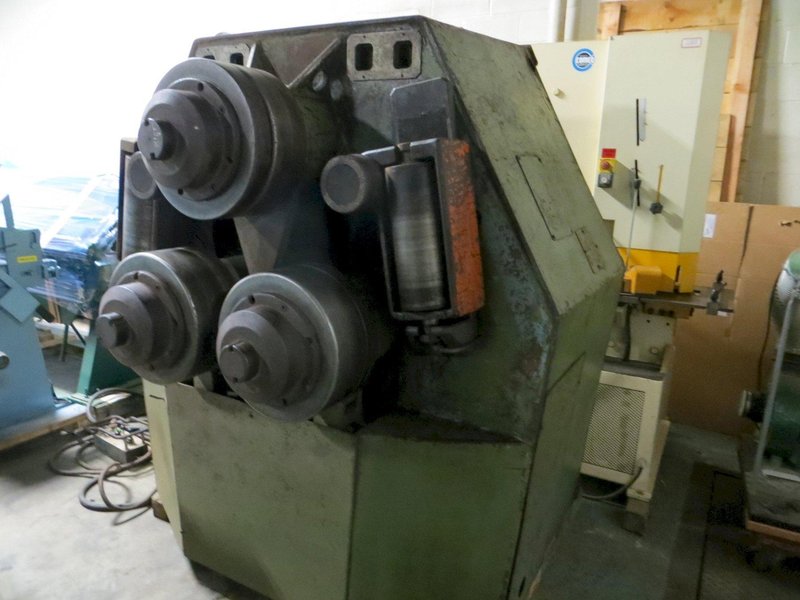

5" x 5" x 1/2" Pullmax Angle Bending Roll, Model Z41

Pullmax Angle Bending Roll
Model Z41

Capacity:
Angle Out Max                           5" x 5" x 1/2"
Angle Out Min                            1-3/4" x 1-3/4" x 1/4"
Angle In Max                              4" x 4" x 1/2"
Angle In Min                               1-3/4" x 1-3/4" x 1/4"
Flat Bar Hard Way Max               5" x 3/4"
Flat Bar Hard Way Min                1-3/4" x 1/4"
Flat Bar Easy Way Max                8" x 1-1/2"
Flat Bar Easy Way Min                 2" x 1/2"
Solid Square Max                        2-3/4" x 2-3/4"
Solid Square Min                        1" x 1"
Solid Round Max                        3"
Solid Round Min                         1"
T-Bar Out and In Max                 ST 5 WF 30#
T-Bar Out and In Min                  ST 3 B

Features:
Can be operated in both Vertical and Horizontal Position
All Three rolls are driven
Top roll stationary
Bottom rolls are hydraulically adjusted
Safety relief valves prevent overloading machine
Hydraulically adjusted guide rolls
Four indicators show position of bottom and guide rolls for repeat rolling

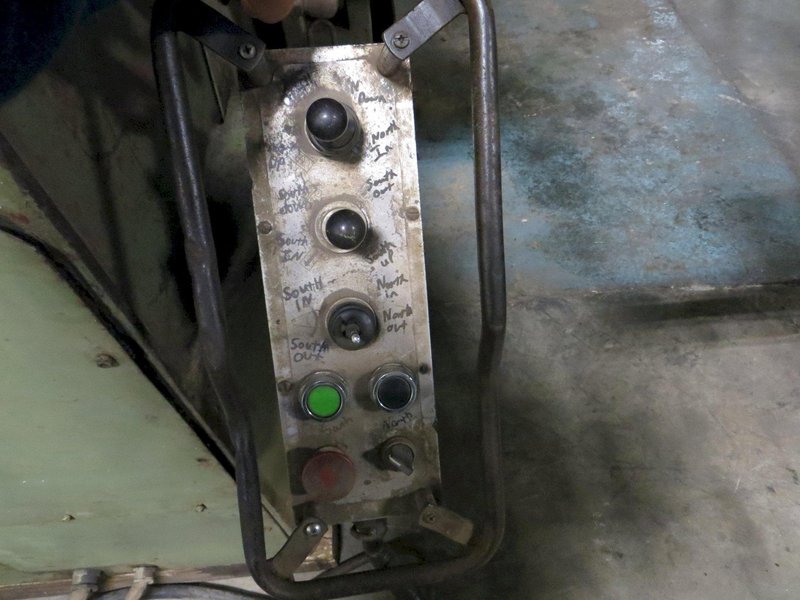

Remote control of all operations
All roller bearings for shafts
High speed gears running in oil
Brake motor
Standard sectional rolls

Specifications:
Motor HP                                   22
Bending Roll Speed                   7.2 rpm
Feed Speed                                29 fpm
Diameter of Bending Rolls         15-3/4"

Approx. Weight: 11,900 lbs.
Approx Dims: 60" x 68" x 75" (l x w x h)

FOB: Ronkonkoma, NY
