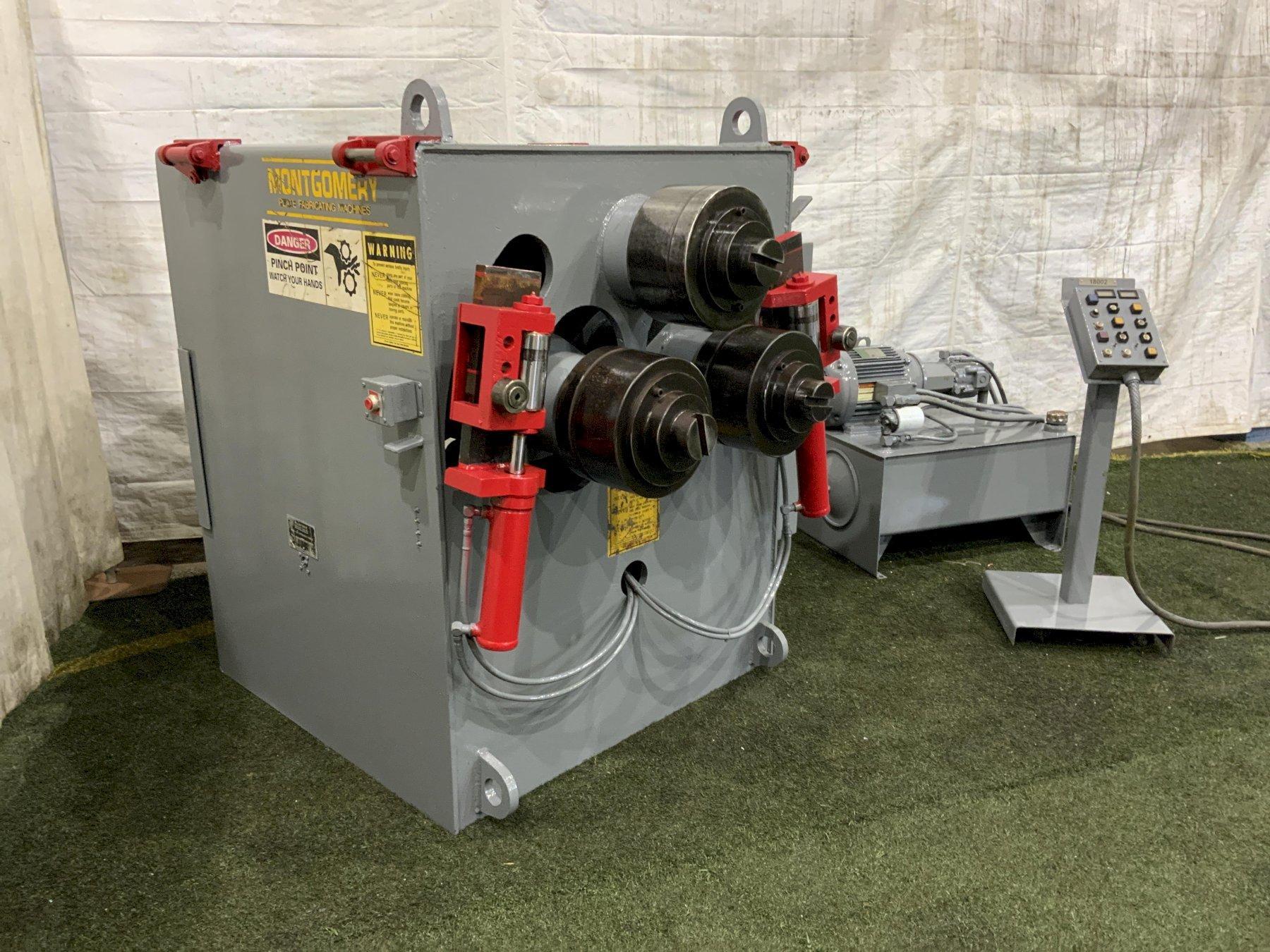

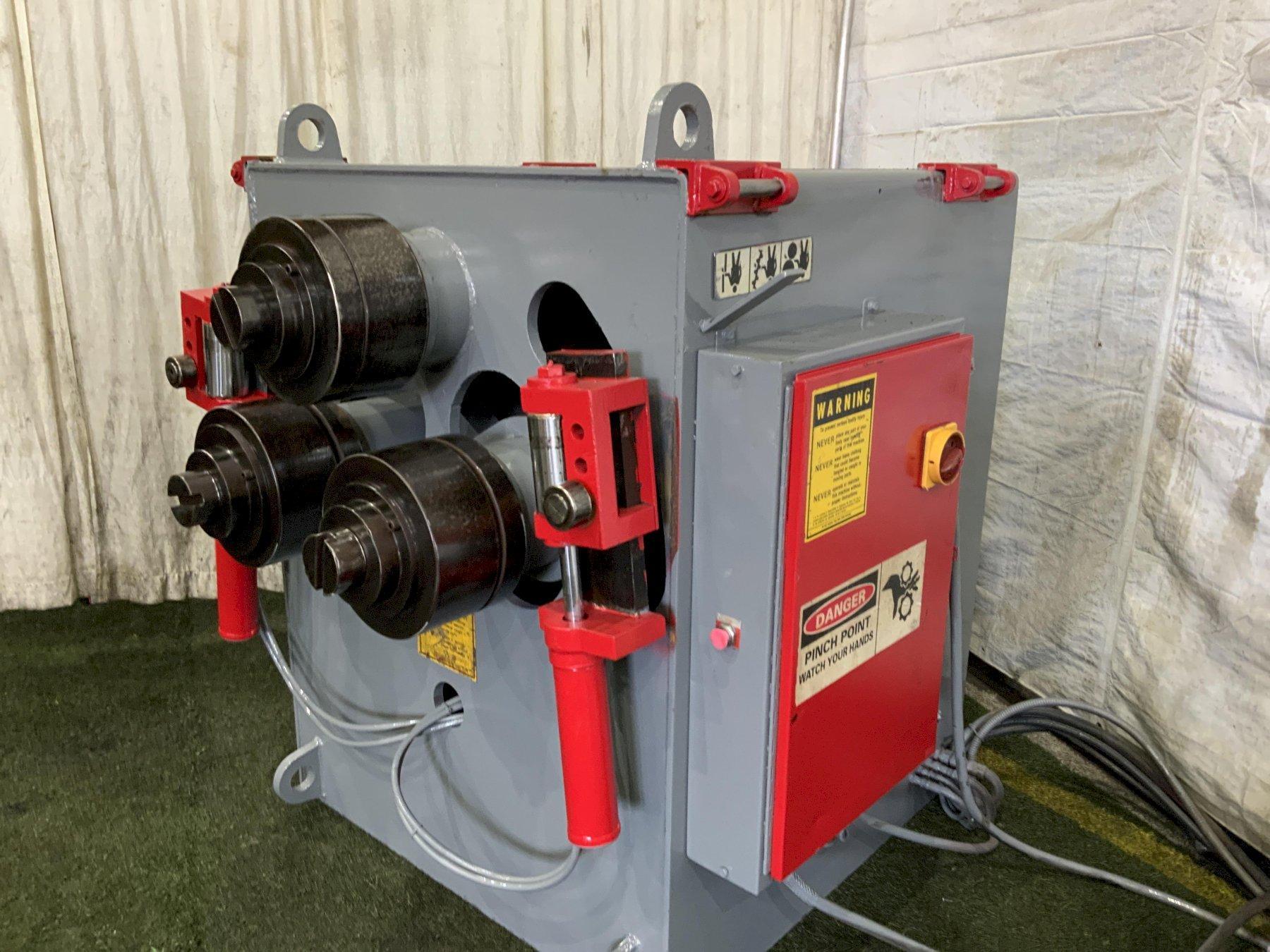

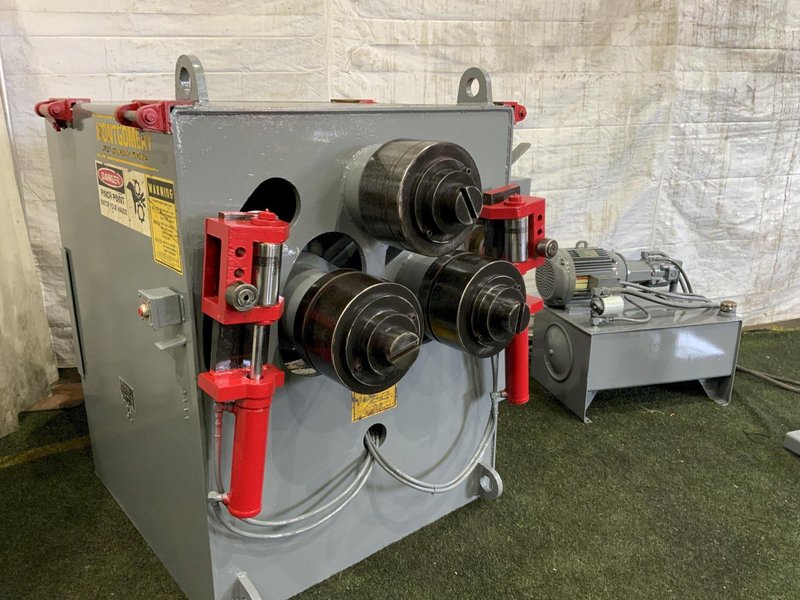

4" X 4" X 1/2" MONTGOMERY MODEL # 44 HYDRAULIC ANGLE ROLL: STOCK #81437

SERIAL ............................. 094002
MODEL .............................. #44
HORIZONTAL OR VERTICAL ............. YES
ROLL DIAMETER ...................... 12.5"
ANGLE LEG OUT ...................... 4" X 4" X 1/2" @ 45" MIN
ANGLE LEG IN ....................... 4" X 4" X 3/8" @ 48" MIN
SMALLEST ANGLE LEG OUT ............. 1-1/8" X 1-1/8" X 1/8" @ 24"
SMALLEST ANGLE LEG IN .............. 1-1/8" X 1-1/8" X 1/8" @ 27"
FLAT ON FLAT ....................... 5-1/2" X 1-1/4"  @ 35"
FLAT ON EDGE ....................... 4" X 1" @ 50"
ROUND BAR .......................... 2-1/2"  @ 30" MIN
SQUARE BAR ........................ 2" X 2" @ 22"
PIPE ............................... 4" @ 65" INSIDE DIAMETER
BEAM EASY WAY ...................... 8"
VARIABLE ROLLING SPEED ............. 0 TO FPM

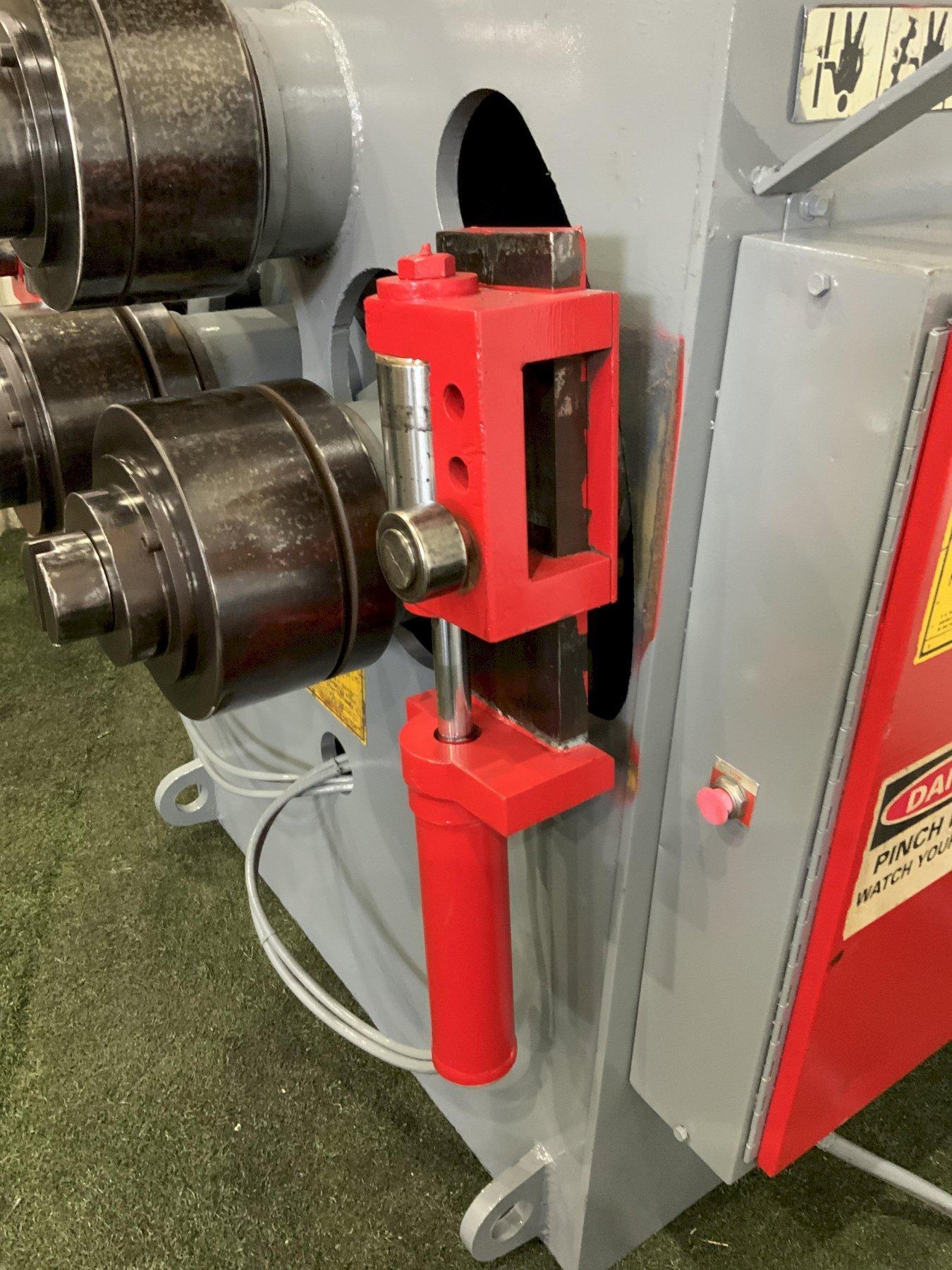

LEG IN LEG OUT GUIDE ROLLS ......... YES

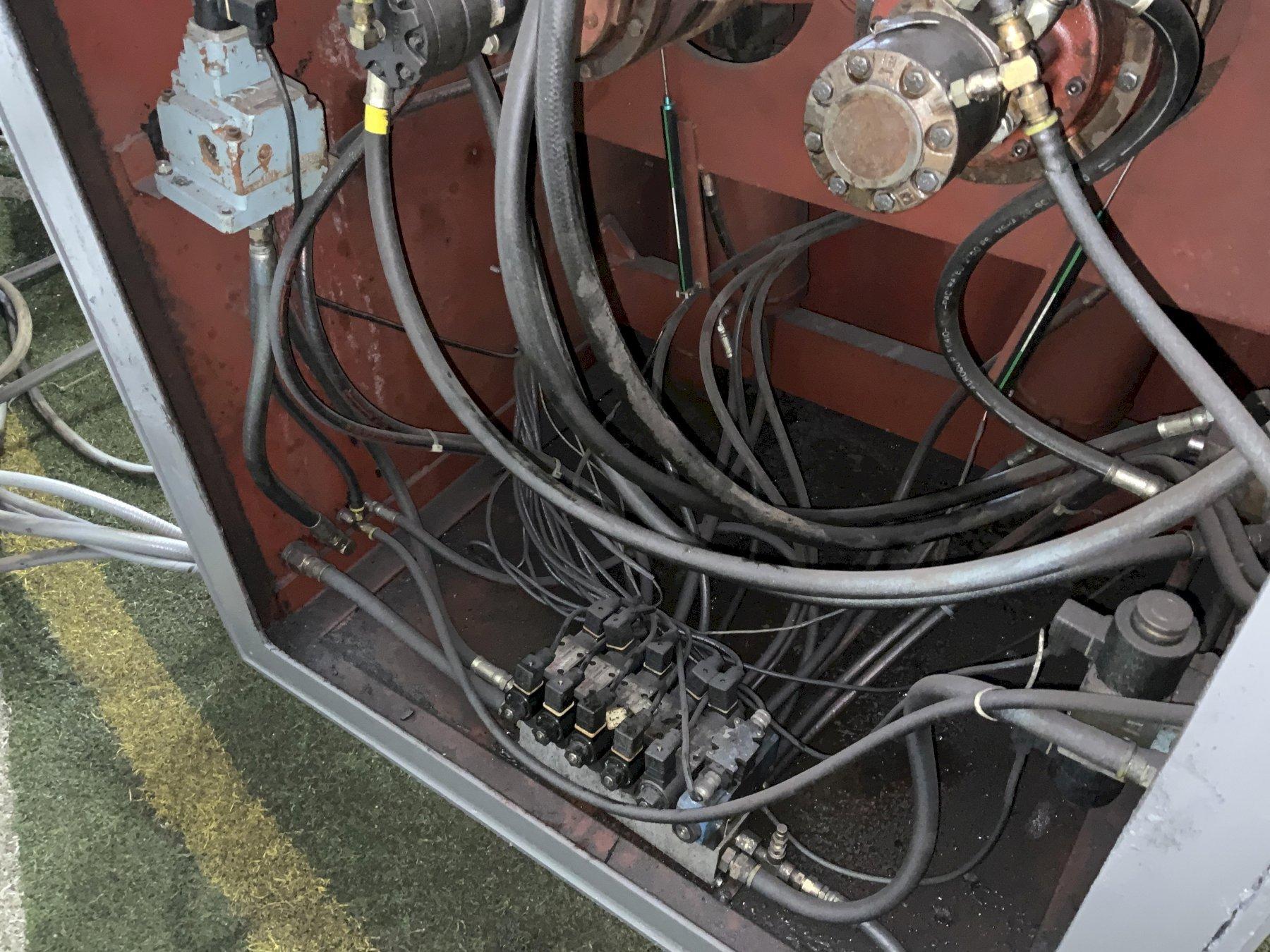

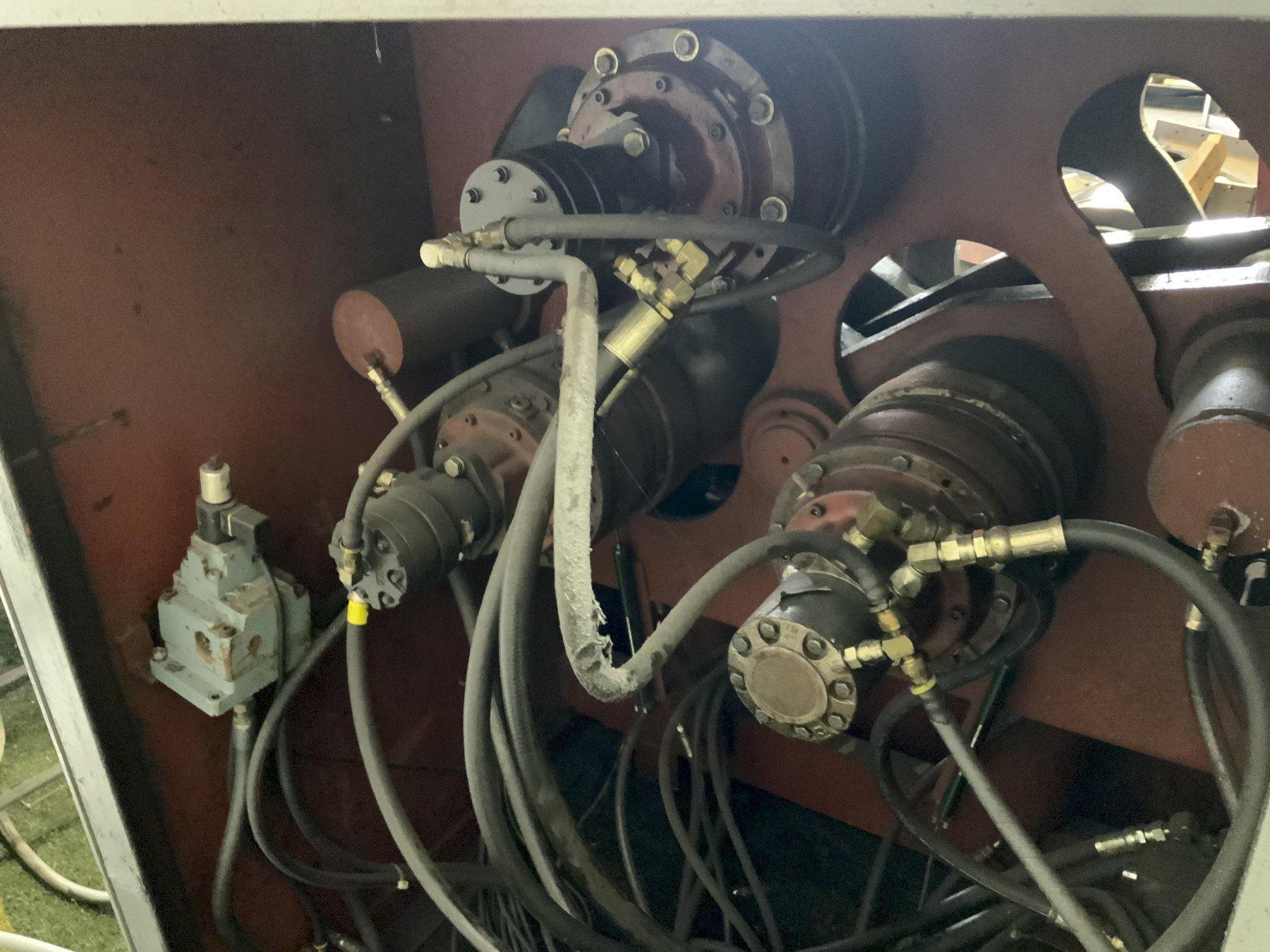

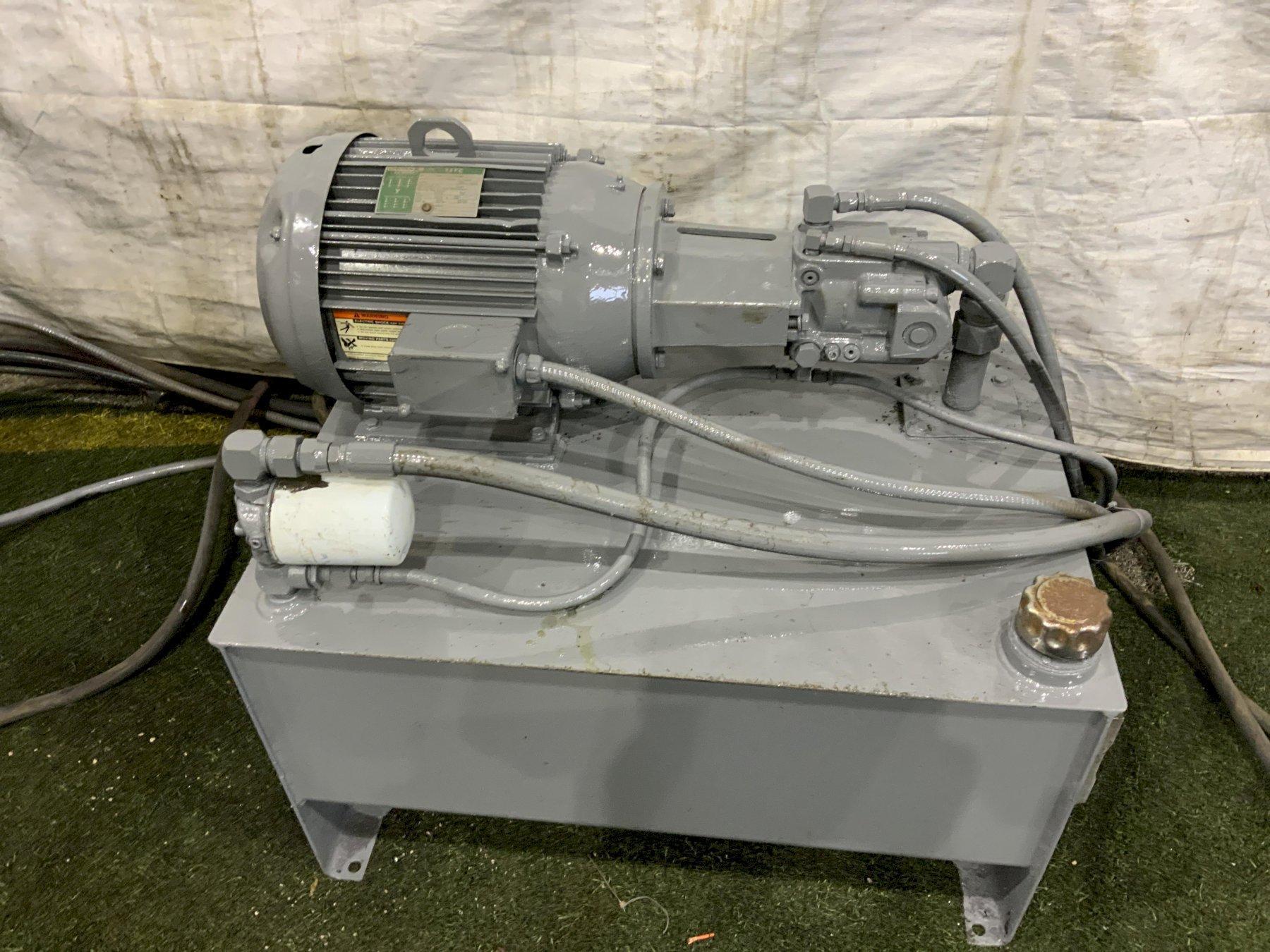

HYDRAULIC ROLL ADJUSTMENT .......... YES

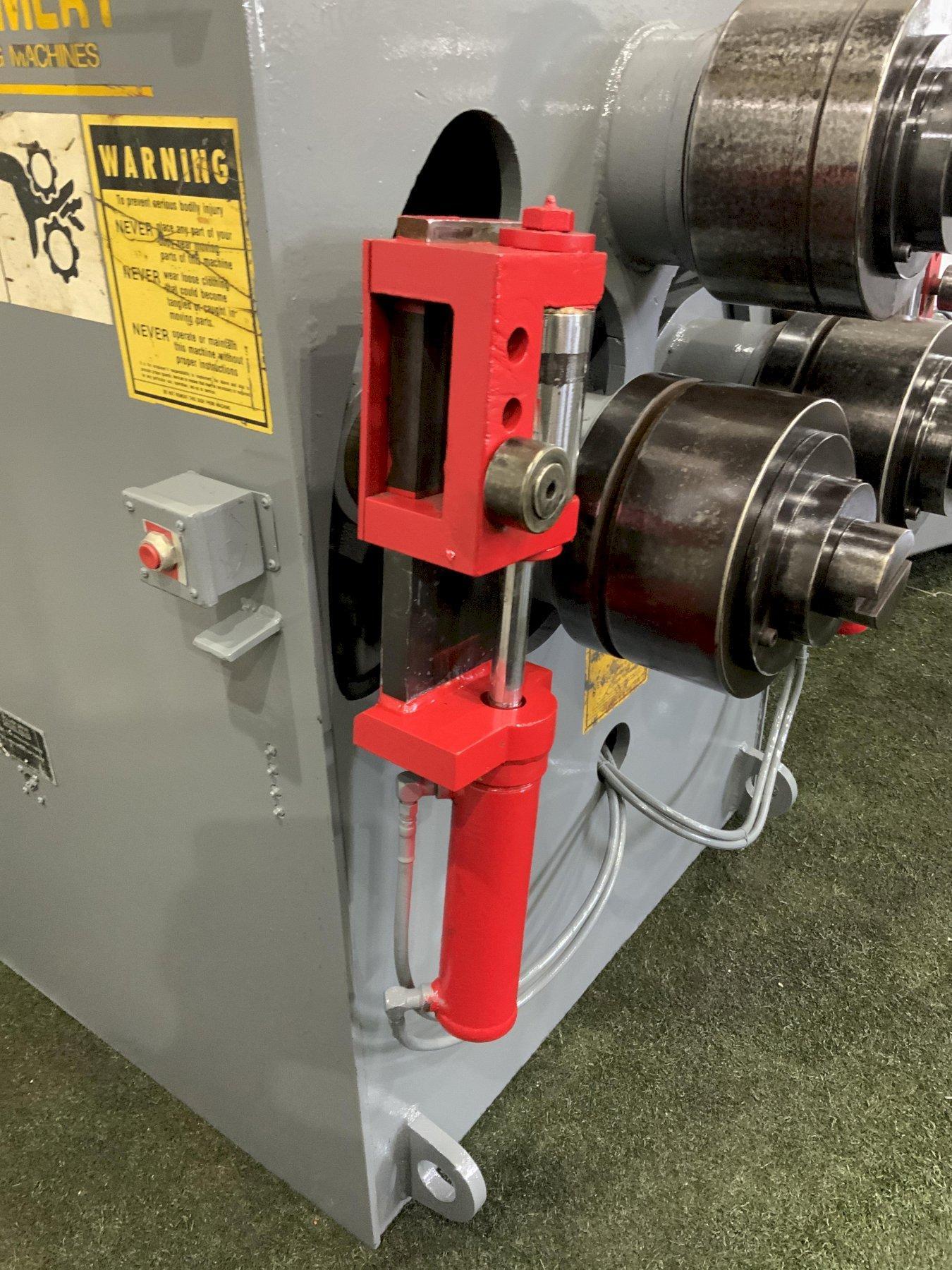

HYDRAULIC GUIDE ROLL ADJUSTMENT .... YES
HORIZONTAL OR VERTICAL POSITION .... YES

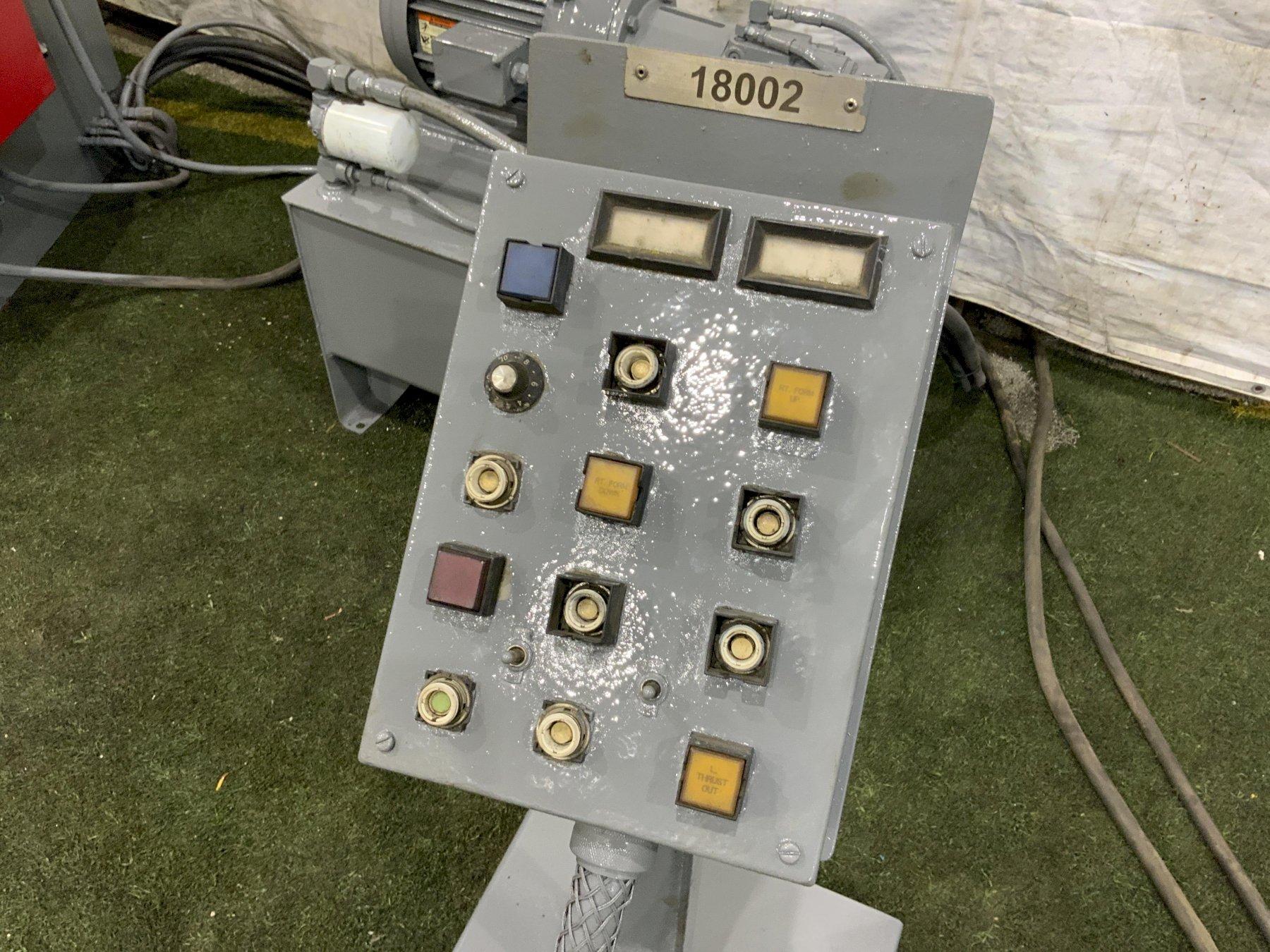

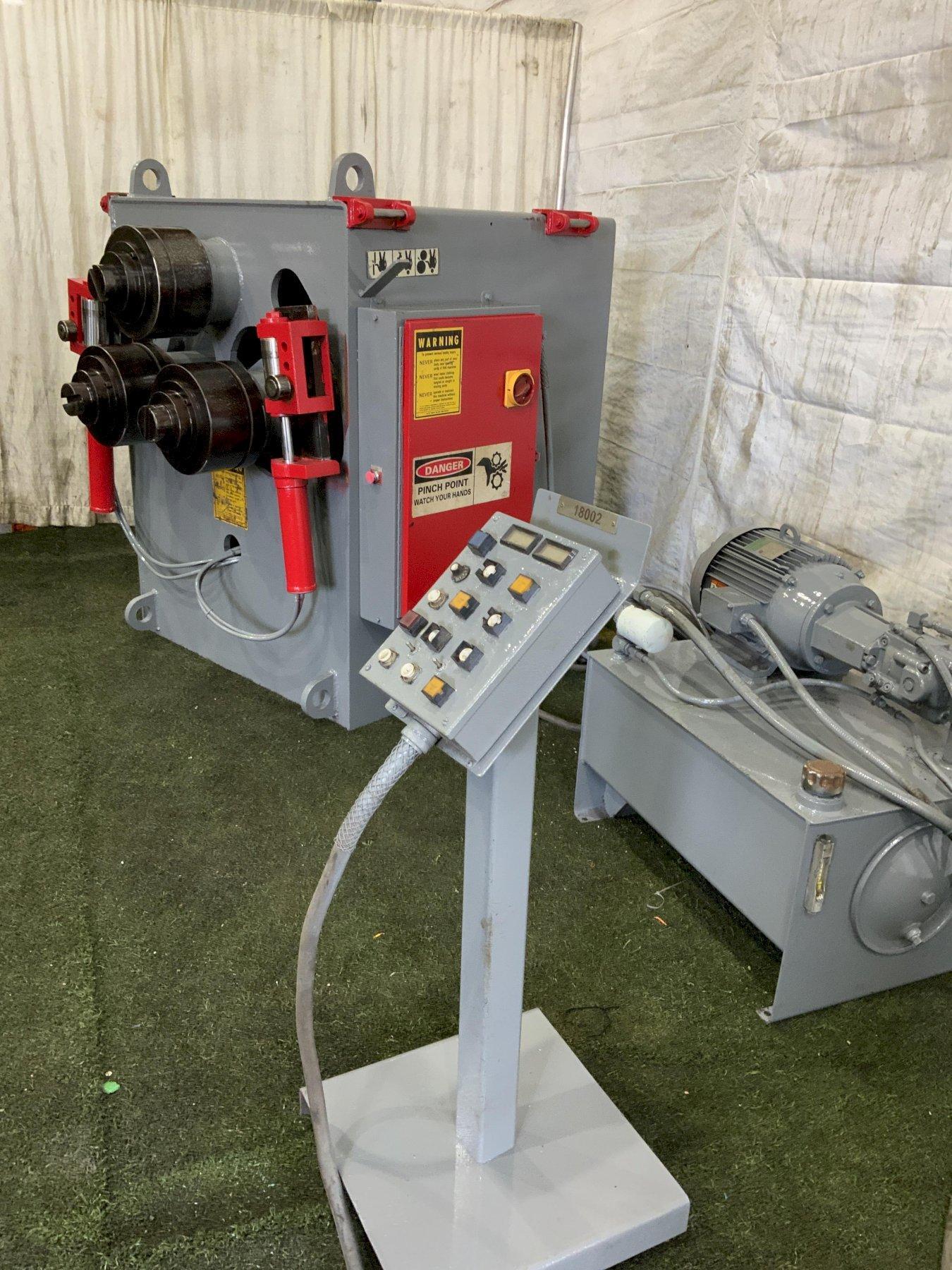

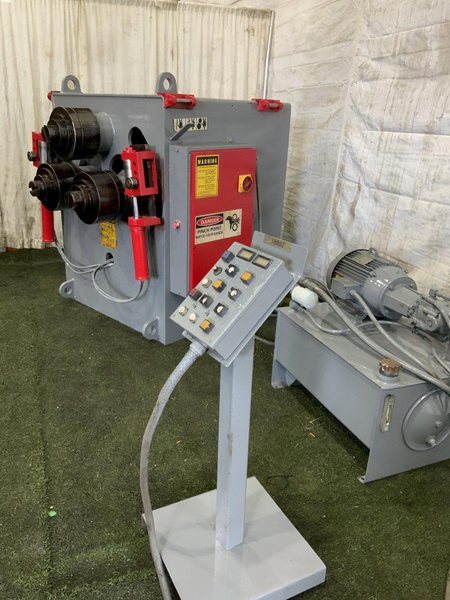

PEDESTAL CONTROL ................... YES

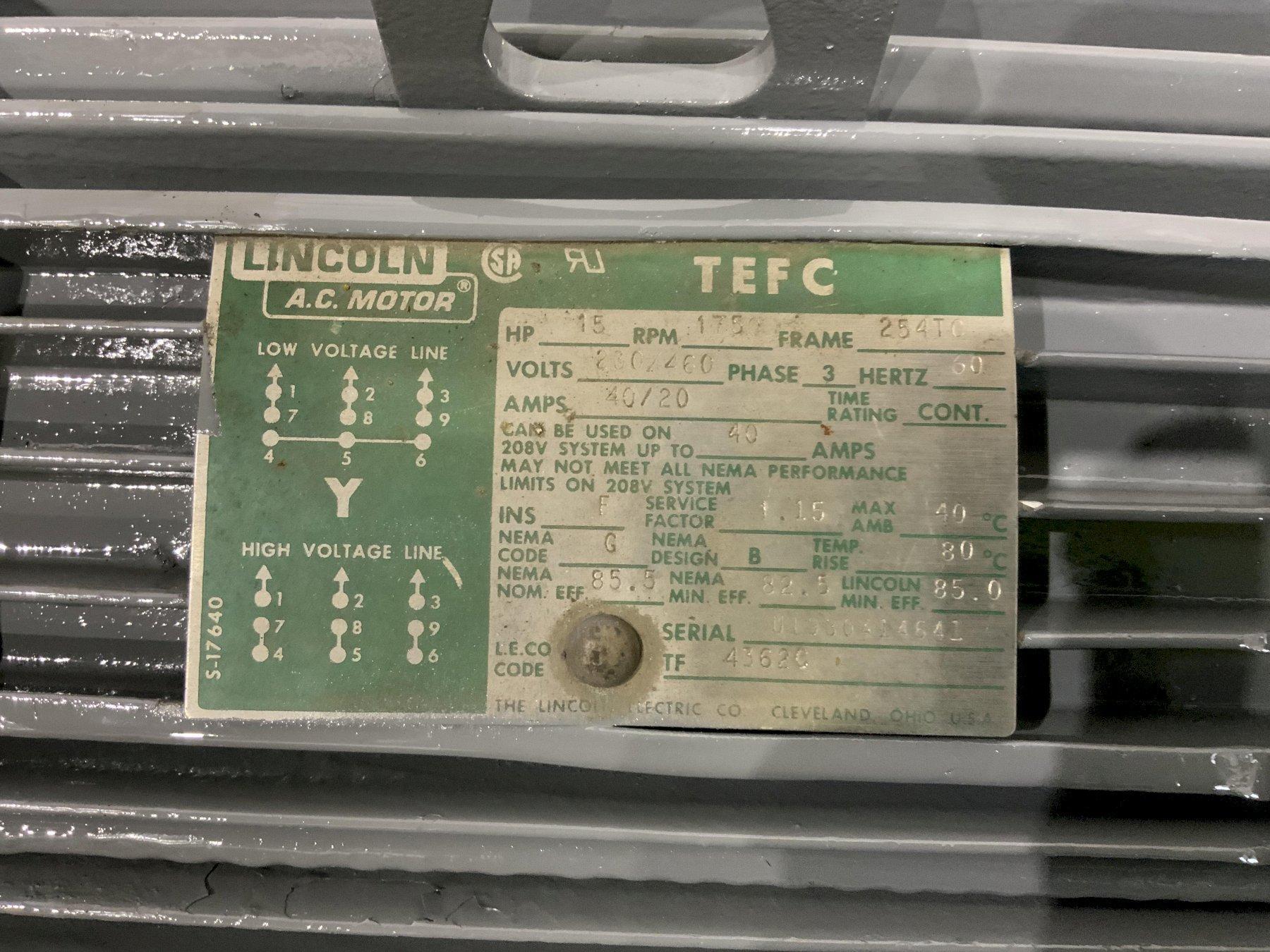

MAIN MOTOR HORSEPOWER .............. 15
