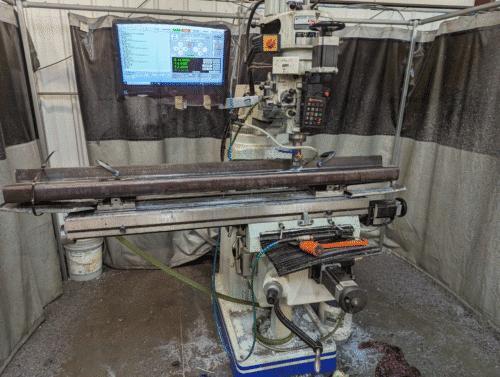

Supra 10″x54″ CNC Knee Mill

Brand

SUPRA

Location

California

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU:	112751
Make:	Supra
Model No.:	10″x54″
Year of Manufacture:	2022
Condition	Used – Good

Equipped With:
4th Axis
CNC Controller
UBS Port
Misc. Tool Holders
Tapping Capabilities

Table:
Table Size 10″ x 54″
Table T-slot size : 5/8″ x 3″
Longitudinal X Travel : 35.5″
Forward/Back Cross Y Travel : 15.5″
Quill Z Travel: 4.5″
Vertical Mill Travel Knee Lift Up/Down : 18″
Ram Travel : 18″
Spindle Taper : R8
Head Swivel RH/LH : 90°/90°
Head Tilting F/B : 45°/45°
Ram Turret Swivel : 360°

General:
Power: 220-240VAC 1Ø
Spindle Motor: 3 HP Variable Speed
Spindle Speeds Type : Step Pulley
Spindle Speeds (RPM): Up to 5600
Max Rapid on X Y Z : 100 IPM (2540 mm/m)
X + Ram Max Travel Area : 104″ (2641.6mm) x83″(2108.6mm)

No files or videos to display
