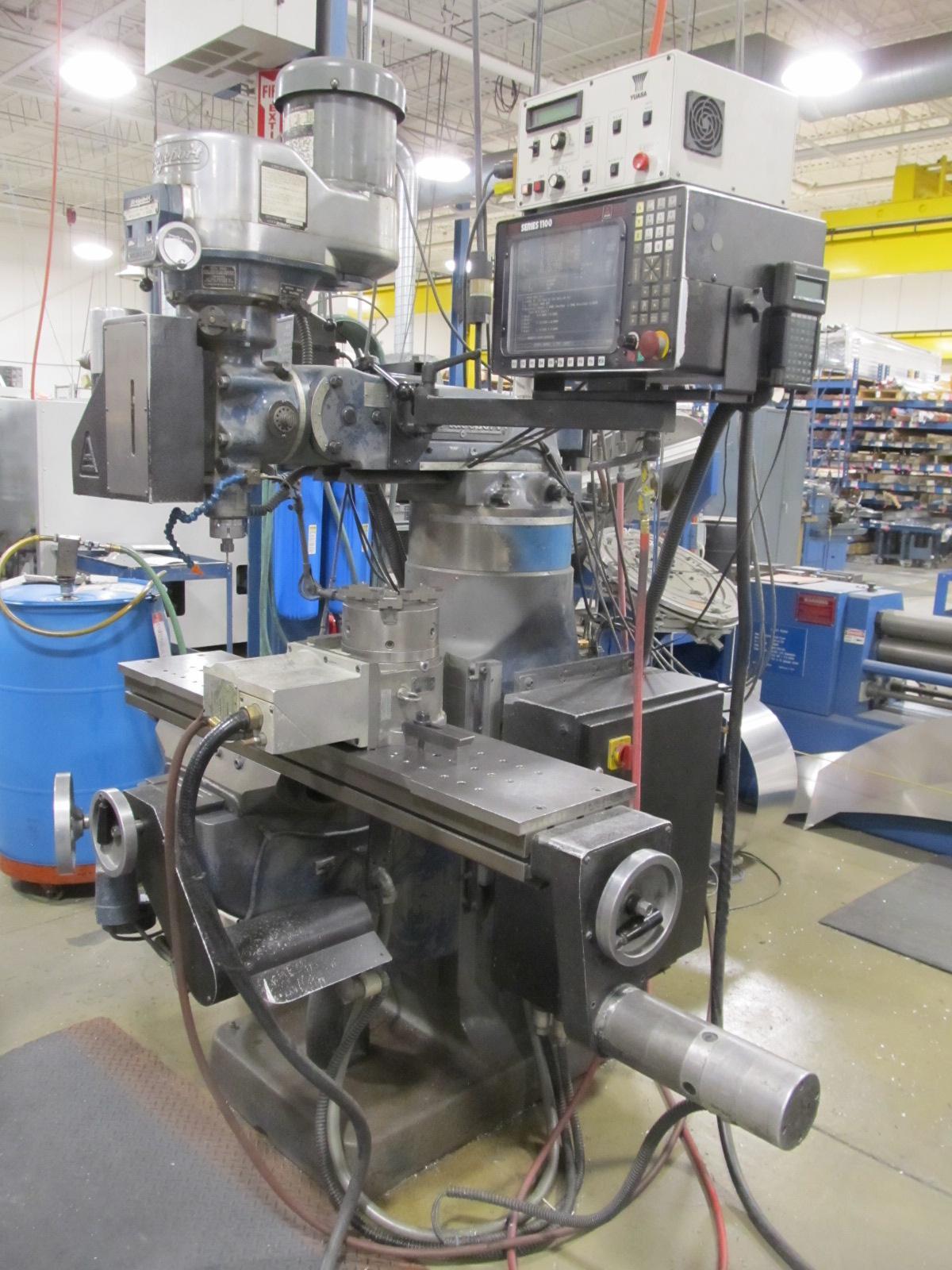

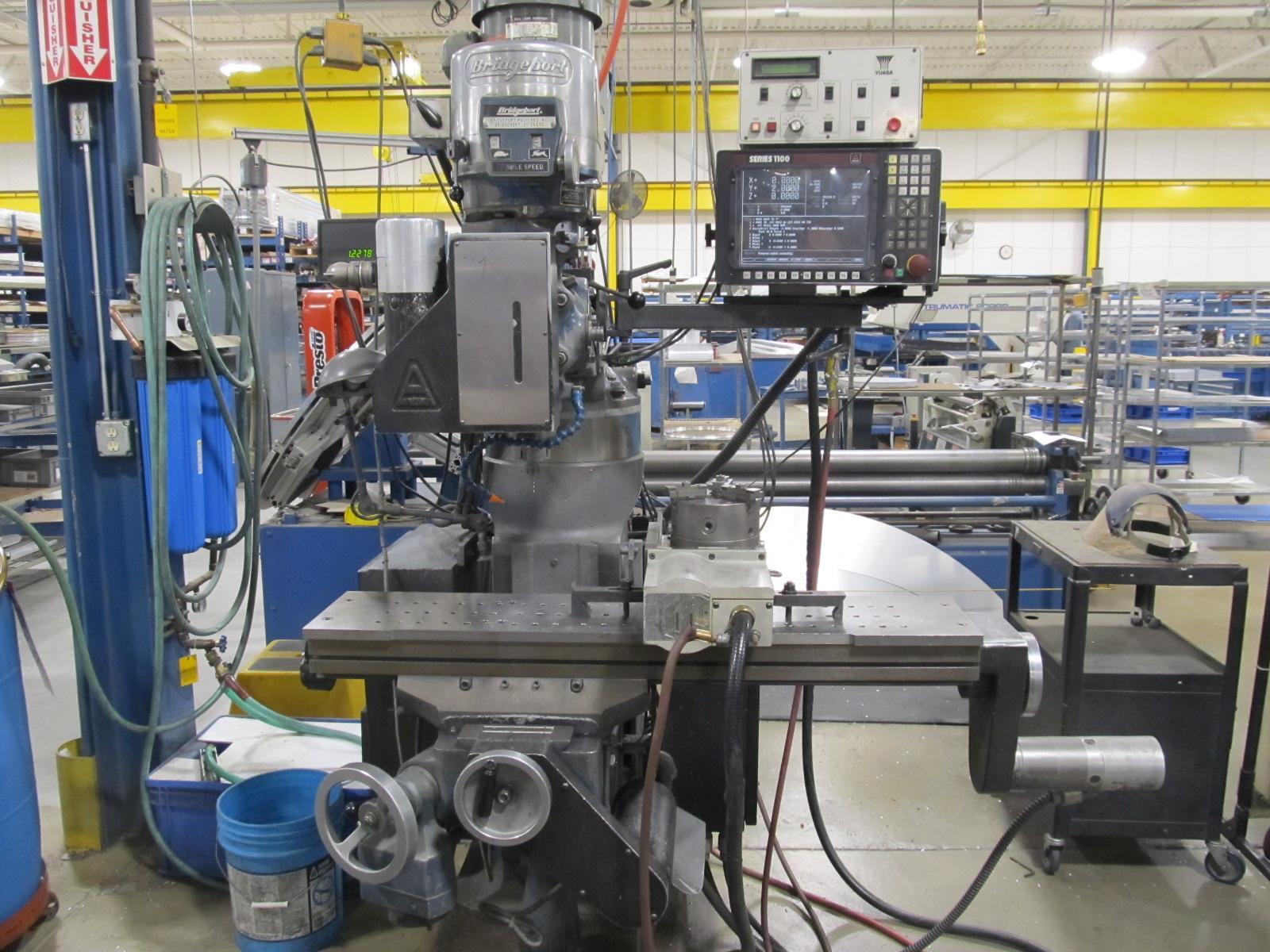

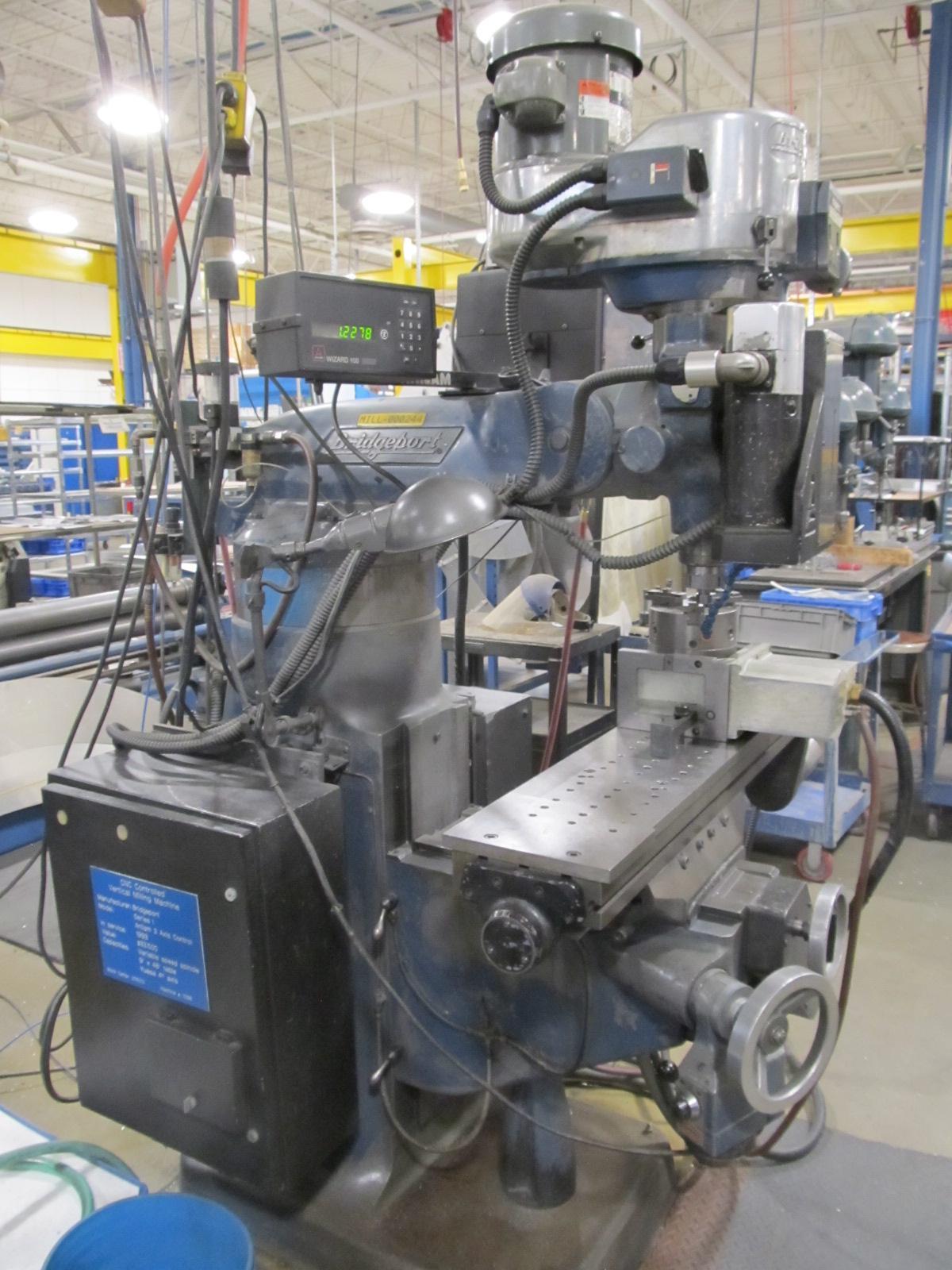

Bridgeport Series 1 CNC Knee Mill – Aniliam CNC Control, Yasua Indexer, Kwik Switch 200 Spindle, Tool Spray Lube

Table travel (X-axis): 30″ Saddle travel (Y-axis): 12″ Quill travel: 5″ Knee travel (Z-axis manual): 16″ Ram travel: 12″ Throat distance (min.): 6-3/4″ Throat distance (max.): 18-3/4″ Table to spindle nose gage line (min.): 2-1/2″ Max. weight of workpiece: 750 lbs. Table Size: 9 x 42″ T-Slots: 3 on 2-1/2″ centers T-Slot size: 5/8″ Height above floor (max.): 47-1/4″ Feed rate (X): 3/4-35 ipm High Torque Power Feed: Feed rate (X): 3/8-15 ipm

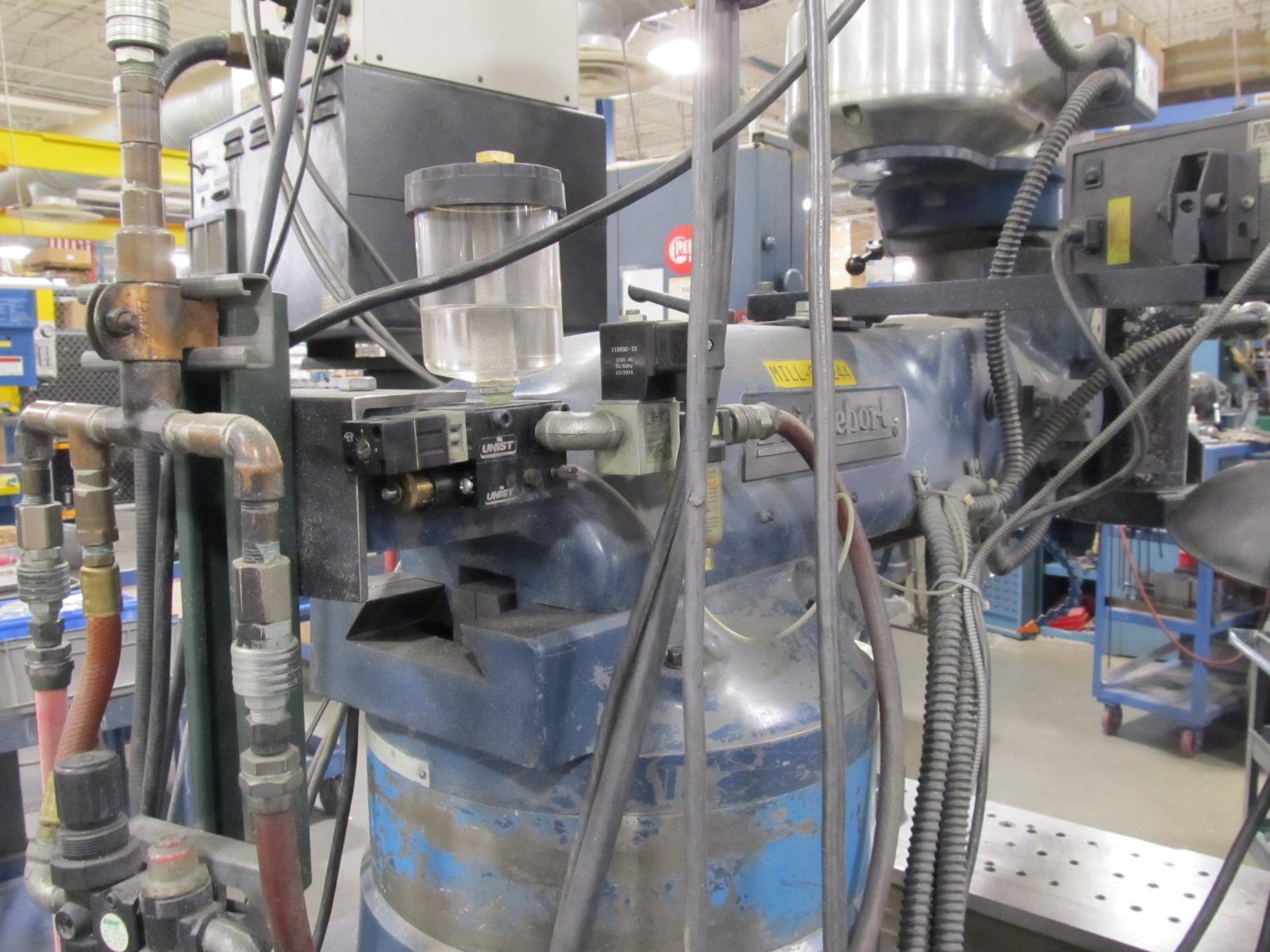

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With Aniliam Series 1100 3-Axis CNC Control Yuasa SUDX170 Indexer with UDNC-100 Controller Kwik Switch 200 Spindl/Tool Holders Unist Tool Spray Lube

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
