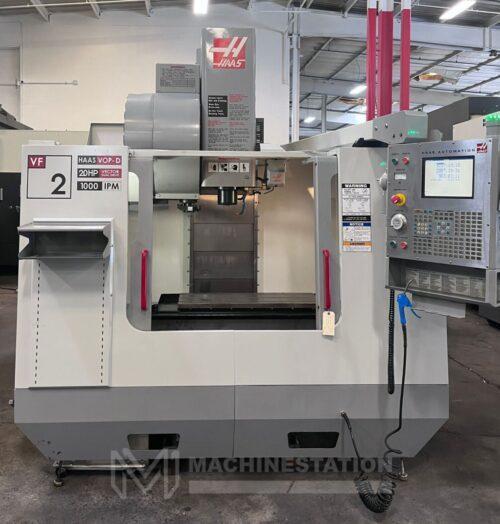

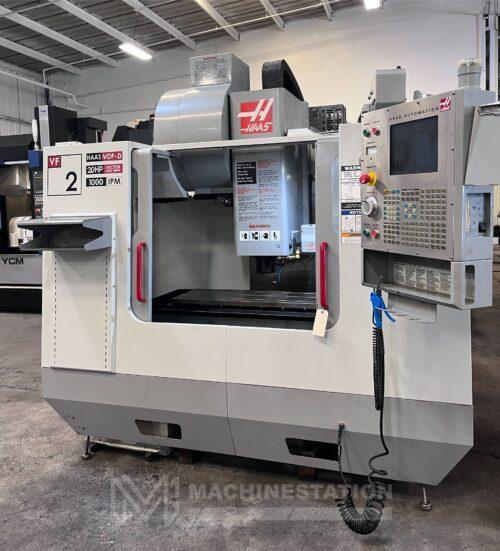

Haas VF-2D CNC Vertical Machining Center – 4th Axis Ready Mill

Haas VF-2D CNC Vertical Machining Center – 4th Axis Ready Mill

Name: Used HAAS VF-2D For Sale 112782
Brand: HAAS
SKU: 112782

Brand

HAAS

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make	Haas
Model:	VF-2D
Year:	2005
Condition:	Used – Good

Features:
Haas CNC Control
4th Axis Ready
Haas VOP-D Package
7,500 RPM Spindle
1000 IPM Rapids
Programmable Coolant Nozzle
24 Station Side Mount Automatic tool changer
20 HP High Torque Spindle Motor
MPG Handwheel Control
Coolant System
Chip Auger

Travels:
X-Axis: 30″
Y-Axis: 16″
Z-Axis: 20″
Spindle Nose to Table (Min.- Max.): 4″ – 24″
Rapid Traverse Rates: 1000 Inch Per Minute
Cutting Feed Rates: 650 Inch Per Minute

Table:
Length: 36.0″
Width: 14.0″
Max Weight on Table: 3000 lbs

Spindle:
Taper Size: 40
Speed Range: 7,500 RPM
Spindle Power: 20 HP
Vector Drive Max Torque: 90 ft-lb @ 2000 RPM

Automatic Tool Changer:
Capacity: 24
Max Tool Weight: 12 lbs
Max Tool Dia: 3.5″
Max Tool Length: 11″
Tool Changing Time: 2.8 Seconds

General:
Air Required: 100 psi, 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 101″ x 99″ x 101″ High
Machine Weight: 8000 lbs

No files or videos to display
