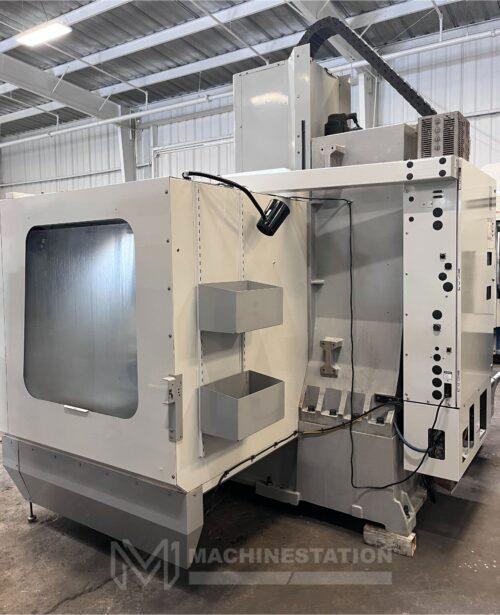

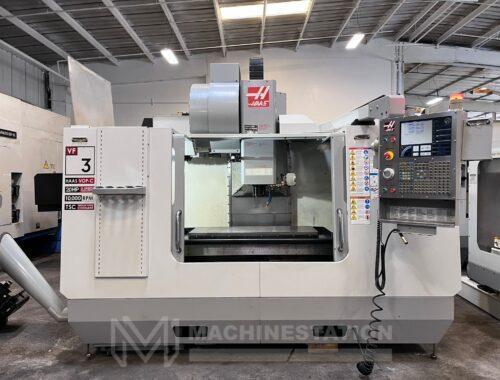

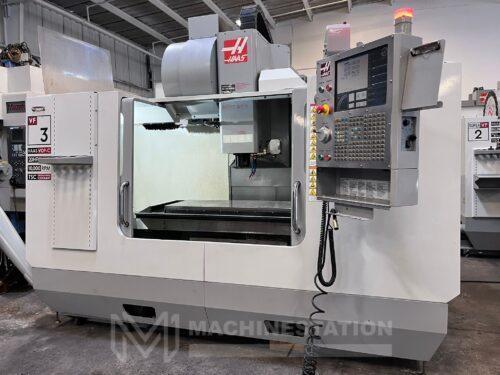

Haas VF-3B CNC Vertical Machining Center – TSC 10,000 RPM Mill

Haas VF-3B CNC Vertical Machining Center – TSC 10,000 RPM Mill

Name: Used HAAS VF-3B For Sale 112797
Brand: HAAS
SKU: 112797

Brand

HAAS

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Haas
Model:	VF-3B
Year:	2008
Condition:	Used – Good

Key Features of the Haas VF-3B

Haas CNC Control
Haas VOP-C Package
10,000 RPM High-Speed Spindle
Through Spindle Coolant
24 Station Automatic Tool Changer
20 HP 2-Speed Gear Drive
Programmable Coolant Nozzle
MPG Hand Wheel Control
Rigid Tapping
Coolant System
Chip Auger

Travel:

X-Axis: 40″
Y-Axis: 20″
Z-Axis: 25″
Rapid Traverse Rates: 1000 Inch Per Minute
Cutting Feed Rates: 650 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4.2″ – 29.2″

Table:

Length: 48″
Width: 18″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 3500 lbs

Spindle:

Taper Size: 40
Speed Range: 10,000 RPM
Spindle Power: 20 HP

Automatic Tool Changer:

Capacity: 24 Tools
Max Tool Weight: 12 lbs
Max Tool Dia: 2.5″ – 5.0″
Max Tool Length: 13″
Tool Changing Time: 1.80 Seconds

General:

Air Required: 100 psi 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 152″ x 99″ x 106″ High Approx.
Weight: 11,720 lbs Approx.
