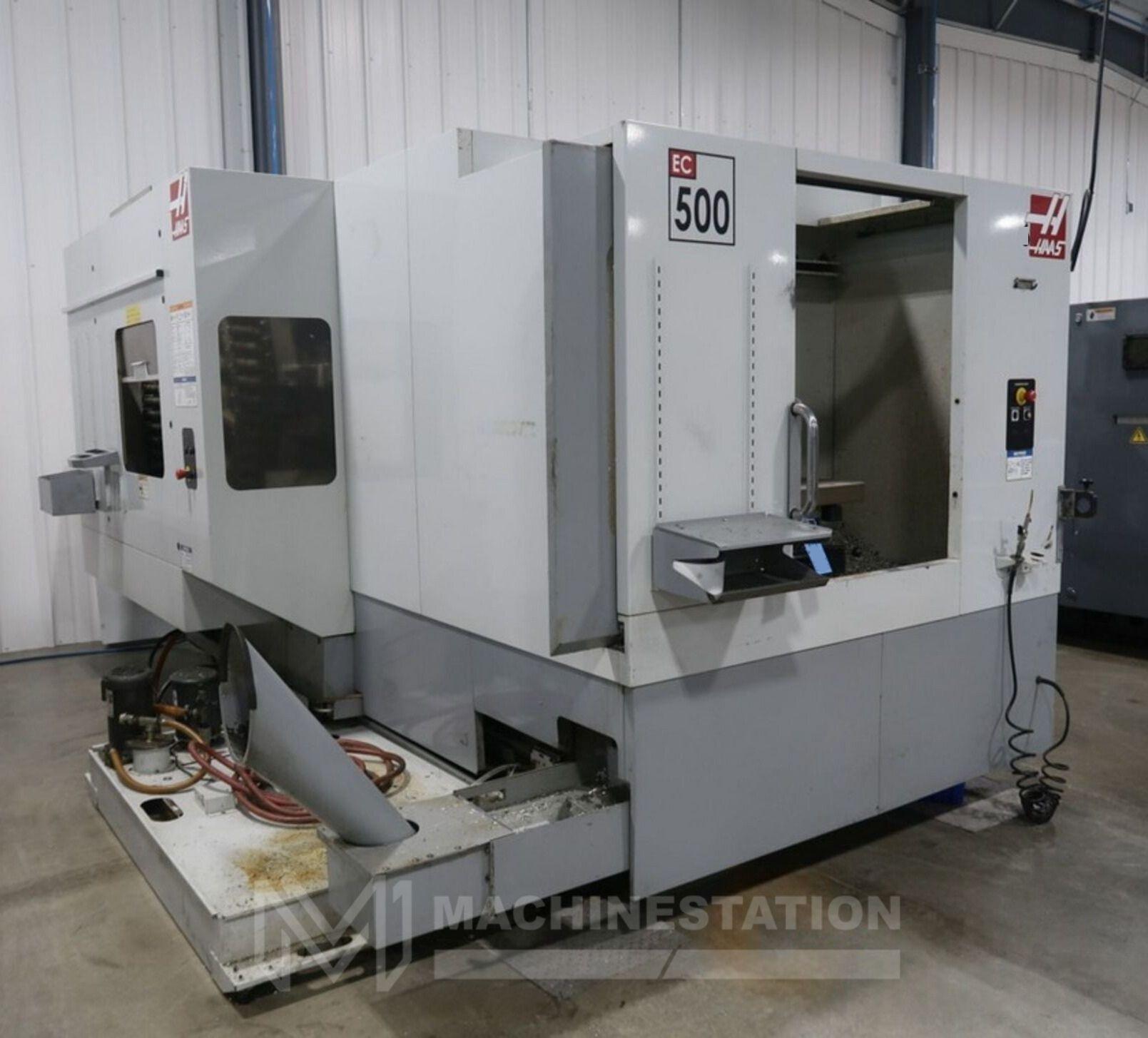

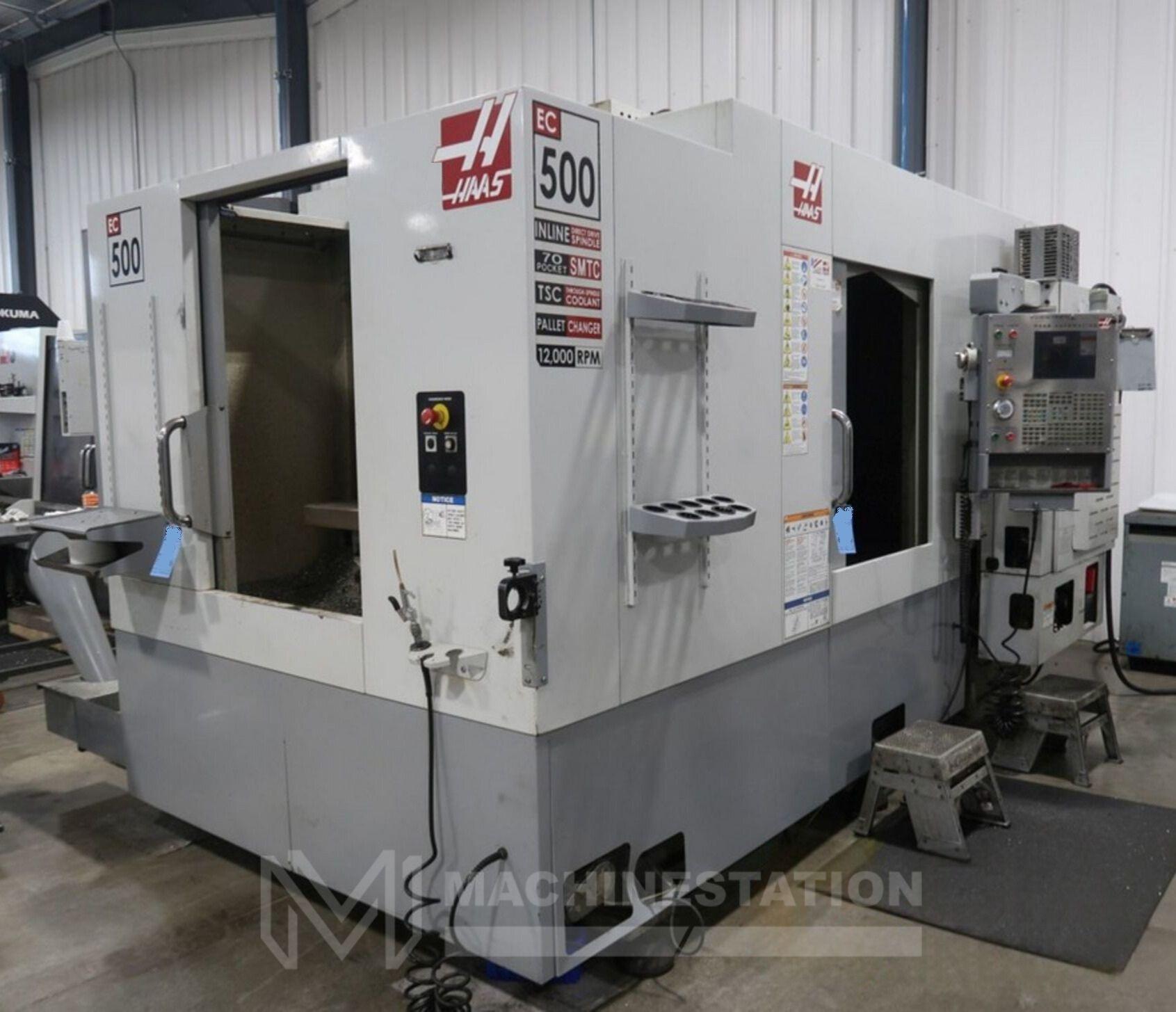

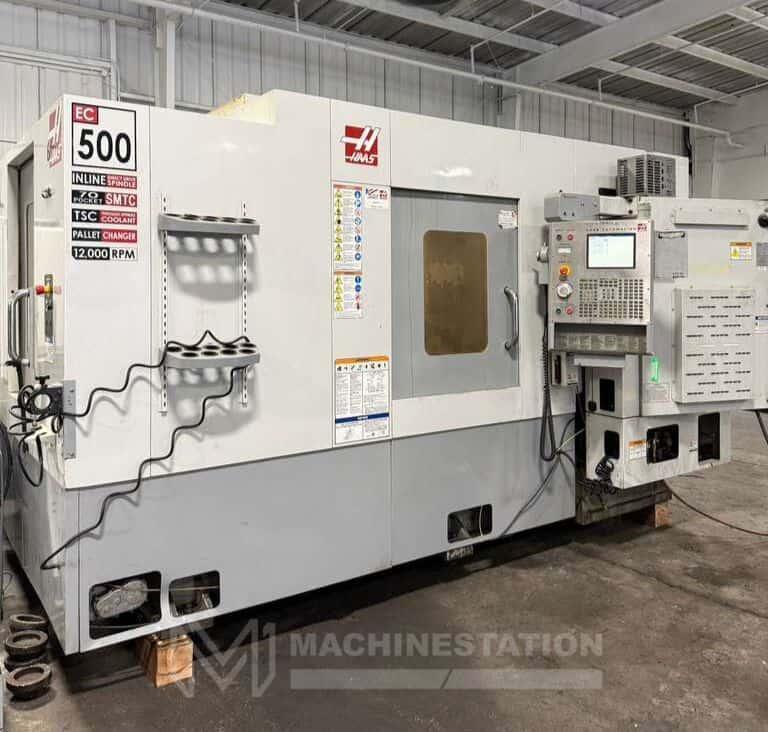

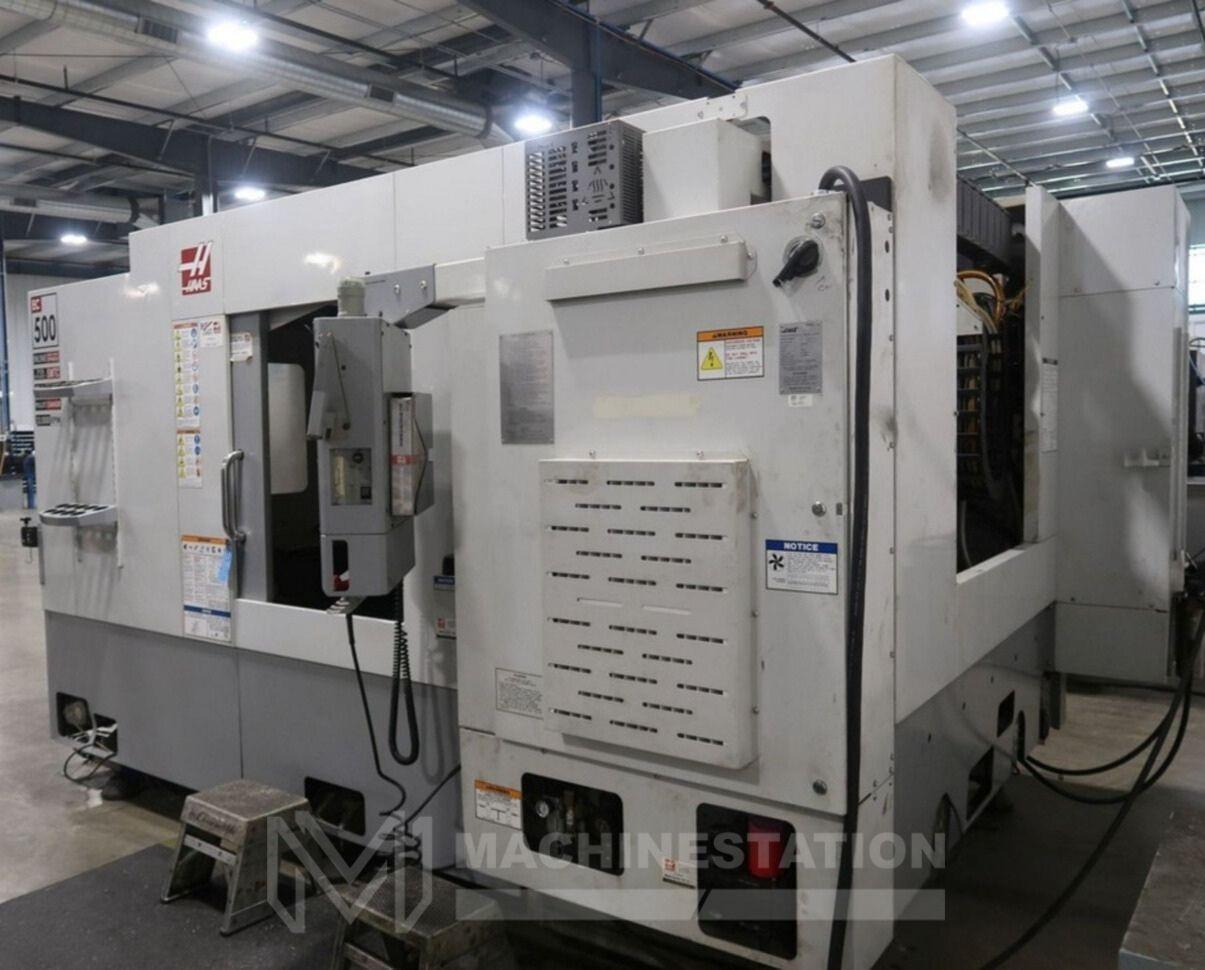

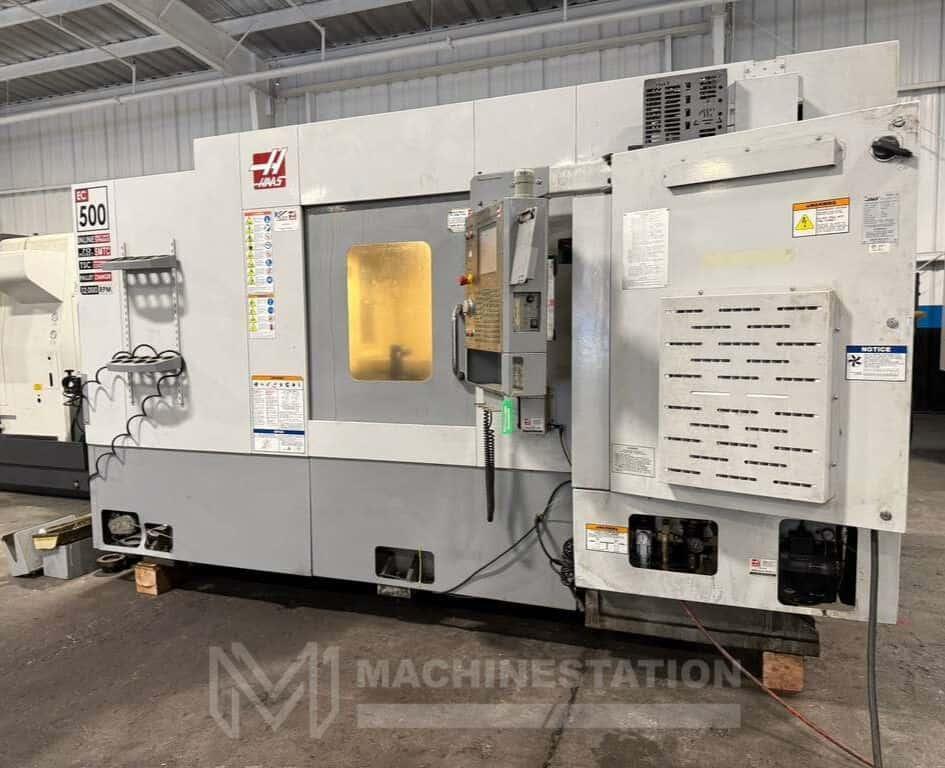

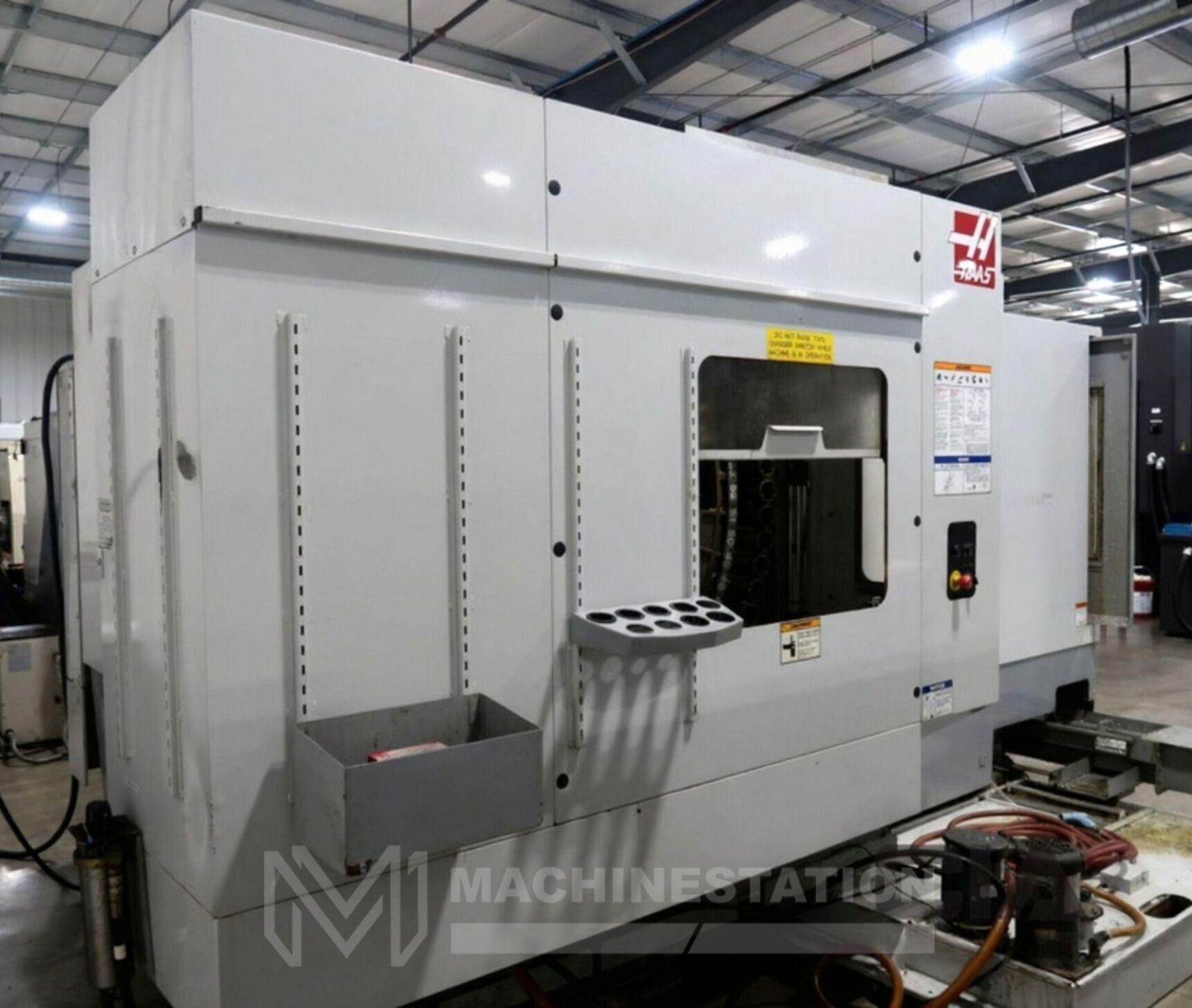

Haas EC-500-4AX CNC Horizontal Machining Center – TSC, 70 ATC, 12,000 RPM Mill

Brand
HAAS
Category
Machining Centers
Type
Machining Centers, Horizontal
Model
HAAS EC-500-4AX
Stock #
112902
Year
2006
Condition
Not specified

Location

Not specified
REQUEST FINANCING

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:HAAS
Model:EC-500-4AX
Year:2006
Condition:Used – Good

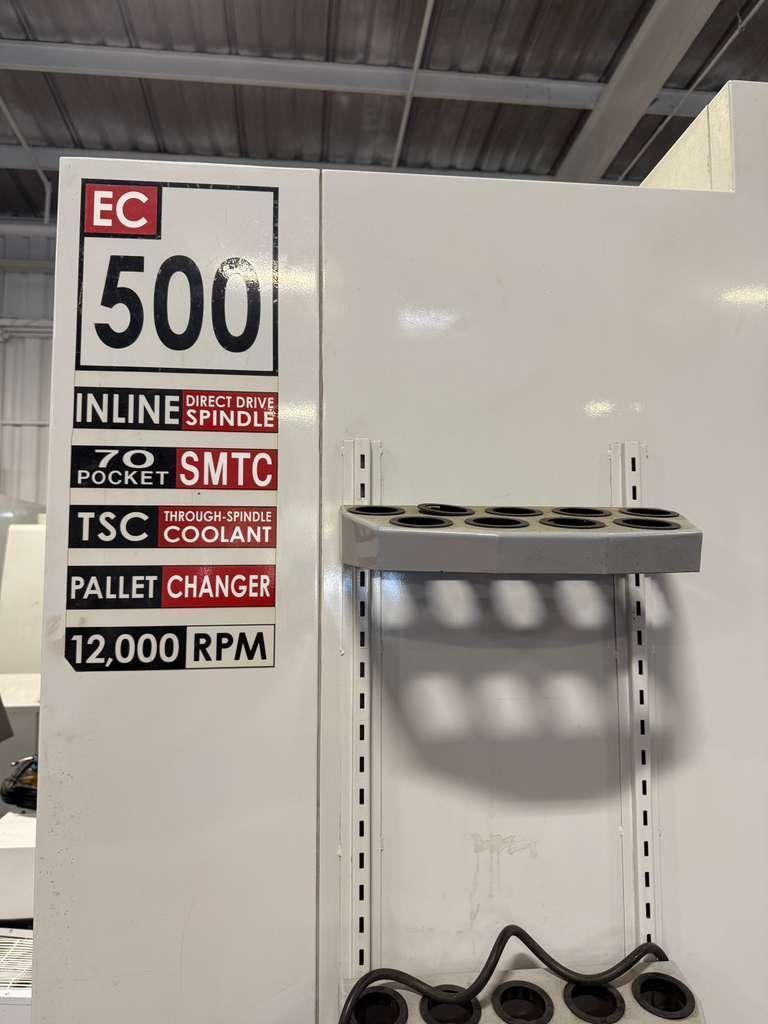

Features:

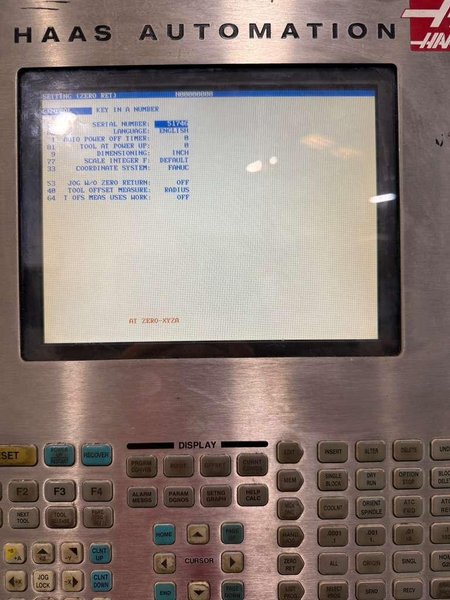

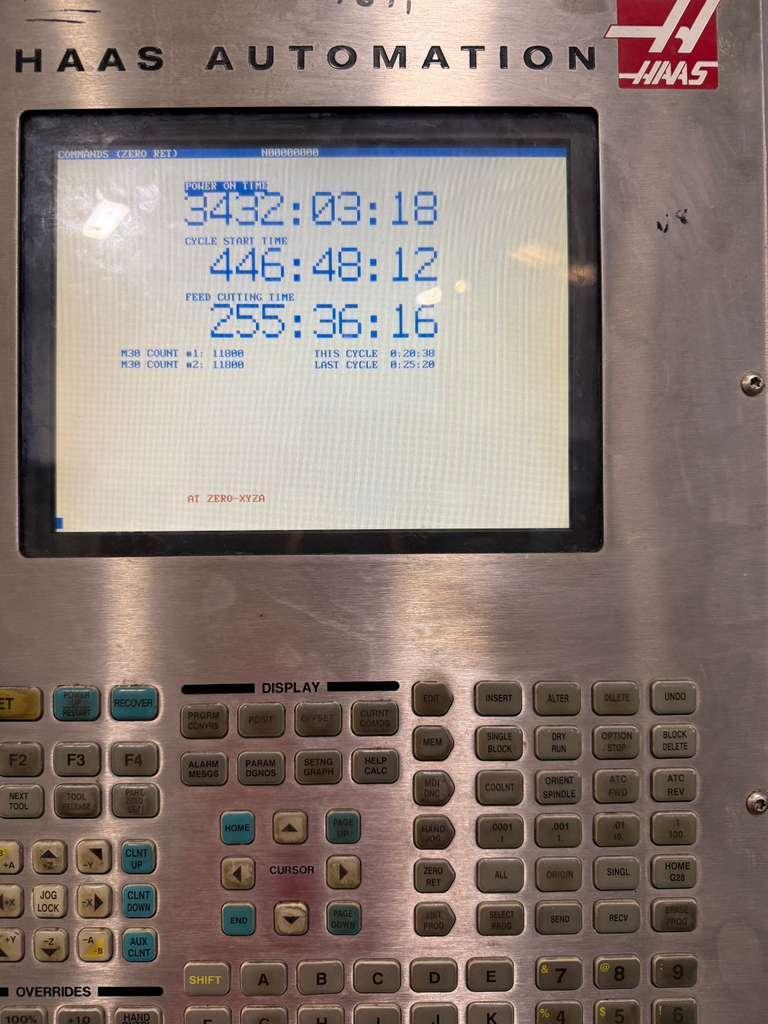

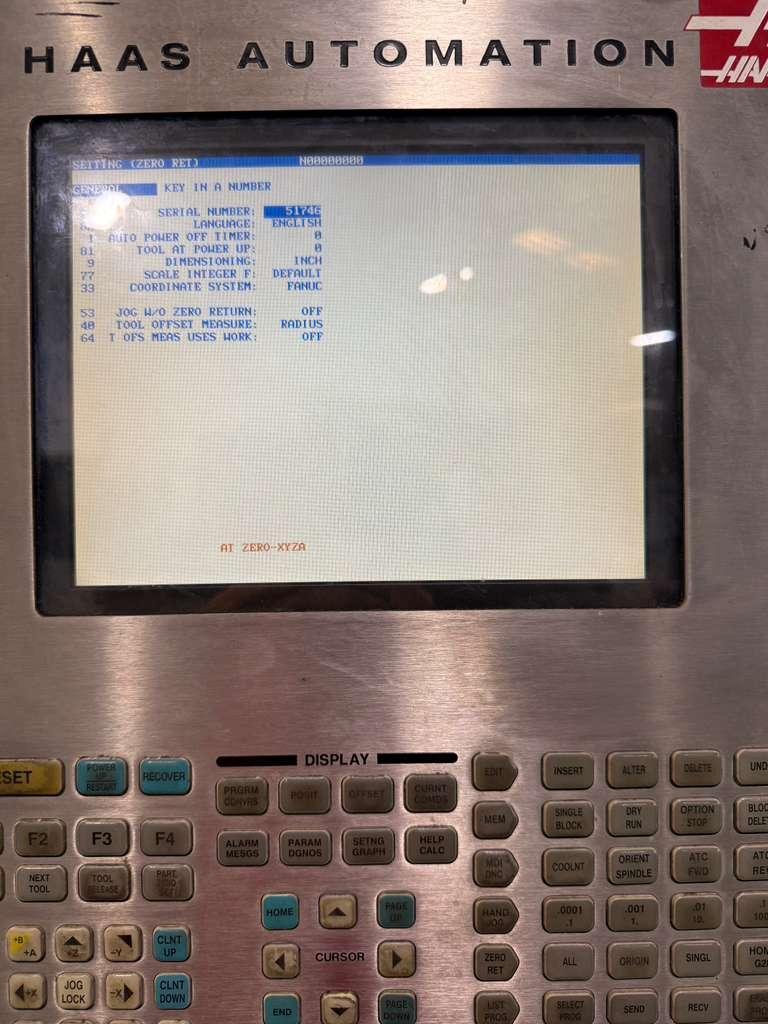

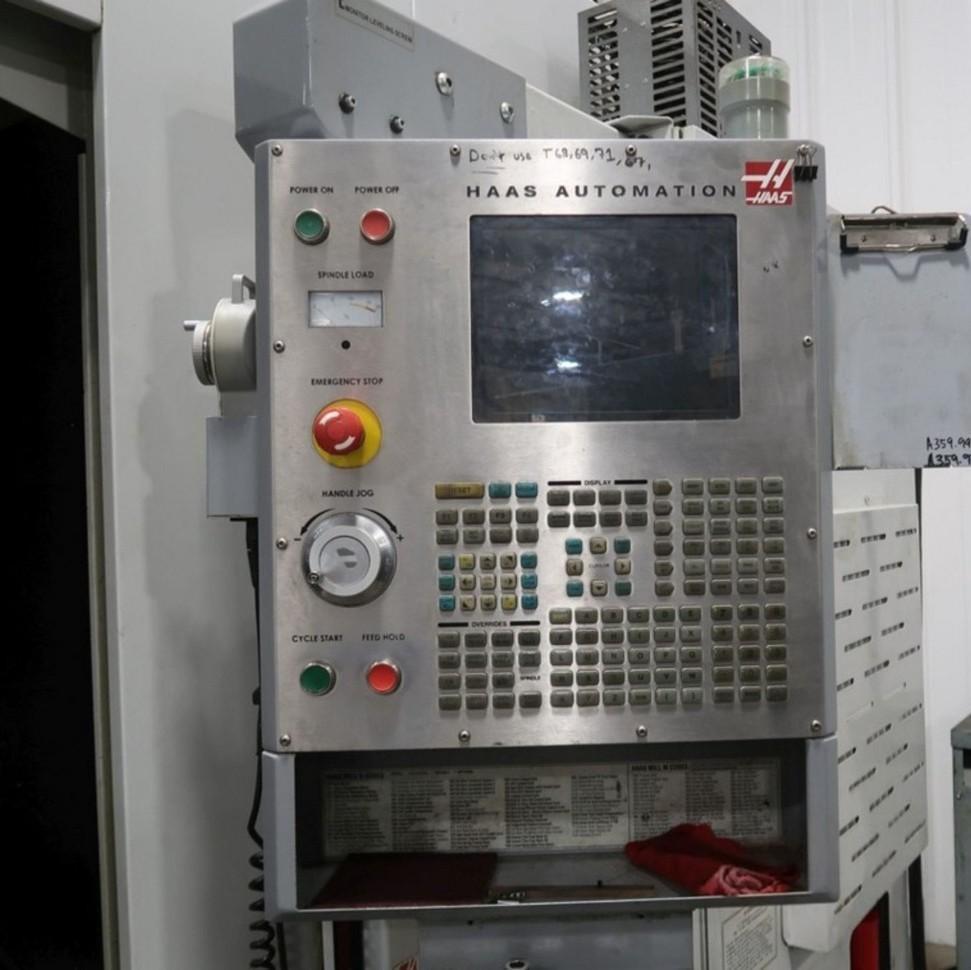

Haas CNC Control
Linear Ways Guideways
Pallet Changer

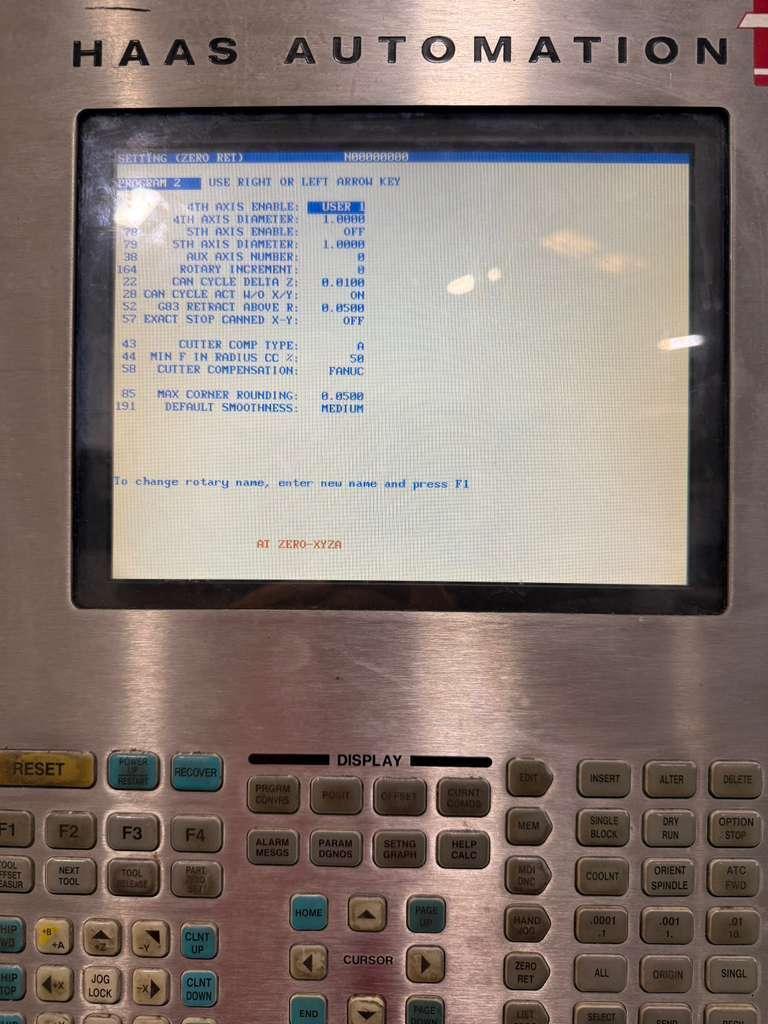

Full 4th Axis
12000 RPM Inline Direct Drive Spindle
Through Spindle Coolant

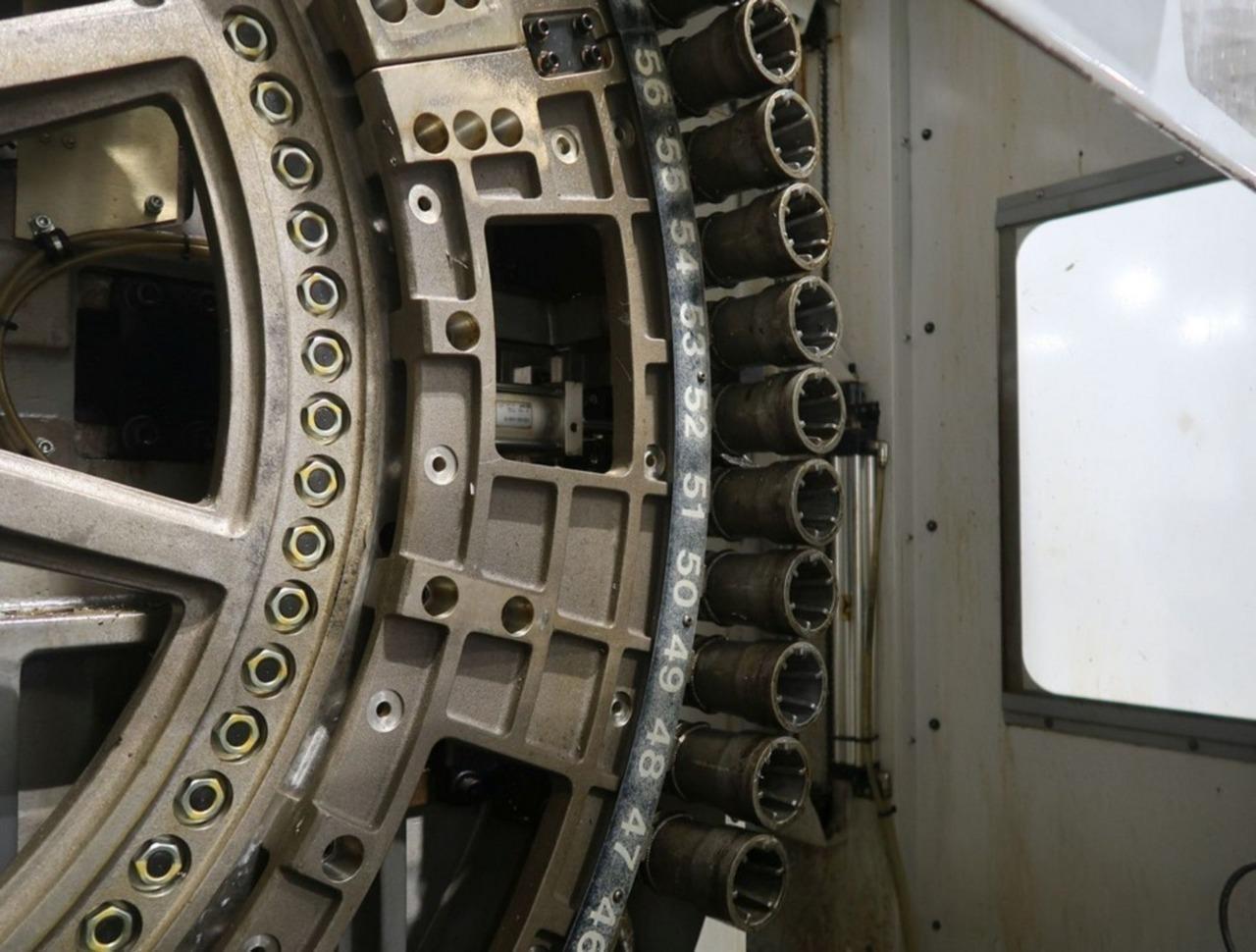

70 Tools Side Mount Tool Changer
Renishaw Probing System (Probe Needed)
Tool Presetter

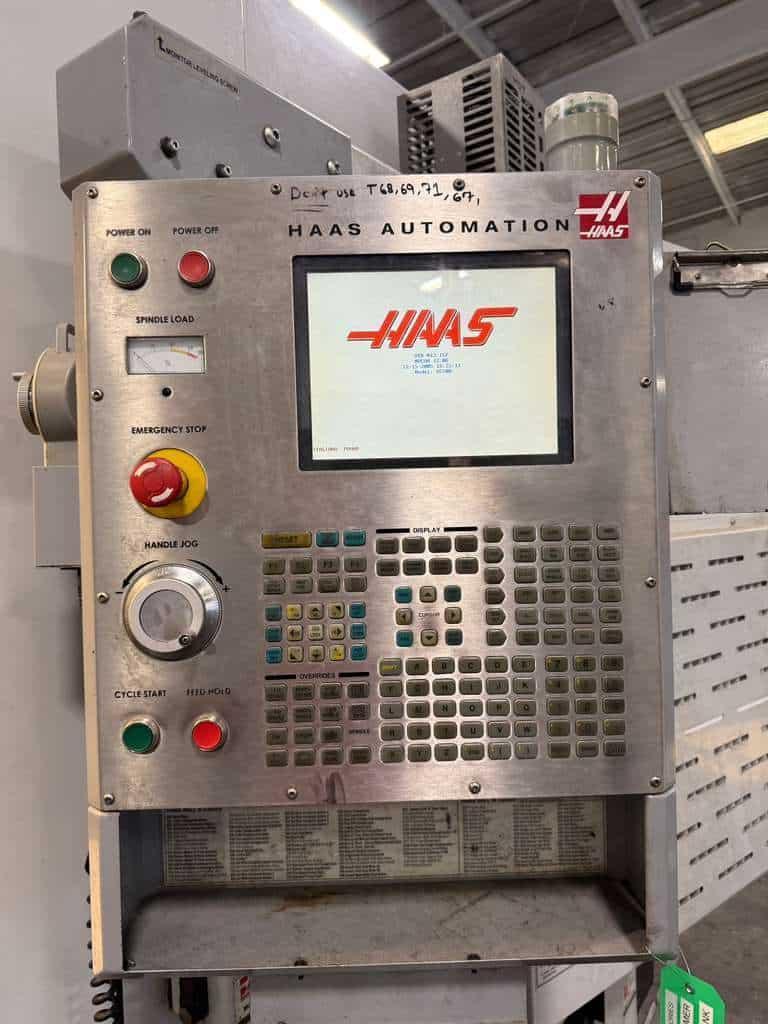

MPG Handwheel Control
Rigid Tapping

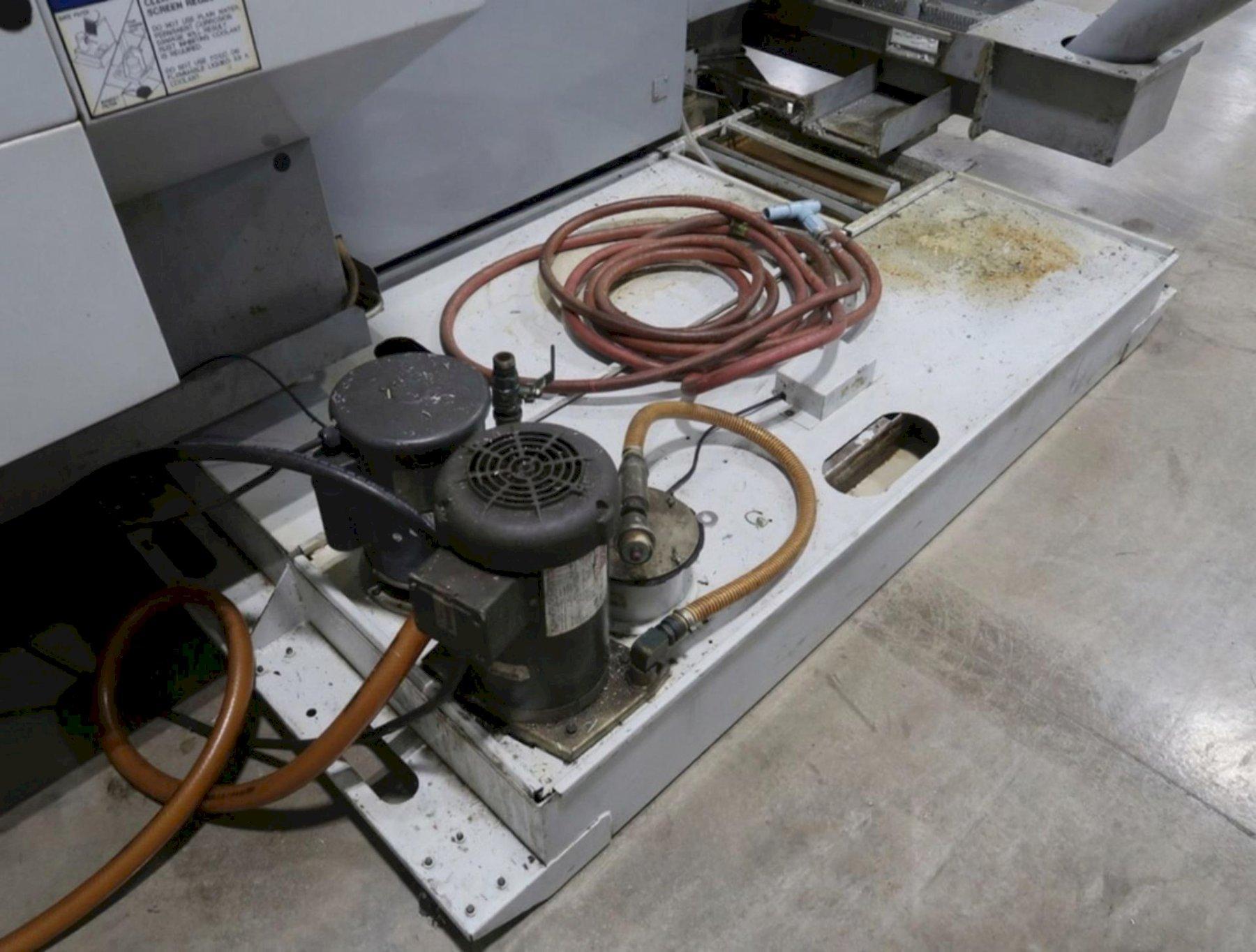

Coolant system
Chip Auger
Travels:
X Axis: 32″
Y Axis: 25″
Z Axis: 28″
B Axis: 0.001° Indexing ( Full 4th )

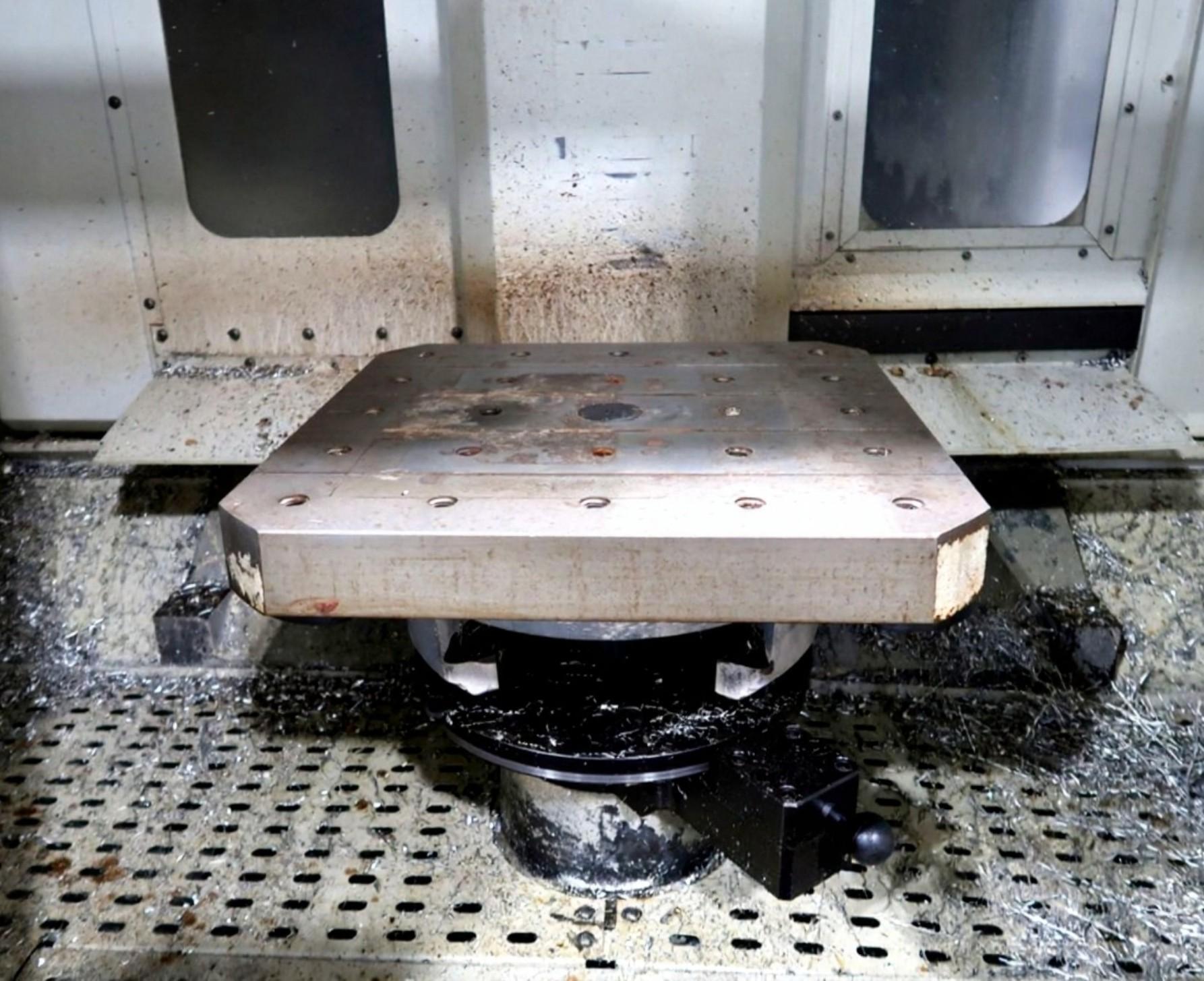

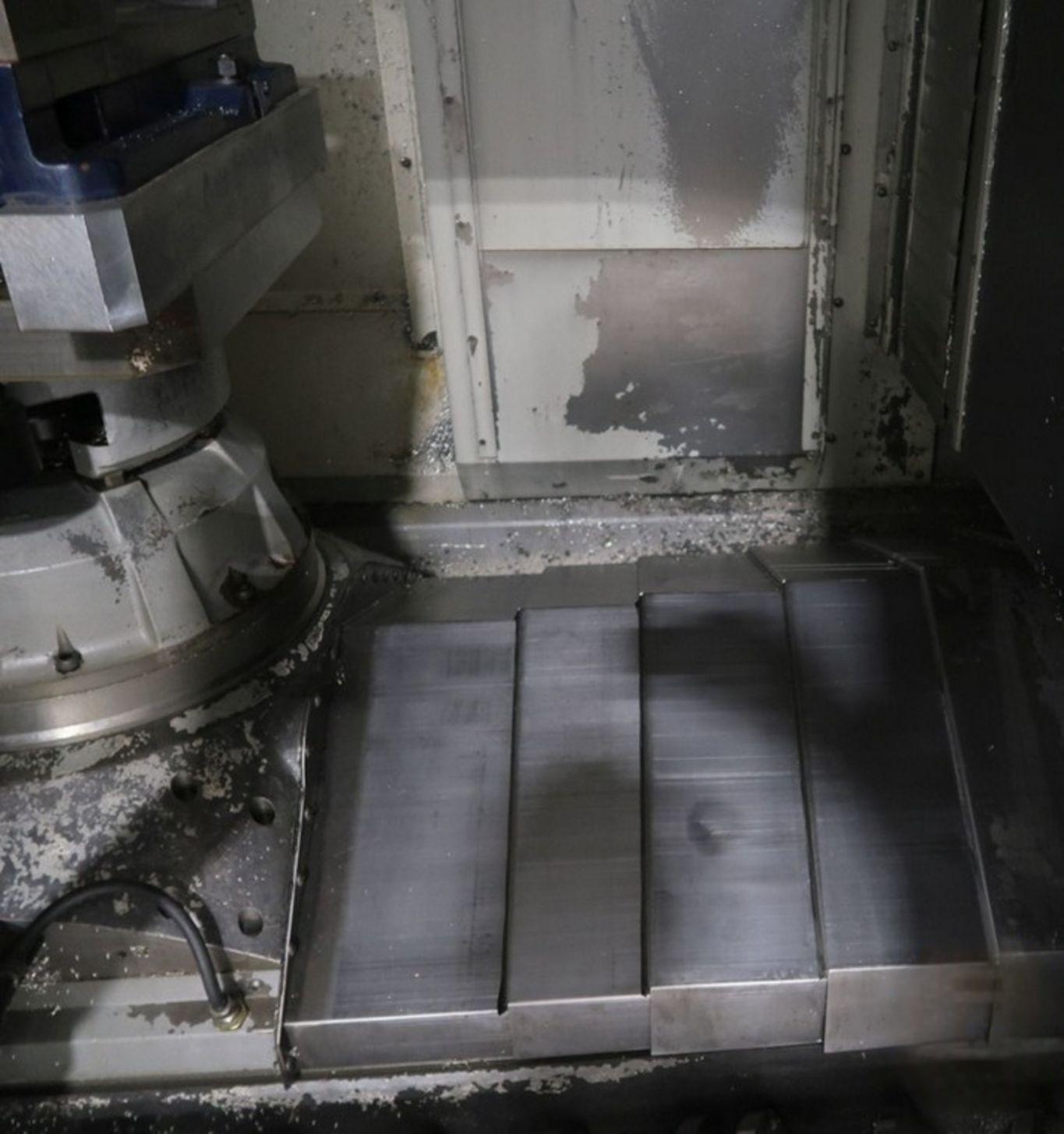

Pallet:
Dual Pallet Changer
Pallet Size: 19.69″ X 19.69″
Max Weight on Pallet: 880 lbs
Max Part Diameter: 29.5″
Max Part Height: 36.5″
Pallet Change Time: 15 Seconds
Spindle:
Taper Size: 40
Spindle Speed: 12000 RPM
Spindle Power: 30 HP
Feed rates:
Rapid Traverse Rates: 1400 Inch Per Minute
Cutting Feed Rates: 833 Inch Per Minute
Tool changer:
Capacity: 70 Station Side Mounted
Max Tool Diameter: 2.5″ – 5.0″
Max Tool Length: 12″
Max Tool Weight: 12 lbs.
Tool Change Time (Tool to Tool): 2.8 Second
General:
Air Required: 100 psi 4 scfm

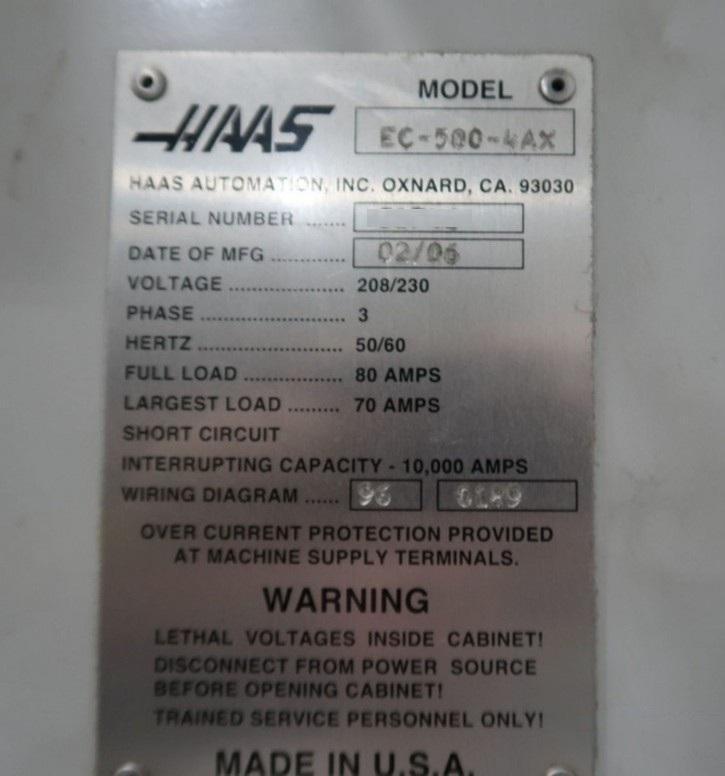

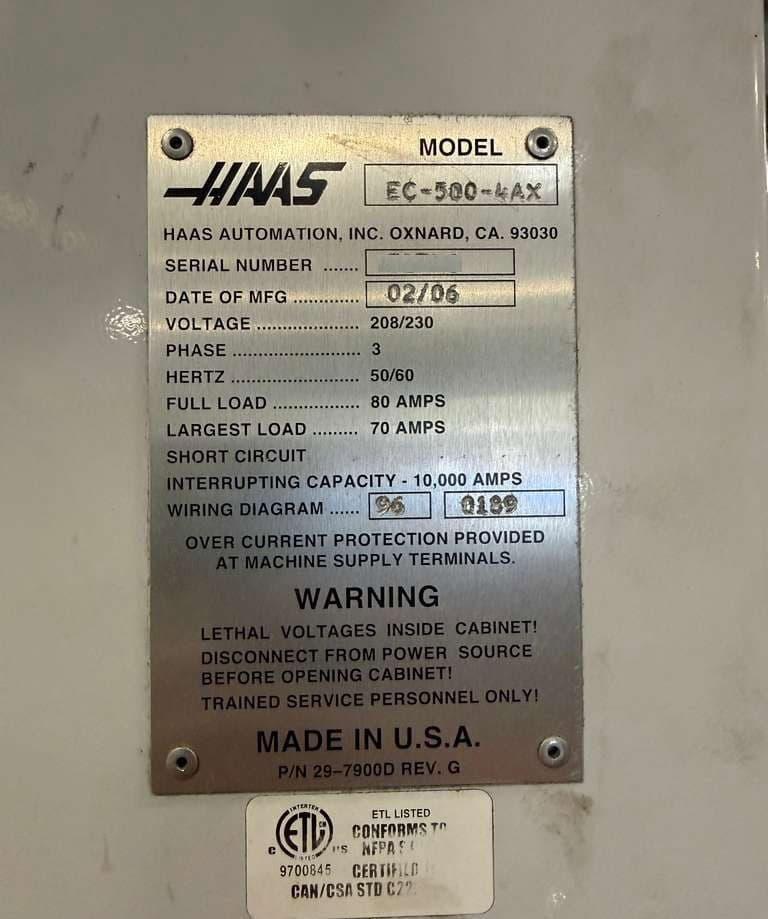

Power: 220v / 66FLA / 3-Phase
Overall Shipping Dimensions: 202″ x 100″ x 111″ High Approx.
Weight: 20120 lbs. Approx.
