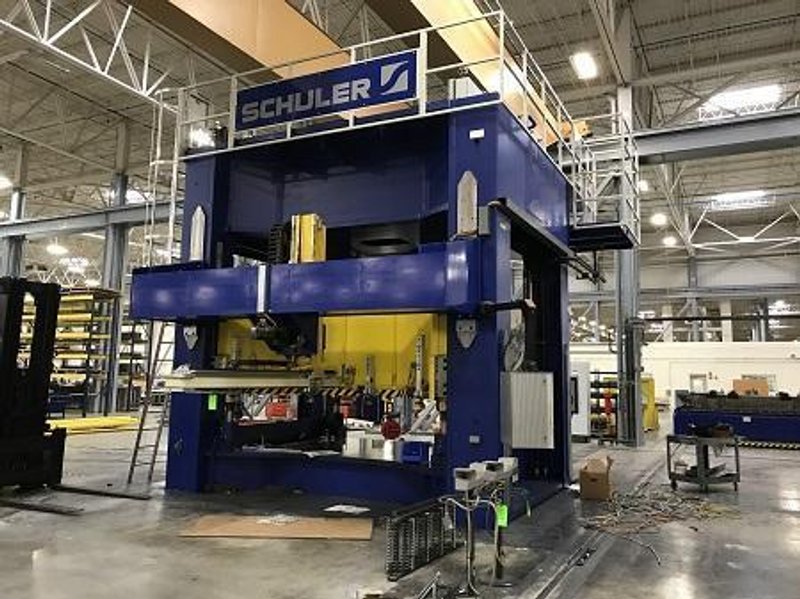

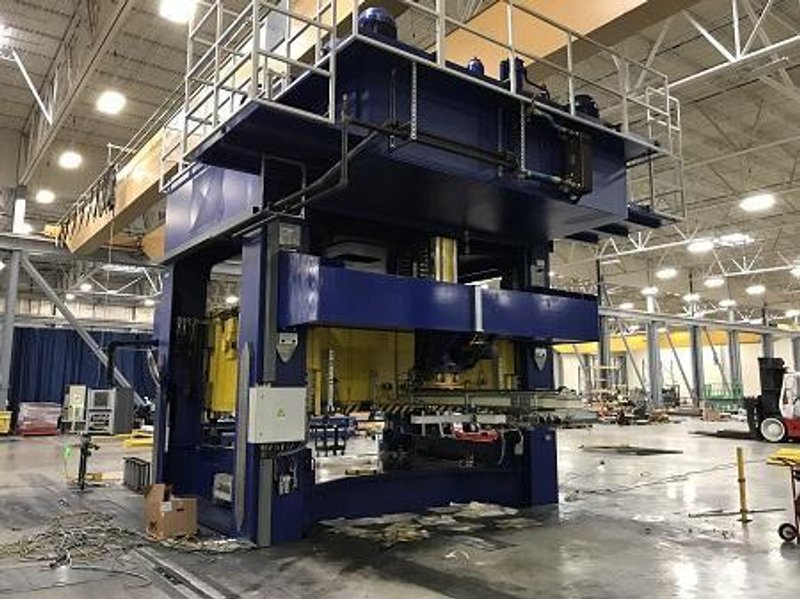

630 TON SCHULER # BH-630-3.8 X 2.3 HYDRAULIC PRESS

MODEL: BH-630-3.8x2.3
MANUFACTURER: Schuler
YEAR: 2007

Press Total Weight: (123000 kg) 123-Ton

Nominal Force (Stamping Force): 6300 kN
Nominal Force (Stamping Force): 708 Short Ton
Nominal Force (Stamping Force): 632 Long Ton

Die Space: (1300 mm) 51.18"

Closing Speed: (300 mm/s) 11.81"
Maximum Working Speed: (24 mm/s) .945"
Working Speed at Nominal Force: (47 mm/s) 1.85"
Max. Die Area (BxD): (3700 x 2200 mm) 145.67" x 86.61"
Min. Die Are (BxD) at Nominal Force: (1900 x 1150 mm) 74.80" x 45.27"
Min. Die Height: (500 mm) 19.68"
Max. Die Total Weight: (17.000 kg) 17-Ton
Max. Die Upper Part Weight: (8000 kg) 17,636 Lbs

Admissible Off-Center Load Left-Right: 500 kNm
Admissible Off-Center Load Front-Back: 250 kNm

Installed Load: (260 kW) 348 HP
Nominal Current: 310 A
Voltage: 480 V
Frequency: 60 Hz

Hydraulic Working Pressure: 277 bar
Total Oil Charge: 2500 I
Oil Type: HLP 46 DIN 51524
Air Pressure: -bar
