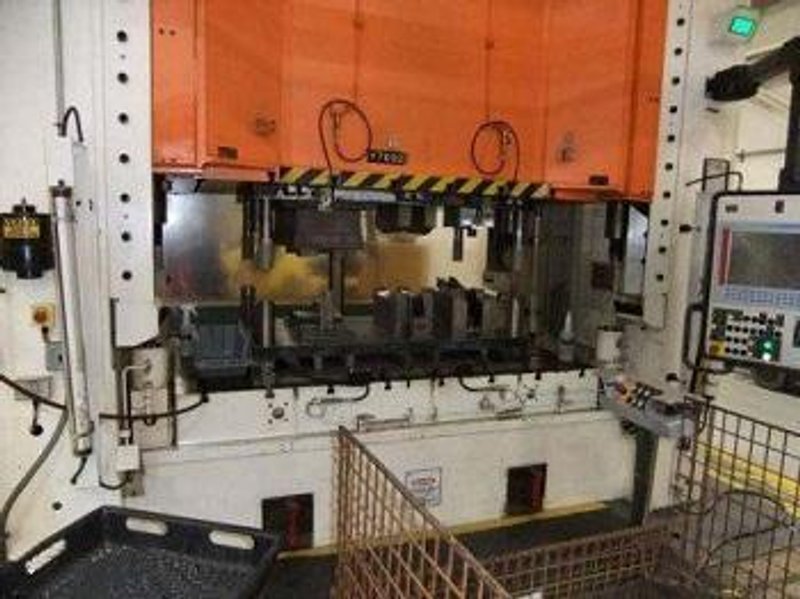

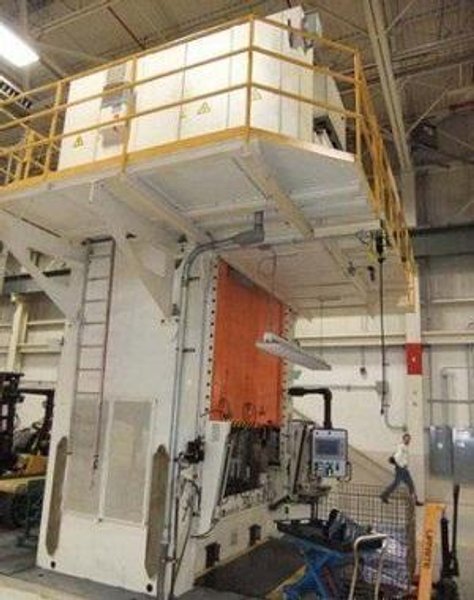

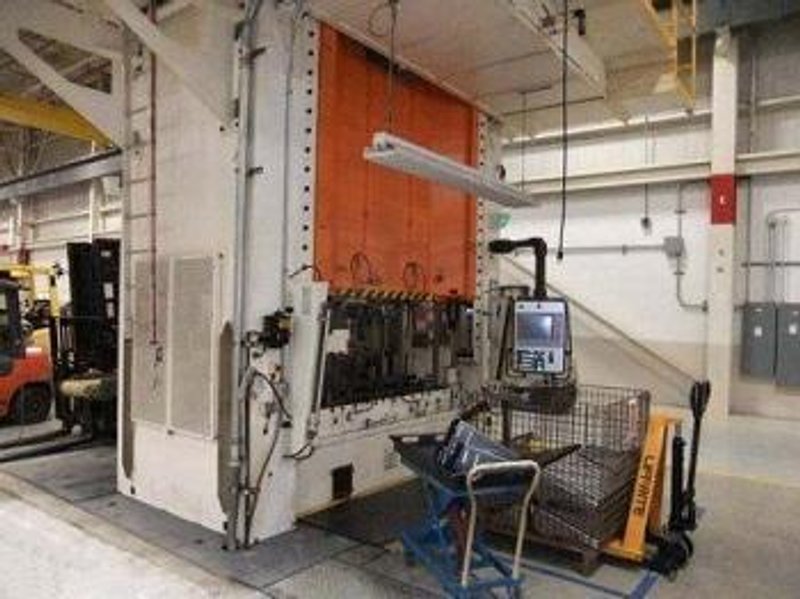

220 ton SCHULER HYDRAULIC PRESS

Name: 220 ton SCHULER HYDRAULIC PRESS
Brand: SCHULER
SKU: 114252
Availability: InStock

Brand

SCHULER

Not specified

Tonnage	220 tons
Stroke	23.6 inches
Link To Our Website Listing	http://uen.hsix.com/q/webinv/005700=x,114252
220 TON SCHULER HYDRAULIC PRESS Mfd. 2002 Model no. HPDZb200 Bed Size: 94.5" x 55.1" T-Slotted Ram Face: 94.5" x 56" T-Slotted Ram Stroke: 23.6" Open Height: 43" Over 9-1/2" Th. T-Slotted Bolster Ram Speed Variable: 108 to 945 IPM Bed Cushion: 69.4 Tons with 12" Stroke Ejector in Ram: 3.3 Tons with 7.99" Stroke Windows: 40" Wide Max. Weight of Upper Die: 6,725 Lbs. Max. Offset Ram Load Left-Right: 147,520 Ft. Lbs. Max. Offset Ram Load Front-Back: 73,750 Ft. Lbs. Ram has Double Prismatic Guiding Hydraulic System Operating Pressure: 3,626 PSI Main Oil Tank Capacity: 633.5 Gallons Auxiliary Oil Tank Capacity: 43.5 Gallons Allen Bradley Panel View PLC Control Operator Pedestal with Dual Palm Buttons T-Slotted Bolster Plate: 94-1/2" x 55" x 9-1/2" 150 HP Main Hydraulic Pump Motor, 3, Phase, 60 Cycle, 460 Volts Full Set of Manuals DIMENSIONS: Approx. Overall Machine Assembled: 238" L x 187" W x 23' H Above Floor The Cushion Goes 44" Below the Floor Hydraulic System: 12' L x 5' W x 104" H Electric Cabinet: 11' L x 2' W x 90" H Overall Press Laying Down for Shipping: 26' L x 153" W x 91" H Approx. Press Weight: 92,000 Lbs. Approx. Hydraulic System Weight: 11,000 Lbs.
