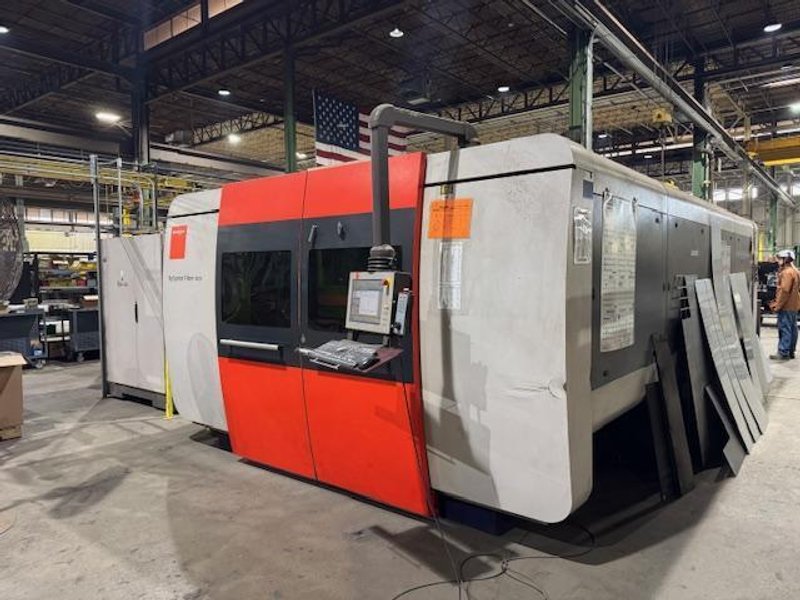

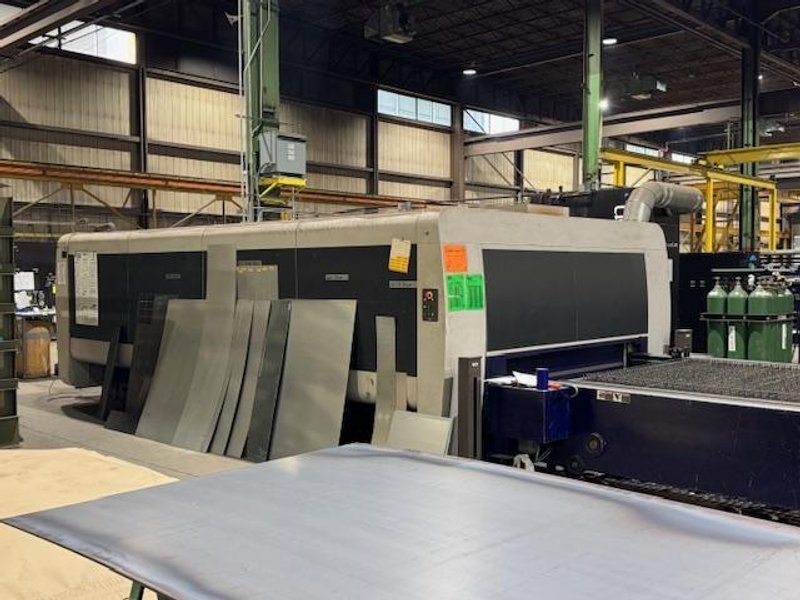

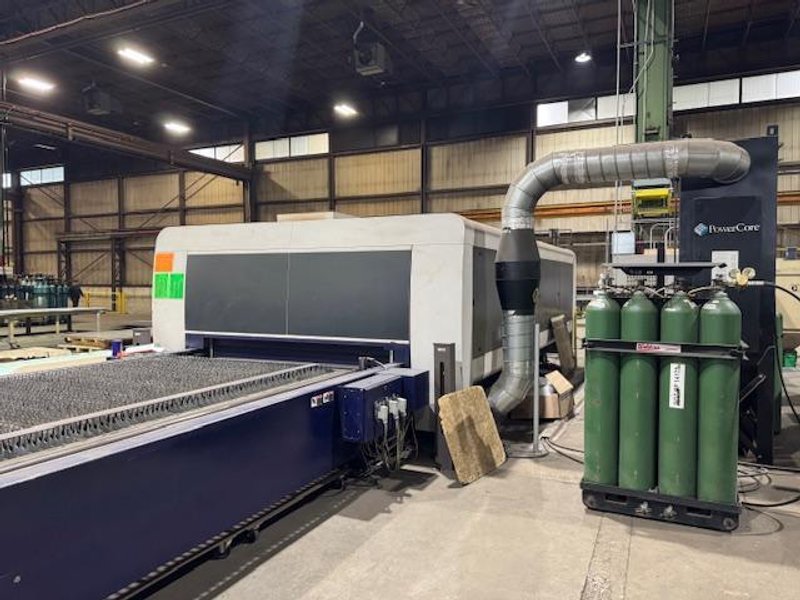

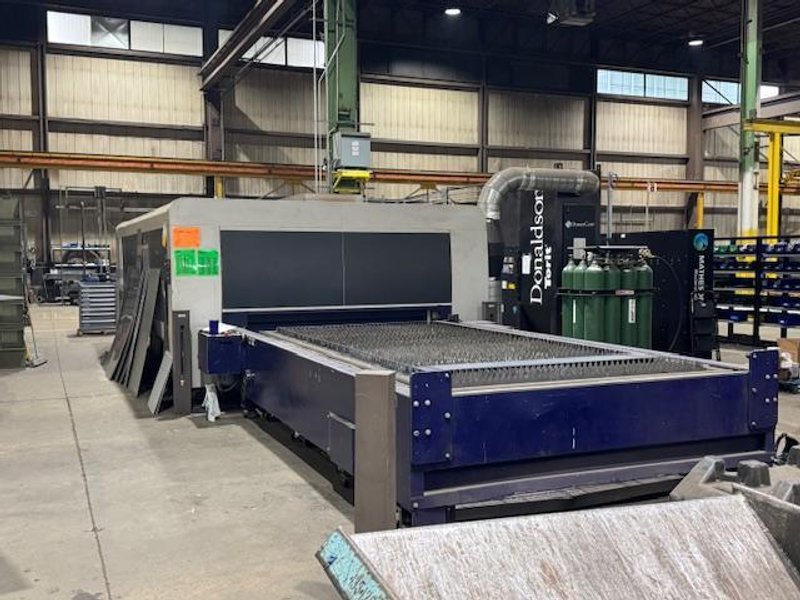

4000 Watt Bystronic Bysprint 4020 Fiber Laser, 2013

Wattage: 4000

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Cutting Area: X: 160″ Y: 80″ X: 2.75″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Nominal Sheet Size: X: 157″ Y: 78″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Maximum Positioning Speed Parallel Axis X,Y: 3937 Inch/Min Maximum Simultaneous Positioning Speed: 5511 Inch/Min Positioning Accuracy Pa*: +-0.004″ repeatability Ps*: +-0.002″ Maximum Workspace Weight: 3,484 Lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Max Sheet Thickness: Steel: 0.75″ Stainless Steel: 0.625″ Aluminium: 0.625″ Brass: 0.312″ Copper: 0.312″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machine Dimensions: Length: 541″ Width: 262″ Height: 101″ Weight: 33,069 Lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
