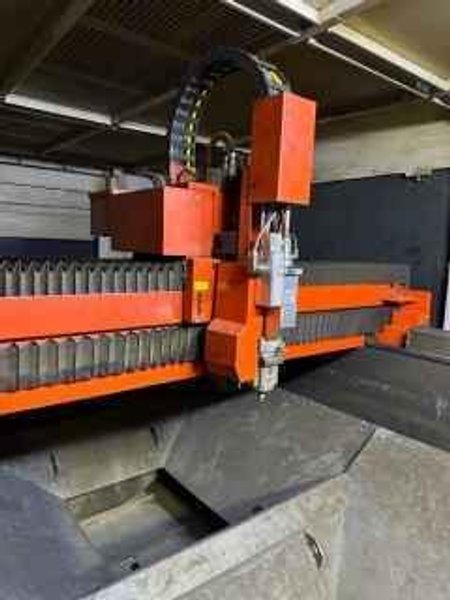

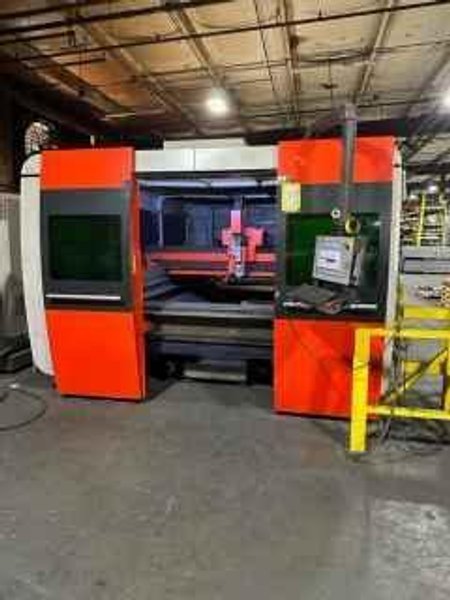

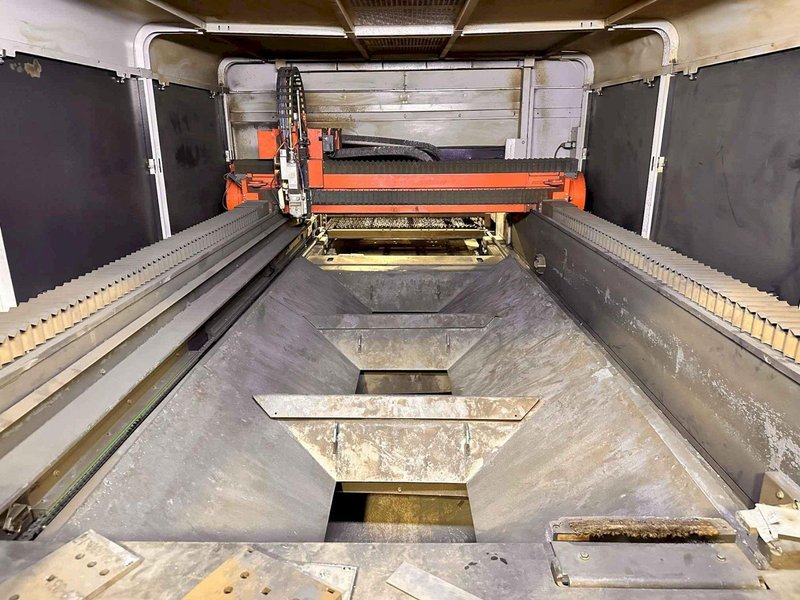

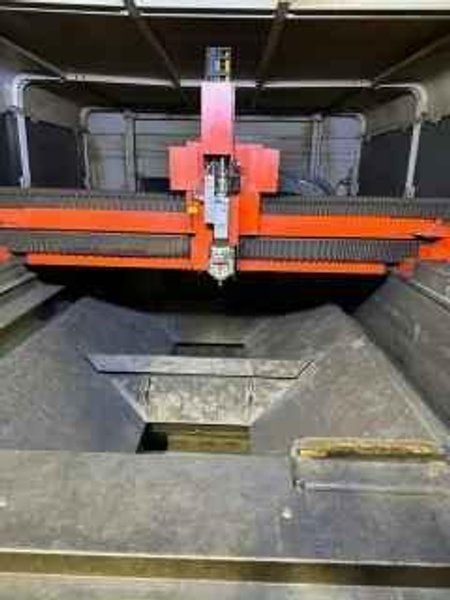

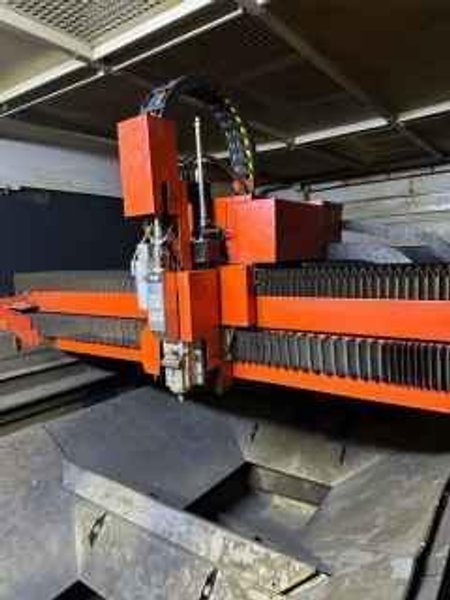

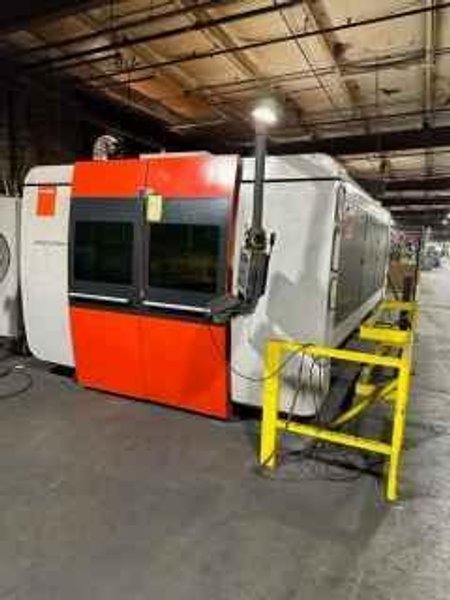

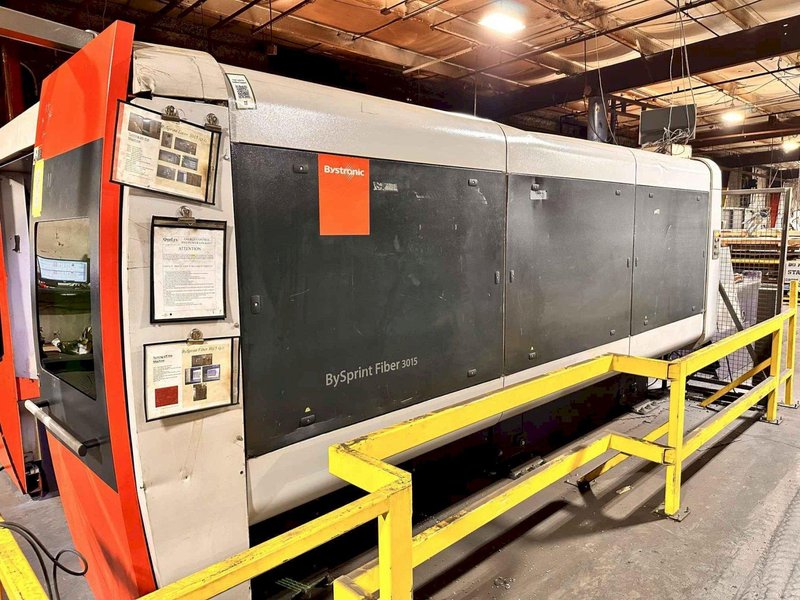

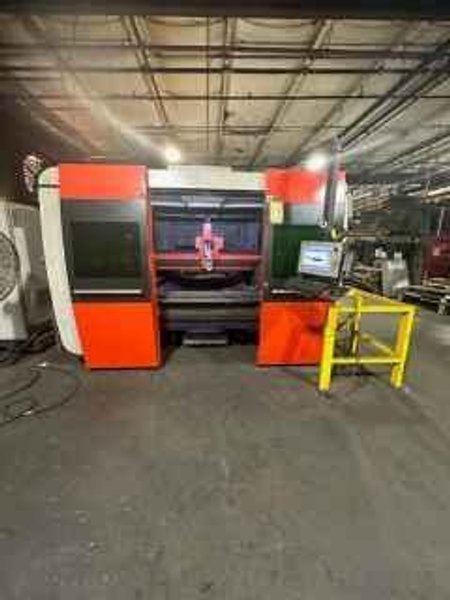

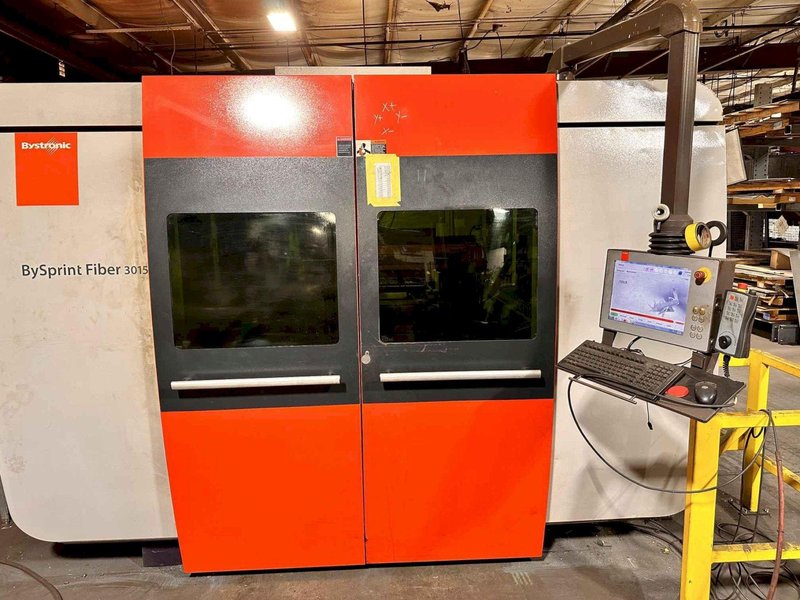

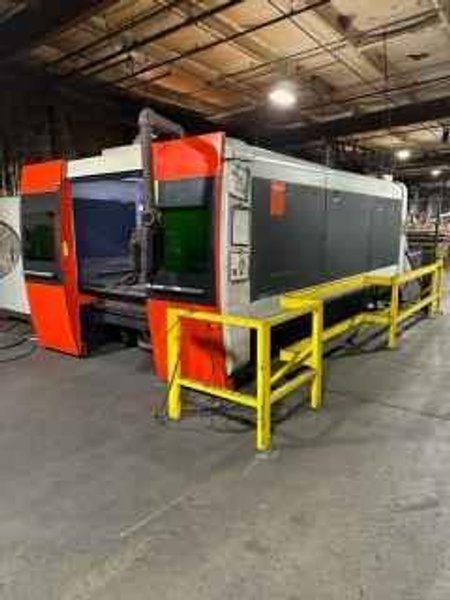

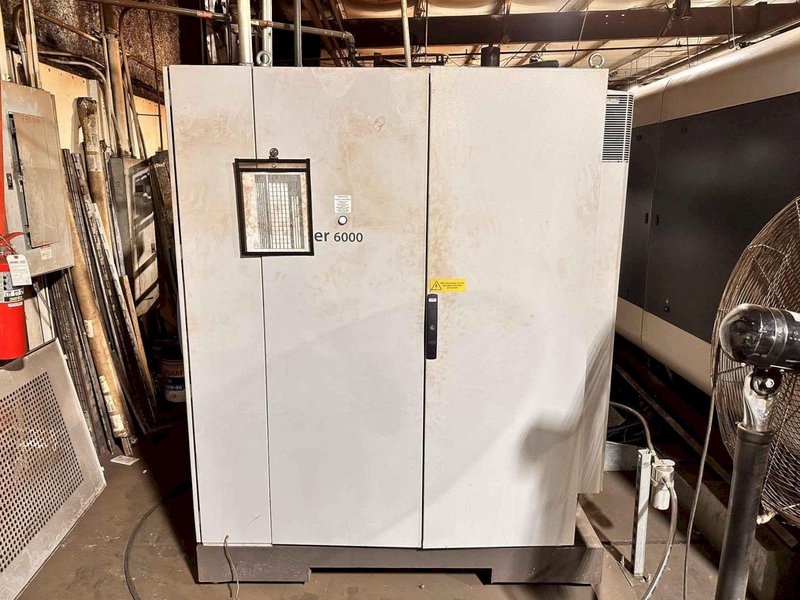

6000 Watt Bystronic BySprint 3015 Fiber Laser, 2015 – 5′ x 10′ Table

Power: 6,000 W Steel (Max. Cutting Sheet Thickness): 25 mm Stainless Steel (Max. Cutting Sheet Thickness): 30 mm Aluminum (Max. Cutting Sheet Thickness): 30 mm Brass (Max. Sheet Thickness): 15 mm Copper (Max. Sheet Thickness): 12 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Hours As Of August 2023: Power on Hours: 19,700

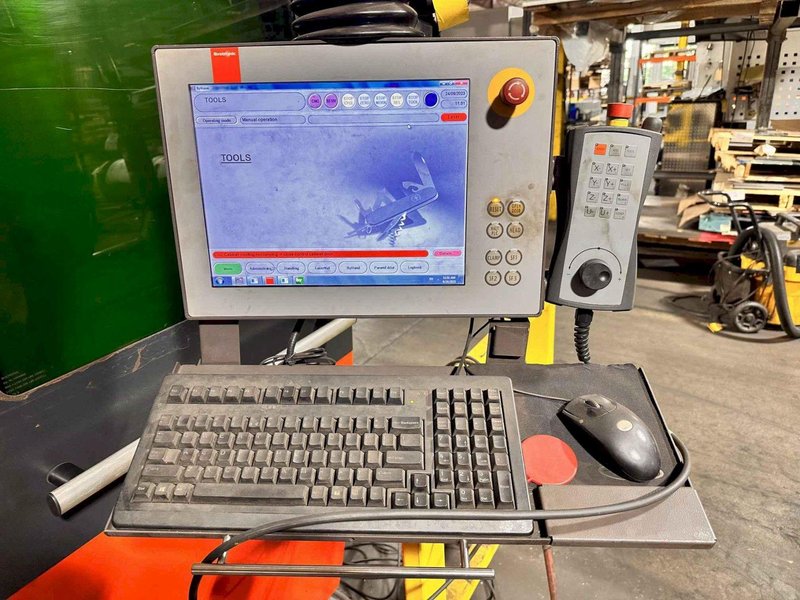

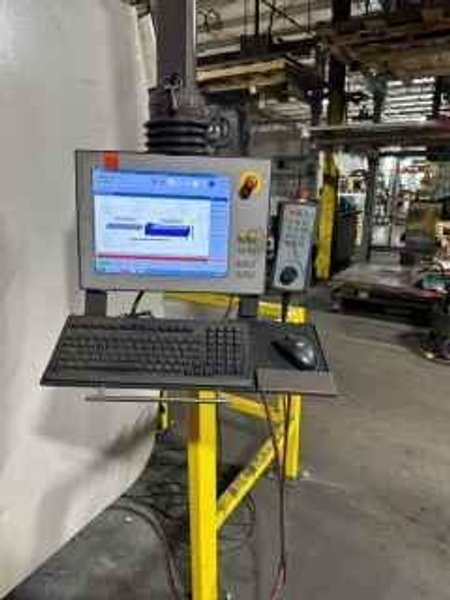

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Length: 11,900 mm Width: 5,700 mm Height: 3,200 mm Nominal Sheet Size: (X) 3,000 mm Nominal Sheet Size: (Y) 1,500 mm Cutting Area (X): 3,100 mm Cutting Area (Y): 1,580 mm Cutting Area (Z): 100 mm Max. Positioning Speed Parallel Axis X/Y: 120 M/Min Max. Simultaneous Positioning Speed: 170 M/Min Bilateral Repeatability of Positioning of One Axis R (Following Iso 230-2:2014(E)): 0.025 Mm Averaged, Bilateral Position Deviation of One Axis M (Following Iso 230-2:2014(E)): 0.05 mm Edge Detection Accuracy: (±) 0.5 mm Max. Workpiece Weight: 1,100 Kg Maximum Allowed Workpiece Weight on Both Shuttle Tables: 1,850 Kg Machine Weight: 11,000 kg Table Changeover Time: 25 sec Touchscreen and Manual Control Unit Control: ByMotion OPC ua

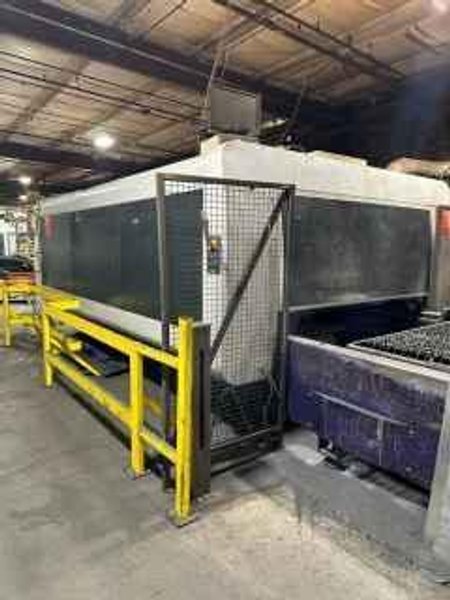

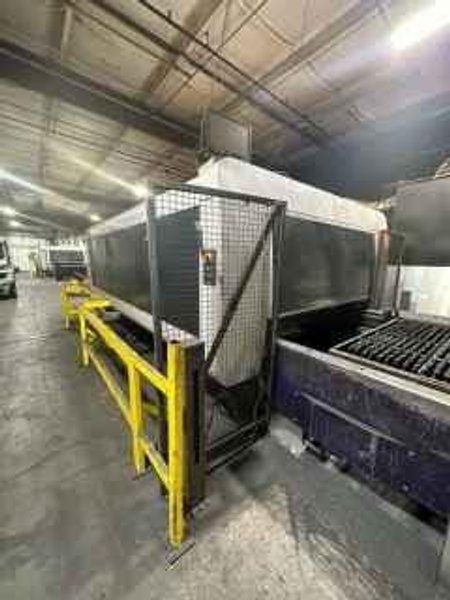

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped with: New Cutting Head New X and Y Rack/Pinion All New Fiber Modules Shuttle Table Dust Collector Spent over 100K in Maintenance in last 2 months

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
