Effytec HB101 Horizontal Sachet Packaging Machine – 2019, CE-Certified

Equipment Overview

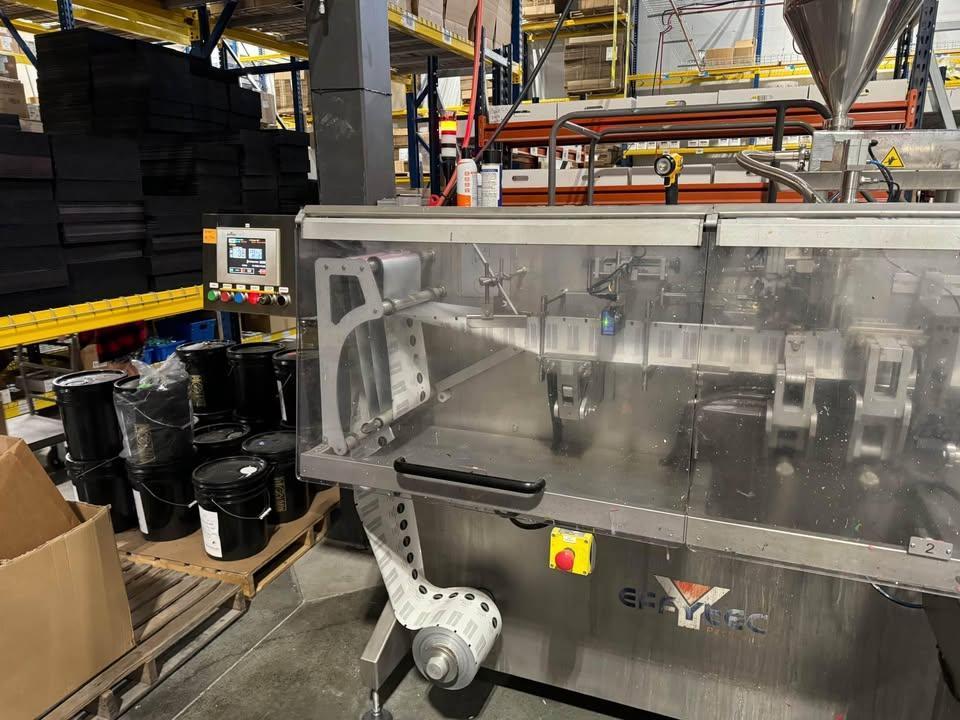

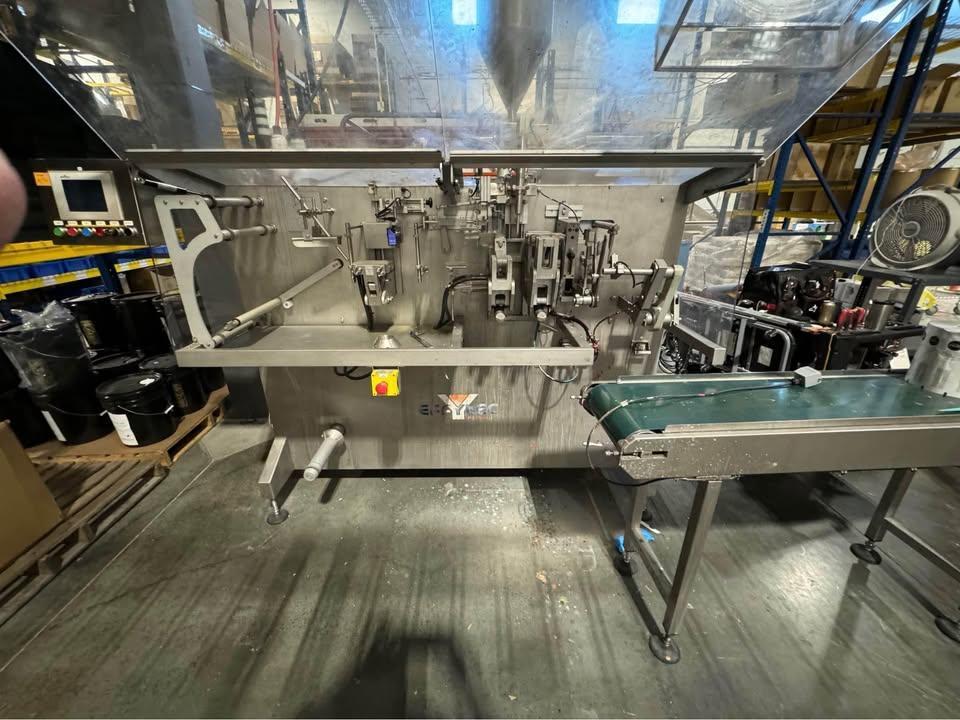

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,This 2019 Effytec HB101 is a stainless-steel CE-marked horizontal sachet form-fill-seal system designed for mid- to high-volume pouch packaging. Built for flexible formats and liquid or viscous products, it operates at up to 110 cycles per minute, with a max fill volume of 50cc. Its compact footprint and modular integration make it ideal for contract packagers, cosmetics, and food/pharma operations requiring GMP-compliant production.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Key Features and Specifications

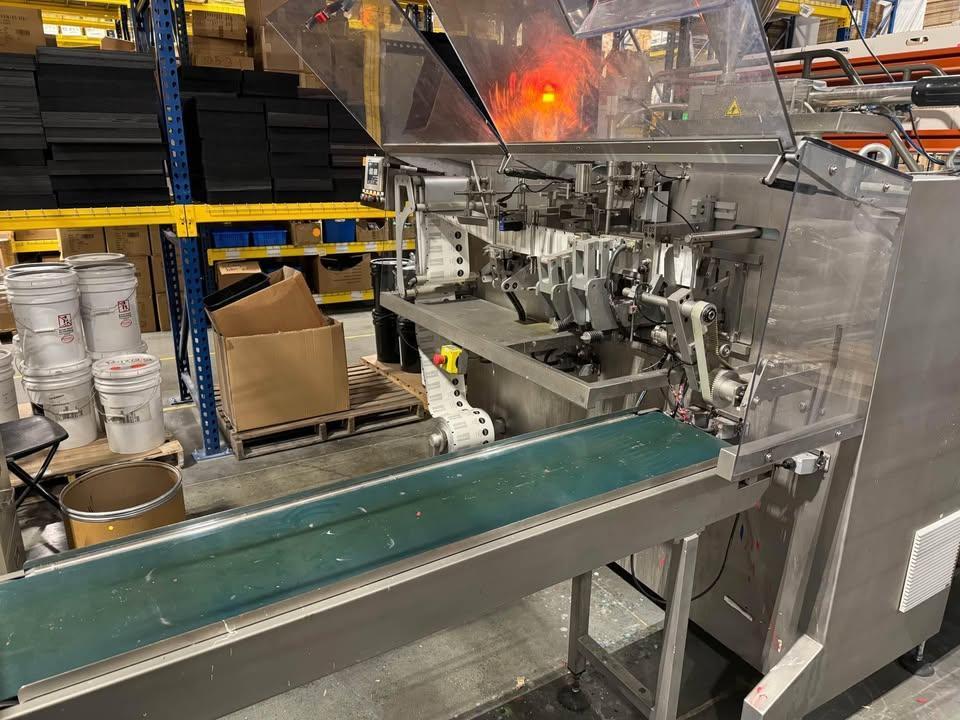

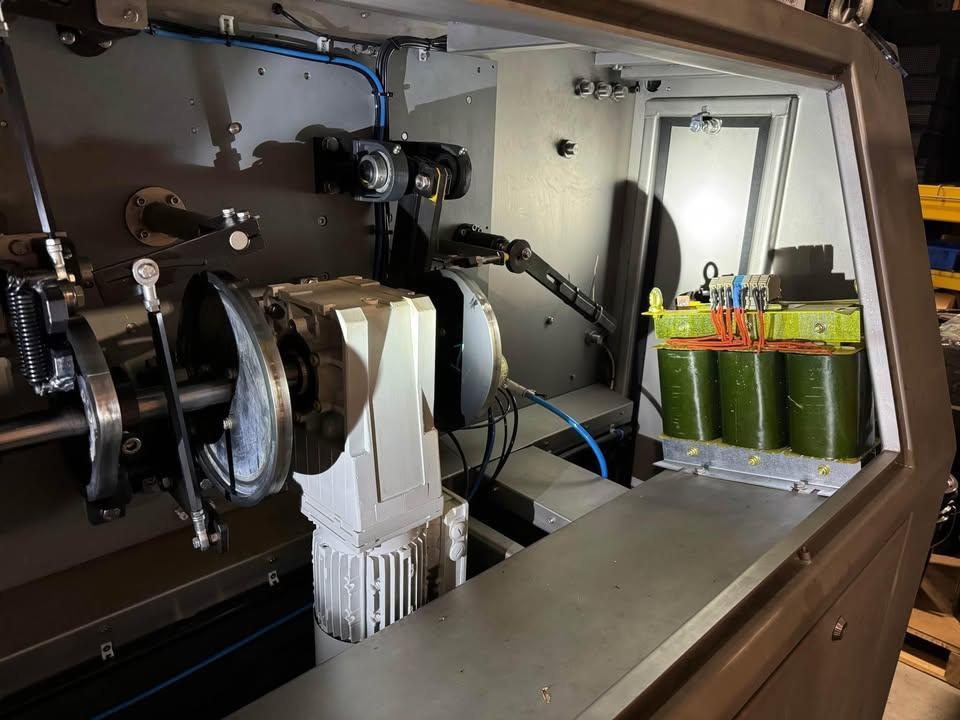

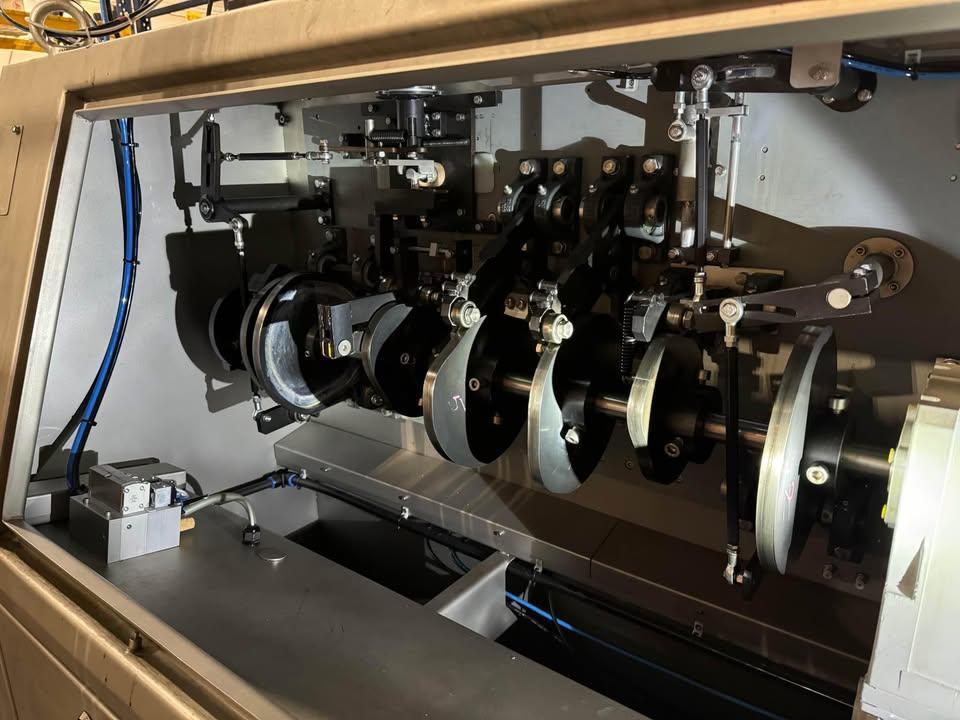

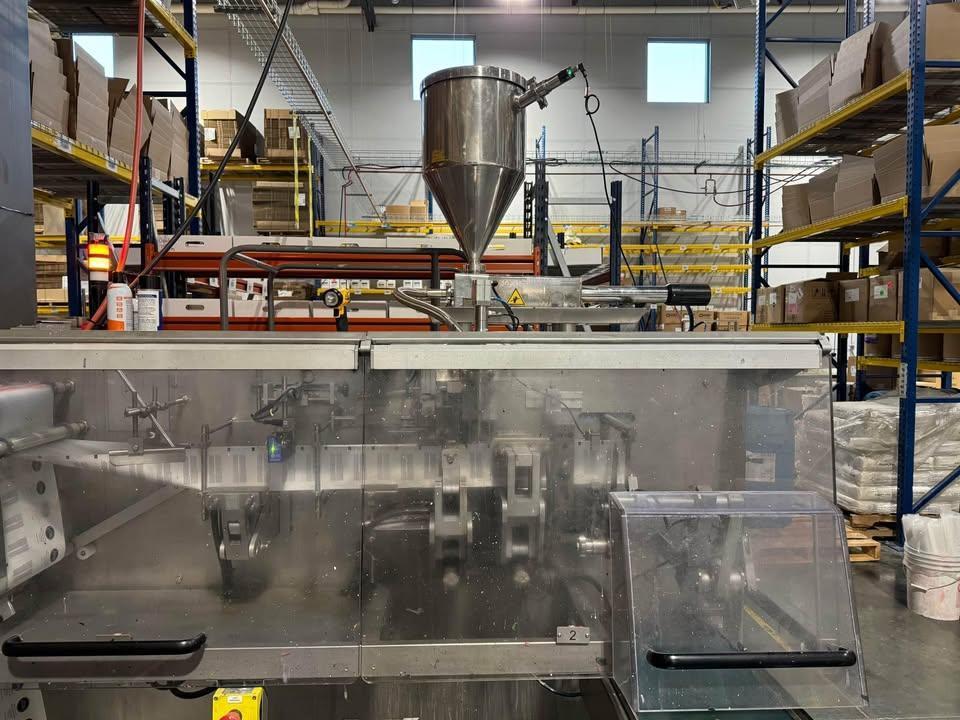

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Horizontal Form-Fill-Seal (HFFS), 1-Station – Max Speed: 110 cycles/minute – Fill Volume: Up to 50 cc – Pouch Size: 40–100 mm W × 40–130 mm L – Reel Diameter: Max 400 mm (core 70–75 mm) – Electrical: 460 V, 8 A – Air: 6 bar – CE Certified, Stainless Steel Build – Cam-Based Drive System – Footprint: ~1920 × 1400 × 1160 mm – Accessories: Integrated hopper and output conveyor
