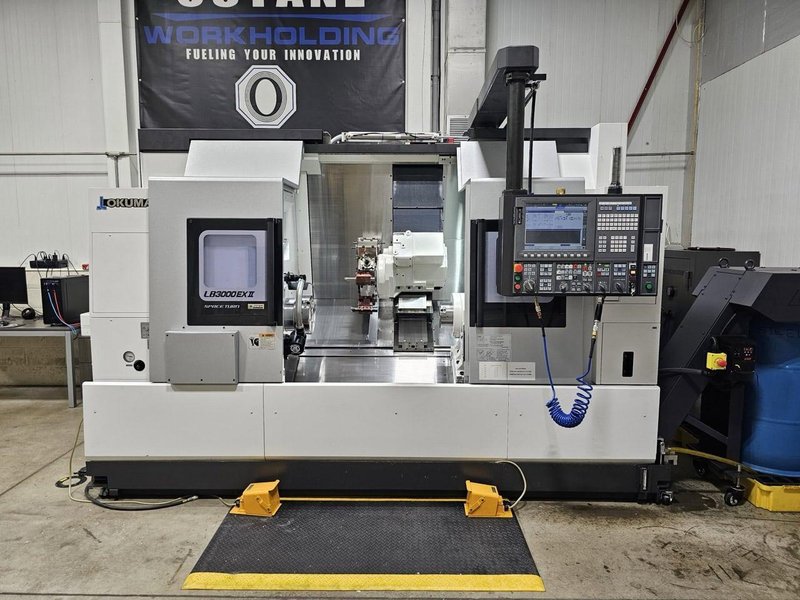

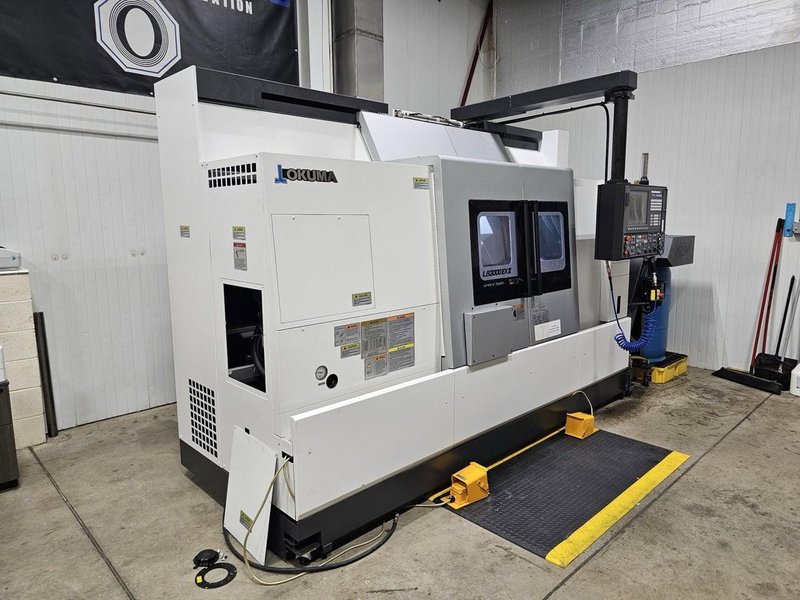

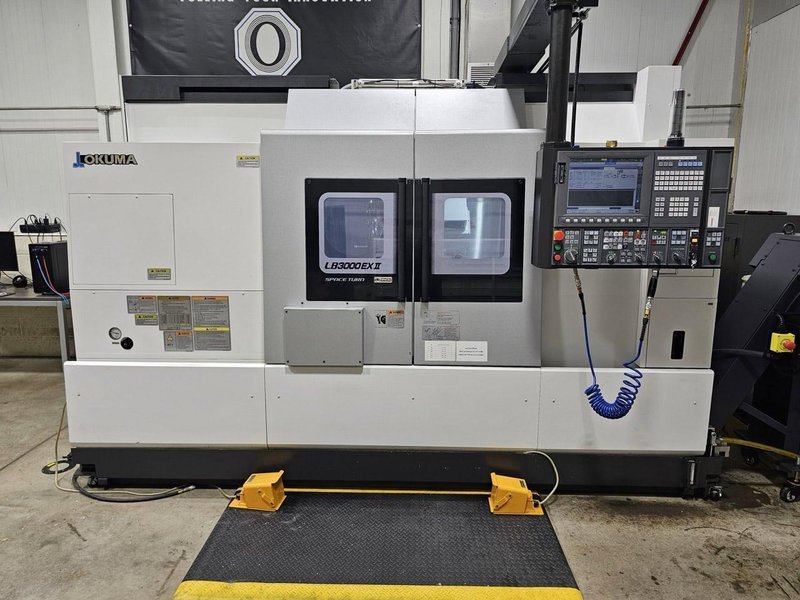

Okuma LB3000EX2-MYW 800 CNC Lathe, 2022 – Very Low Hours

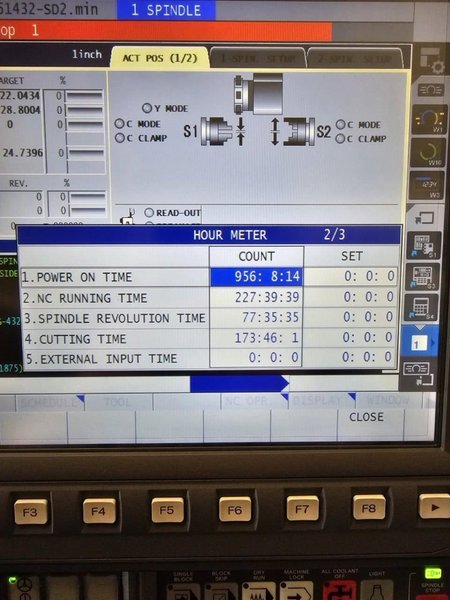

**Spindle cutting time: 77 hours and 35 minutes* Spindle + Live tooling time: 173 hours and 46 minutes**

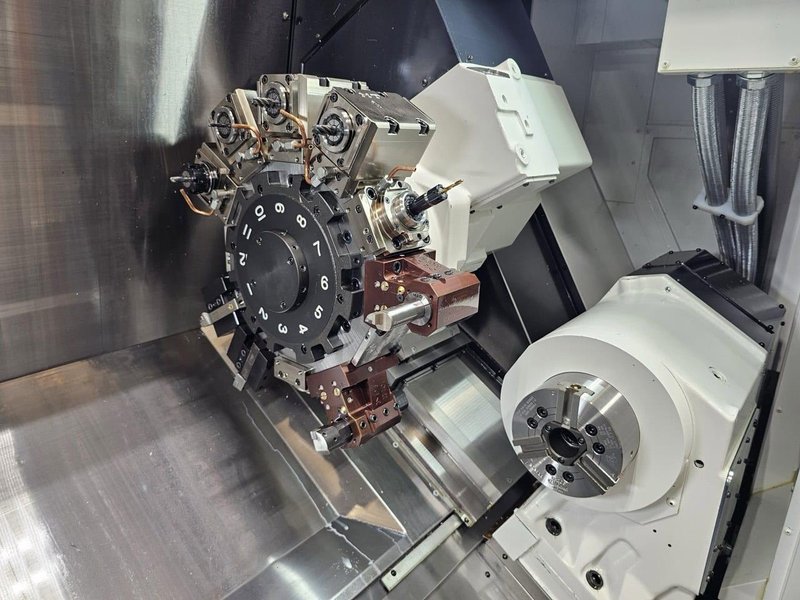

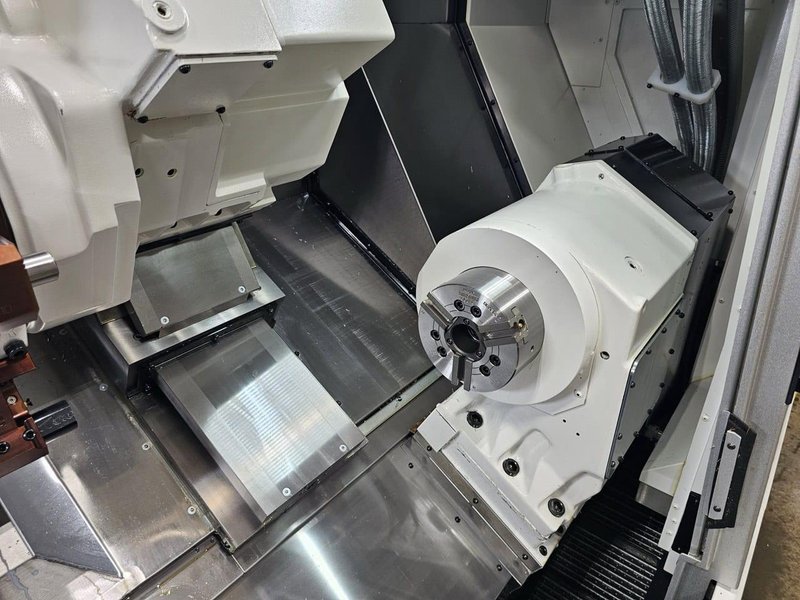

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,22.83″ Swing ø 13.39″ max turn dia. 30 HP (22kw) main spindle 5,000 rpm A2-6 spindle nose 3.15″ through spindle (80mm) 12 position, 0.1 sec, NC Multitasking tool turret 1,181 IPM / 984 IPM / 492 IPM; Z/X/Y rapid traverse Hardened and ground box ways X, Y, Z ø140 flat sub-spindle 15/10 hp 50-6000 rpm 83 ft lbs Sub-spindle hollow cylinder 1.77 in. dia. Milling Capacity: 3.7 in3/min Milling spindle 9.5/5.5 hp Y-axis +2.76″ / -1.77″ Manual touch setter Swing over way covers 22.83″ Swing over saddle 18.5″ Max turning dia 13.39″ X-axis travel 10.24″ Z-axis travel 39.76″ 4.6 hp Y-axis servo

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,X-axis ball screw 1.26″ dia. servo power 4.7 hp Z-axis ball screw 1.57″ dia. servo power 6.1hp For rigging estimates, (138”L x 80”W x 98”H x 17,500lbs)

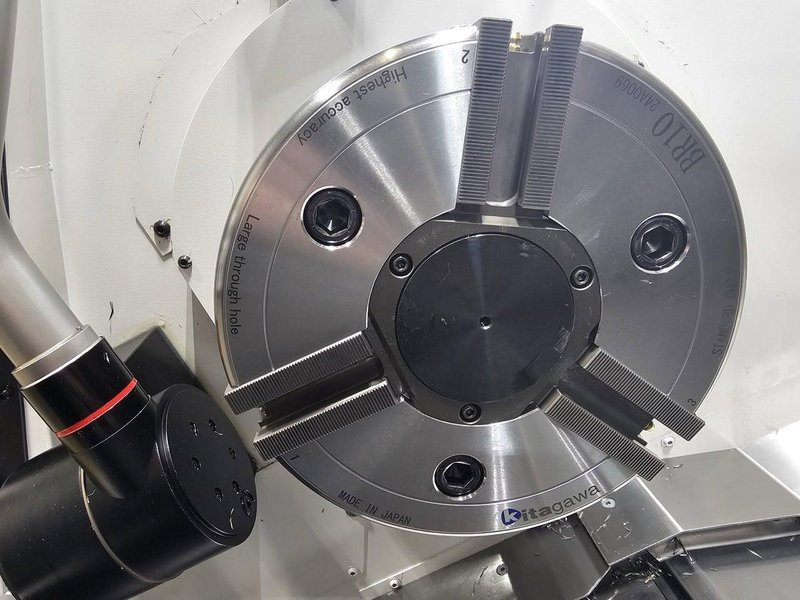

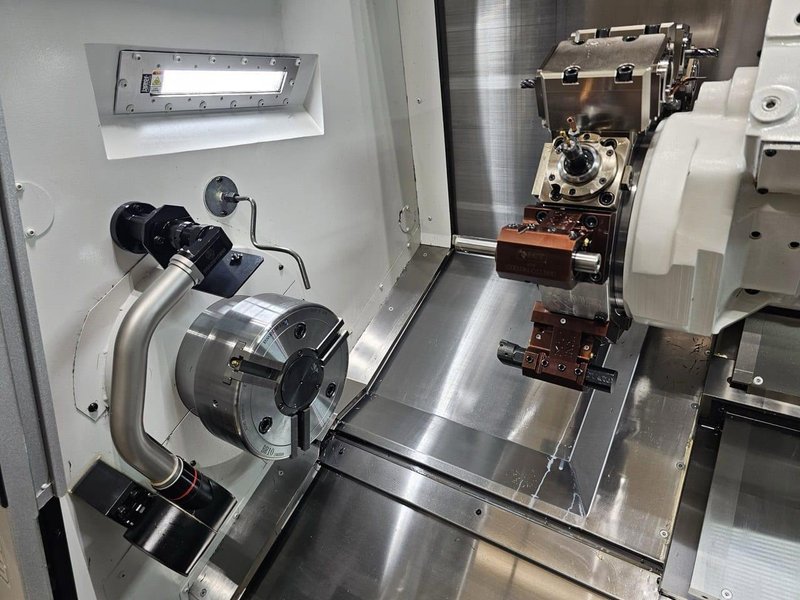

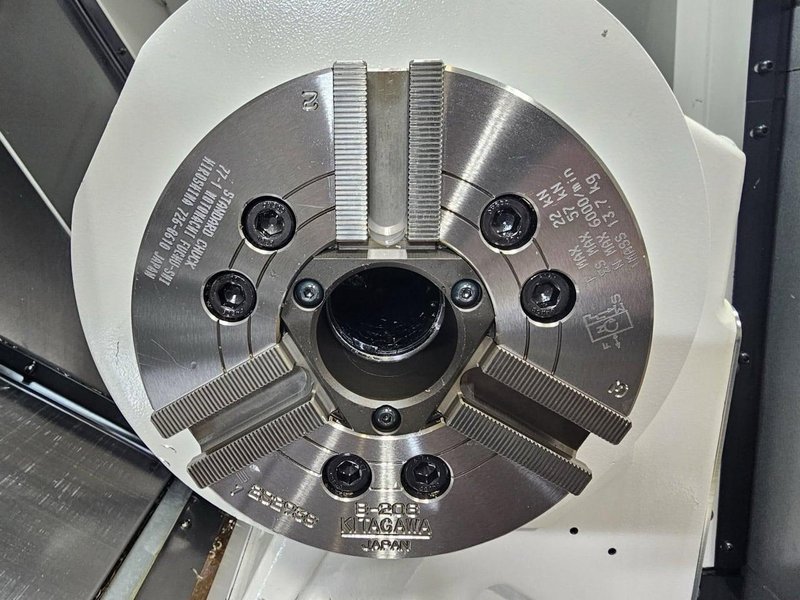

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Y-Axis Live Tooling Sub-Spindle Kitagawa Chucks Included LNS Turbo Conveyor Included AUTO DOOR W/ DUAL CYCLE 1-Y0601-01, Tool Setter RPD TRVRS 1-Y1366-00 (Not sure what this is, but it has it) ROBOT ABX I/F 1-Y1114-00 **Tooling Package available at discounted rate**

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
