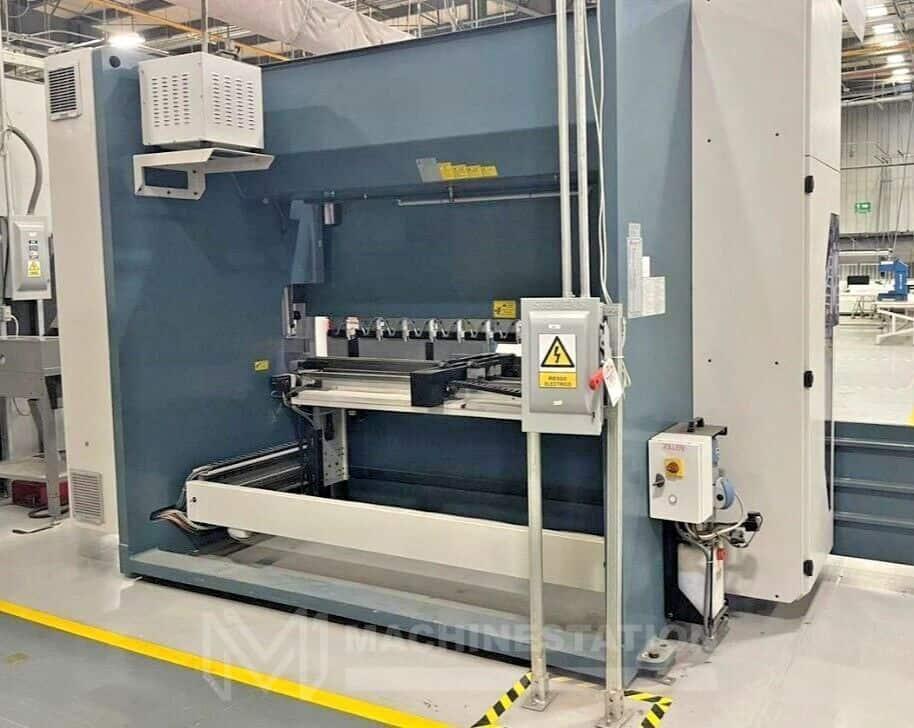

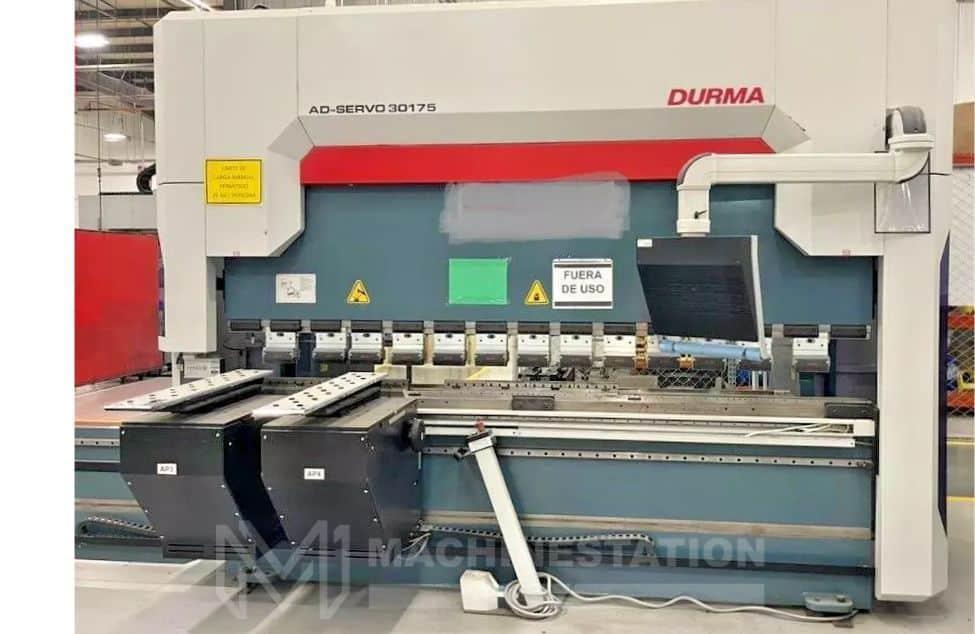

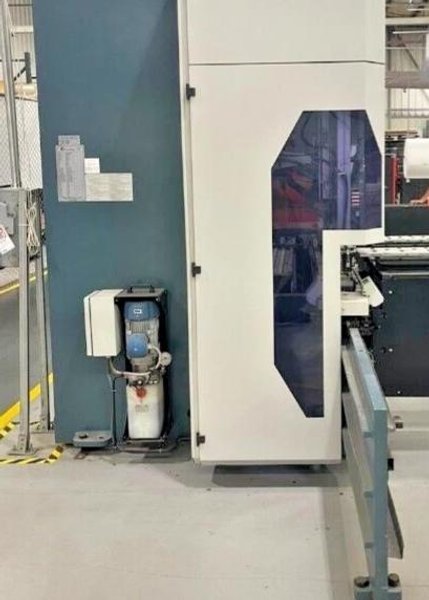

Durmazlar AD-S 30175 CNC Press Brake – 175 Ton 10′ 2022

Brand
DURMAZLAR
Category
CNC, Metalworking & Manufacturing
Type
Press Brakes
Model
SKU:115082Make:DurmazlarModel:AD-S 30175
Stock #
Not specified
Year
Not specified
Condition
Not specified

Location

California
REQUEST FINANCING

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU:115082
Make:Durmazlar
Model:AD-S 30175
Condition:Used – Excellent (As Like New)



Features:

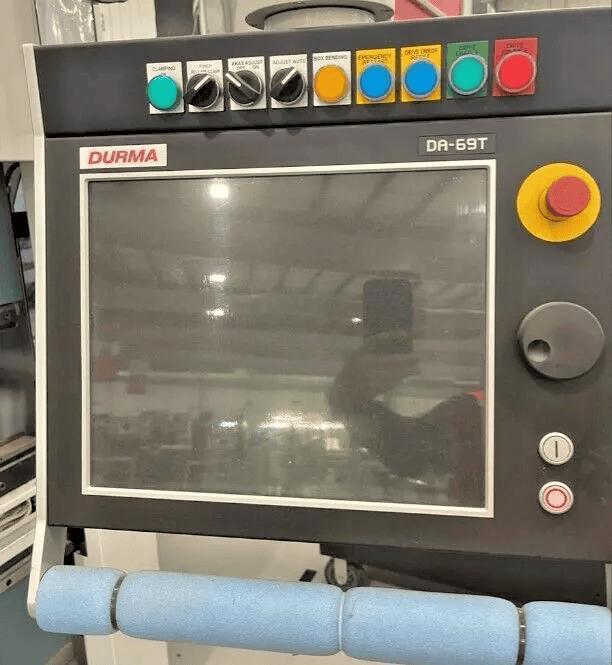

Durma DA-69T CNC Control
3D and 2D Graphical Touch Screen Programming Mode

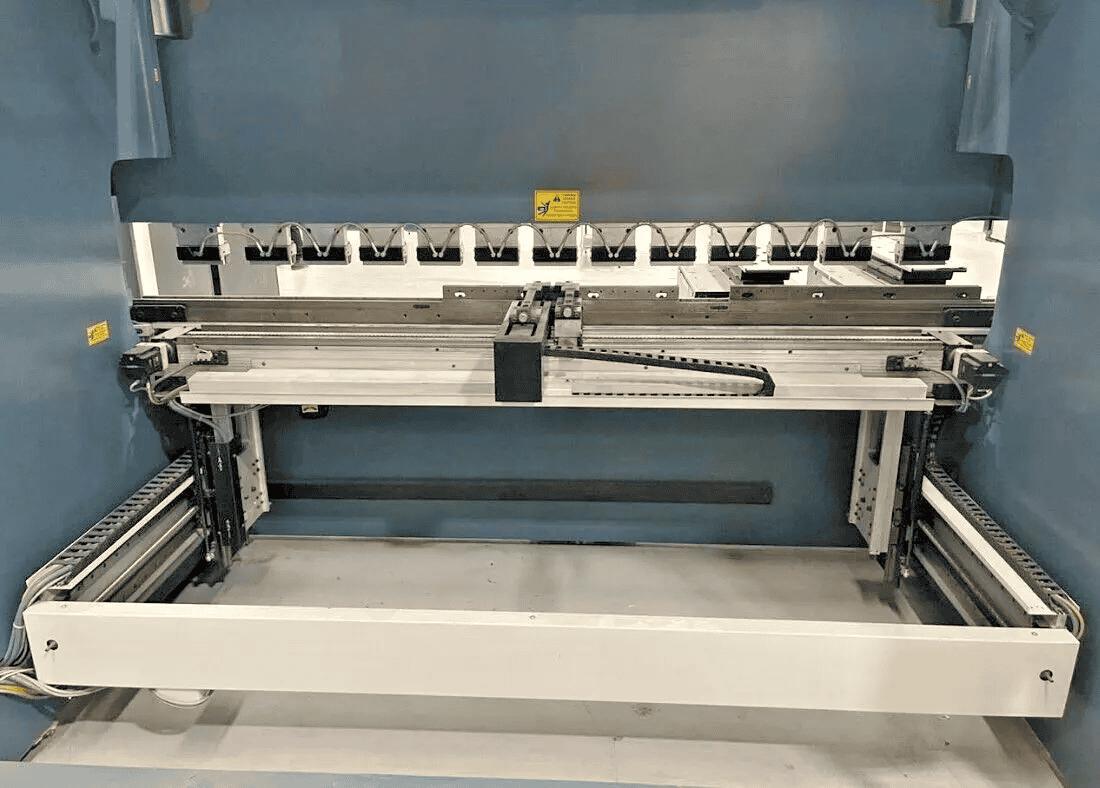

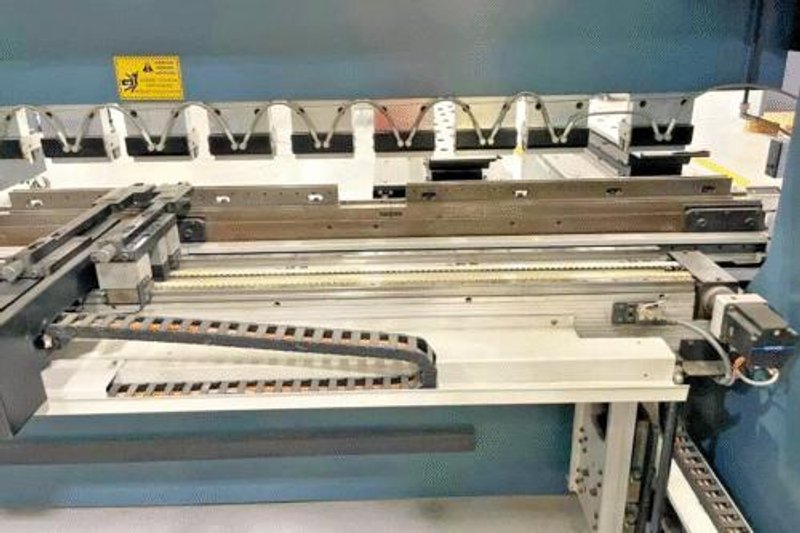

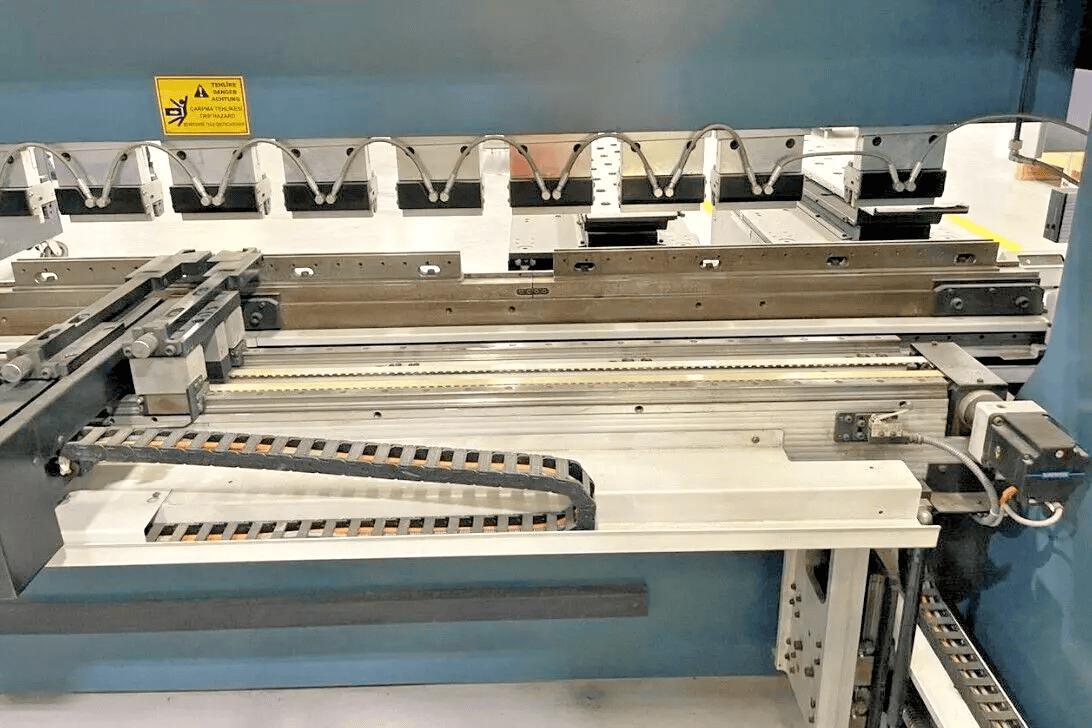

(5) Axis Back Gauge

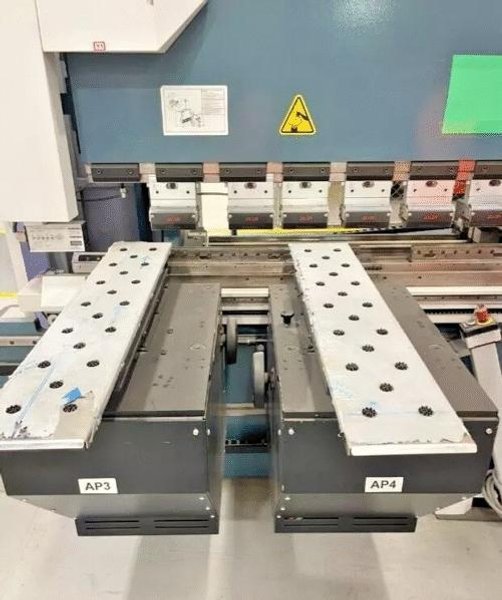

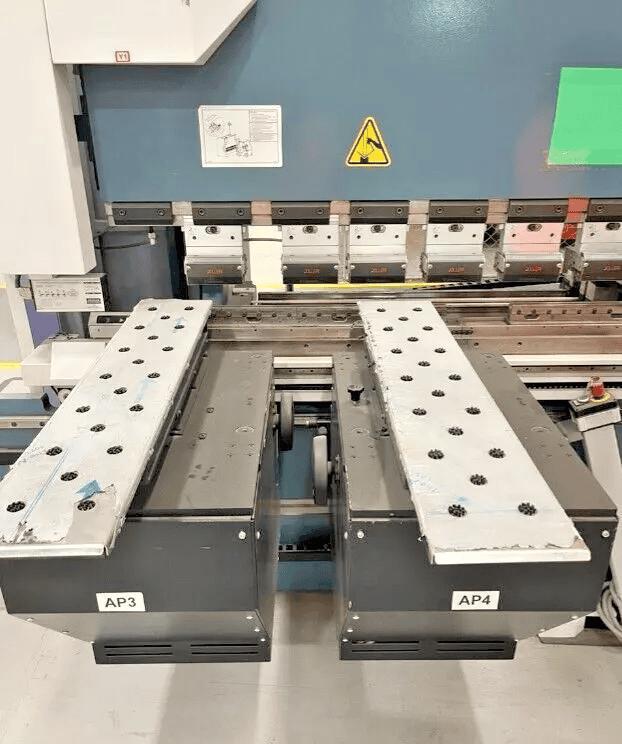

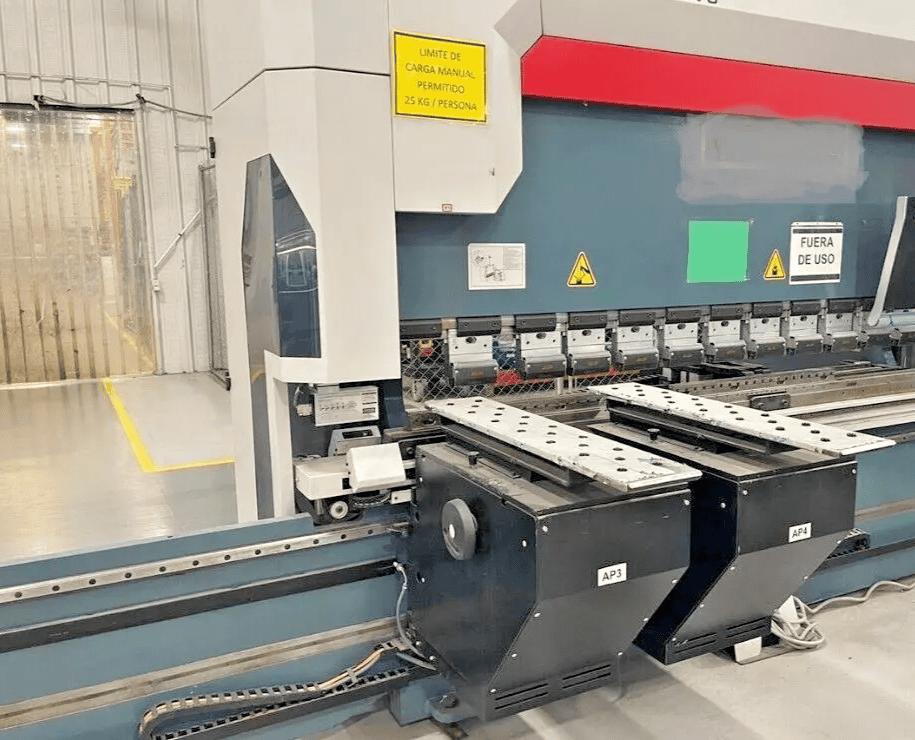

Linear Guide Front Sheet Support
Crowing System
Laser Guarding System
Side & Rear Safety Guards
Pedestal Control with Electric Foot Pedal



Specifications:
Capacity: 175 Tons
Maximum Bending Length: 120″
Inside Distance Between Side Frames: 102.3″
Stroke Length: 10.43″
Daylight: 20.86″
Throat Depth: 17.7″
Rapid Speed Y-Axis: 7.9” Per Second
Working Speed Y-Axis: 0.5” Per Second
Retraction Speed Y-Axis: 7.9” Per Second
Back Guage Speed  X-Axis: 19.68” Per Second
Back Guage Speed  R-Axis: 13.77” Per Second
Working Speed  Z-Axis: 39.4” Per Second
Working Distance Z-Axis: 78.3”
Table Height: 35.43”
Table Width: 4.09”



General:

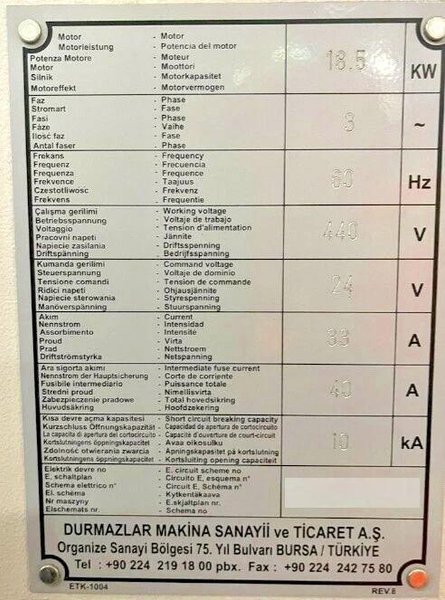

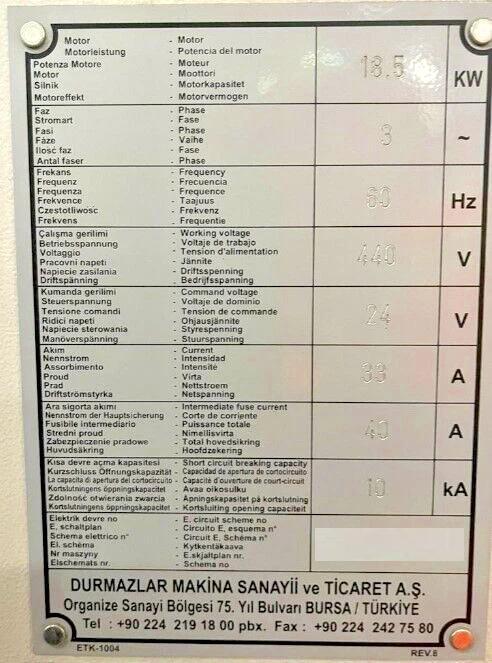

Power Source: 440 V, Three Phase, 60 Hz

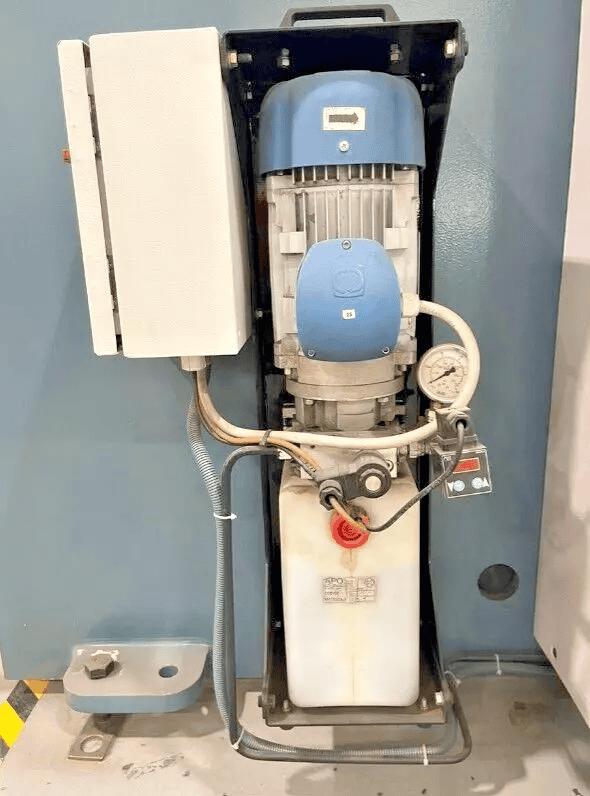

Motor: 18.5 Kw
Overall Dimensions: 221″ X 101″ x 108″ High Approx.
Weight : 26,235 lbs Approx.
